Description

ABB CAI04 is an analog input module belonging to ABB’s compact I/O series.This module is designed to collect signals from various analog sensors in industrial sites,such as temperature,pressure,liquid level,etc.,and convert them into digital signals that can be processed by the control system,thereby achieving process monitoring,data acquisition,and control functions.As a member of ABB’s compact I/O series,ABB CAI04 module is renowned for its small size,flexible configuration,and reliable performance,making it ideal for automation applications with limited space but certain requirements for I/O functionality.The ABB CAI04 module typically has multiple analog input channels,supports various industrial standard analog signal types(such as voltage and current),and provides certain signal conditioning and protection functions to ensure the accuracy and stability of signal acquisition.In ABB’s automation control system,the ABB CAI04 compact analog input module plays a key role in connecting on-site analog signals with the core of the control system,providing the necessary data foundation for the intelligent operation of the system.

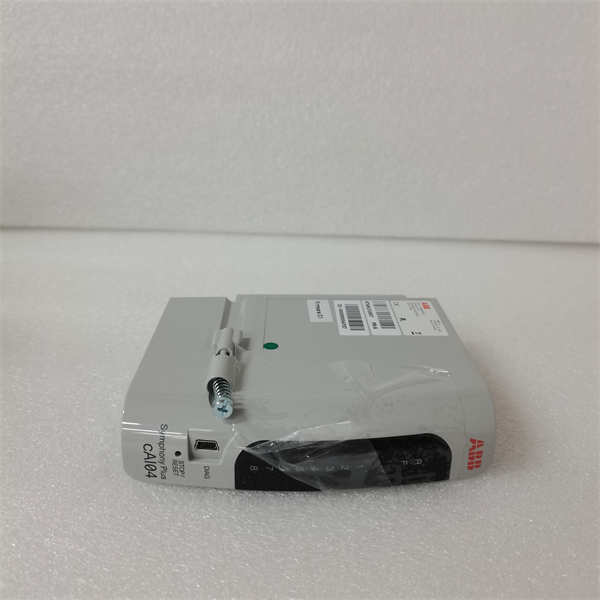

CAI04 ABB

technical specifications

Product model:CAI04

Manufacturer:ABB

Product Type:Compact Analog Input Module

Series:ABB Compact I/O Series(specific series names may vary by product line)

Number of input channels:4 or 8(may vary depending on model version)

Input signal type:configurable as voltage or current input

Voltage input range:For example:0-10V DC,±10V DC,1-5V DC,etc

Current input range:e.g.0-20mA,4-20mA,etc

Resolution:12 bits or higher

Accuracy:The specific value depends on the model version

Sampling rate:The specific value depends on the model version

Isolation:Provide electrical isolation

Power supply voltage:usually supplied by the system bus

Working temperature:0°C to+55°C(or wider range,depending on model)

Installation method:DIN rail installation

Main features and advantages

The ABB CAI04 compact analog input module,as an important component of ABB’s compact I/O solution,has the following significant features and advantages.Its main feature is its compact size,which makes it very suitable for applications with limited installation space and can effectively save control cabinet space.The ABB CAI04 module typically supports multiple industrial standard analog signal input types,including commonly used voltage and current signals.Users can flexibly configure according to the actual output of on-site sensors,improving system compatibility and adaptability.

High integration:ABB CAI04 integrates multiple analog input channels within a compact volume,increasing the system’s I/O density and reducing the cost of each channel.

High reliability:As a well-known supplier of industrial automation equipment,ABB’s products usually have high reliability and stability,and the ABB CAI04 module is no exception,which can operate stably in industrial environments.

Easy to install and maintain:Compact designs typically use DIN rail installation,making wiring convenient,and modular design simplifies maintenance and replacement processes.

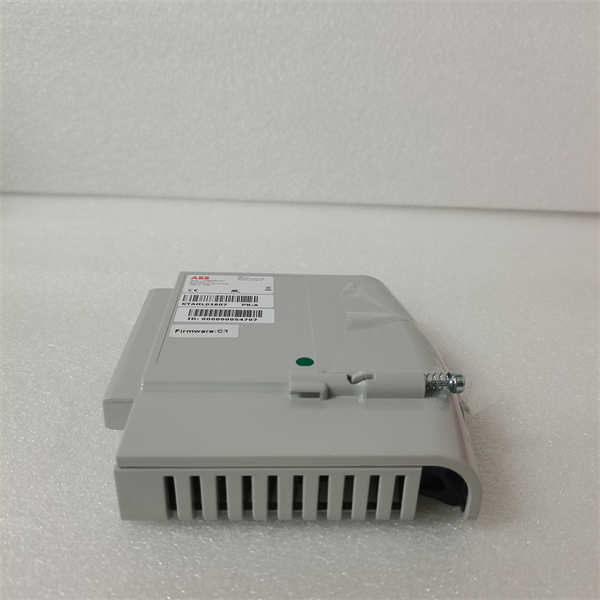

CAI04 ABB

application area

The ABB CAI04 compact analog input module is suitable for various industrial automation applications that require the acquisition of analog signals and have certain installation space requirements.For example,in small PLC control systems,ABB CAI04 can serve as the main analog input interface for collecting process parameters such as temperature,pressure,and liquid level.In remote I/O stations of distributed control systems(DCS),ABB CAI04 can be installed near on-site equipment to reduce wiring costs and signal interference.In addition,ABB CAI04 can also be applied in fields such as machine automation,building automation,HVAC systems,etc.,for real-time monitoring and control of various analog parameters,providing data support for the intelligent operation of the system.Its compact design makes it particularly suitable for applications with tight control cabinet space.

Related products

Products related to the ABB CAI04 compact analog input module include other modules in the ABB compact I/O series,such as digital input modules(such as CDI08),digital output modules(such as CDO16),analog output modules(such as CAO04),and CPU modules(such as AC500 eCo CPU or other compact PLC CPUs).In addition,ABB also provides various power modules,communication modules,and automation software for configuring and programming these modules.Users can choose the appropriate combination of ABB compact I/O modules according to their specific application needs to build a complete automation control system.

Preparation before installation:Before installing the ABB CAI04 compact analog input module,please refer to the relevant product manual and system installation guide.Ensure that the control system is powered off and select a suitable installation location and DIN rail.Check if the appearance of ABB CAI04 module is intact and if the wiring terminals are clean.Prepare appropriate cables and connectors based on the output signal type(voltage or current)and wiring requirements of the on-site sensors.Carefully read the wiring diagram to ensure that the signal wires of the on-site sensors are correctly connected to the corresponding terminals of the ABB CAI04 module,and tighten the terminal screws with the correct torque.

Maintenance suggestion:To ensure the long-term stable operation of ABB CAI04 compact analog input module,it is recommended to perform regular maintenance.Regularly check if the module is securely installed on the DIN rail.Keep the module and wiring terminals clean to avoid dust and corrosion affecting signal transmission.Regularly check the connection and wiring of on-site sensors to ensure they are in good condition.If abnormal analog signal acquisition is found,it is recommended to use tools such as multimeters to check whether the sensor output is normal and whether the wiring is correct.It is recommended to conduct regular system checks and hardware diagnostics according to ABB’s product maintenance manual.

CAI04 ABB

Product Guarantee

ABB provides standard industrial product quality assurance for its CAI04 compact analog input module.All products undergo strict quality inspection and performance testing to ensure compliance with relevant industrial standards and ABB’s quality requirements.
