Description

ABB PFEA112-65 3BSE050091R65 is a high-performance tension electronic device belonging to ABB’s tension measurement and control system.The ABB PFEA112-65 is designed for precise measurement and control of tension in wound or unfolded materials such as paper,film,metal foil,wires,and textiles.PFEA112-65 3BSE050091R65 is capable of receiving signals from two tension sensors and providing accurate tension value display and output.As a key component of ABB’s tension control solution,ABB PFEA112-65 integrates advanced signal processing and control algorithms to ensure the stability and consistency of material tension in various industrial production processes.This tension electronic device plays a crucial role in automated tension control systems by helping users improve product quality,optimize production efficiency,and reduce material waste through its reliable performance and user-friendly interface.

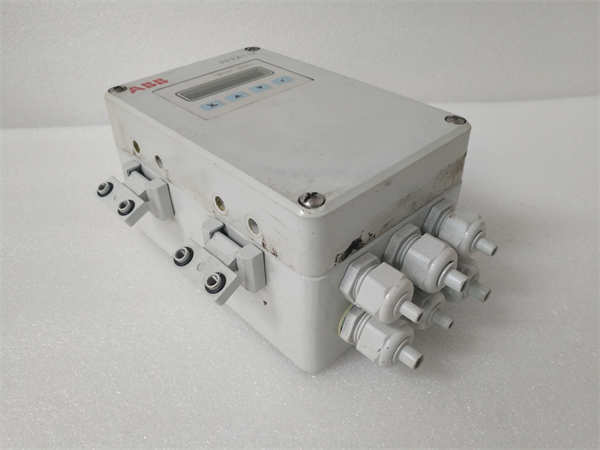

PFEA112-65 3BSE050091R65 ABB

technical specifications

Product model:PFEA112-65 3BSE050091R65

Manufacturer:ABB

Product Type:Tension Electronic Equipment

Input channel:2-channel tension sensor input

Sensor excitation:0.5 A rms,330 Hz

Analog output:2 channels(voltage or current optional)

Voltage output:-5 to+11 V(maximum load 5 mA)

Current output:0 to 21 mA(maximum load 550Ω)

Filtering:Adjustable step response(15,30,752507501500 ms)

Communication interface:PROFIBUS DP

Supply voltage:24 V DC(18-36 V)

Power consumption:7.5 W

Working temperature:+5 to+55°C

Protection level:IP20 or IP65

Installation method:DIN rail installation or wall mounted installation(IP65 version)

Main features and advantages

The ABB PFEA112-65 3BSE050091R65 tension electronic equipment has many significant features and advantages,making it an ideal choice for various industrial tension control applications.It can accurately measure signals from two tension sensors and provide reliable tension feedback,ensuring the accuracy of the control system.PFEA112-65 provides flexible analog output options,including voltage and current outputs,for easy integration with various control systems.The adjustable filtering function allows users to optimize signal response speed and stability according to different application requirements.The integrated PROFIBUS DP communication interface enables ABB PFEA112-65 to easily exchange data and configure parameters with the upper control system.In addition,the device also features a user-friendly multilingual interactive display screen,making it convenient for operators to set parameters and monitor in real-time.ABB PFEA112-65 3BSE050091R65 also has maximum load memory and zero offset memory functions,further improving its usability and control accuracy.

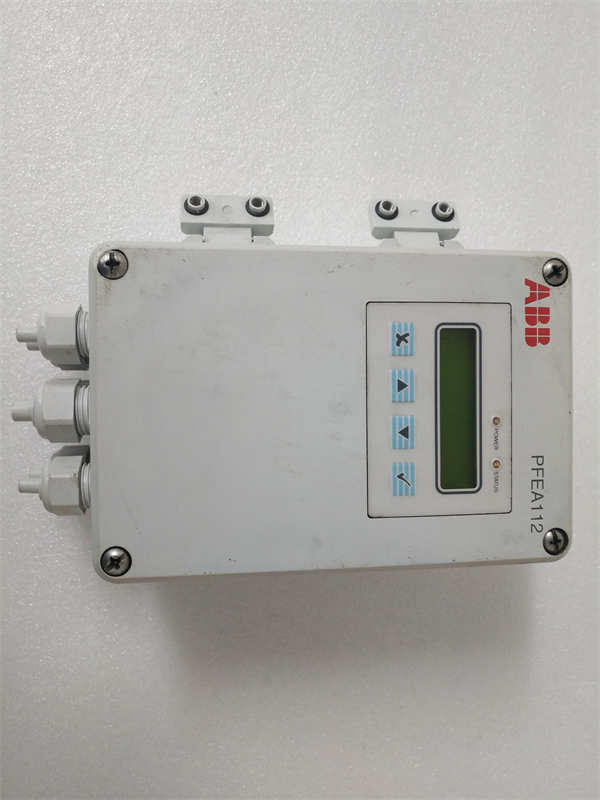

PFEA112-65 3BSE050091R65 ABB

application area

ABB PFEA112-65 3BSE050091R65 tension electronic equipment is widely used in industrial fields that require precise tension control.In the papermaking industry,it is used to control the tension of paper during winding and unfolding processes,ensuring the quality and production efficiency of paper rolls.In the plastic film and metal foil processing industry,ABB PFEA112-65 is used to maintain constant tension in materials during coating,slitting,and lamination processes,improve product quality,and reduce damage.In the textile industry,this equipment is used to control the tension of yarns during weaving and winding processes,ensuring the uniformity and quality of fabrics.In addition,PFEA112-65 is also suitable for automated production lines that require precise tension control in industries such as wire and cable manufacturing,printing machinery,rubber,and tire manufacturing.Through precise tension measurement and control,ABB PFEA112-65 3BSE050091R65 can help companies improve product quality,optimize production processes,and reduce operating costs.

Related products

ABB PFEA111 series:Similar to PFEA112-65,but may differ in functionality or interface,suitable for different tension control requirements.

ABB PFEA122 series:Another ABB tension electronic device that may have different communication interfaces or expansion functions.

ABB PFT100 series tension sensor:a tension sensor used in conjunction with PFEA112-65 to measure the actual tension of materials.

ABB Web Tension Control Systems:A complete tension control system solution provided by ABB,including tension electronics,sensors,and actuators.

ABB AC Drives:ABB’s AC frequency converters can be integrated with tension control systems to achieve precise speed and torque control of the drive motor,thereby affecting material tension.

ABB S800 I/O module:PFEA112-65 may exchange data with ABB control systems through certain S800 I/O modules.

ABB PLC controller(such as AC500 series):upper control system,used to receive tension data from PFEA112-65 and send control instructions.

Preparation before installation:Before installing ABB PFEA112-65 3BSE050091R65 tension electronic equipment,please carefully read its user manual and relevant technical documents to understand the detailed installation steps and wiring requirements.Choose the appropriate installation method based on the application environment(DIN rail or wall mounted).Ensure that the power supply voltage meets the equipment requirements(24 V DC).Prepare the cable connecting the tension sensor and the upper control system.It is recommended to have professionals with electrical installation experience carry out the installation.

Maintenance suggestion:In order to ensure the long-term stable operation of ABB PFEA112-65 3BSE050091R65 tension electronic equipment,it is recommended to regularly check whether the wiring of the equipment is loose or damaged.Keep the device casing clean to prevent dust accumulation from affecting heat dissipation.Regularly check whether the tension sensor and its connecting circuit are normal.If using PROFIBUS DP communication,please ensure the reliability of the bus connection.It is recommended to regularly check the parameter settings of the equipment to ensure that they match the actual application.If any abnormalities are found,please promptly refer to the user manual for troubleshooting or contact ABB technical support.

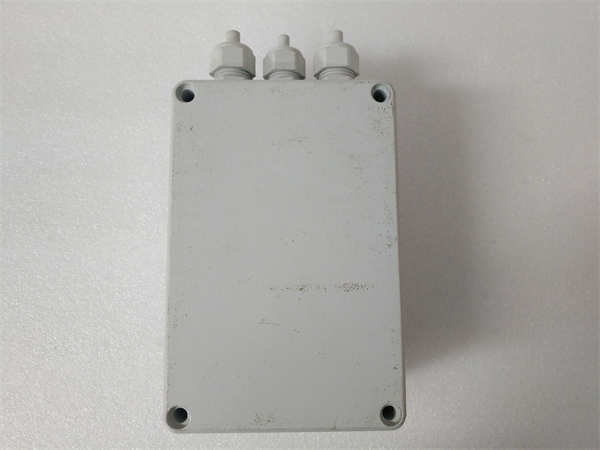

PFEA112-65 3BSE050091R65 ABB

Product Guarantee

ABB provides standard quality assurance for its ABB PFEA112-65 3BSE050091R65 tension electronic equipment.
