Description

The Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 is a high-performance direct acting electromagnetic directional valve belonging to the Bosch Rexroth 4WE6 series.This series of valves is known for its compact design,reliable performance,and wide range of applications.4WE6Y62/EG24N9K4/R900561276 is designed specifically for controlling the direction of oil flow in hydraulic systems.By switching the position of the valve core through the on/off of the electromagnetic coil,the flow direction of hydraulic oil can be changed to drive actuators such as hydraulic cylinders or hydraulic motors.The”Y”-shaped functional symbol indicates that the valve is a three position four-way valve with a neutral unloading function.The model of the electromagnetic coil is EG24N9K4,indicating a working voltage of 24V DC and equipped with a detachable wet electromagnetic coil.Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 plays a key role in various industrial hydraulic systems,enabling precise control of hydraulic actuators and improving system response speed and control accuracy.

Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 is a proportional directional valve belonging to the Bosch Rexroth HSZ series.This series of valves is driven by proportional electromagnets,which can control the displacement of the valve core proportionally based on the input electrical signal,thereby accurately adjusting the flow and direction of hydraulic oil.The specifications of HSZ10-26916-AA/G24N9K4M01/R901025684 indicate that it is an NG10 sized proportional directional valve with an integrated electronic amplifier.The model of the electromagnetic coil is G24N9K4M01,which means its operating voltage is 24V DC and comes with an integrated electronic amplifier.The Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 proportional directional valve plays an important role in hydraulic systems that require precise flow and direction control,such as injection molding machines,machine tools,and automation equipment,enabling smooth and precise motion control and improving system performance and efficiency.

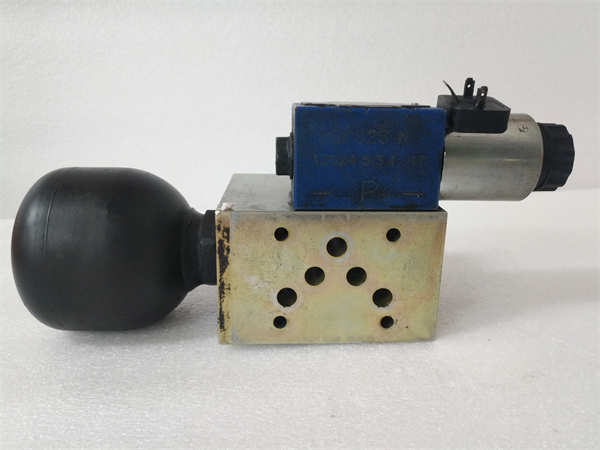

4WE6Y62 EG24N9K4 R900561276 + HSZ10-26916-AA G24N9K4M01 R901025684 REXRTOH

technical specifications

Parameter Name:4WE6Y62/EG24N9K4/R900561276 HSZ10-26916-AA/G24N9K4M01/R901025684

Product model:4WE6Y62/EG24N9K4/R900561276 HSZ10-26916-AA/G24N9K4M01/R901025684

Manufacturer:Bosch Rexroth/

Product type:Direct acting electromagnetic directional valve/Proportional directional valve

Specification and size:NG6/NG10

Functional symbol:Y(three position four-way,neutral unloading)/-(proportional directional valve)

Electromagnetic coil model:EG24N9K4(24V DC)/G24N9K4M01(24V DC,with integrated amplifier)

Connection method:ISO 4401-03-02-0/ISO 4401-05-04-0-0

Electrical connection:DIN EN 175301-803

Installation method:Plate installation

Main features and advantages

The Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 direct acting electromagnetic directional valve is known for its compact structure,easy installation,and fast response speed.The three position four-way and center position unloading design can release system pressure,reduce energy consumption,and protect the system when the valve core is in the middle position.Adopting a wet electromagnetic design ensures that the coil has good heat dissipation performance and a long service life.The installation interface of 4WE6Y62/EG24N9K4/R900561276 complies with ISO 4401 standard,making it easy to connect and integrate with other hydraulic components.Its reliable performance and mature technology make it widely used in various industrial hydraulic systems.

Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 The main advantage of a proportional directional valve is its ability to achieve precise proportional control of hydraulic oil flow and direction.The integrated electronic amplifier simplifies the design and connection of external circuits and optimizes the dynamic response characteristics of valves.HSZ10-26916-AA/G24N9K4M01/R901025684 can linearly adjust the opening of the valve port according to the size of the control signal,thereby achieving precise control of the speed and force of the hydraulic actuator.This precise control capability enables the valve to perform well in applications that require smooth acceleration,deceleration,and precise positioning.The installation interface that complies with the ISO 4401 standard also ensures its good compatibility and ease of integration.

4WE6Y62 EG24N9K4 R900561276 + HSZ10-26916-AA G24N9K4M01 R901025684 REXRTOH

application area

Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 direct acting solenoid directional valve is widely used in various industrial hydraulic systems,such as:

Machine tool:used to control the feed and direction of cutting tools.

Injection molding machine:used to control the opening,closing,and ejection of molds.

Construction machinery:used to control the extension and direction of hydraulic cylinders.

Material handling equipment:used to control the movement of hydraulic cylinders or hydraulic motors.

General industrial hydraulic system:used in various situations that require simple directional control.

Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 Proportional directional valves are more suitable for situations that require precise flow and speed control,such as:

Injection molding machine:used for precise control of mold closing,injection,and ejection speeds.

Machine tool:used to achieve precise feed rate control.

Press:Used for precise control of pressing speed and pressure.

Automation equipment:used to achieve precise linear or rotational motion control.

Test bench:used for precise loading and control of the movement of hydraulic actuators.

Related products

4WE6 series:Other specifications of Bosch Rexroth 4WE6 series direct acting electromagnetic directional valves have different functional symbols and voltage options.

HSZ series:Other specifications of Bosch Rexroth HSZ series proportional directional valves with different sizes and performance parameters.

Electromagnetic coil:Bosch Rexroth electromagnetic coil used for replacement or different voltage requirements.

Hydraulic circuit block:a hydraulic integrated block used for integrating and installing electromagnetic directional valves and proportional directional valves.

Hydraulic pump:provides power source for hydraulic system.

Hydraulic cylinder:an actuator that converts hydraulic energy into linear motion.

Hydraulic motor:an actuator that converts hydraulic energy into rotational motion.

Pressure sensor:used to monitor the pressure of hydraulic systems.

Flow meter:used to monitor the flow rate of hydraulic systems.

Preparation before installation:Before installing Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 and Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 valves,please carefully read the relevant Bosch Rexroth product manual and technical documents to understand the detailed installation steps,wiring diagrams,and safety precautions.Ensure that the hydraulic system is powered off and depressurized.Check if the installation interface of the valve matches the connection of the hydraulic system.For the proportional valve HSZ10-26916-AA/G24N9K4M01/R901025684,it is necessary to ensure that the control signal matches the input requirements of the integrated amplifier.It is recommended to have professionals with experience in hydraulic system installation carry out the installation.

Maintenance suggestion:To ensure long-term stable operation of Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 and Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 valves,it is recommended to regularly check the valve body and solenoid coil for leaks or damage.Keep the valve body clean to prevent dirt from entering.Regularly check if the electrical connections are secure.For the proportional valve HSZ10-26916-AA/G24N9K4M01/R901025684,it is necessary to regularly check the quality and stability of the control signal.It is recommended to perform regular maintenance and check the quality of hydraulic oil according to Bosch Rexroth’s maintenance manual.

4WE6Y62 EG24N9K4 R900561276 + HSZ10-26916-AA G24N9K4M01 R901025684 REXRTOH

Product Guarantee

Bosch Rexroth provides standard quality assurance for its Bosch Rexroth 4WE6Y62/EG24N9K4/R900561276 direct acting solenoid directional valve and Bosch Rexroth HSZ10-26916-AA/G24N9K4M01/R901025684 proportional directional valve.
