Description

ABB LD800HSE 3BDH000320R02 is a high-performance FOUNDATION Fieldbus(FF)high-speed Ethernet(HSE)connectivity device.As an important component of ABB Freelance distributed control system and Advant 800xA automation platform,ABB LD800HSE 3BDH000320R02 aims to achieve efficient data communication and integration between on-site H1 bus equipment and HSE subnet.The core function of ABB LD800HSE 3BDH000320R02 is to act as an intelligent gateway that can transparently transmit field instrument data connected to the H1 bus to upper level monitoring,control systems,and asset management consoles.ABB LD800HSE 3BDH000320R02 supports up to four independent H1 Link Master Stations(LAS)functions and has a publish/subscribe mechanism,as well as the ability to republish data from one H1 link to another or from H1 to HSE,thereby building a flexible and powerful fieldbus network architecture.With its redundant operation capability and reliable fault switching mechanism,ABB LD800HSE 3BDH000320R02 plays a key role in ensuring high availability of the system and is an ideal choice for building modern industrial automation systems.

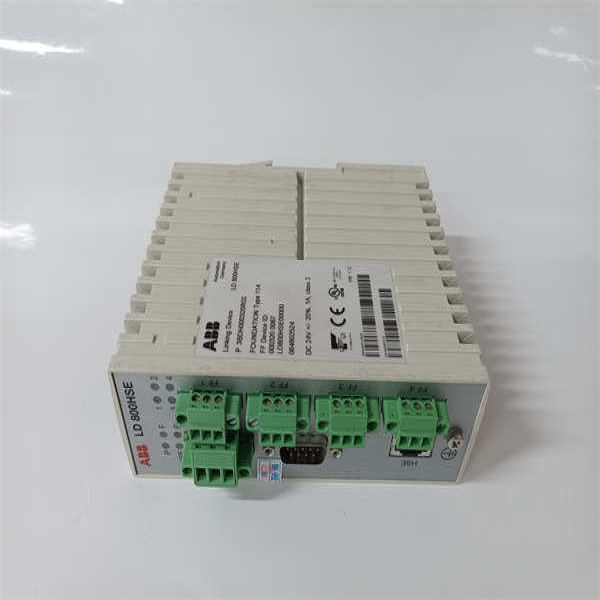

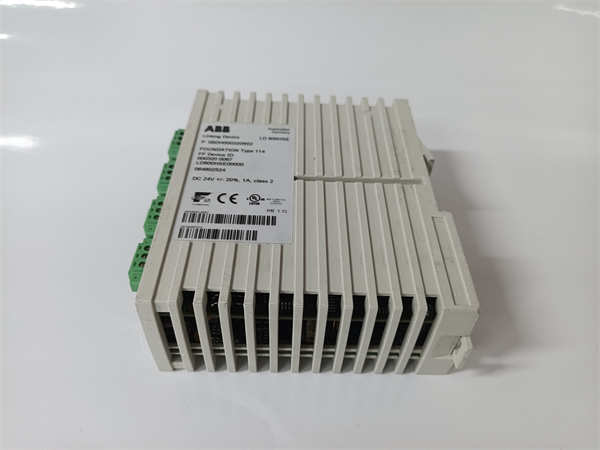

LD800HSE 3BDH000320R02 ABB

technical specifications

Product model:LD800HSE 3BDH000320R02

Manufacturer:ABB

Product Type:FOUNDATION Fieldbus HSE Connection Equipment

H1 interface:4,FF H1 3-pole pluggable screw terminals,transformer coupling,electrical isolation,Type 114 physical layer

HSE interface:1,Ethernet 10BASE-T/100BASE-TX,RJ45

Transmission rate:H1:31.25 kbit/s,HSE:10/100 Mbit/s(adaptive)

Serial interface:1,RS-232，9-pin D-Sub male head,up to 115.2 kbit/s

Power supply voltage:24 V DC(nominal)

Power consumption:1 A 24 V DC(maximum)

Working temperature:0°C to+55°C(the upper limit may be reduced when non vertical installation and air convection is obstructed)

Installation method:DIN rail installation

Dimensions(length x height x width):47 x 131 x 111 mm

Weight:Approximately 0.4 kg

Main features and advantages

The ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection device has many significant features and advantages,making it an ideal gateway for integrating FF field equipment.Its core advantage lies in providing four independent H1 link master station functions,which can efficiently manage multiple on-site devices on the H1 bus.ABB LD800HSE 3BDH000320R02 supports transparent H1 device configuration,allowing for direct parameter settings and management of connected H1 devices from the host system,simplifying engineering and maintenance work.This device allows access to functional blocks in H1 devices(client/server mode),achieving deeper levels of data interaction and control.ABB LD800HSE 3BDH000320R02 has powerful data processing capabilities and can republish data from one H1 link to another H1 link or HSE network,achieving flexible data sharing and integration.In addition,the connected device supports firmware online upgrade,making it convenient for users to expand functions and maintain updates.ABB LD800HSE 3BDH000320R02 also supports redundant operation,connecting primary and backup devices through redundant links to ensure seamless switching to backup devices in case of primary device failure,greatly improving system availability.The compact DIN rail mounting design and low power consumption characteristics make it easy to integrate into various industrial control systems.

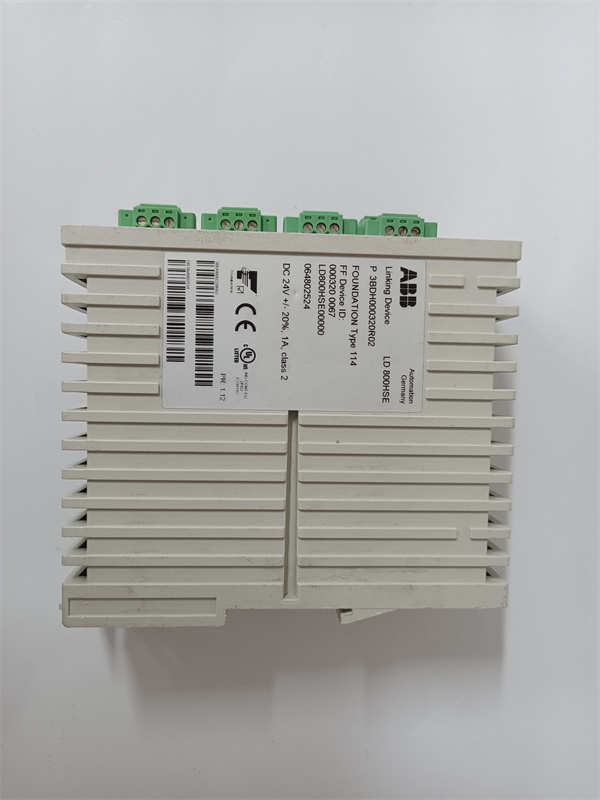

LD800HSE 3BDH000320R02 ABB

application area

The ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection equipment is widely used in the industrial automation field that requires the integration of a large number of FF field devices.In process industries such as petrochemicals,natural gas,pharmaceuticals,and papermaking,ABB LD800HSE 3BDH000320R02 can serve as a key bridge connecting FF field instruments(such as transmitters,valve positioners,flow meters,etc.)and upper level control systems(such as ABB Freelance or Advant 800xA)to achieve comprehensive monitoring and control of field equipment.In the power industry,this device can be used to connect FF smart meters for process parameter collection and equipment status monitoring.The redundant function of ABB LD800HSE 3BDH000320R02 makes it particularly suitable for critical applications that require extremely high system availability.Through ABB LD800HSE 3BDH000320R02,users can build an efficient,reliable,and easy to manage FF fieldbus network,achieving higher levels of factory automation and information integration.

Related products

The products related to ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection equipment include:

ABB LD800HSE EX:Intrinsically safe FF HSE connection equipment suitable for hazardous areas.

ABB Fieldbus infrastructure equipment:including various FF H1 cards,power modules,terminal resistors,etc.,used to build a complete FF network.

ABB Freelance Control System:An easy-to-use and powerful distributed control system that seamlessly integrates with LD800HSE.

ABB Advant 800xA Automation Platform:A comprehensive automation platform that supports advanced process control and information management with LD800HSE.

ABB FF H1 field instruments:various transmitters,actuators,flow meters,etc.that comply with the FOUNDATION Fieldbus H1 protocol.

ABB Control Builder F:An engineering configuration tool for Freelance control systems,used to configure LD800HSE and connected FF devices.

Preparation before installation:Before installing the ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection equipment,please carefully read and follow ABB’s relevant installation manuals and safety guidelines.Ensure that the installation environment meets the operating temperature and humidity requirements of the equipment,and has good ventilation conditions.Check if the received ABB LD800HSE 3BDH000320R02 module is intact and undamaged.Fix ABB LD800HSE 3BDH000320R02 onto a standard DIN rail.Connect the on-site H1 equipment to the H1 interface of ABB LD800HSE 3BDH000320R02 using shielded twisted pair cables that comply with FF H1 specifications,and ensure correct termination.Connect the HSE interface of ABB LD800HSE 3BDH000320R02 to an Ethernet switch or control network using standard Ethernet cables.Connect the RS-232 serial interface as needed.Before connecting the power supply,please carefully check whether all wiring is correct and error free.

Maintenance suggestion:The maintenance of ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection equipment mainly focuses on regular inspections and preventive measures.It is recommended to regularly check whether the connecting cables and terminals of the equipment are loose or corroded to ensure the reliability of electrical connections.Observe the status of the LED indicator lights on the device,promptly detect and handle any abnormal indications.Keep the environment around the device clean and avoid dust accumulation that affects heat dissipation.Regularly check whether the DIN rail installation is stable.If the system is configured with redundant ABB LD800HSE 3BDH000320R02 equipment,it is necessary to regularly check the status of the redundant links and whether the switching function is normal.It is recommended to follow the overall maintenance plan of ABB control system and conduct regular inspections and maintenance on all key components,including ABB LD800HSE 3BDH000320R02.Non professionals are not allowed to disassemble or repair the ABB LD800HSE 3BDH000320R02 module by themselves.Any repair work should be carried out by professionally trained technicians.

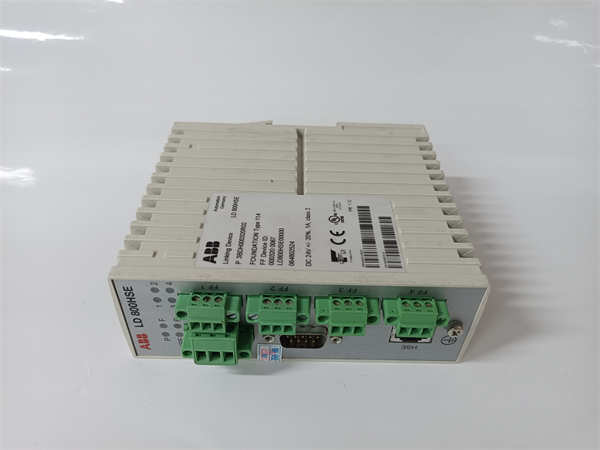

LD800HSE 3BDH000320R02 ABB

Product Guarantee

ABB provides comprehensive quality assurance for its ABB LD800HSE 3BDH000320R02 FOUNDATION Fieldbus HSE connection equipment.
