Description

GE ACC-5595-208 350-805595-2008N is a high-performance 2 Gb/s fiber interface reflective memory hub component,belonging to GE Fanuc’s 5565 series reflective memory real-time network product line(now integrated into other business units,but its products are still widely used in the industrial field).The core function of GE ACC-5595-208 is to provide reliable and high-speed data transmission for applications in industrial automation,telecommunications,military,aerospace,and transportation.As a key node in the reflective memory network,GE ACC-5595-208 can connect up to eight fiber optic interface devices and achieve high-speed data exchange through small form factor pluggable(SFP)transceivers.This hub has an automatic bypass function,which can automatically bypass faulty or disconnected nodes when signal loss or invalid synchronization mode is detected,thereby enhancing the overall reliability of the network.GE ACC-5595-208 minimizes signal loss and jitter by regenerating serial optical signals at each port,ensuring the integrity of data transmission.Its cascading feature allows for the construction of massive networks with up to 256 nodes,demonstrating outstanding value in applications that require large-scale,high reliability data sharing.

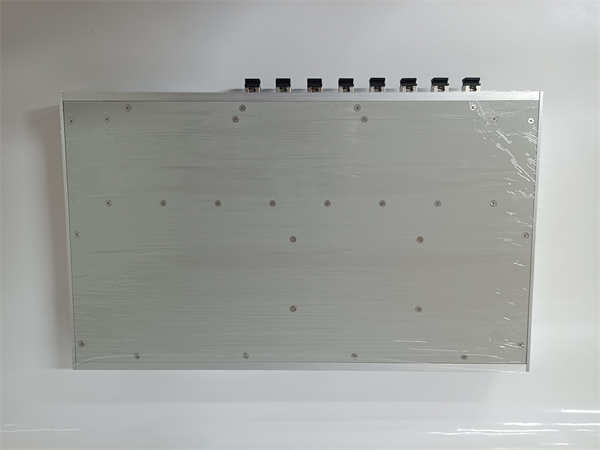

ACC-5595-208 350-805595-2008N GE

technical specifications

Product model:ACC-5595-208 350-80559595-2008N

Manufacturer:GE Fanuc

Product Type:2 Gb/s Fiber Reflective Memory Hub Component

Data transmission rate:2 Gb/s

Fiber optic interface:up to 8 SFP transceiver ports

Supports fiber types:multimode and single-mode

Maximum connection distance:configurable,up to 10 km(depending on SFP transceiver type and fiber)

Management interface:1 10BaseT Ethernet TCP/IP port(for remote configuration and management),1 RS232 port(for local access and control)

Cascading capability:capable of cascading,supporting up to 256 nodes

Power supply:Internal universal power supply

Installation method:19 inch 1U rack installation or desktop installation

Main features and advantages

The GE ACC-5595-208 350-805595-2008N reflective memory hub component has significant features and advantages in building high-performance real-time data sharing networks.Its data transmission rate of up to 2 Gb/s can meet the demand for high-speed data exchange in fields such as industrial automation.GE ACC-5595-208 supports flexible fiber optic connections and is equipped with up to eight SFP ports.Users can choose the appropriate multi-mode or single-mode fiber optic transceiver according to their actual application and configure the required connection distance,up to 10 kilometers.Its key automatic bypass function ensures high reliability operation of the network.When a node failure or disconnection is detected,the hub can automatically bypass the affected port to ensure normal communication with other network nodes.In addition,each port of GE ACC-5595-208 has signal regeneration capability,effectively reducing signal attenuation and jitter during long-distance transmission,and improving the quality and reliability of data transmission.Through Ethernet and RS232 interfaces,users can easily configure and manage GE ACC-5595-208 remotely or locally,improving maintenance convenience.Its cascading nature makes it possible to build large-scale reflective memory networks,supporting up to 256 nodes and meeting the scalability requirements of complex industrial systems.Meanwhile,GE ACC-5595-208 offers two installation options,rack mounted and desktop,to adapt to different installation environments.

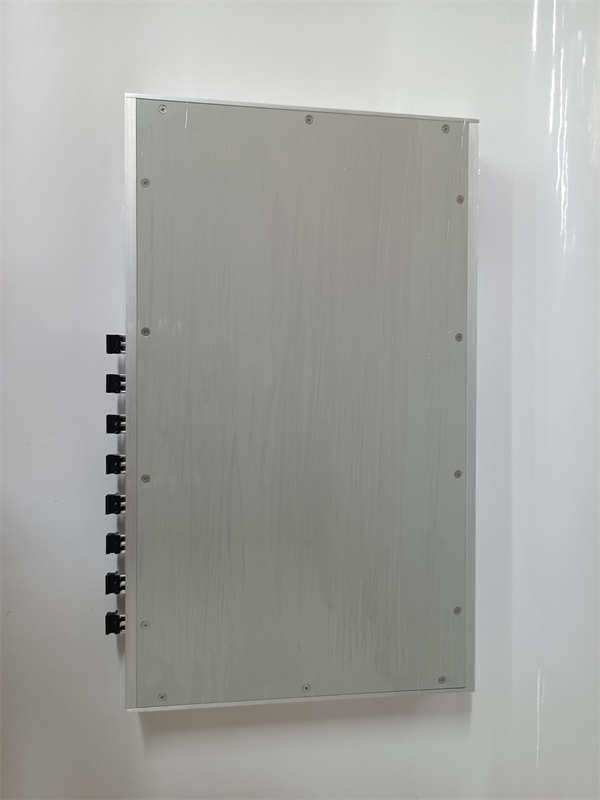

ACC-5595-208 350-805595-2008N GE

application area

The GE ACC-5595-208 high-speed reflective memory hub component is widely used in industrial fields that require real-time and deterministic data sharing due to its high speed,high reliability,and flexible configuration capabilities.In the field of industrial automation,GE ACC-5595-208 can be used to connect devices such as PLCs,motion controllers,and HMIs,achieving high-speed data synchronization and coordinated control,and improving the efficiency and accuracy of production lines.In the telecommunications industry,this product can be applied to systems that require real-time data replication and sharing.In the military and aerospace fields,the high reliability of GE ACC-5595-208 makes it suitable for data transmission and control in critical missions.In the field of transportation,such as rail transit and aviation control systems,this hub can provide a stable and reliable data communication backbone.GE ACC-5595-208 is particularly suitable for application scenarios that require fast and reliable transmission of large amounts of data between multiple nodes,such as distributed data acquisition,high-speed control loops,and redundant control systems.Its automatic bypass function and signal regeneration capability ensure the stability and reliability of data communication in harsh industrial environments,making it an ideal choice for building high-performance real-time networks.

Related products

The products related to the GE ACC-5595-208 Reflective Memory Hub component include:

GE IC695 series PLC:can be connected to ACC-5595-208 through a reflective memory network to achieve high-speed data exchange and collaborative control.

GE VMIC 5565 series reflective memory interface card:used to connect computers or other devices to the reflective memory network built by ACC-5595-208.

GE ACC-5595-xxx series other models:may offer different port numbers or features to accommodate different network sizes and requirements.

Fiber SFP transceiver:Used for the fiber interface of ACC-5595-208,selected according to the required transmission distance and fiber type.

Fiber optic jumper:used to connect ACC-5595-208 and other devices that support fiber optic interfaces.

GE Reflective Memory software tool:used for configuring,managing,and monitoring reflective memory networks based on ACC-5595-208.

Abaco Systems ACC-5595:Abaco Systems has acquired a portion of GE Fanuc’s business and may offer products that are functionally similar or compatible with ACC-5595-208.

Preparation before installation:Before installing the GE ACC-5595-208 Reflective Memory Hub component,please carefully read and follow the relevant installation manuals and safety guidelines from GE Fanuc or Abaco Systems.Ensure that the installation environment meets the operating temperature and humidity requirements of the equipment,and has good ventilation conditions.Check if the received GE ACC-5595-208 module is intact and confirm that the packaging contains all necessary components and accessories.Based on your network topology plan,determine the installation location of GE ACC-5595-208 in the cabinet and use appropriate screws to secure it to a 19 inch rack or place it on a desktop.Install SFP fiber optic transceiver into the fiber port of GE ACC-5595-208 as needed.Use appropriate fiber optic jumpers to connect GE ACC-5595-208 and other devices that require the addition of a reflective memory network.Connect the Ethernet cable to the management port for network configuration.Connect the power cord to the power interface of GE ACC-5595-208 and ensure that the power supply is stable and reliable.

Maintenance suggestion:The maintenance of GE ACC-5595-208 reflective memory hub components mainly focuses on regular inspections and ensuring a good operating environment.It is recommended to regularly check whether the fiber optic connection is secure and whether the fiber optic jumper is damaged.Observe the status of the LED indicator lights on the GE ACC-5595-208 panel,promptly detect and handle any abnormal indications.Keep the environment around the device clean and avoid dust accumulation that affects heat dissipation.Regularly check the ventilation of the cabinet to ensure that GE ACC-5595-208 is within the appropriate operating temperature range.If configuration changes or troubleshooting are required,configuration tools connected through Ethernet or RS232 interfaces can be used.It is recommended to follow the maintenance recommendations of GE Fanuc or Abaco Systems and have trained professionals perform any repair or replacement operations.Regularly backup the configuration information of GE ACC-5595-208 for recovery when needed.

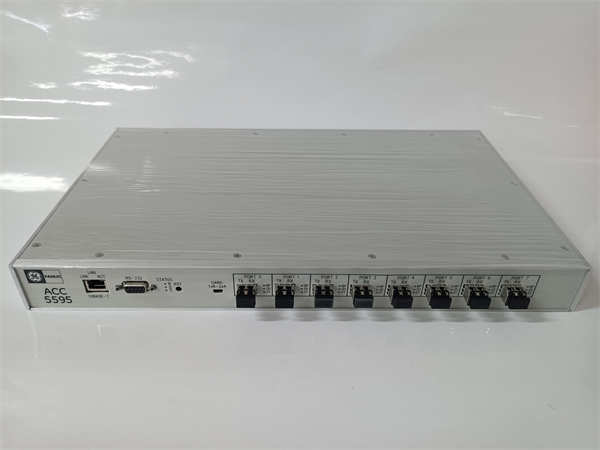

ACC-5595-208 350-805595-2008N GE

Product Guarantee

GE Fanuc(or Abaco Systems)provides standard quality assurance for its GE ACC-5595-208 350-805595-2008N reflective memory hub components.
