Description

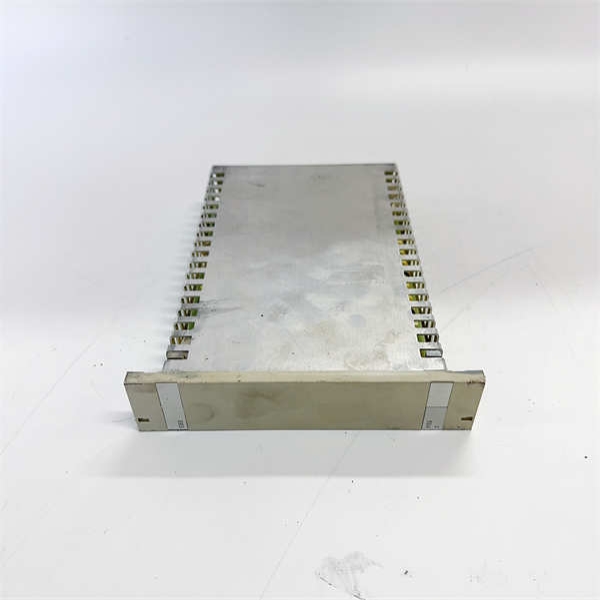

The ABB E3ED control module typically refers to the Profibus DP/PA interface module used by ABB for industrial automation systems.As an important component of fieldbus technology,ABB E3ED module aims to achieve high-speed and reliable data communication between control systems and field devices.Profibus DP(Decentralized Peripheral)is a high-speed fieldbus primarily used for communication between controllers and distributed I/O,while Profibus PA(Process Automation)is an extension for process automation applications,suitable for inherently safe environments and supporting power and communication transmission over the same cable.The core function of ABB E3ED module is to provide an efficient interface,enabling ABB’s control system to seamlessly exchange data with various field devices(such as sensors,actuators,transmitters,etc.)that comply with Profibus DP or PA standards.Through the ABB E3ED module,users can build flexible and reliable distributed automation systems to achieve precise monitoring and control of industrial processes.

technical specifications

Product model:E3ED

Manufacturer:ABB

Product type:Profibus DP/PA interface module

Supported protocols:PROFIBUS DP(EN 50170),PROFIBUS PA(IEC 61158-2)

Transmission rate(DP):up to 12 Mbit/s

Transmission rate(PA):31.25 kbit/s

Interface type(DP):RS-485

Interface type(PA):IEC 61158-2(2-wire system)

Diagnostic function:Supports Profibus DP/PA diagnostics

Main features and advantages

The ABB E3ED control module,as a key interface between ABB control system and Profibus fieldbus,has multiple significant features and advantages.Its dual support for Profibus DP and PA enables ABB E3ED modules to flexibly connect various types of field devices,meeting the needs of different industrial applications,whether it is high-speed discrete control or intrinsic safety process measurement.The high-speed Profibus DP communication capability ensures the efficiency of data transmission between the controller and distributed I/O,thereby improving the real-time performance and response speed of the system.Meanwhile,support for Profibus PA enables ABB E3ED modules to be applied in the field of process automation,connecting intelligent field instruments and supporting integration of power supply and communication.

The ABB E3ED module usually integrates comprehensive diagnostic functions,which can monitor the status of the Profibus network,detect and report faults,facilitate user troubleshooting and maintenance,and improve system availability.As part of ABB’s automation product line,ABB E3ED modules can seamlessly integrate with ABB’s other control modules and systems to build stable and reliable automation solutions.Its easy to configure and maintain design reduces the complexity of system integration and maintenance,and improves the work efficiency of engineers.By using ABB E3ED modules,users can build efficient,flexible,and reliable Profibus fieldbus networks to achieve comprehensive control and monitoring of industrial processes.

application area

The ABB E3ED control module is widely used in various industrial automation fields due to its support for Profibus DP/PA,providing a reliable bridge for data communication between control systems and field devices.Its typical application areas include:

Factory automation:Using Profibus DP to connect distributed I/O modules,drivers,sensors,etc.,to achieve centralized control of production lines and mechanical equipment.

Process automation:Using Profibus PA to connect various intelligent field instruments,such as pressure transmitters,temperature transmitters,flow meters,analyzers,etc.,to achieve precise process control and monitoring of industries such as chemical,oil and gas,and pharmaceutical.

Hybrid application:In situations where high-speed discrete control and process variable measurement are required simultaneously,the ABB E3ED module can support both Profibus DP and PA devices.

Upgrade and renovation project:ABB E3ED module can be used to integrate new control systems with existing Profibus field devices.

Related products

Products related to ABB E3ED control modules include:

ABB AC500 series PLC:E3ED module may be used as a communication module for AC500 series PLC to achieve connection between PLC and Profibus network.

ABB S500 I/O modules:These distributed I/O modules can be connected to E3ED modules via Profibus DP,expanding the input and output capabilities of the control system.

Profibus DP/PA field equipment:various sensors,actuators,transmitters,etc.that comply with the Profibus DP/PA standard,used for data exchange with E3ED modules.

Profibus network components,such as repeaters,hubs,terminal resistors,etc.,are used to build and expand Profibus networks.

ABB Automation Builder programming software:used for configuring and diagnosing Profibus networks related to E3ED modules.

Preparation before installation:Before installing the ABB E3ED control module,please refer to the detailed hardware installation manual and system documentation provided by ABB.Ensure that the installation environment meets the temperature,humidity,and electromagnetic compatibility requirements of the module.Prepare cables and connectors that comply with the Profibus standard.Connect correctly according to the wiring specifications of Profibus DP or PA,including the installation of master station connections,slave station connections,and terminal resistors.Ensure that the physical layer connections of the Profibus network are correct and error free.

Maintenance suggestion:To ensure the long-term stable operation of ABB E3ED control module,it is recommended to regularly check whether the module is firmly fixed in the installation position to avoid loosening.Keep the module clean to prevent dust and dirt from accumulating and affecting heat dissipation and interface performance.Regularly inspect Profibus cables and connectors for damage or aging.Follow the maintenance manual of ABB automation system for regular system inspection and diagnosis.Use professional Profibus diagnostic tools to monitor network status and promptly detect and troubleshoot faults.

Product Guarantee

ABB provides standard quality assurance for its E3ED control module.During the prescribed warranty period,if the product has any manufacturing defects or quality problems under normal use,the user will enjoy free repair or replacement services.
