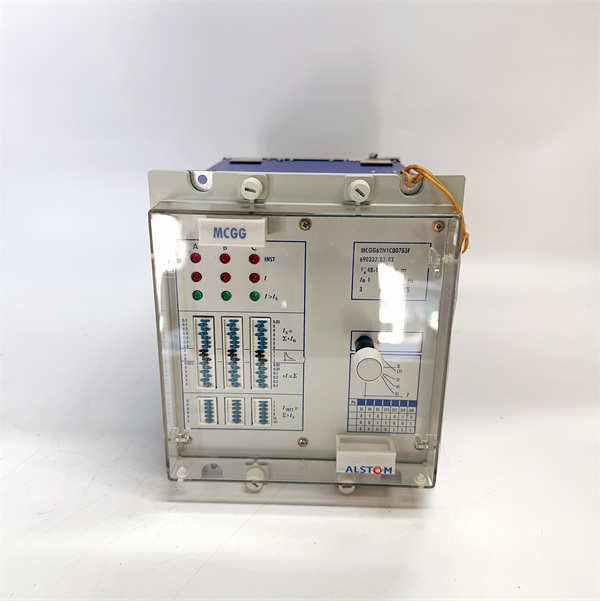

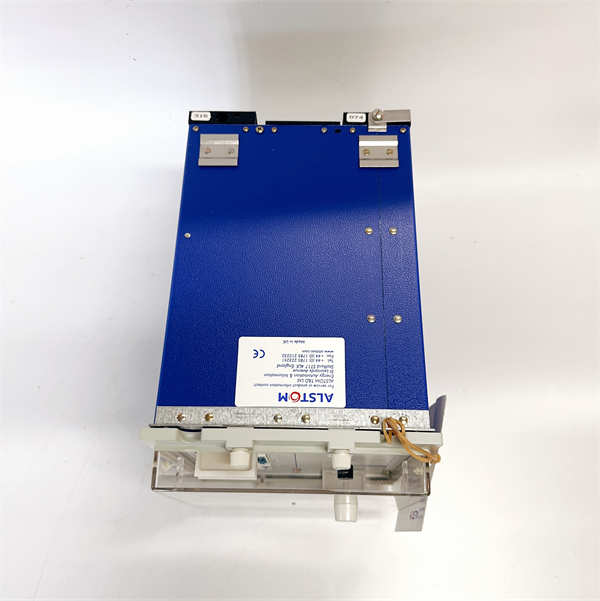

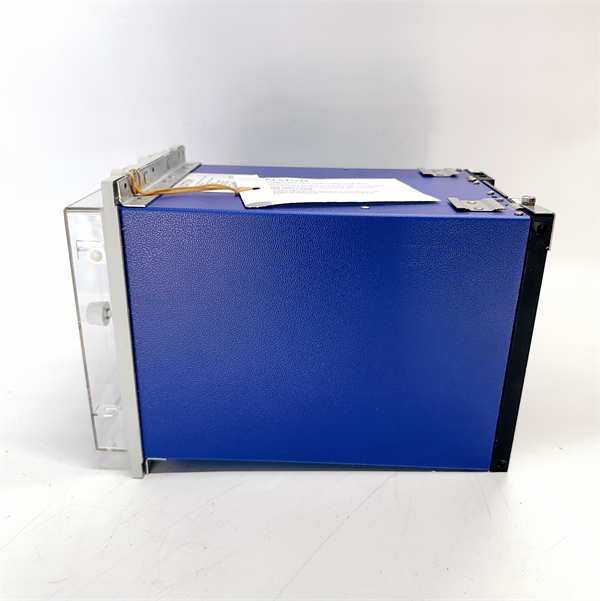

ALSTOM MCGG62N1CB0753F is a high-performance,high reliability digital overcurrent relay designed and manufactured by ALSTOM,a global leader in energy and transportation infrastructure(now acquired by GE for its energy grid business).As an important member of the ALSTOM protection relay product line,ALSTOM MCGG62N1CB0753F is designed specifically for various industrial and power system applications,aiming to provide precise,flexible,and reliable overcurrent protection functions.This MCGG62N1CB0753F module can accurately monitor the current in the circuit in real time,and has multi-level configurable overcurrent protection components,including instantaneous,timed,and inverse time protection features,which can be flexibly adjusted according to different fault types and system requirements.When the current exceeds the preset protection threshold,the relay can quickly act,issue a trip signal,cut off the faulty circuit,and effectively protect the safe and stable operation of electrical equipment,power lines,and the entire system.ALSTOM MCGG62N1CB0753F plays a crucial role in automation and power systems,significantly improving system safety,reliability,and operational efficiency,reducing equipment damage and production interruptions caused by electrical faults,and is an indispensable key protective component in modern industry and power systems.

MCGG62N1CB0753F ALSTOM

technical specifications

Product model:MCGG62N1CB0753F

Manufacturer:ALSTOM(now GE)

Product type:Digital overcurrent relay

Rated current:1A or 5A optional

Auxiliary power supply:AC/DC 24-250V

Protection function:Multi level overcurrent protection(instantaneous,timed,inverse time,etc.),which may include ground fault protection

Trip output:Multiple programmable relay contacts

Alarm output:programmable relay contacts

Communication interface:may have(e.g.Modbus RTU/TCP,IEC 60870-5-103,etc.,please refer to the specific manual)

Installation method:usually panel or rail installation

Working temperature:25°C to+55°C

Main features and advantages

ALSTOM MCGG62N1CB0753F digital overcurrent relay has demonstrated excellent performance and multiple advanced advantages in the field of electrical protection.Its core advantage lies in providing precise,flexible,and powerful digital overcurrent protection functions,which can meet various complex industrial and power system protection needs.ALSTOM MCGG62N1CB0753F has high-precision current measurement and digital signal processing capabilities,which can accurately monitor and analyze current changes in circuits,achieving more precise protection actions.This relay typically provides multi-level programmable protection components,including various overcurrent protection curves(such as IEC and ANSI standard inverse time limits,timed limits,etc.)and flexible adjustable action current and delay time.Users can refine the configuration according to specific system characteristics and protection requirements.ALSTOM MCGG62N1CB0753F may also integrate ground fault protection function,providing more comprehensive line and equipment protection.Some models may have communication interfaces to facilitate real-time data exchange,parameter tuning,and fault diagnosis with the upper monitoring system,achieving intelligent management.As a validated digital protection product of ALSTOM(GE),MCGG62N1CB0753F inherits its consistent high quality,high reliability,and excellent performance,capable of stable operation in various harsh industrial and power environments,providing safety protection for electrical equipment and systems.

MCGG62N1CB0753F ALSTOM

application area

The ALSTOM MCGG62N1CB0753F digital overcurrent relay,with its precise,flexible,and reliable protection characteristics,is widely used in various industrial and power system fields,providing a solid guarantee for the safe operation of electrical equipment and lines.Its typical application areas include but are not limited to:

Motor protection:provides comprehensive overload,locked rotor,and short circuit protection for various types of AC and DC motors,effectively extending the service life of the motor and improving the reliability of the production process.

Transformer protection:used to protect power transformers from the effects of overcurrent and external short-circuit faults,ensuring the stable operation of the power system and equipment safety.

Feedline and distribution line protection:Provide reliable overcurrent and short-circuit protection for medium and low voltage power feeders and distribution lines,prevent line damage and accidents caused by electrical faults,and ensure the continuity of power supply.

Generator protection:used to protect the generator from overload and external short circuit faults,ensuring the safe and stable operation of the generator.

Comprehensive protection of industrial equipment:widely used in various industrial equipment such as pumps,fans,compressors,heaters,conveyor belts,etc.,providing reliable overcurrent protection to prevent equipment damage due to electrical faults and improve production efficiency.

Complete switchgear:As an important protective component in low and medium voltage complete switchgear,it provides precise and reliable overcurrent protection for electrical circuits.

Related products

Products related to ALSTOM MCGG62N1CB0753F digital overcurrent relay may include:

ALSTOM MCGG series other models of digital overcurrent relays:The ALSTOM MCGG series includes multiple models of digital overcurrent relays,which may have different rated currents,voltages,protection functions,communication interfaces,input and output quantities,and characteristic curves to meet various application requirements.

GE Multilin Digital Overcurrent Protection Relays:With GE’s acquisition of ALSTOM’s energy grid business,its digital overcurrent protection function has been integrated into the GE Multilin product line.Users can pay attention to related digital overcurrent protection relays under the GE Multilin brand,which may be functionally similar or upgraded alternatives.

ABB digital overcurrent protection relay:ABB offers a wide range of digital overcurrent protection relay product lines,with different protection characteristics,communication capabilities,and functional levels,which can be used as a functionally similar choice.

Schneider Electric Digital Overcurrent Protection Relays:Schneider Electric also offers a comprehensive product portfolio of digital overcurrent protection relays,suitable for various industrial control and power protection applications.

ALSTOM MAVS series auxiliary relays:These auxiliary relays can be used in conjunction with protective relays such as ALSTOM MCGG62N1CB0753F to expand the number of output contacts or achieve more complex control and interlock logic.

Preparation before installation:Before installing the ALSTOM MCGG62N1CB0753F digital overcurrent relay,be sure to carefully read the relevant product manual and detailed installation guide to ensure that the installation environment complies with all applicable electrical safety regulations and standards.Check the packaging and appearance of the relay module to ensure that it has not been physically damaged during transportation.According to the specific design requirements of the power system or industrial control system,the installation position and correct fixing method of the relay on the control cabinet or protection screen are predetermined.Prepare the required specifications of current transformer(CT)secondary circuit cables,auxiliary power lines,trip circuits,alarm circuits,and possible communication cables,and ensure that the rated current and voltage of the cables meet the requirements of the module.Before making any electrical connections,be sure to disconnect all power sources from the control system and take necessary electrostatic protection measures to prevent damage to the module from electrostatic discharge.Carefully read and understand the wiring diagram and terminal definitions of the module,ensuring that the connections of the current circuit,auxiliary power supply,control circuit,and communication interface are completely correct and error free.

Maintenance suggestion:The maintenance of ALSTOM MCGG62N1CB0753F digital overcurrent relay mainly focuses on regularly checking its operating status and electrical connection reliability.Regularly check whether the wiring terminals of the module are tightened,ensuring that all signal and power connections are stable and reliable,and avoiding faults caused by poor contact.Check whether the connection of the secondary circuit of the current transformer connected to the relay is reliable and whether there is any open or short circuit phenomenon.Regularly check the indicator lights and display screen status of the relay itself,as well as alarm and event records,in order to promptly detect and handle any potential faults.It is recommended to regularly test the protection function of relays,such as injecting current through secondary circuits,to verify the correctness of their operation and whether the operation time meets the set value.If the device has communication function,its communication status should also be checked regularly to ensure it is normal.Keep the relay body clean and regularly remove accumulated dust and dirt to ensure good heat dissipation performance and reliable operation.Regularly check whether the auxiliary power supply is stable and reliable.

MCGG62N1CB0753F ALSTOM

Product Guarantee

ALSTOM(now GE)provides standard quality assurance for its ALSTOM MCGG62N1CB0753F digital overcurrent relay.This product undergoes strict quality control and comprehensive performance testing during the manufacturing process to ensure its excellent performance and high reliability in various industrial and power system application environments.
