The GE D20 EME rack typically refers to the chassis or frame used to install the GE Multilin D20 series substation controllers.More specifically,the GE D20 EME Ethernet and memory expansion module itself needs to be installed in the chassis of the GE D20 or GE D200 series controller.These chassis provide a sturdy and reliable installation platform and necessary electrical connections for controller modules,power supplies,and various interface cards including GE D20 EME.The GE D20 series controller chassis is designed to be compact,typically with a 3U horizontal slot,designed to meet the strict requirements of space utilization and reliability in industrial environments such as substations.According to different application requirements,GE offers two main chassis configurations:single slot(non VME)and multi slot(VME).A single slot chassis is typically used for smaller applications,while a multi slot VME chassis has stronger scalability and can accommodate multiple processor cards and interface modules,such as the GE D20 EME used to provide Ethernet communication and memory expansion capabilities.These chassis play a crucial role in the substation automation system,not only providing physical carriers for core control and communication modules,but also ensuring stable power supply and necessary environmental protection to ensure the reliable operation of the entire automation system.

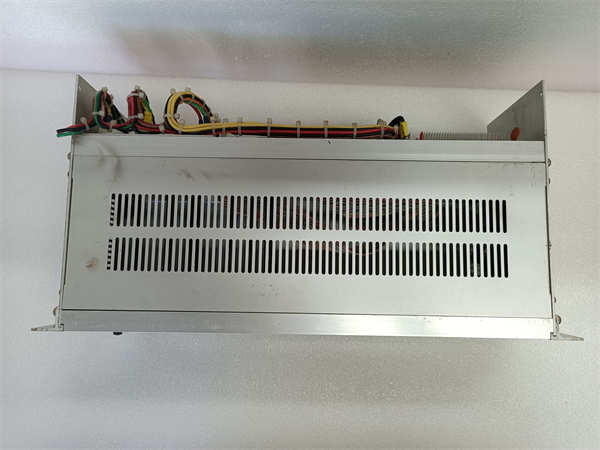

GE D20 EME Rack

technical specifications

Product Model:(Chassis)D20MX(Single Slot),D200(Multi Slot)

Manufacturer:GE Multilin(now GE Vernova)

Product type:Substation Controller Chassis

Installation method:19 inch rack mounted installation

Size(D20MX):3U high,19 inches wide,approximately 8.1 inches deep

Size(D200):9-slot VME chassis,3U high,19 inches wide,approximately 8.1 inches deep

Main features and advantages

The GE D20 series controller chassis,as an installation platform for modules such as GE D20 EME,has a sturdy and durable industrial grade design that can withstand harsh environments such as substations,ensuring stable operation of internal control and communication modules.Its standard 19 inch rack mounted installation method facilitates integration and deployment within the control cabinet.GE offers two chassis options,single slot and multi slot,providing flexible solutions for applications of different sizes.The multi slot GE D200 chassis adopts the VME bus architecture,which has excellent scalability and can add various functional modules including GE D20 EME according to needs to meet the growing demand for automation.The internal design of the chassis fully considers heat dissipation and electromagnetic compatibility,ensuring the long-term reliable operation of the system.In addition,GE chassis are usually equipped with easy to maintain interfaces and connection methods,making it convenient for on-site personnel to install and maintain.The perfect compatibility with modules such as GE D20 EME enables the entire GE substation automation system to achieve efficient data acquisition,communication,and control functions,improving the intelligence level and operational efficiency of the substation.

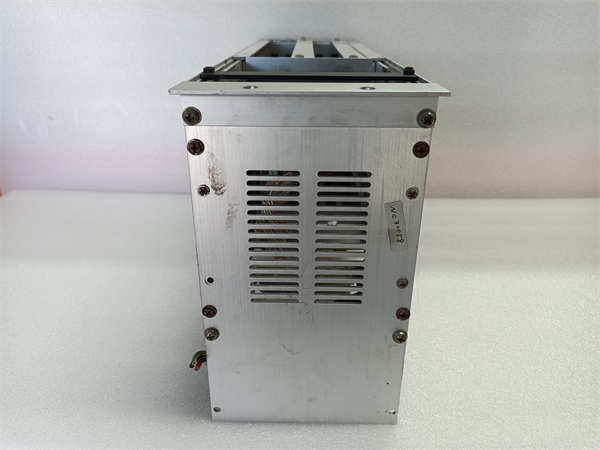

GE D20 EME Rack

application area

The GE D20 series controller chassis is the core hardware platform for building automation systems in substations of various scales,widely used in various aspects of the power industry.Whether it’s simple monitoring for small substations or complex protection and control systems for large substations,GE chassis can provide a reliable hardware foundation.Combined with GE D20 EME Ethernet and memory expansion modules,as well as various other interface and functional modules,GE controllers can achieve remote monitoring,data acquisition,fault diagnosis,and control operations of devices such as circuit breakers,transformers,relays,etc.GE’s solutions are widely used in fields such as power transmission,distribution,and industrial self owned power plants,helping power companies improve the reliability,safety,and economy of their power grids.Through the GE D20 series chassis and its various supported modules,users can build customized substation automation systems to meet specific application needs.

Related products

The products related to the GE D20 series controller chassis and GE D20 EME module include GE D20ME and D20ME II main processor boards,which are the core computing units of the control system.In addition,there are various GE D20 series I/O modules used to connect sensors and actuators on site.As mentioned earlier,media interface cards(MICs)such as GE D20 EME2 10BASE-T,D20 EME2 10BASE2,and D20 EME2 10BASE-FL need to be used in conjunction with GE D20 EME modules to achieve different Ethernet physical layer connections.EnerVista D20/D200 Setup software is used to configure and manage the entire GE substation automation system.

Installation and maintenance:

Preparation before installation:When installing the GE D20 series controller chassis,please refer to the relevant hardware installation manual.Choose a suitable installation location,typically a standard 19 inch control cabinet.Ensure that the chassis has sufficient space for ventilation and heat dissipation.Fix the chassis according to the manual requirements and connect the power and ground wires.Before installing modules such as GE D20 EME,please ensure that the chassis power is disconnected.Carefully insert the GE D20 EME module into the designated slot on the chassis(usually the leftmost side).

Maintenance suggestion:The GE D20 series controller chassis usually requires lower maintenance.It is recommended to regularly check the ventilation of the chassis to ensure good heat dissipation and avoid overheating.Regularly check whether the power connection and grounding are reliable.For modules such as GE D20 EME installed inside the chassis,their connections should be regularly checked for stability.If the system runs abnormally,you should refer to the relevant troubleshooting guide or contact GE Vernova’s technical support.

GE D20 EME Rack

Product Guarantee

GE Vernova(formerly GE Multilin)provides quality assurance for its GE D20 series controller chassis and GE D20 EME Ethernet and memory expansion modules.
