Description

TRICONEX 3704E is a high-density,high reliability analog input module designed specifically for safe applications in critical industrial processes.As the core component of the Triconex Trident Safety Instrumented System(SIS),the Triconex 3704E provides excellent fault tolerance capabilities,ensuring that the system can still operate safely and reliably in various potential hardware failure situations.This TRICONEX 3704E module adopts a Triple Modular Redundancy(TMR)architecture,which means that each input signal is processed in parallel by three independent hardware channels,and the impact of single point failures is eliminated through a”two out of two”voting mechanism,thereby achieving extremely high system availability and security.The TRICONEX 3704E plays a crucial role in automation systems,as it accurately collects analog signals from field transmitters and sensors,such as temperature,pressure,flow rate,and liquid level,and converts these critical process parameters into digital signals for processing by the Trident controller’s safety logic,ultimately driving safety actuators and ensuring the safe operation of the factory.

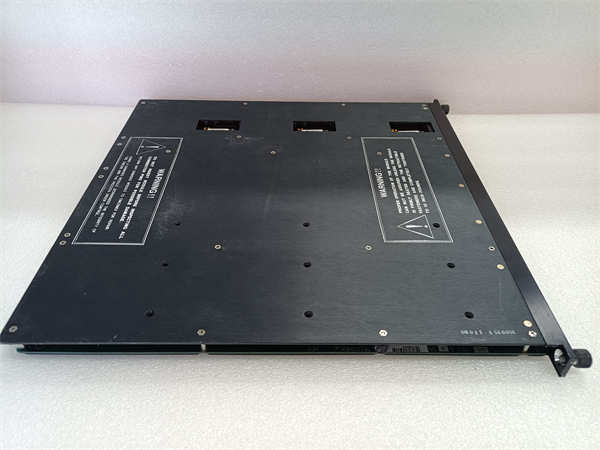

3704E TRICONEX

technical specifications

Product model:3704E

Manufacturer:TRICONEX(Schneider Electric)

Product type:Analog input module

Number of input channels:64

Input voltage range:0-5V or 0-10V DC

Input accuracy:<0.25%FSR(from 0°C to 60°C)

Resolution:12 bits

Common mode rejection ratio:60 dB(at 60 Hz)

Normal mode suppression:-1 dB(at 8 Hz),-12 dB(at 60 Hz),-18 dB(at 120 Hz)

Input overvoltage protection:150 VDC/115 VAC continuous

Current input range:0-20 mA(requires an external 250Ωor 500Ωresistor)

Working temperature:0°C to+60°C

Power consumption:20 W(typical value)

Main features and advantages

The TRICONEX 3704E analog input module is renowned for its excellent reliability and high density.Its core advantage lies in the adoption of Triple Modular Redundancy(TMR)architecture,which eliminates the risk of single point of failure and ensures that the system can continue to operate safely in the event of hardware failure,which is crucial for high-risk industrial applications.The TRICONEX 3704E provides up to 64 input channels,enabling high-density signal acquisition and effectively reducing system complexity and cost.The module supports two common voltage input ranges of 0-5V and 0-10V,and can also support 0-20mA current input through an external resistor,with good flexibility.In addition,the TRICONEX 3704E has excellent anti-interference capabilities.Its differential input design and high common mode rejection ratio can effectively suppress electrical noise in industrial sites,ensuring the accuracy and reliability of signal acquisition.The module also provides comprehensive diagnostic functions,making it convenient for users to troubleshoot and maintain.The online calibration function further simplifies the maintenance process,and calibration can be completed without disassembling the module,improving the usability of the system.The status indicator light can clearly display the operating status of the module,making it convenient for users to monitor.

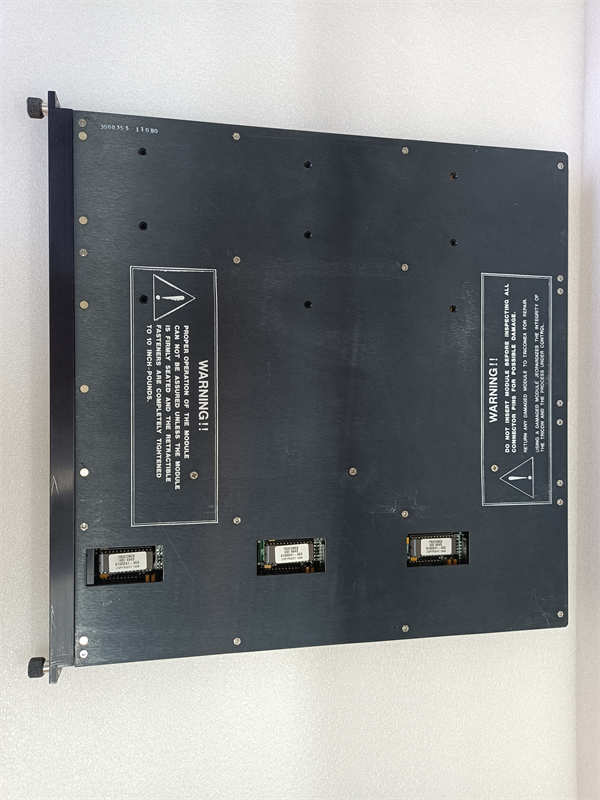

3704E TRICONEX

application area

The TRICONEX 3704E analog input module is widely used in various safety critical and high reliability required industrial fields due to its high reliability and high-density characteristics.In the field of process safety,TRICONEX 3704E is a key component of applications such as fire and gas detection systems,emergency shutdown(ESD)systems,and burner management systems,ensuring safe shutdown of factories in emergency situations and protecting personnel and equipment safety.In the field of industrial automation,the TRICONEX 3704E can be used to monitor key process parameters such as temperature,pressure,and flow in refineries,providing a reliable data foundation for control systems.In addition,TRICONEX 3704E is also suitable for high-risk environments such as power plants,chemical plants,offshore platforms,as well as SCADA systems and data acquisition systems that require continuous monitoring and fault diagnosis.Its high density and reliability make it an ideal choice for building safety instrumented systems and critical control systems.

Related products

The products related to TRICONEX 3704E include:

TRICONEX 3721:Isolation type analog input module,providing electrical isolation between channels.

TRICONEX 3700A/3701:Other models of analog input modules may have different numbers of channels or characteristics.

TRICONEX 3623T/3625:Digital output module used to drive safety actuators.

TRICONEX 3501E/3502E:Digital input module used to receive discrete signals.

TRICONEX 3805E:Analog output module,used to control analog actuators.

TRICONEX 4351B:Communication module used for data exchange with other control systems or upper computers.

TRICONEX Trident Controller:Used in conjunction with TRICONEX 3704E,it forms a complete safety instrumented system.

Preparation before installation:Before installing the TRICONEX 3704E analog input module,please carefully read the relevant installation manual to ensure that the installation environment meets the requirements.Check if the cage backplate is compatible with the module and ensure that the power is disconnected.Prepare appropriate wiring terminals and shielded cables to ensure reliable signal transmission and anti-interference capability.According to the wiring diagram,carefully connect the signal wires of the field instruments to the terminals of the TRICONEX 3704E module and ensure that the wiring is correct and error free.It is necessary to check whether the grounding connection is good to ensure the safe operation of the system.

Maintenance suggestion:To ensure the long-term stable operation of the TRICONEX 3704E analog input module,it is recommended to perform regular maintenance.Regularly check the connectors and terminals of the module for looseness or corrosion,and promptly address any issues.Keep the surface of the module clean and avoid dust accumulation that affects heat dissipation.Regularly check the wiring and working status of on-site instruments to ensure the accuracy of input signals.It is recommended to perform regular calibration and functional testing according to Triconex’s maintenance manual to verify whether the performance of the Triconex 3704E module meets the requirements.

3704E TRICONEX

Product Guarantee

TRICONEX(Schneider Electric)provides comprehensive quality assurance for its products.TRICONEX 3704E analog input module will provide free repair or replacement services for faults caused by manufacturing defects within the specified warranty period.
