Description

The Vibro meter VM600 CPUM central processing unit module is the core controller of the Vibro meter modular VM600 mechanical protection system(MPS).The model number 200-595-031-111 represents the specific order number for this high-performance Vibro meter VM600 CPUM card,which may indicate a specific hardware configuration or firmware version.As the”brain”of the VM600 system,the Vibro meter VM600 CPUM is responsible for the configuration management,data processing,communication interface management,and human-computer interaction functions of the entire system.It exchanges high-speed data with other protection cards(such as MPC4,AMC8)and input/output cards(such as IOC4T)in the VM600 system rack(ABE04x),and centrally processes key mechanical parameters such as vibration and speed from various monitoring points.The Vibro meter VM600 CPUM can communicate with upper level monitoring systems(such as DCS,PLC)or engineer workstations through its integrated Ethernet and serial interfaces,enabling real-time data transmission,remote configuration,and diagnosis.In addition,the Vibro meter VM600 CPUM also has local display and alarm reset functions,making it convenient for on-site operation and preliminary troubleshooting.In modern industrial automation systems,the Vibro meter VM600 CPUM is not only the control center for mechanical protection systems,but also a key enabler for comprehensive monitoring and predictive maintenance of equipment status.

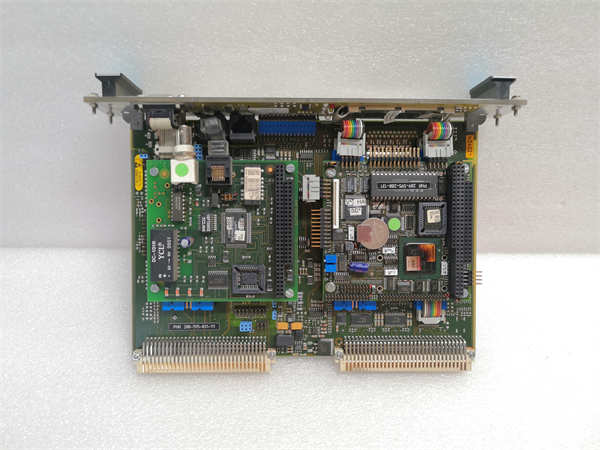

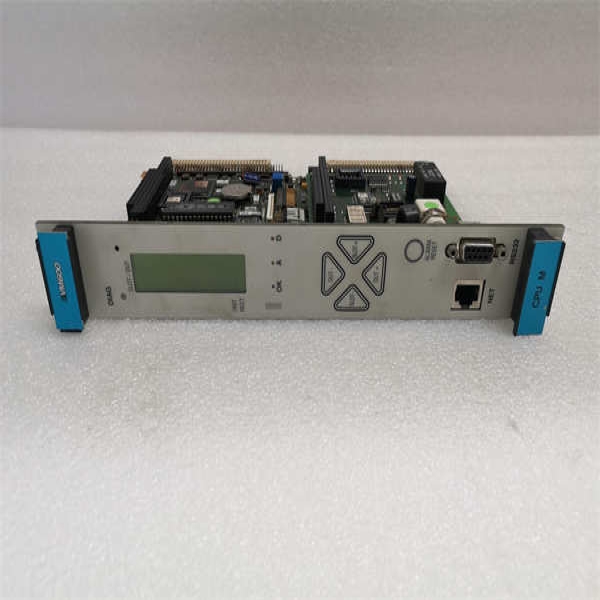

200-595-031-111 VM600 CPUM Vibro-meter

technical specifications

Product model:VM600 CPUM

Manufacturer:Vibro meter(Meggitt Sensing Systems/Parker Hannifin)

Product Type:Central Processing Unit Module(CPU)

Processor:Industrial grade CPU module based on PC/104 standard

Ethernet interface:2 x 100 Mbps

Serial interface:up to 3,configurable as RS-232/RS-422/RS-485

Supported protocols:Modbus RTU/TCP,PROFINET

Local display:LCD graphic display,used to display monitoring values and alarm information

Alarm reset:front panel integrated alarm reset button

Configuration interface:Ethernet or RS-232

Working temperature:-20°C to+60°C

Storage temperature:-20°C to+85°C

Main features and advantages

The Vibro meter VM600 CPUM central processing unit module has multiple outstanding features and advantages,making it an ideal choice for building high-performance mechanical protection systems.Its powerful data processing capability enables efficient management and processing of data from various monitoring cards in the VM600 system,as well as real-time status assessment and alarm judgment.The Vibro meter VM600 CPUM provides a wide range of communication interfaces,including dual redundant Ethernet and multiple configurable serial interfaces,supporting multiple industry standard communication protocols such as Modbus RTU/TCP and PROFINET,making seamless integration with various upper level systems convenient.Its intuitive local display can display key monitoring parameters and alarm status in real time,providing convenient local monitoring methods for on-site operators.The integrated alarm reset button simplifies the on-site alarm processing flow.The Vibro meter VM600 CPUM supports centralized system configuration and management using VM600 MPSx software via Ethernet or serial interface,greatly improving the efficiency of system maintenance.In addition,the module also supports hot swapping and automatic configuration of protective cards,simplifying the maintenance and upgrade process of the system and improving its availability.The Vibro meter VM600 CPUM also has a logging function for system events and measurement events,which facilitates fault diagnosis and historical data analysis.

200-595-031-111 VM600 CPUM Vibro-meter

application area

The Vibro meter VM600 CPUM central processing unit module is the core control unit of the VM600 mechanical protection system,widely used in various industrial fields that require online monitoring and protection of critical rotating machinery,and the integration of monitoring data and alarm information into the factory automation network

Power generation industry:used to manage and control protection systems for key equipment such as steam turbines,gas turbines,water turbines,generators,etc.,and upload monitoring data to DCS systems.

Oil and gas industry:used in monitoring systems for important equipment such as compressors,pumps,fans,etc.,as the core of data acquisition and communication,transmitting status information to the upper monitoring system.

Petrochemical industry:applied to the protection and status monitoring of various rotating machinery,such as reactor agitators,compressors,etc.,to achieve seamless connection with the factory control network,facilitating remote diagnosis and maintenance.

Metallurgical industry:used in vibration monitoring systems for equipment such as blast furnace blowers,sintering fans,and rolling mills.As the brain of the system,it coordinates the work of various monitoring modules and communicates externally.

Other industrial fields:Any industry that uses VM600 mechanical protection system and requires data networking and remote management,such as papermaking,cement,pharmaceuticals,etc.,cannot do without Vibro meter VM600 CPUM as the control center of the system.

Related products

The products related to the Vibro meter VM600 CPUM central processing unit module include:

Vibro meter VM600 IOCN:Communication interface card,used in conjunction with VM600 CPUM,providing additional communication interfaces and functions.

Vibro-meter VM600 MPC4:a four channel mechanical protection card used for collecting and processing dynamic vibration signals,configured and managed by VM600 CPUM.

Vibro-meter VM600 AMC8:an eight channel mechanical protection card used for collecting and processing dynamic vibration signals,also controlled by VM600 CPUM.

Vibro meter VM600 IOC4T:Input/output card used for outputting alarm relays and analog signals,with configuration information sourced from VM600 CPUM.

Vibro meter VM600 RLC16:16 channel relay card,used to expand alarm relay output,controlled by VM600 CPUM.

Vibro meter VM600 RACK:a system rack used for installing VM600 CPUM and other VM600 series cards.

Vibro meter MPSx software:used for configuring,monitoring,and analyzing data of VM600 system,communicating through VM600 CPUM.

Preparation before installation:Before installing the Vibro meter VM600 CPUM central processing unit module,please carefully read the installation manual of the VM600 system and the user guide of the Vibro meter VM600 CPUM to ensure that the installation environment meets the requirements.Check if the card packaging is intact and confirm that the model is consistent with the ordered model.Prepare the required Ethernet cables and serial communication cables.Ensure that the VM600 system rack is correctly installed and powered.Carefully insert the Vibro meter VM600 CPUM card into the designated slot of the VM600 system rack(usually located at the front of the rack)and secure it in place.According to the network plan,connect the Ethernet cable to the corresponding interface of the Vibro meter VM600 CPUM.If serial communication is required,also connect the corresponding serial cable.Ensure that all connections are firm and reliable.

Maintenance suggestion:To ensure the long-term stable operation of the Vibro meter VM600 CPUM central processing unit module,it is recommended to regularly check whether the connectors and cables of the cards are loose or damaged.Keep the card components and system rack clean to prevent dust accumulation from affecting heat dissipation and communication.Regularly check whether the front panel LCD display is normal.It is recommended to regularly use VM600 MPSx software to check the communication status and system configuration of Vibro meter VM600 CPUM.All maintenance operations should be carried out under power-off conditions and operated by personnel with professional knowledge.Follow the maintenance manual of VM600 system and the user guide of Vibro meter VM600 CPUM to conduct regular inspections and maintenance to extend the service life of the equipment.

Product Guarantee

Vibro meter(Meggitt Sensing Systems/Parker Hannifin)provides comprehensive quality assurance for its Vibro meter VM600 CPUM central processing unit modules.
