Description

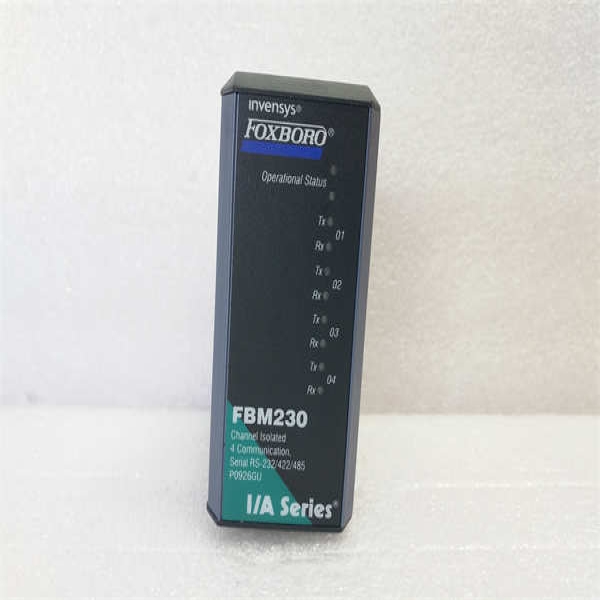

FOXBORO FBM230 P0926GU is a four channel serial communication field device system integrator module(FDSI),belonging to the FOXBORO I/A Series distributed control system(DCS).This high-performance module FOXBORO FBM230 is designed to provide flexible interfaces for FOXBORO control systems to integrate various field devices that support serial communication protocols.FOXBORO FBM230 P0926GU has four independent communication ports,each of which can be flexibly configured in the software as RS-232,RS-422,or RS-485 communication standards,allowing a single module to connect multiple different interface types of devices.As an important component of the I/A Series system,FOXBORO FBM230 can effectively integrate real-time data from on-site equipment into the FOXBORO control database for operator monitoring,trend analysis,and advanced control strategies.Its strong flexibility and reliability make FOXBORO FBM230 P0926GU an ideal choice for connecting various field devices such as smart transmitters,analytical instruments,motor drivers,etc.,greatly expanding the integration capability and application scope of FOXBORO control systems.

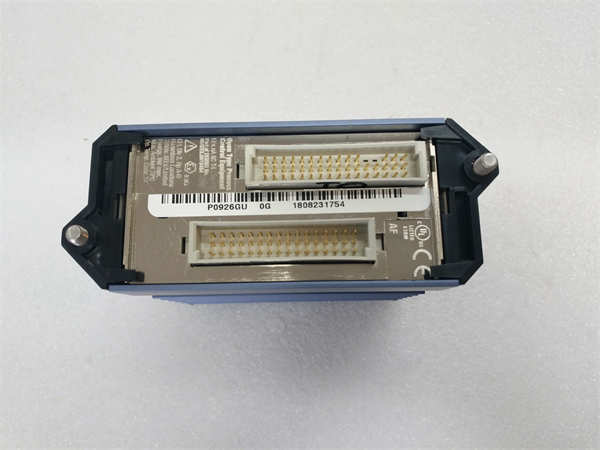

FBM230 P0926GU FOXBORO

technical specifications

Product model:FBM230 P0926GU

Manufacturer:FOXBORO(Schneider Electric)

Product Type:Field Device System Integration Module(FDSI)

Communication ports:4 x configurable(RS-232,RS-422,RS-485)

Maximum device connections:RS-485:up to 64 devices;RS-232/RS-422:1 device per port

Data transmission rate:depends on the configuration and connected devices

Channel isolation:Yes,each communication channel is isolated from ground

Power supply voltage:24 V DC(+5%,-10%)

Power consumption:7 W(maximum)

Working temperature:-20°C to+70°C

Installation method:I/A Series system motherboard installation

Main features and advantages

Four channel flexible configuration:FOXBORO FBM230 P0926GU provides four independent serial communication ports,each of which can be configured as RS-232,RS-422,or RS-485 through software,greatly improving the flexibility of connecting different types of field devices.

Wide device compatibility:FOXBORO FBM230 can communicate with various field devices that support serial communication protocols,including smart transmitters,analytical instruments,motor drivers,remote I/O modules,etc.

Powerful data integration capability:This module can seamlessly integrate the data of connected field devices into the FOXBORO I/A Series control database,making it convenient for operators to monitor and control.

Supporting multiple communication protocols:By loading different I/O software drivers,FOXBORO FBM230 P0926GU can support multiple standard and customized serial communication protocols.

Channel isolation:Each communication channel is electrically isolated from the ground,improving the system’s anti-interference ability and reliability.

Redundant communication path support:FOXBORO FBM230 can communicate through redundant 2 Mbps module fieldbus,ensuring communication can still be maintained in the event of a main communication path failure.

application area

The FOXBORO FBM230 P0926GU field equipment system integration module is widely used in various industrial automation fields that require the integration of serial communication field equipment,such as:

Oil and gas:Connect smart transmitters,flow meters,analyzers,etc.

Chemical industry:Integrate various process analysis instruments,valve positioners,and special equipment.

Electricity:I/O devices that connect motor protection relays,smart meters,and serial communication.

Pharmaceutical:Integrated environmental monitoring equipment,batch control systems,and analytical instruments.

Papermaking:Connect paper quality sensors,drive control systems,and process instruments.

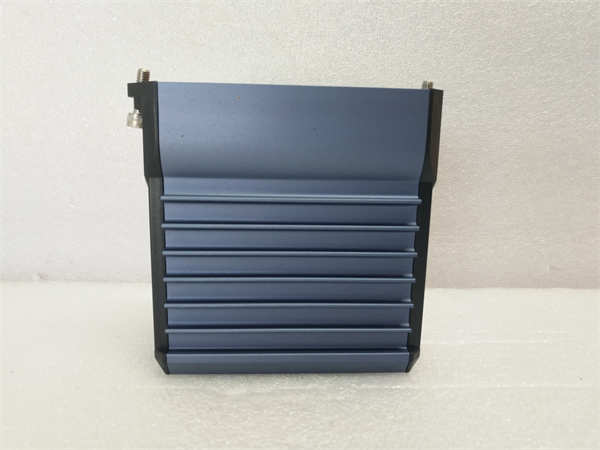

FBM230 P0926GU FOXBORO

Related products

FOXBORO FCM100E/T:Field control module,FOXBORO FBM230 communicates with it through the module fieldbus.

FOXBORO FCP270/280:On site control processor that can also communicate with FOXBORO FBM230.

FOXBORO I/A Series Termination Assemblies(TAs):Used in conjunction with FOXBORO FBM230,providing on-site wiring terminals and signal conditioning.

FOXBORO I/A Series I/O modules,such as FBM201,FBM207,etc.,are used to directly connect analog and digital field signals.

FOXBORO Evo system:FOXBORO’s latest generation distributed control system,FBM230 can also be integrated into this system.

Preparation before installation:Before installing the FOXBORO FBM230 P0926GU module,please refer to the installation manual and safety guide of the FOXBORO I/A Series system.Ensure that the system motherboard is correctly installed and powered on.Check if the packaging of the FOXBORO FBM230 module is intact and confirm that the model is consistent with the required specifications.Carefully insert the FOXBORO FBM230 module into the designated slot on the I/A Series system motherboard and ensure that the connector is securely connected.Select the appropriate Termination Assembly(TA)based on the system design and communication interface type of the on-site equipment,and connect it to FOXBORO FBM230.Connect the serial communication cable of the on-site equipment correctly to the Termination Assembly according to the wiring diagram.

Maintenance suggestion:In order to ensure the long-term stable operation of the FOXBORO FBM230 P0926GU module,it is recommended to regularly check whether the module is securely connected to the system motherboard and whether the communication cables of the on-site equipment connected to the Termination Assembly are loose or damaged.Keep the surface of the module clean to avoid dust accumulation.Regularly check the operation status and communication of the connected on-site devices to ensure they are functioning properly.If any abnormalities are found in the module or system,it is necessary to promptly consult the relevant system documentation for troubleshooting or contact Schneider Electric’s technical support team.

FBM230 P0926GU FOXBORO

Product Guarantee

FOXBORO(Schneider Electric)provides standard quality assurance for its industrial automation product FOXBORO FBM230 P0926GU.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets relevant technical standards.
