Description

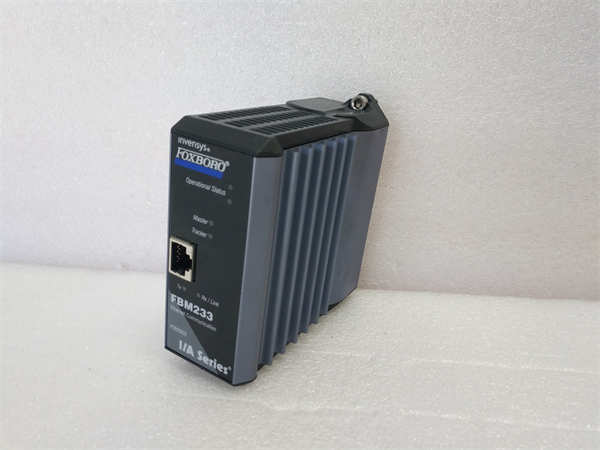

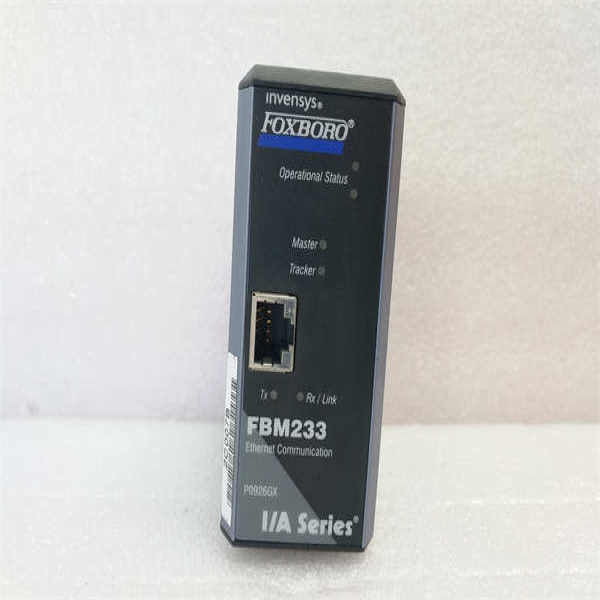

FOXBORO FBM233 P0926GX is a Redundant Ethernet Communication Interface Module,belonging to the FOXBORO I/A Series Distributed Control System(DCS).This high-performance module FOXBORO FBM233 is designed to provide a highly reliable and high-performance Ethernet communication link for FOXBORO control systems,used to connect single or dual port field I/O devices.FOXBORO FBM233 P0926GX is equipped with an RJ45 interface that supports 10/100 Mbps Ethernet communication rate and can communicate with up to 64 external devices.As an important component of the I/A Series system,FOXBORO FBM233 can recognize and support specific communication protocols of various field devices by loading different I/O software drivers,seamlessly integrating data from field devices into the I/A Series control database for control and monitoring purposes.Its redundant design ensures that in the event of a failure in the main communication path,the backup path can automatically take over,significantly improving the availability and reliability of the system.FOXBORO FBM233 P0926GX is a key component for building high reliability Ethernet communication networks,suitable for various industrial automation applications that require stable and redundant communication.

FBM233 P0926GX FOXBORO

technical specifications

Product model:FBM233 P0926GX

Manufacturer:FOXBORO(Schneider Electric)

Product type:Redundant Ethernet Communication Interface Module

Compatible system:FOXBORO I/A Series

Ethernet interface:1 x RJ45(10/100 Mbps)

Maximum number of device connections:up to 64

Redundancy support:Supports module level redundancy

I/O software driver:can be downloaded from the library

DCI block connections:up to 2000

Power supply voltage:24 V DC(+5%,-10%)

Power consumption:7 W(maximum)

Working temperature:-20°C to+70°C

Installation method:I/A Series system motherboard installation

Main features and advantages

Redundant Ethernet Communication:FOXBORO FBM233 P0926GX provides redundant Ethernet communication capabilities,allowing the module to continue operating even if one Ethernet port fails,ensuring continuous communication with field devices and improving system reliability and availability.

High performance Ethernet:This module supports Ethernet communication rates of 10/100 Mbps,providing a high-speed channel for data transmission of field devices.

Wide device compatibility:By downloading different I/O software drivers,FOXBORO FBM233 can communicate with various field devices that support Ethernet communication protocols.

High integration:FOXBORO FBM233 P0926GX can integrate data from up to 64 field devices into the I/A Series control database,simplifying system architecture and data management.

Supports up to 2000 DCI block connections:This module supports a large number of Control Interconnect(DCI)block connections,providing ample resources for complex control strategies.

Durable Design:FOXBORO FBM233 features a sturdy extruded aluminum casing that provides physical and electrical protection for circuits,making it suitable for harsh industrial environments.

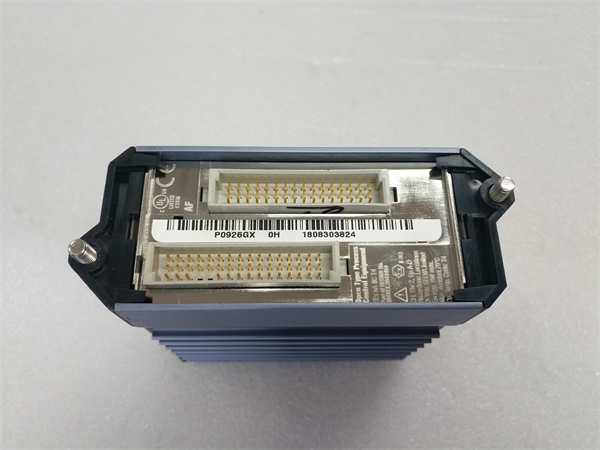

FBM233 P0926GX FOXBORO

application area

The FOXBORO FBM233 P0926GX redundant Ethernet communication interface module is widely used in industrial automation fields that require high reliability Ethernet communication,such as:

Process control:Connect smart transmitters,analytical instruments,valve positioners,etc.that support Ethernet communication.

Industrial automation:integrating I/O devices,motor drivers,and sensors with various Ethernet interfaces.

Building automation:Connect Ethernet controlled HVAC equipment,lighting systems,and security systems.

Any FOXBORO I/A Series system application that requires a redundant Ethernet connection to field devices.

Related products

FOXBORO FBM232:Similar to FOXBORO FBM233 P0926GX,but provides a non redundant Ethernet communication interface.

FOXBORO FCM100E/T:Field control module,FOXBORO FBM233 communicates with it through a redundant 2 Mbps module fieldbus.

FOXBORO I/A Series Termination Assemblies(TAs):Used in conjunction with FOXBORO FBM233,providing on-site wiring terminals and signal conditioning.

Industrial Ethernet switches and hubs:used to build Ethernet communication networks between FOXBORO FBM233 and field devices.

FOXBORO Evo system:FOXBORO’s latest generation distributed control system,FBM233 can also be integrated into this system.

Preparation before installation:Before installing the FOXBORO FBM233 P0926GX module,please refer to the installation manual and safety guide of the FOXBORO I/A Series system.Ensure that the system motherboard is correctly installed and powered on.Check if the packaging of the FOXBORO FBM233 module is intact and confirm that the model is consistent with the required specifications.Carefully insert the FOXBORO FBM233 module into the designated slot on the I/A Series system motherboard and ensure that the connector is securely connected.Use RJ45 Ethernet cable to connect the Ethernet interface of FOXBORO FBM233 to an Ethernet switch or directly to on-site equipment.

Maintenance suggestion:To ensure the long-term stable operation of the FOXBORO FBM233 P0926GX module,it is recommended to regularly check whether the module is securely connected to the system motherboard and whether the Ethernet cable connection is loose or damaged.Keep the surface of the module clean to avoid dust accumulation.Regularly check the operational status and network communication of the connected on-site devices.If redundancy is configured,regular checks should be conducted to ensure that the redundant links are functioning properly.If any abnormalities are found in the module or system,it is necessary to promptly consult the relevant system documentation for troubleshooting or contact Schneider Electric’s technical support team.

Product Guarantee

FOXBORO(Schneider Electric)provides standard quality assurance for its industrial automation product FOXBORO FBM233 P0926GX.All products undergo strict testing and inspection before leaving the factory to ensure that their performance meets relevant technical standards.
