Description

IS220PAICH2A 336A4940CSP11 GE Analog Input/Output Module is a crucial analog signal processing component in the GE Mark VIe control system platform.As an important member of the Mark VIe series I/O modules,the IS220PAICH2A module is designed to connect I/O Ethernet networks and analog input terminal boards,providing precise and reliable analog signal acquisition and output capabilities for industrial control applications.This IS220PAICH2A 336A4940CSP11 GE analog input/output module integrates a high-performance BPPx processor board and dedicated analog I/O acquisition circuit,which can efficiently process analog signals from various field instruments and convert control instructions into analog outputs,ensuring the stability and accuracy of the entire control system.With its powerful functionality and flexibility,the IS220PAICH2A GE analog input/output module is suitable for various complex industrial environments and is a key element in building advanced turbine control and industrial automation systems.

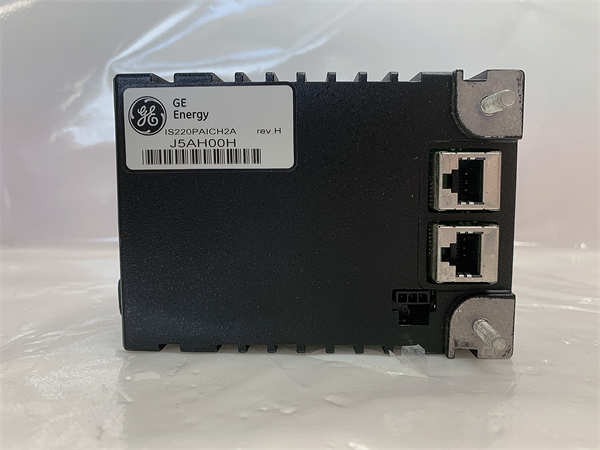

IS220PAICH2A 336A4940CSP11 GE

technical specifications

Product model:IS220PAICH2A 336A4940CSP11

Manufacturer:GE

Product Type:Analog Input/Output Module

Series:Mark VIe

Analog input channels:10(the first 8 can be configured as±5V,±10V,0-5V,0-10V,4-20mA;The last two can be configured as±1mA,4-20mA)

Analog output channel:2(0-20mA,the first output can be optionally 0-200mA)

Ethernet interface:2 x RJ-45 10/100 Mbps

Power input:28 VDC

Power consumption:5.3 W(typical),6.2 W(maximum)

Dimensions:8.26 cm(height)x 4.19 cm(width)x 12.1 cm(depth)

Main features and advantages

The IS220PAICH2A 336A4940CSP11 GE analog input/output module has a series of outstanding features and advantages,making it stand out in the field of industrial automation:

Flexible input configuration:The first 8 analog input channels of the IS220PAICH2A module provide a variety of configurable voltage and current input ranges,which can adapt to different types of analog sensors and instruments,greatly enhancing the flexibility and compatibility of the system.

Optional high current output:This module provides two 0-20mA analog current output channels,with the first output being configurable as 0-200mA output,meeting special application requirements that require greater driving capability.

High speed Ethernet communication:IS220PAICH2A is equipped with dual RJ-45 Ethernet interfaces,supporting a data transmission rate of 10/100 Mbps,ensuring high-speed and reliable data exchange with the control system and meeting the requirements of real-time control.

Built in soft start function:This module integrates a soft start circuit,which can effectively control surge current during power on,protect the module itself and connected power equipment,improve system reliability,and extend equipment life.

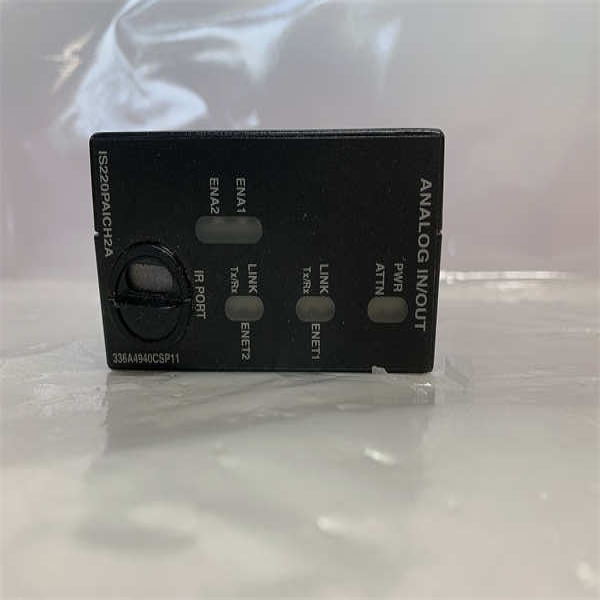

Comprehensive status indication:The LED indicator lights on the front panel of the IS220PAICH2A module can provide clear and intuitive information on the module’s operating status and fault diagnosis,facilitating on-site maintenance and troubleshooting for users and shortening downtime.

Compact industrial design:The IS220PAICH2A module adopts a compact industrial grade design,which is easy to install in space limited environments such as control cabinets,saving installation space.

IS220PAICH2A 336A4940CSP11 GE

application area

With its powerful analog signal processing capabilities and flexible configuration options,the IS220PAICH2A 336A4940CSP11 GE analog input/output module is widely used in various industrial automation fields,especially in scenarios that require precise analog signal acquisition and control:

Gas turbine control system:In the GE Mark VIe gas turbine control system,IS220PAICH2A is used to collect analog signals from sensors such as temperature,pressure,and flow,and output control signals to actuators such as valves.

Steam turbine control system:Similarly,in the steam turbine control system,the IS220PAICH2A module is used to achieve precise monitoring and control of key process parameters.

Industrial process control:In automation systems in industries such as chemical,petroleum,and metallurgy,IS220PAICH2A is used to connect various analog instruments to achieve precise control of the production process.

Data acquisition system:IS220PAICH2A can also be applied to various industrial data acquisition systems for collecting and transmitting analog data,providing a basis for system analysis and decision-making.

Related products

The GE Mark VIe control system products related to the IS220PAICH2A 336A4940CSP11 GE analog input/output module include:

IS220PDIAH1A:GE Mark VIe series discrete input module,used for collecting switch signals.

IS220PDOAH1A:GE Mark VIe series discrete output module,used for outputting switch control signals.

IS220PRTDH1A:GE Mark VIe series RTD(Resistance Temperature Detector)input module,used to connect and process RTD temperature sensor signals.

IS220PTURH1A:GE Mark VIe series turbine specific I/O module,including multiple input and output channel types.

IS220PSVOH1A:GE Mark VIe series servo valve control module,used to control hydraulic or pneumatic servo valves.

IS220PPROS1A:GE Mark VIe series protective relay output module,used to achieve system protection function.

These modules,together with the IS220PAICH2A analog input/output module,form a comprehensive I/O solution for the GE Mark VIe control system,meeting various industrial control requirements.

IS220PAICH2A 336A4940CSP11 GE

Installation and maintenance

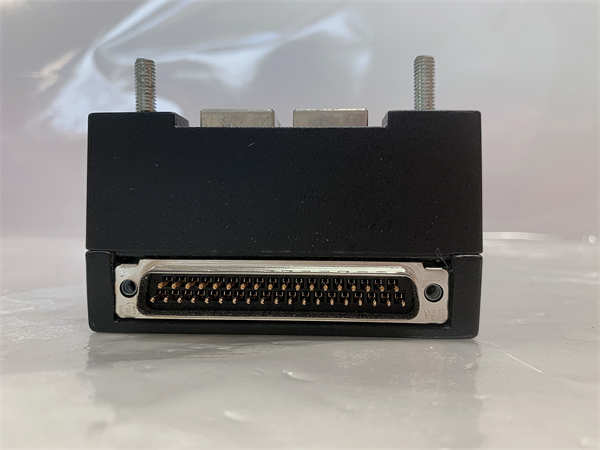

Preparation before installation:Before installing the IS220PAICH2A 336A4940CSP11 GE analog input/output module,please ensure that the relevant Mark VIe control system terminal board has been correctly installed and secured.Carefully insert the IS220PAICH2A module into the corresponding connector on the terminal board.Use threaded posts and mounting brackets located near the Ethernet port to mechanically secure the IS220PAICH2A module,ensuring that the DC-37 pin connector between the module and the terminal board is not subjected to unnecessary lateral stress.According to the network configuration of the system,connect one or two Ethernet cables to the RJ-45 interface of the IS220PAICH2A module.Finally,connect the 28 VDC power supply to the power connector of the module.Due to the built-in soft start function of the IS220PAICH2A module,there is no need to disconnect the cable when connecting to the power supply.

Maintenance suggestion:In order to ensure the long-term stable operation of IS220PAICH2A 336A4940CSP11 GE analog input/output module,it is recommended to perform preventive maintenance regularly.Regularly check whether the connection between the module,terminal board,and external cables is secure to avoid poor signal transmission or system failure caused by looseness.Keep the surface of IS220PAICH2A module clean to prevent dust and pollutants from accumulating and affecting the module’s heat dissipation performance.Avoid operating the equipment in environments that exceed the operating temperature and humidity range of the module.If any abnormal situation is found,such as abnormal module indicator lights or abnormal signal acquisition/output,it should be checked in a timely manner and the relevant maintenance manual of the GE Mark VIe system should be referred to for troubleshooting.It is recommended to have professionally trained personnel perform module maintenance and replacement operations.
