Description

IS220PDIAH1A 336A4940CSP1 GE Discrete Input Module is a key digital signal acquisition component in the GE Mark VIe control system platform.As an important member of the Mark VIe series of high-performance I/O modules,the IS220PDIAH1A module is specifically designed to connect I/O Ethernet networks and discrete input terminal boards,providing reliable and accurate digital signal input capabilities for industrial control applications.This IS220PDIAH1A 336A4940CSP1 GE discrete input module can efficiently receive and process signals from on-site switches,sensors,and other digital devices,and transmit these status information to the control system,thereby achieving real-time monitoring and logical control of industrial processes.With its sturdy and durable design and seamless integration with the GE Mark VIe system,the IS220PDIAH1A GE discrete input module is one of the key elements in building stable and efficient turbine control and industrial automation systems,providing users with a reliable digital signal acquisition solution.

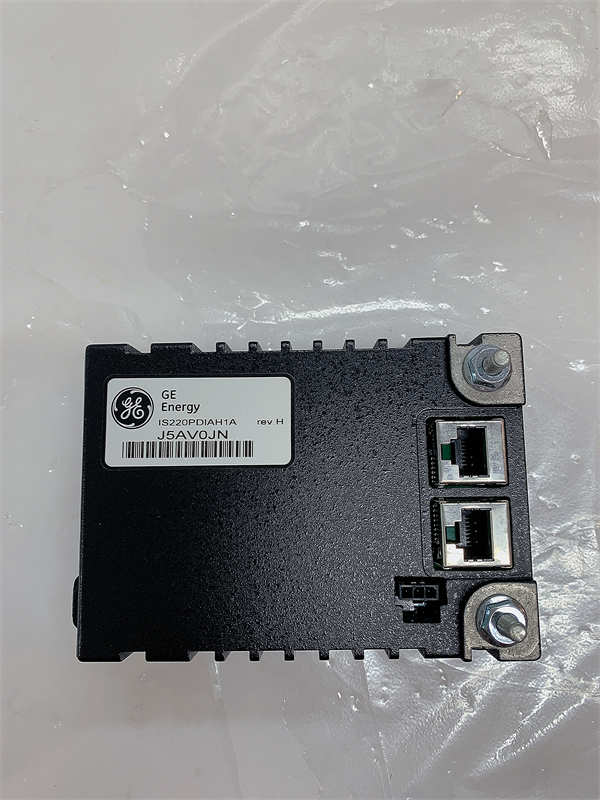

IS220PDIAH1A 336A4940CSP1 GE

technical specifications

Product model:IS220PDIAH1A 336A4940CSP1

Manufacturer:GE

Product Type:Discrete Input Module

Series:Mark VIe

24 input channels

Input voltage range:24 VDC(typical),compatible with multiple voltage levels

Input isolation:photoelectric isolation,up to 1500 V

Input filtering:hardware filtering,approximately 4 ms

Ethernet interface:2 x RJ-45 10/100 Mbps

Power input:28 VDC

Working temperature:-30°C to+65°C

Main features and advantages

The IS220PDIAH1A 336A4940CSP1 GE discrete input module has the following significant features and advantages,making it a reliable digital signal acquisition solution in the field of industrial automation:

High channel density:The IS220PDIAH1A module provides up to 24 discrete input channels,capable of simultaneously receiving and processing digital signals from multiple field devices,reducing system complexity and cost.

Flexible input voltage compatibility:This module is designed to be compatible with multiple input voltage levels,making it easy to connect various types of digital sensors and switches,and improving the adaptability of the system.

Powerful photoelectric isolation:Each input channel provides up to 1500 V photoelectric isolation,effectively protecting the control system from on-site electrical interference and faults,improving the reliability and safety of the system.

Built in hardware filtering:The IS220PDIAH1A module integrates hardware filtering circuits,which can effectively suppress noise and interference in the input signal,ensuring the accuracy and stability of signal acquisition.

High speed Ethernet communication:This module is equipped with dual redundant RJ-45 Ethernet interfaces,supporting a data transmission rate of 10/100 Mbps,ensuring high-speed and reliable data exchange with the control system,and meeting the needs of real-time control.

Status indicator LED:Each input channel is equipped with a status indicator LED,which can intuitively display the status of the input signal,making it convenient for users to conduct on-site diagnosis and troubleshooting.

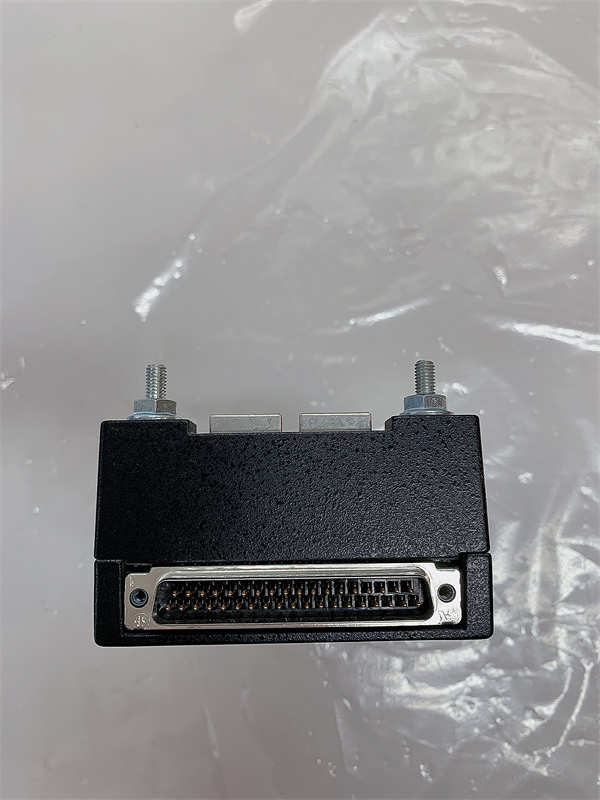

IS220PDIAH1A 336A4940CSP1 GE

application area

With its high reliability and flexible input configuration,the IS220PDIAH1A 336A4940CSP1 GE discrete input module is widely used in various industrial automation fields for collecting switch signals from field devices

Gas turbine control system:In the GE Mark VIe gas turbine control system,IS220PDIAH1A is used to receive signals from various protection switches,limit switches,and status indicators.

Steam turbine control system:Similarly,in a steam turbine control system,this module is used to monitor the operating status of equipment and receive control commands.

Industrial process control:In automation systems in industries such as chemical,petroleum,and metallurgy,IS220PDIAH1A is used to collect valve position,motor start stop status,alarm signals,etc.

Safety system:In emergency shutdown systems(ESD)and other safety related applications,IS220PDIAH1A is used to receive signals from safety switches and emergency buttons.

Related products

The GE Mark VIe control system products related to IS220PDIAH1A 336A4940CSP1 GE discrete input module include:

IS220PDOAH1A:GE Mark VIe series discrete output module,used to output digital control signals to actuators.

IS220PAICH2A:GE Mark VIe series analog input/output module,used for collecting and outputting analog signals.

IS220PRTDH1A:GE Mark VIe series RTD input module,used for connecting and processing resistance temperature detector signals.

IS220PTURH1A:GE Mark VIe series turbine specific I/O module,including multiple input and output channel types.

IS220PSCAH1A:GE Mark VIe series serial Modbus communication interface module,used for communication with other Modbus devices.

These modules,together with the IS220PDIAH1A discrete input module,form a comprehensive I/O solution for the GE Mark VIe control system,meeting various industrial control requirements.

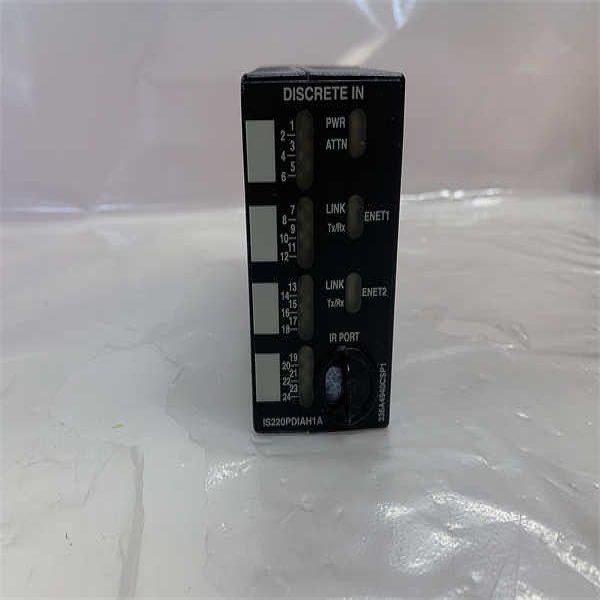

IS220PDIAH1A 336A4940CSP1 GE

Installation and maintenance

Preparation before installation:Before installing the IS220PDIAH1A 336A4940CSP1 GE discrete input module,please refer to the relevant GE Mark VIe system installation manual to ensure that the installation environment meets the regulatory requirements.Check if the corresponding discrete input terminal board has been correctly installed and secured.Carefully insert the IS220PDIAH1A module into the DC-37 pin connector on the terminal board and mechanically secure it using threaded posts and mounting brackets to prevent unnecessary stress on the connector.According to the network configuration of the system,connect one or two Ethernet cables to the RJ-45 interface of the module.Finally,connect the 28 VDC power supply to the power connector of the module.The IS220PDIAH1A module has a built-in soft start function,so there is no need to disconnect the cable when connecting to the power supply.

Maintenance suggestion:To ensure the long-term stable operation of IS220PDIAH1A 336A4940CSP1 GE discrete input module,it is recommended to perform preventive maintenance regularly.Regularly check whether the connections between the module,terminal board,and external cables are secure to avoid signal transmission failures caused by looseness.Keep the surface of IS220PDIAH1A module clean to prevent dust and pollutants from accumulating and affecting the module’s heat dissipation performance.Avoid operating equipment in environments beyond the operating temperature range of the module.Regularly check whether the status indicator LED on the module is working properly in order to detect potential faults in a timely manner.If there are any abnormal situations,please refer to the maintenance manual of the GE Mark VIe system for troubleshooting,and it is recommended to have professionally trained personnel perform maintenance and replacement operations.
