Description

ICS Triplex T8461 is a high-performance the third mock examination redundant(TMR)24/48 Vdc digital output module designed to provide unparalleled reliability and availability in safety critical applications.As Foxconn(now a brand under Schneider Electric)Triconex Trusted™The core component of Safety Instrumented System(SIS),ICS Triplex T8461,is widely used in industries such as oil and gas,refining,chemical,power generation,and others that have extremely high requirements for safety,continuous operation,and shutdown costs.The core feature of this module is its fault tolerant the third mock examination redundancy architecture.This means that ICS Triplex T8461 contains three independent digital output circuits that run in parallel and continuously verify their outputs through a majority voting mechanism(voting).Even if one of the channels fails(such as short circuit,open circuit,or device failure),the module can continue to operate normally without affecting the output,thereby minimizing the risk of single point failure and ensuring the continuity and safety of critical processes.

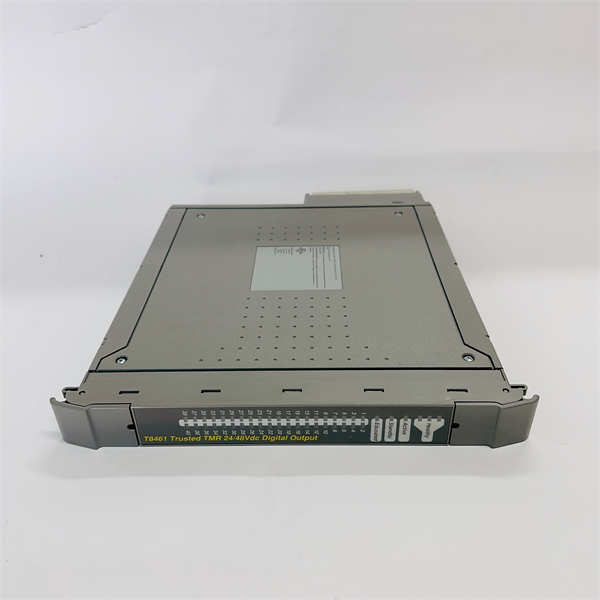

T8461 ICS TRIPLEX

technical specifications

Product model:T8461

Manufacturer:ICS Triplex(a brand under Schneider Electric)

Product type:the third mock examination Redundant(TMR)digital output module

Compatible system:Triconex Trusted™Safety Instrumented System(SIS)

Number of output channels:40 TMR digital output channels

Independent power pack:5 power packs,each with 8 outputs

System power supply voltage range:20 to 32 Vdc

Output/on-site voltage range:18 to 60 Vdc

Rated output current(continuous):0.75 A/channel(some data shows 2A/channel,specific version needs to be checked),6 A/power pack

Minimum conductive load current:25 mA

Output short circuit protection:electronic(self-locking),automatic protection,no need for external fuses

On site isolation:2500 V pulse withstand light/current isolation barrier

Event sequence(SOE)resolution:1 ms

Self check interval:2 minutes

Working temperature:-5°C to 60°C(23°F to 140°F)

Relative humidity:5%to 95%RH(non condensing)

Dimensions(height x width x depth):266 mm x 31 mm x 303 mm(10.5 in x 1.2 in x 12 in)

Weight:1.285 kg(2.8 lbs)

Safety certification:TÜV certification IEC 61508 SIL 3,CE mark,UL certification

Main features and advantages

The ICS Triplex T8461 module,with its outstanding performance and safety design,provides significant features and advantages in safety critical industrial applications:

The third mock examination redundancy(TMR)architecture:The core advantage of T8461 lies in its revolutionary the third mock examination redundancy design.The module has three completely independent hardware channels internally,which perform the same output function in parallel and make decisions through majority voting logic.This means that even if one or two channels experience internal faults(such as short circuits,open circuits,or device failures),the module can continue to operate normally and the output will not be affected.This fault tolerance capability fundamentally eliminates the risk of single point failures,greatly improving the reliability and availability of the system,and ensuring the continuous safe operation of critical processes.

High level fault diagnosis and line monitoring:ICS Triplex T8461 provides powerful self diagnostic capabilities and comprehensive line monitoring capabilities for each channel.It can automatically detect open and short circuit faults in on-site wiring(such as lines connected to actuators)and distinguish between”stuck open”and”stuck closed”fault states.This precise diagnostic capability enables operations personnel to quickly locate fault points,shorten troubleshooting time,and support predictive maintenance strategies,thereby improving the overall operational efficiency of the system.

Automatic overcurrent protection without external fuses:Each output channel is equipped with built-in automatic overcurrent protection function,without the need for additional external fuses.This not only simplifies system design and on-site wiring,reduces material lists and installation costs,but also improves the maintainability of the system.When overload or short circuit occurs,the module can automatically protect itself and connected devices,and automatically recover after the fault is eliminated,further improving system reliability.

High isolation and signal integrity:T8461 has a 2500 V pulse tolerant optical/current isolation barrier,ensuring electrical isolation between the control circuit and field equipment.This high isolation effectively prevents grounding loops,suppresses electrical noise,and protects sensitive control electronic components from on-site electrical transients,thereby enhancing signal integrity and overall system safety.

Hot swappable and high availability:ICS Triplex T8461 supports hot swappable functionality,allowing for module installation,replacement,or removal while the system is running online.This minimizes unplanned downtime,simplifies maintenance operations,and is particularly suitable for industrial environments that require 24/7 continuous operation,greatly improving system availability and operational efficiency.

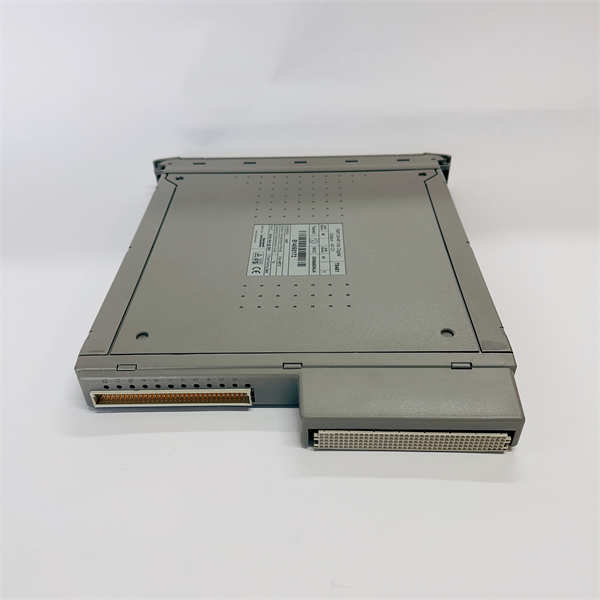

T8461 ICS TRIPLEX

application area

ICS Triplex T8461 as Triconex Trusted™The core digital output module of SIS is widely used in various industrial process control systems that require extremely high safety and availability:

Oil and gas:T8461 is used in refineries,natural gas processing plants,offshore oil drilling platforms,liquefied natural gas(LNG)facilities,and long-distance pipeline systems to drive emergency stop valves,fire suppression systems,pressure relief valves,and other critical actuators.It plays a core role in emergency shutdown systems(ESD)and fire and gas systems(F&G),ensuring that equipment can be quickly and reliably placed in a safe state in the event of a dangerous situation,preventing accidents from occurring or spreading.

Chemical and Petrochemical:In fine chemical,basic chemical,fertilizer,and petrochemical production facilities,ICS Triplex T8461 is used to control interlocking,safety shutdown logic,and emergency venting systems for critical processes.It ensures the safe operation of equipment such as reactors,separators,and storage tanks,preventing abnormal situations such as overpressure,overheating,and leakage that may cause catastrophic consequences.

Electricity generation:T8461 is used in boiler management systems(BMS),turbine overspeed protection systems,and emergency shutdown systems in thermal power plants,nuclear power plants,and other power facilities.It controls the burner shut-off valve,turbine trip valve,and emergency cooling system to ensure the safe start-up,operation,and emergency shutdown of electrical equipment,ensuring the stability of the power grid.

Steel and Metallurgy:In steel and non-ferrous metal smelting and rolling production lines,ICS Triplex T8461 is used to control emergency shutdowns,safety interlocks,and protective devices for critical equipment.For example,in high-temperature and high-pressure environments such as continuous casting and hot rolling,ensure the safe shutdown of equipment under abnormal working conditions.

Pharmaceutical and Biotechnology:In highly automated and compliant pharmaceutical production,T8461 is used to control safety interlocks,emergency shut-off valves,and the start/stop of critical equipment during batch processing.It helps ensure that the production process complies with GMP(Good Manufacturing Practice)standards and protects personnel and environmental safety.

Water treatment and sewage treatment:In large water treatment plants and sewage treatment facilities,ICS Triplex T8461 is used to control emergency shutdown of water pumps,valve opening and closing,and safety interlocking of disinfection systems to prevent equipment damage or environmental pollution.

Related products

The products associated with ICS Triplex T8461 are mainly focused on Triconex Trusted™In the Safety Instrumented Systems series,these modules together form a highly reliable SIS solution:

Triconex Trusted™T8151B/T8153B:The TMR main processor module is the core of the entire Trusted system,responsible for executing control logic and security functions.

Triconex Trusted™T8311:16 channel 0-5VDC analog input module,used to receive analog signals.

Triconex Trusted™T8403/T8403C:TMR 24/48 Vdc digital input module,used to receive on-site digital signals.

Triconex Trusted™T8431/T8431C:TMR 4-20mA analog input module,used to receive analog signals,usually supports HART communication.

Triconex Trusted™T8480:TMR 4-20mA analog output module,used for outputting analog signals.

Triconex Trusted™T8380:TMR pulse input module,used for counting or frequency input.

Triconex Trusted™T8381:TMR speed input module,used to monitor the rotational speed of rotating equipment.

Triconex Trusted™T8110B:Communication module,used for communication with external systems such as DCS and SCADA.

Triconex Trusted™Chassis:A chassis for installing all Trusted modules,including T8461,and providing backplane connections.

Triconex Trusted™Power module:Provides redundant power supply for Trusted systems.

Field Termination Unit(FTU):A terminal unit used in conjunction with I/O modules,providing on-site wiring terminals and signal conditioning.

Installation and maintenance

Preparation before installation:Before installing the ICS Triplex T8461 digital output module,please be sure to consult Schneider Electric Triconex Trusted in detail™System manual and specific installation guide for T8461 module.Ensure that the installation environment meets all technical specifications of the module,including temperature,humidity,vibration,and EMC(electromagnetic compatibility)requirements.Before performing any electrical connections or module plugging operations,please strictly follow the company’s safety regulations,including cutting off Triconex Trusted™All power sources of the system are equipped with appropriate lockout/tagout(LOTO)procedures to prevent any accidental power on.Carefully insert T8461 module into Triconex Trusted™Ensure that the module is fully inserted into the designated I/O slot of the chassis and securely connected to the backplane.According to the system design diagram and wiring specifications,connect the control cables of on-site equipment(such as valves,relays,indicator lights,etc.)to the T8461 module through the corresponding Field Termination Unit(FTU).Ensure that all wiring is correct,secure,and properly grounded to ensure stable system operation and safe operation.

Maintenance suggestion:To ensure the long-term stable operation of ICS Triplex T8461 digital output module and Triconex Trusted™It is recommended to conduct regular maintenance checks to ensure the highest availability of the system.Regularly conduct visual inspections of modules to ensure their physical connections are secure,including their insertion status in the chassis and the connection of all on-site wiring and communication cables.Keep the interior of the control cabinet clean and regularly remove dust and pollutants from the surface of the T8461 module to ensure good heat dissipation and avoid overheating.Continuously monitor the operational status and performance of T8461 through the LED indicator lights on the module front panel(such as output status,module health status,operating mode,etc.)and the diagnostic interface in Trusted System Workstation Software.Due to its TMR architecture and powerful self diagnostic capabilities,the system automatically detects and isolates most faults.Once the system reports any abnormalities or alarms,the cause should be promptly identified and troubleshooting or module replacement should be carried out according to the manual guidance.T8461 supports hot swapping,but any replacement operation still needs to follow strict procedures and safety regulations to ensure the safety and integrity of the system.All complex testing,repair,or replacement operations should be carried out by qualified personnel who have received professional training from Schneider Electric/Triconex.

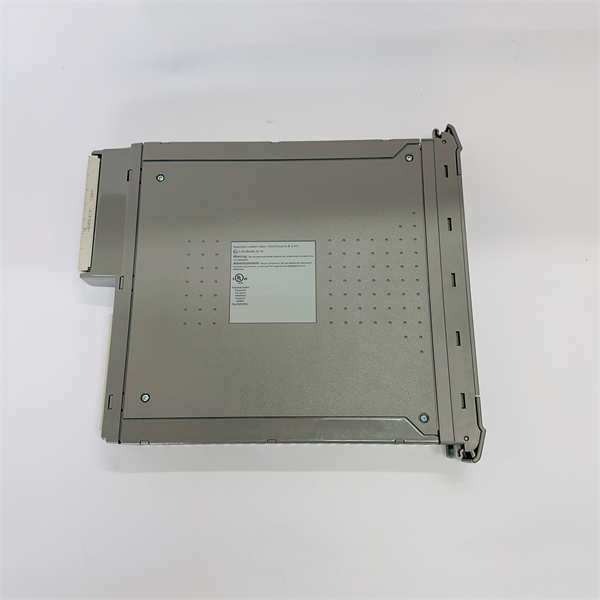

T8461 ICS TRIPLEX

Product Guarantee

As the owner of the ICS Triplex brand,Schneider Electric provides comprehensive product assurance for the ICS Triplex T8461 digital output module.
