Description

HIMA Z7149 is a critical cable plug or connector component designed specifically for HIMA safety related systems.HIMA is a leading global provider of functional safety automation solutions,with its products widely used in industries such as oil and gas,chemical,power,railway,and machinery manufacturing that require extremely high safety and reliability.It plays a crucial role in ensuring safe and reliable electrical connections in the system.It is responsible for securely connecting on-site sensor and actuator signals to HIMA’s I/O modules,ensuring the integrity of signal transmission and the functional safety of the system.As part of HIMA safety systems such as HIQuad X,HIMax,etc.,the design and manufacturing of Z7149 follow strict safety standards to meet the requirements of functional safety standards such as IEC 61508.

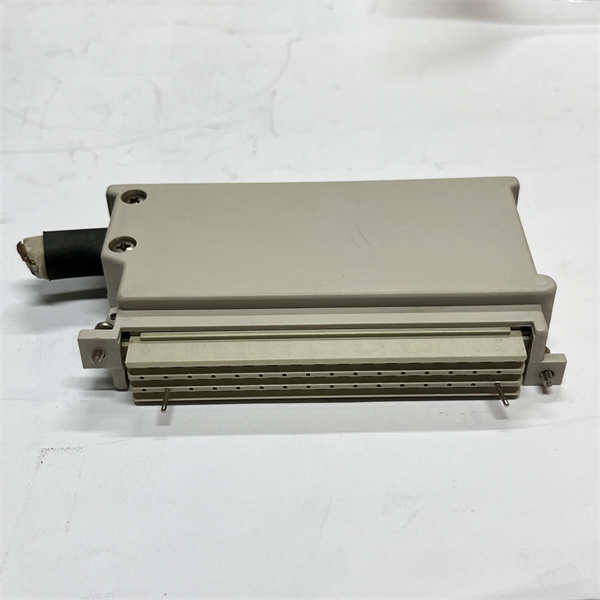

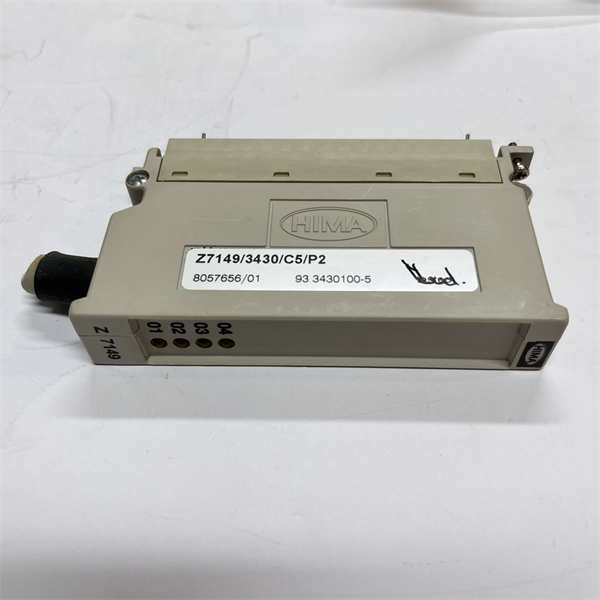

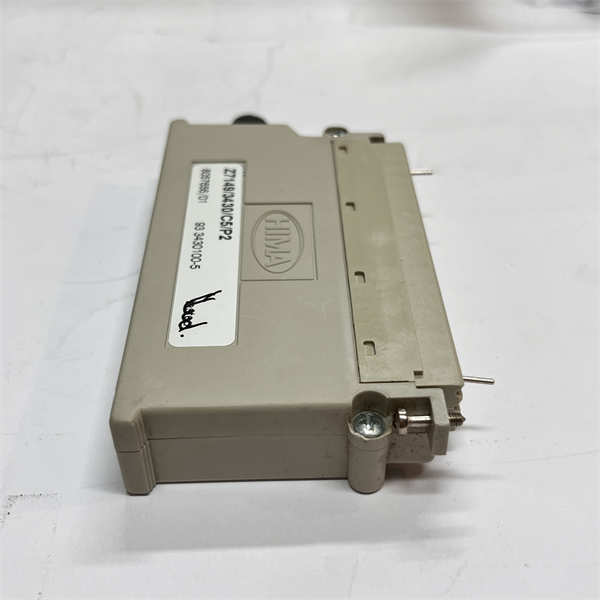

Z7149 HIMA

technical specifications

Product model:Z7149

Manufacturer:HIMA

Product type:Cable plug/connector assembly

Typical application:Connection of I/O modules such as HIMA F3430 4-channel relay module

Compatibility:Designed specifically for HIMA safety systems such as HIQuad X,HIMax

Physical connection:usually a multi pin connector,used for securely connecting field devices and modules

Electrical characteristics:Meet the voltage and current requirements of the corresponding I/O module(such as 5V DC or 24V DC signals)

Functional Safety Level:Indirectly supports the SIL(Safety Integrity Level)requirements of the HIMA system

Mechanical structure:sturdy and durable,suitable for industrial environments

Material:High quality conductive and insulating materials

Main features and advantages

Although the HIMA Z7149 cable plug/connector assembly is an auxiliary component in the system,it has the following key features and advantages,which are crucial for the overall performance and reliability of the HIMA safety system:

Functional safety compliance:The design and selection of Z7149 strictly comply with the requirements of the HIMA safety system,indirectly supporting the entire system to meet functional safety standards such as IEC 61508(such as SIL 3).It ensures the reliability of the connection between I/O modules and field devices,avoiding safety system failures caused by connection failures.In safety critical applications,even small connecting components must meet the highest standards of quality and design to prevent potential hazards.

Excellent connection reliability:Z7149 uses high-quality materials and precise manufacturing processes to ensure long-term stable connections in industrial environments.It can withstand harsh conditions such as vibration,temperature changes,and electromagnetic interference,preventing signal interruption or erroneous transmission.Reliable connections are the foundation for achieving high availability and low failure rates in HIMA systems,directly related to the continuity and safety of industrial processes.

Simplified installation and maintenance:As a prefabricated or easily connected cable plug,Z7149 simplifies the wiring process between HIMA modules and on-site equipment.Clear pin identification and standardized design reduce the possibility of installation errors and shorten debugging time.During maintenance,this modular connection method also makes troubleshooting and component replacement faster and more convenient,thereby reducing system downtime.

Z7149 HIMA

application area

The HIMA Z7149 cable plug/connector assembly is an essential part of the HIMA safety system and is widely used in various industrial fields that require the highest level of functional safety

In the oil and gas industry,Z7149 is used to connect sensors,actuators,and control modules in emergency shutdown systems(ESD),fire and gas systems(F&G),and high integrity pressure protection systems(HIPPS).It ensures reliable response of safety systems in extreme conditions such as wellhead safety,pipeline transportation,and refinery operations,preventing catastrophic accidents from occurring.

In the chemical and pharmaceutical industries,this cable plug plays a role in process safety systems,connecting critical I/O in reactor control,toxic gas monitoring,and explosion-proof systems.It ensures precise and safe control over hazardous chemicals and sensitive processes,in compliance with strict industry regulations and safety standards.

In the field of power production and transmission,Z7149 is used to connect the turbine protection system of power plants,boiler safety interlocking,and protection and automation equipment of substations.It ensures the stable operation and safe power supply of the power system,preventing equipment damage and large-scale power outages.

In addition,in the fields of railway signal and control systems,heavy industry automation(such as steel and mining),and machinery and equipment manufacturing,any scenario that uses HIMA safety PLC or distributed safety I/O modules will require safety connection components such as Z7149 to achieve reliable communication and signal transmission between on-site equipment and safety control layers.

Related products

HIMA F3430 4-channel relay module:This is one of the most commonly connected I/O modules for Z7149 cable plugs.Z7149 serves as its front cable plug for connecting relay outputs.

HIMA HIQuad X series module:Z7149 is a component of the HIQuad X safety control system,used to connect various I/O modules in the system.

HIMA HIMax series modules:Similarly,Z7149 may also be used in HIMax safety systems as a connector for its I/O modules.

HIMA I/O modules(such as digital input/output modules,analog input/output modules):Cable plugs like Z7149 are standard components for connecting these modules to field sensors.

HIMA system cable:a specific shielded cable used in conjunction with Z7149 plug to ensure signal integrity.

HIMA backplane and rack:The I/O modules connected to Z7149 are typically installed in these racks.

HIMA engineering software(such as SILworX):used for programming,configuring,and diagnosing HIMA safety systems,indirectly supporting monitoring of connection status.

Installation and maintenance

Preparation before installation:Before installing the HIMA Z7149 cable plug,it is necessary to strictly comply with all electrical safety regulations,ensure that the power supply of the relevant HIMA safety system and its connected on-site equipment has been completely cut off,and take appropriate”shutdown/hanging out”(LOTO)measures to prevent accidental power on.Carefully read the highly detailed installation manual and wiring diagram provided by HIMA,especially the instructions for the specific I/O module connected(such as F3430).Confirm that the pin definition of Z7149 matches perfectly with the interface of the field device and I/O module.Ensure that the installation environment meets the technical specifications of the HIMA module,including temperature,humidity,vibration,and electromagnetic compatibility(EMC)requirements.When connecting Z7149 to the I/O module,make sure the plug is aligned with the socket and gently and firmly inserted until fully seated.All wiring should be carried out in accordance with specifications and ensure reliable grounding.

Maintenance suggestion:In order to ensure the long-term stable operation and functional safety of the HIMA Z7149 cable plug and the entire safety system,it is recommended to develop and implement a regular preventive maintenance plan.This includes regular visual inspections of the physical condition of Z7149 and its connecting cables to check for signs of wear,corrosion,looseness,or damage.Special attention should be paid to whether the connector pins are bent or dirty,and whether the cables are subjected to mechanical stress or chemical corrosion.It is crucial to keep the interior of the control cabinet clean,as dust and pollutants can affect heat dissipation and may cause electrical faults.Although Z7149 itself is not an intelligent module,it can monitor the communication status and fault alarms of the I/O modules connected to it through the diagnostic function of the HIMA safety system and engineering software(such as SILworX).Any abnormal I/O connections discovered during diagnosis may be related to cable plugs.When carrying out any maintenance operations,especially those involving disconnecting or reconnecting Z7149,it is necessary to strictly follow HIMA’s official operating procedures,ensure that they are carried out in a power-off state,and use original or HIMA certified spare parts.

Z7149 HIMA

Product Guarantee

HIMA provides a solid guarantee for the excellent quality and functional safety of Z7149 cable plug components.
