Description

ABB UFC921A101 3BHE024855R0101 is a multifunctional control board or interface board produced by ABB,mainly used in its industrial automation systems,especially playing a core role in excitation systems(such as UNITOL 5000)and frequency converters(ACS Drives).It is also commonly used as an interface board for communication with other devices in ABB Advant Master process control systems.

As a key component of the UNITOL 5000 excitation system,UFC921A101 is responsible for precise regulation of generator voltage and reactive power.It manages the excitation current by controlling the silicon controlled rectifier(SCR)bridge,ensuring stable operation of synchronous generators and rapid response to grid changes.This module typically includes excitation transformers,automatic voltage regulators(AVRs),silicon controlled rectifiers,and excitation and de excitation units.It can quickly respond to excitation voltage and support dual channel systems and manual emergency backup channels,making it one of the highest configurations of the UNITOL 5000 excitation system.

In addition,UFC921A101 can also be used as an INT-2 board in ABB ACS frequency converters,responsible for the power control and motor control electronic parts of the frequency converter,and supports multiple communication protocols(such as Modbus,Profibus DP,and CANopen)to achieve seamless communication between the frequency converter and external control systems(such as PLC).

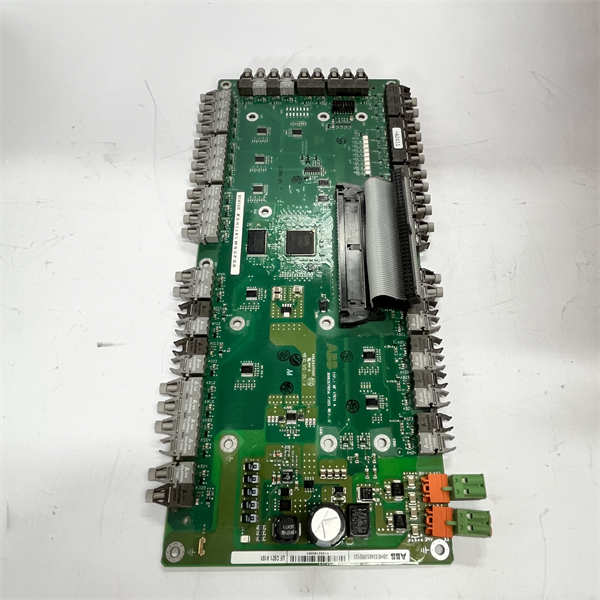

UFC921A101 3BHE024855R0101 ABB

technical specifications

Product model:UFC921A101 3BHE024855R0101

Manufacturer:ABB

Product type:Control board/Interface board/Excitation regulator core board/Inverter INT-2 board

Main applications:ABB UNITOL 5000 excitation system,ABB ACS frequency converter,ABB Advant Master control system

Input/output channels:8 analog inputs,4 analog outputs,16 digital inputs,8 digital outputs(depending on application and configuration)

Analog input range:0-10 V,0-20 mA,4-20 mA

Analog output range:0-10 V,0-20 mA,4-20 mA

Digital input/output voltage:24 V DC

Communication protocols:Masterbus 300,Modbus,Profibus DP,CANopen(depending on application and configuration)

Working temperature range:-25°C to+70°C(some models range from-20°C to+60°C or-10°C to+50°C)

Storage temperature range:-40°C to+85°C

Humidity range:5%to 95%RH(no condensation)

Features:Hot swappable,surface coating protection(suitable for harsh environments),dual channel AVR system(excitation system)

Main features and advantages

The ABB UFC921A101 control board,with its outstanding features and advantages in various aspects,has demonstrated outstanding value in complex industrial automation and power control applications.

Highly integrated multifunctionality:UFC921A101 has multiple functions,allowing it to play a critical role in different applications.In the excitation system,it integrates core functions such as automatic voltage regulation(AVR)and silicon controlled rectifier control,which can accurately control the generator voltage and reactive power.In the frequency converter,it serves as a control board to manage power and motor control,ensuring smooth and efficient operation of the motor.This integrated design simplifies the system architecture,reduces the need for multiple independent components,and thus lowers costs and complexity.

Excellent control accuracy and response speed:As a key component in the excitation system,UFC921A101 can achieve precise control of generator voltage and reactive power,and quickly adjust the excitation voltage with millisecond response time.This is crucial for maintaining stable operation of the power grid and quickly adapting to load changes.In the application of frequency converters,it ensures precise adjustment of motor speed and torque,optimizing the efficiency of the production process and product quality.

Powerful communication capability and system compatibility:UFC921A101 supports multiple mainstream industrial communication protocols,such as Masterbus 300,Modbus,Profibus DP,and CANopen.This enables seamless communication and data exchange with ABB Advant Master controllers,PLCs,DCS,or other field devices,achieving efficient system integration.The extensive compatibility enables it to easily integrate into existing or newly built ABB control architectures,adding or upgrading control functions.

Industrial grade durability and high reliability:This control board adopts a robust industrial grade design,which can withstand harsh operating environments,including a wide temperature range(such as-25°C to+70°C)and high humidity(5%to 95%RH,no condensation).Some versions also come with a surface coating(Varnished)to further protect electronic components from moisture and pollutants,thereby enhancing durability and long-term reliability in harsh industrial environments.In addition,the hot plug function simplifies maintenance and reduces system downtime.

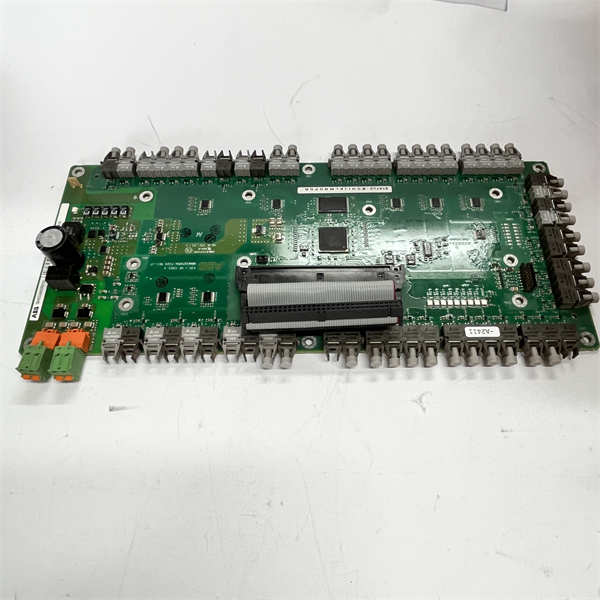

UFC921A101 3BHE024855R0101 ABB

application area

The ABB UFC921A101 control board is widely used in key industrial fields such as power,manufacturing,and infrastructure due to its powerful processing capabilities,high-precision control,and flexible communication functions.

In the field of power production and transmission and distribution,UFC921A101 is mainly used as the core component of the generator excitation system(UNITOL 5000).It is used to precisely control the excitation current of large synchronous generators(such as thermal,hydroelectric,and nuclear power generators),thereby regulating the terminal voltage and reactive power of the generator.This is crucial for maintaining voltage stability in the power grid,optimizing power factor,and providing dynamic reactive power support in the event of grid failures,ensuring stable power output and reliable operation of the power grid.

In industrial automation and process control,UFC921A101 can serve as an interface board in ABB Advant Master process control systems,connecting controllers with other devices on the Masterbus 300 network,including analog/digital input/output,temperature sensors,and motor controllers.It can also serve as the internal control board(INT-2 board)for ABB ACS frequency converters,used to control the power supply and motor of the frequency converter,achieve precise adjustment of industrial motor speed and torque,and is widely used in equipment such as pumps,fans,compressors,conveyors,etc.,thereby optimizing production efficiency and energy consumption.

In addition,UFC921A101 can also be used for tasks such as DC power control,current signal acquisition and control in manufacturing plants,infrastructure(such as water treatment,building automation),and data centers,providing high-performance and flexible solutions.

Related products

ABB UNITOL 5000 excitation system components:including excitation transformer,SCR module,and other control boards and modules that work in conjunction with UFC921A101.

ABB ACS series frequency converter:UFC921A101 is one of the key control boards inside.

ABB Advant Master control system:includes Advant Master controller,other I/O modules and communication modules in the Masterbus 300 communication network,and works together with UFC921A101 to build a process control system.

ABB AC 800F Programmable Logic Controller(PLC):UFC921A101 may be used in certain configurations for AC 800F PLCs to provide its wide range of control functions.

ABB automation software tools:such as specialized software for configuring,programming,diagnosing,and monitoring UFC921A101 and its associated systems.

ABB’s various I/O modules:analog and digital input/output modules,used to expand the connectivity capabilities of UFC921A101.

ABB power module:provides stable power supply for various control boards and modules in the system.

Installation and maintenance

Preparation before installation:Before installing the ABB UFC921A101 control board(part number 3BHE024855R0101),please strictly follow all electrical safety regulations and ABB installation guidelines.Ensure that the power supply to the relevant systems(such as generator sets,frequency converters,or process control systems)has been completely cut off and appropriate’shutdown/hanging out'(LOTO)measures have been taken to prevent accidental power on.Read the product manual and system wiring diagram provided by ABB in detail to understand the physical installation requirements,slot compatibility,and connection methods with the host system or other components of the module.As UFC921A101 typically exists in the form of a circuit board,it should be ensured that the installation environment meets its technical specifications,including operating temperature,humidity,and electromagnetic compatibility(EMC)requirements.Install it inside a control cabinet or electrical box that meets the protection level and ensure sufficient ventilation and heat dissipation space.When inserting or connecting the card,be careful and gentle to avoid damaging the connector or the card itself with excessive force.Connect all power,signal,and communication lines correctly,and ensure that the system has reliable grounding.

Maintenance suggestion:To ensure the long-term stable operation and system reliability of ABB UFC921A101 module,it is recommended to develop and implement a regular preventive maintenance plan.This includes regular visual inspections of the physical condition of the module,checking for dust accumulation,loose or corroded connectors,and any abnormalities in the components on the board(such as bulges or burns).It is crucial to keep the interior of the control cabinet clean,as dust and pollutants can affect heat dissipation and may cause electrical faults.For models with surface coating(Varnished),their protection is stronger,but attention should still be paid to avoiding mechanical damage.Through the diagnostic tools and system software provided by ABB,UFC921A101 is regularly subjected to functional self checks and status monitoring,checking its operating parameters,communication status,and fault alarm logs to promptly identify and resolve potential performance issues or fault alarms.When carrying out any maintenance operations,especially those involving module replacement,it is necessary to strictly follow ABB’s official operating procedures,ensure that they are carried out in a power-off state,and use original spare parts or compatible spare parts certified by ABB.Regularly check and update the firmware or software versions of modules to obtain the latest features and security patches,ensuring optimal performance and compatibility with other system components of UFC921A101.

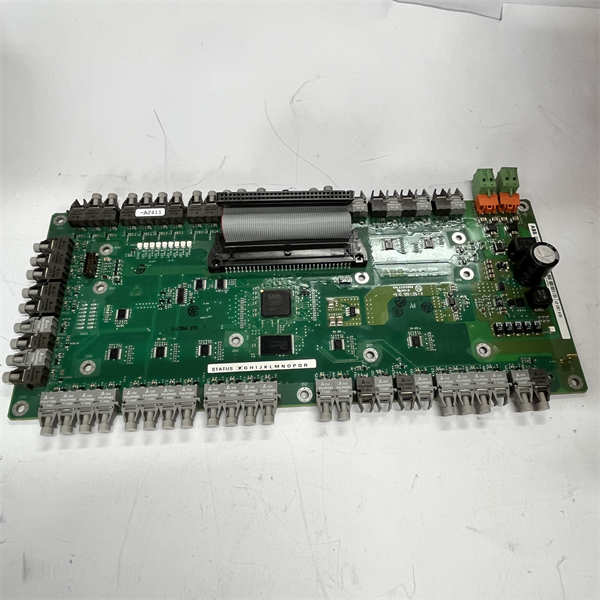

UFC921A101 3BHE024855R0101 ABB

Product Guarantee

ABB provides a solid guarantee for the excellent quality and reliability of the UFC921A101 3BHE024855R0101 control board.
