Description

Potter&Brumfield(now a brand under TE Connectivity)SDAS-01-7Y2S1024 is an AC Current Sensor Relay.This module belongs to the SDAS-01 series,and its main function is to monitor AC current and activate internal relay contacts when the current exceeds or falls below a preset threshold.

The unique feature of SDAS-01-7Y2S1024 lies in its zero insertion loss and inductive coupling technology,which means it detects the current on the power line through induction without directly disconnecting the circuit,simplifying installation and improving safety.This relay can be configured as an overcurrent sensor or undercurrent sensor mode,with sensitivity adjustment through a built-in potentiometer.It integrates solid-state sensing circuits and an internal double pole double throw(DPDT)relay,providing reliable switching functionality.This module is widely used in industrial automation,motor protection,and power monitoring fields due to its high stability,reliability,and compact size.

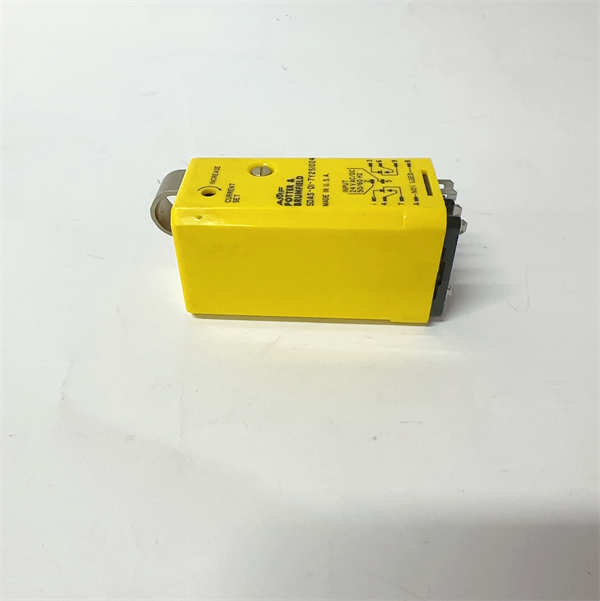

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

technical specifications

Product model:SDAS-01-7Y2S1024

Manufacturer:Potter&Brumfield(TE Connectivity)

Product type:AC Current Sensor Relay

Series:SDAS-01 Series

Induced current range:1.5 A to 15 A AC

Control voltage:24 VAC(50/60 Hz)/DC±10%

Sensing mode:adjustable overcurrent sensor or adjustable undercurrent sensor

Internal relay contact configuration:2 Form C(DPDT,double pole double throw)

Internal relay contact rating:2A 28 VDC(resistive)/1A 120 VAC(resistive)

Zero insertion loss:Yes(Zero insertion loss)

Coupling method:Inductive coupling to power line

Solid state sensing circuit:Yes

Setpoint variation:±25%(throughout the entire operating temperature range)

Delay(overcurrent):Minimum 200ms(actual delay depends on potentiometer setting and overcurrent amplitude)

Delay(undercurrent):Typical 350 ms,minimum 200 ms(calculated from the start of undercurrent after the control voltage is applied)

Power requirement:1.7 W or 1.7 VA 24VAC

Shell:Plastic dust cover

Installation method:Socket mounting

Pin count:10 pins

Working temperature range:-25°C to+70°C

Storage temperature range:-40°C to+85°C

Weight:Approximately 90 g(3.17 oz)

Certification:CE,UL,RoHS Compliant

Main features and advantages

The Potter&Brumfield SDAS-01-7Y2S1024 AC current sensor relay provides significant advantages in current monitoring applications due to its unique design and functionality.Its core features are zero insertion loss and inductive coupling technology.This means that the relay does not require any physical connection(such as series connection)on the power line,but rather detects the current non invasively through induction,thereby avoiding power loss and complex wiring,and improving the safety and reliability of the system.

This module provides two adjustable sensing modes,overcurrent and undercurrent.Through simple potentiometer settings,users can flexibly configure the current threshold according to specific application needs.This makes it widely applicable in various monitoring scenarios,such as motor overload protection or equipment operation status monitoring.The built-in solid-state sensing circuit ensures high precision and fast response,while the internal DPDT relay contacts provide reliable switching capabilities that can directly drive control circuits or alarm indicators.

SDAS-01-7Y2S1024 has a built-in time delay function,which can effectively filter transient currents or surge currents during motor start-up during overcurrent and undercurrent detection,prevent misoperation,and improve system stability.Its compact size,socket installation method,and sturdy plastic dust cover design make it easy to install and integrate into various control panels and industrial environments.

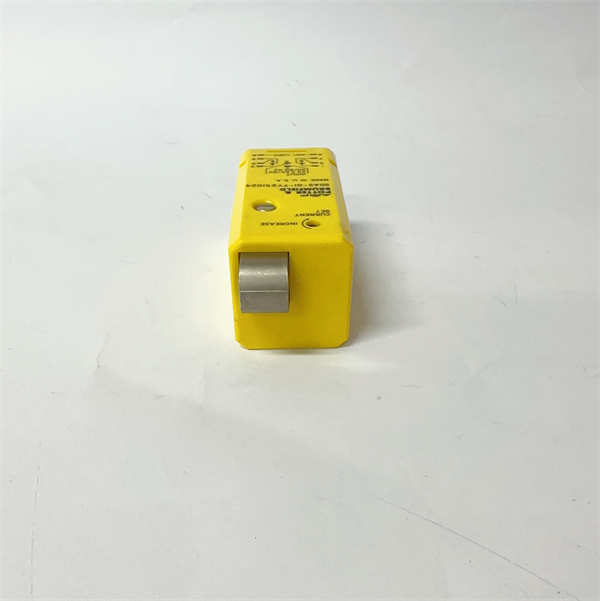

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

application area

Potter&Brumfield SDAS-01-7Y2S1024 AC current sensor relay is widely used in various industrial and commercial applications that require monitoring and protection of AC current.Its main application areas include:

Motor protection:As a component of overload protection or locked rotor protection,it monitors the motor current to prevent damage due to overcurrent,such as in equipment such as pumps,fans,conveyors,and compressors.

Load monitoring:Monitor the actual current consumption of equipment or circuits to determine if the equipment is operating normally or if there are any abnormal loads(overload or underload).

Heating element monitoring:Monitor the current of industrial heaters,ovens,or other heating equipment to ensure their normal operation and avoid faults caused by open or short circuits.

Power and line monitoring:Monitor the current of specific circuits in the distribution panel or control cabinet as a triggering condition for alarms or controls.

Automation system:As a state feedback component in various automated machinery and systems,it executes corresponding control logic based on current changes.

Pumping system:Monitor the operating current of water pumps,oil pumps and other equipment,detect dry running,blockage or overload conditions.

General control:In any industrial control application that requires logical judgment and relay output based on current values.

Related products

The products associated with Potter&Brumfield SDAS-01-7Y2S1024 AC current sensor relay mainly include other SDAS-01 series relays,matching sockets,and other related electrical control components.

Other models of the SDAS-01 series,such as SDAS-01-7X1S1024(SPDT contacts),SDAS-01-7Y2B1024(DPDT,bracket installation),and SDAS-01-8Y2S1024(DPDT,overcurrent sensor),may differ in contact configuration,installation method,or specific sensing mode.

KUP series relay socket:SDAS-01 series relays usually need to be used with standard 10 pin relay sockets,such as Potter&Bloomfield’s KUP series sockets.

Contactors and Circuit Breakers:In motor protection applications,the output of current sensor relays typically controls contactors or circuit breakers to cut off faulty circuits.

PLC(Programmable Logic Controller):The contact output of the relay can be connected to the digital input module of the PLC to achieve more complex control logic.

Indicator lights and alarms:Relays can drive indicator lights or buzzers,providing visual or auditory warnings of abnormal current.

Power supply:Provides 24 VAC/DC control voltage for SDAS-01-7Y2S1024.

Installation and maintenance

Preparation before installation:

Before installing the Potter&Brumfield SDAS-01-7Y2S1024 module,it is essential to ensure that the relevant power circuits have been completely disconnected and all necessary safety measures have been taken to prevent electric shock.Please carefully read the installation manual and data sheet provided with the relay to understand the detailed wiring diagram,installation method,and environmental specifications.

Choose installation location:As it is a socket installation,it is necessary to ensure that a compatible 10 pin socket(such as KUP series)has been correctly installed in the control cabinet.

Power cord threading:Thread the AC power cord that needs to be monitored through the sensing hole in the center of the SDAS-01 relay.Do not confuse it with the control power supply of the relay.

Electrical connection:According to the wiring diagram,correctly connect the 24 VAC/DC control power supply to the corresponding pins of the relay.At the same time,connect the DPDT output contacts of the relay to your control circuit,alarm system,or PLC input.

Setting adjustment:Adjust the set point(threshold)of the current sensing through the potentiometer on the relay according to the application requirements.If it is overcurrent mode,set an upper limit value;If it is undercurrent mode,set a lower limit value.

Maintenance suggestion:

The Potter&Brumfield SDAS-01-7Y2S1024 module is typically designed as a maintenance free product.However,to ensure its long-term stable operation,it is recommended to conduct the following checks regularly:

Visual inspection:Regularly inspect the appearance of the relay to ensure that there is no dust accumulation,physical damage,or loose connections.Keep the surrounding environment clean and dry.

Functional testing:Conduct regular functional testing based on the application situation,such as adjusting the monitored current or relay set point to verify its overcurrent/undercurrent detection function and contact output for normal operation.

Environmental control:Ensure that the working environment where the relay is located meets its temperature and humidity specifications,avoiding extreme temperatures,high humidity,or corrosive gases.

Contact inspection:Although it is an internal relay,if any abnormalities occur after long-term operation,the output contacts can be checked for aging or erosion(if it can be safely disassembled for inspection).

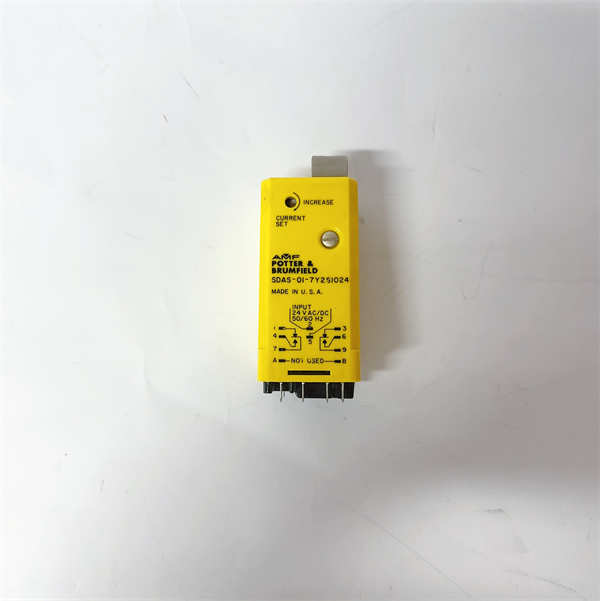

SDAS-01-7Y2S1024 POTTER&BRUMFIELD

Product Guarantee

Potter&Brumfield(TE Connectivity)provides comprehensive quality assurance for its SDAS-01-7Y2S1024 product,demonstrating a strong commitment to product performance and reliability.
