Description

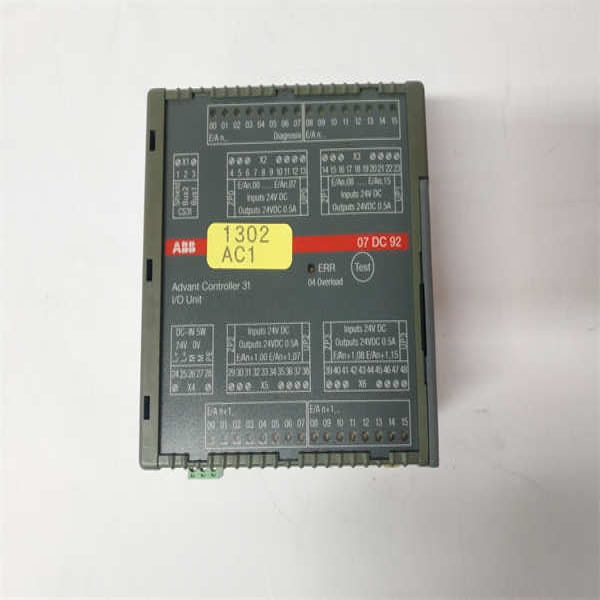

ABB 07DC92D GJR525220R0101 is a digital input/output(I/O)module used in the ABB Advant Controller 31(AC31)system.As a key component in ABB’s industrial automation solutions,this module aims to expand the functionality and flexibility of control systems,providing reliable digital signal processing capabilities.

The 07DC92D module can be used as a remote module through the CS31 system bus,providing 32 configurable digital input/output channels,all of which support 24V DC signals.Its unique configuration capability allows users to independently configure each channel as input,output,or readable output(i.e.combined input/output),greatly enhancing the flexibility of applications.The output channel operates using transistors,with a rated load of 0.5 A,and has overload and short-circuit protection functions.In addition,these input/output channels are divided into 4 groups,with electrical isolation between each group and other parts of the module,ensuring high safety and anti-interference capability.

This module is an ideal choice for connecting controllers and field devices(such as sensors,actuators,relays,etc.)in various industrial automation applications due to its robust industrial design,easy to configure features,and built-in diagnostic functions(such as LED status indication).

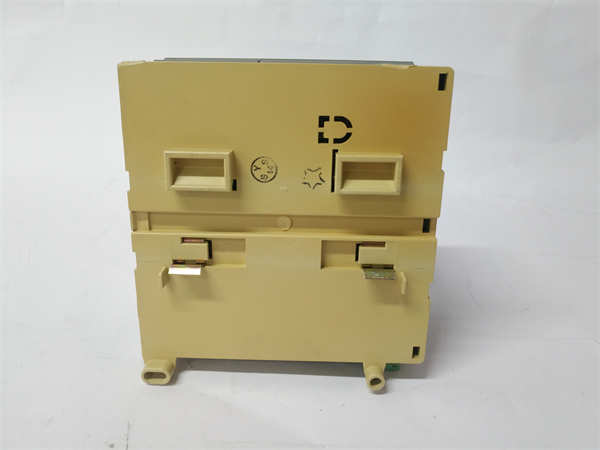

07DC92D GJR525220R0101 ABB

technical specifications

Product model:07DC92D GJR525220R0101

Manufacturer:ABB

Product Type:Digital Input/Output(I/O)Module

Series:ABB Advant Controller 31(AC31)

Function:Configurable digital input/output

Input/output points:32(configurable as input,output,or readback output)

Input/output voltage:24 V DC

Output current:0.5 A(per channel)

Output protection:overload and short circuit protection

Electrical isolation:Electrical isolation between 4 sets of input/output channels and with the rest of the unit

Bus interface:CS31 Slave(CS31 system bus)

Installation method:DIN rail installation(TH35-15 or TH35-7.5)

Working environment temperature:0°C to+55°C

Storage temperature:-25°C to+75°C

Protection level:IP20

Product dimensions:Depth 85 mm x Height 140 mm x Width 120 mm(estimated)

Net weight of the product:approximately 0.3 kg

Diagnostic function:32 yellow LED indicator lights(indicating signal status),red LED for error messages,built-in test button

Connection method:pluggable screw terminal

Certification:CE,UL(presumably,common industrial product certification)

Main features and advantages

The ABB 07DC92D module demonstrates outstanding performance and flexibility in the field of industrial automation,with its main features and advantages including:

Highly configurable:Each digital I/O channel can be independently configured as an input,output,or readable output,greatly improving the flexibility of module applications and reducing the need for different I/O modules.

Excellent electrical isolation:32 I/O channels are divided into 4 groups,with electrical isolation between each group and between the module power supply and CS31 bus.This effectively prevents signal interference and grounding circuit issues,enhancing the stability and safety of the system.

Powerful output capability and protection:The output channels adopt transistor design,each channel can provide 0.5A load current,and integrate overload and short circuit protection to ensure the reliable operation of connected devices.

Convenient diagnostic function:The 32 yellow LED indicator lights on the front panel of the module clearly display the signal status of each channel,and the red LED is used for error alarms.With the built-in test button,on-site fault diagnosis and maintenance become intuitive and efficient.

CS31 bus compatibility:As a remote module on the CS31 system bus,it can seamlessly integrate with ABB Advant Controller 31 series PLCs,simplifying the architecture and wiring of distributed control systems.

Industrial grade robust design:This module is designed to operate stably within a wide temperature range of 0°C to+55°C,with an IP20 protection level,ensuring its reliability in various harsh industrial environments.

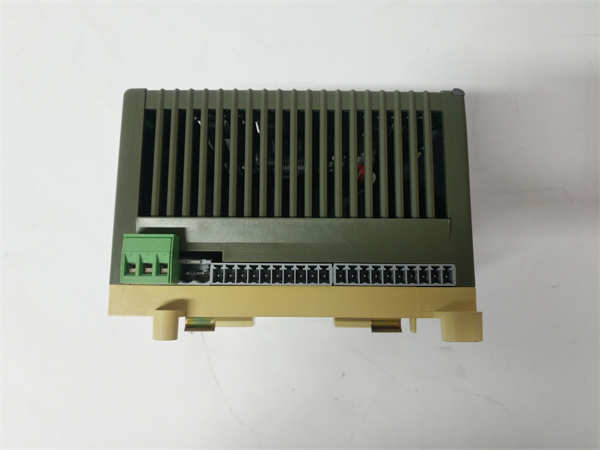

07DC92D GJR525220R0101 ABB

application area

The ABB 07DC92D digital input/output module is widely used in various industrial automation and process control systems that require precise and reliable digital signal processing,especially in the ABB Advant Controller 31(AC31)platform.Its main application areas include:

Process automation:used in industries such as chemical,oil and gas,power,water treatment,pharmaceuticals,food and beverage to connect digital sensors(such as limit switches,pressure switches,temperature switches)and digital actuators(such as solenoid valves,contactors,indicator lights)on site.

Discrete manufacturing:In industries such as automotive,electronics,and mechanical manufacturing,it is used to control equipment,robotic arms,conveyors,fixtures,etc.on production lines to achieve various switch control and status monitoring.

Building automation:Used in large commercial buildings or industrial facilities to control digital input and output points in lighting,HVAC systems,and security systems.

Infrastructure control:used in infrastructure such as traffic signals,water pump stations,and power distribution stations to monitor equipment status and control switch operations.

OEM equipment integration:As the core component of OEM(Original Equipment Manufacturer)in designing and manufacturing customized machinery or devices that require digital I/O functionality.

Energy management:used in smart grids and power distribution systems to monitor switch status and control circuit breakers or contactors.

Related products

The products associated with ABB 07DC92D module mainly include other components of ABB Advant Controller 31(AC31)series and supporting equipment for CS31 system bus.

ABB Advant Controller 31(AC31)PLCs:As core controllers,such as AC31-S series or AC31-40 series CPU modules,they communicate with 07DC92D module through CS31 bus.

ABB CS31 system bus cable and connector:used to connect the 07DC92D module with the main controller or other CS31 bus devices.

ABB power module:Provides stable 24V DC power supply for AC31 system and 07DC92D module.

ABB analog I/O modules,such as 07AI90,07AO92,etc.,are used to process analog signals and together with 07DC92D,form a complete I/O solution.

ABB programming software:such as ABB Automation Builder or AC31 specific configuration software,used for programming,configuring,and diagnosing the 07DC92D module and its PLC system.

On site digital sensors and actuators,such as various buttons,indicator lights,proximity switches,solenoid valves,relays,small contactors,etc.,are connected to the control system through the 07DC92D module.

Installation and maintenance

Preparation before installation:

Before installing the ABB 07DC92D module,it is essential to ensure that the relevant control system has been completely powered off and all necessary safety measures have been taken to prevent electric shock or equipment damage.Please carefully read the installation manual and AC31 system documentation provided with the module to understand the detailed installation steps,wiring diagrams,DIN rail installation requirements,and environmental specifications.

Physical installation:Install the module onto a standard DIN rail(TH35-15 or TH35-7.5),ensuring that the module clips are securely fastened.Leave sufficient heat dissipation space inside the control cabinet to avoid direct exposure to heat sources or vibrations.

Electrical connection:According to the detailed wiring diagram provided by ABB,correctly connect the 24V DC power line,CS31 system bus cable,and on-site digital input/output signal line to the module’s pluggable screw terminals.Ensure that all connections are firm and reliable,and properly grounded,following electromagnetic compatibility(EMC)guidelines.

Configuration:Configure each channel of the module(input,output,or readable output)through programming software and set the corresponding logic.

Maintenance suggestion:

The ABB 07DC92D module is typically designed as a maintenance free product,but regular inspections are crucial to ensure its long-term stable operation

Visual inspection:Regularly inspect the appearance of the module to ensure that there is no dust accumulation,loose connectors,physical damage,or aging wiring.Keep the interior of the control cabinet clean and dry,avoiding the intrusion of moisture,corrosive gases,or conductive dust.

LED indicator monitoring:Pay attention to the LED indicator lights on the front panel of the module,which provide quick indications of power status,I/O channel status,and fault information.

System diagnosis:Using the diagnostic function or software of ABB PLC,regularly monitor the operating status of modules,the status of I/O channels,and any error logs,which helps to timely detect and solve potential problems.

Cleaning:Regularly use dry compressed air to remove dust from the surface of the module and wiring terminals.

Environmental control:Ensure that the working environment where the module is located meets its temperature and humidity specifications,and maintain good ventilation and heat dissipation.

07DC92D GJR525220R0101 ABB

Product Guarantee

ABB provides comprehensive quality assurance for its 07DC92D GJR525220R0101 product,demonstrating a firm commitment to product performance and reliability.
