Description

ENTERASYS C2G170-24 P0973BL is a high-performance,multi-layer stacked Gigabit Ethernet switch belonging to the SecureStack C2 series of Enterasys Networks(now merged into Extreme Networks).As a critical infrastructure device at the edge of enterprise level networks,this switch is designed to provide high-density,high-performance Gigabit Ethernet connectivity,particularly suitable for scenarios that require fiber optic connectivity.ENTERASYS C2G170-24 P0973BL provides 24 SFP(mini GBIC)interfaces,supporting flexible fiber connectivity options to meet the high bandwidth aggregation needs of data centers,enterprise campuses,and large branch offices.

C2G170-24 P0973BL not only has advanced layer 2 switching capabilities,but also supports powerful layer 3 routing capabilities,allowing network administrators to build complex and efficient network topologies.Its unique SecureStack stacking technology allows up to 8 SecureStack C2 switches to be stacked together to form a unified logical unit,managed through a single IP address,greatly simplifying network management and expansion.This switch also integrates Enterasys’Secure Networks security architecture,providing comprehensive security features to protect the network edge from various threats.ENTERASYS C2G170-24 P0973BL is an ideal choice for building reliable,secure,and scalable enterprise networks due to its outstanding performance,flexible deployment capabilities,and powerful security features.

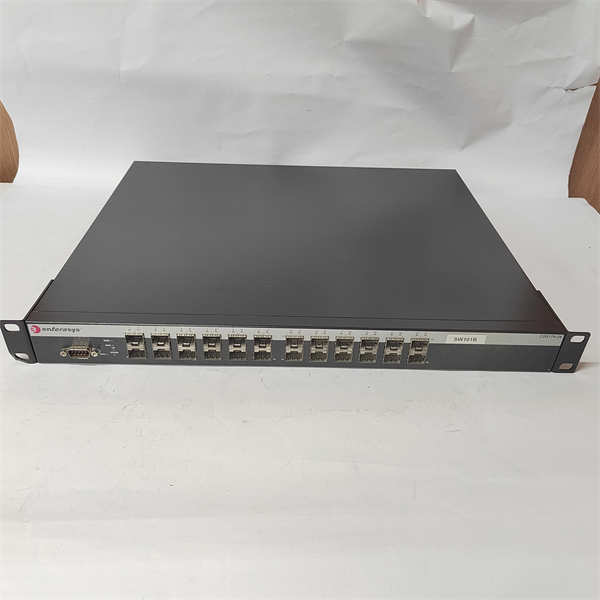

C2G170-24 P0973BL ENTERASYS

technical specifications

Product model:C2G170-24 P0973BL

Manufacturer:Enterasys Networks(now Extreme Networks)

Product Type:Layer 3 Stackable Ethernet Switch

Number of network ports:24(SFP Mini GBIC slots)

Ethernet standard:Gigabit Ethernet

Data Link Protocol:Ethernet,Fast Ethernet,Gigabit Ethernet

Switching capacity:48 Gbps(full duplex)

MAC address table capacity:16000 entries

Stacking capability:Supports SecureStack C2 stacking,up to 8 switches can be stacked

Stacking ports:2 dedicated stacking ports

Management type:Fully Managed

Management interface:CLI(Command Line Interface),Web interface,SNMP,NetSight Console

Supporting routing protocols:RIPv1,RIPv2,OSPF,static routing,ARP,VRRP

Number of VLANs supported:4096 VLAN IDs,supporting 1024 active VLANs simultaneously

QoS support:IP DSCP,IP Precedence,Protocol,Source IP,Destination IP

Security features:IEEE 802.1X port authentication,Radius client,SSHv2,SSL

Redundant power supply support:Yes(requires external redundant power supply modules)

Dimensions:1U rack mounted

Input power supply:100-240 VAC,50/60 Hz

Working temperature:0°C to 40°C

Main features and advantages

The ENTERASYS C2G170-24 P0973BL switch provides significant advantages for enterprise networks with its powerful feature set and excellent performance:

High density Gigabit SFP Connection:C2G170-24 P0973BL provides 24 SFP(mini GBIC)slots,offering great fiber connectivity flexibility for enterprises.These SFP ports support gigabit Ethernet speeds,making them an ideal choice for connecting servers,core switches,and devices that require long-distance fiber optic transmission,meeting the needs of high bandwidth applications.

Advanced multi-layer switching and routing:This switch is not only a layer 2 device,but also has powerful layer 3 routing capabilities,supporting protocols such as RIPv1/v2,OSPF,VRRP,etc.This enables ENTERASYS C2G170-24 P0973BL to efficiently handle inter VLAN routing,optimize network traffic paths,and provide a solid foundation for building complex and high-performance enterprise networks.

SecureStack stacking technology:C2G170-24 P0973BL supports Enterasys’unique SecureStack stacking technology,allowing up to 8 C2 series switches to form a logical unit.This”closed-loop stacking”feature not only provides extremely high stacking bandwidth(up to 320 Gbps),but also manages through a single IP address,greatly simplifying network deployment and daily maintenance,while enhancing network resilience and high availability.

Comprehensive security features:As part of the Secure Networks security architecture,C2G170-24 P0973BL integrates multiple advanced security features,including IEEE 802.1X port authentication,Radius client,SSHv2 and SSL encryption,as well as multi-user isolation(RFC 3580).These features can effectively protect the network edge from unauthorized access and various network threats.

Excellent QoS(Quality of Service)Support:ENTERASYS C2G170-24 P0973BL provides rich QoS features,supporting traffic classification and priority sorting based on IP DSCP,IP Precedence,protocols,and source/destination IP addresses.This ensures that critical business applications such as VoIP and real-time video can also receive priority processing during network congestion,ensuring user experience.

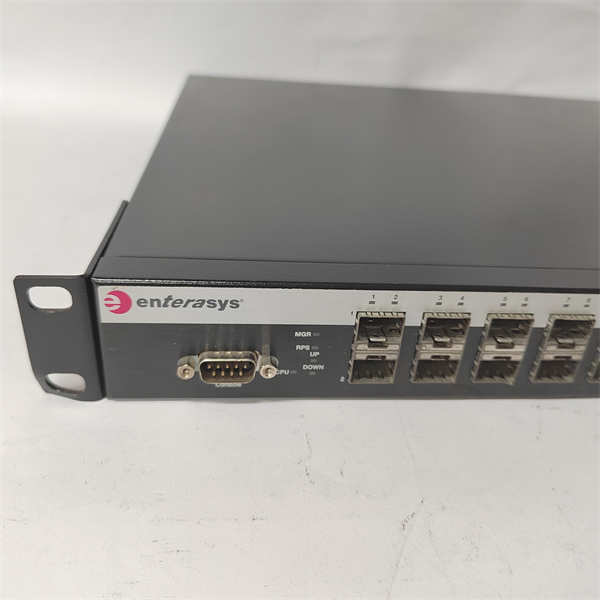

C2G170-24 P0973BL ENTERASYS

application area

The ENTERASYS C2G170-24 P0973BL switch,with its powerful features,high-density fiber ports,and stacking capabilities,is widely used in various enterprise level network environments that require high availability,high performance,and security.

In the enterprise park network,C2G170-24 P0973BL is often deployed in the access layer or aggregation layer,used to connect workstations,servers,and wireless access points,and serves as the aggregation point for floors or departments.Its SFP port is very suitable for connecting to fiber optic backbone networks in distant buildings or data centers.Inside the data center,it can serve as a high-performance Gigabit Ethernet switch,connecting servers,storage devices,and firewalls to achieve high-speed data transmission.

For universities and educational institutions,ENTERASYS C2G170-24 P0973BL can provide reliable and high-speed network connectivity for students,faculty,and staff,supporting online learning,research,and multimedia applications.Its stacking capability and QoS characteristics ensure the scalability of the network and the performance of critical applications.In large branch offices or small and medium-sized enterprises,this switch can build a high-performance and easy to manage network infrastructure,meet the growing bandwidth demand,and protect sensitive data through its security features.In addition,C2G170-24 P0973BL is also suitable for scenarios that require flexible construction of virtual local area networks(VLANs)and implementation of policy based network access control,such as government agencies and healthcare networks.

Related products

The products associated with the ENTERASYS C2G170-24 P0973BL switch mainly include other models,supporting modules,and network management tools of the Enterasys SecureStack series,as well as potentially supported redundant power supplies.

Enterasys SecureStack C2G124-24/C2G124-48:Other Gigabit Ethernet switch models in the same series,providing 24 or 48 RJ-45 ports,can be stacked with C2G170-24 P0973BL for use.

Enterasys SecureStack C3G124-24P/C3G124-48P:C3 series switches offer higher performance,more port options(including PoE),and can be used as an upgrade or complementary solution to C2G170-24 P0973BL.

Enterasys SecureStack B2/B3/B5 series switches:Other levels of stacked switches that differ in functionality and performance from the C2 series,suitable for networks of different sizes and requirements.

Enterasys STK-RPS-150PS P0973BP:Redundant power module that provides power redundancy for C2G170-24 P0973BL,enhancing device and network reliability.

Enterasys SFP(mini GBIC)transceiver:Various fiber interface modules can be inserted into the C2G170-24 P0973BL SFP slot according to fiber type(single-mode/multi-mode),distance,and speed requirements.

Enterasys NetSight series network management software:including NetSight Console,NetSight Inventory Manager,NetSight Policy Manager,etc.,used for centralized management and monitoring of C2G170-24 P0973BL and its Enterasys network.

Enterasys Stacking Cable:A specialized cable used to connect C2G170-24 P0973BL with other switches in the same series for stacking.

Installation and maintenance

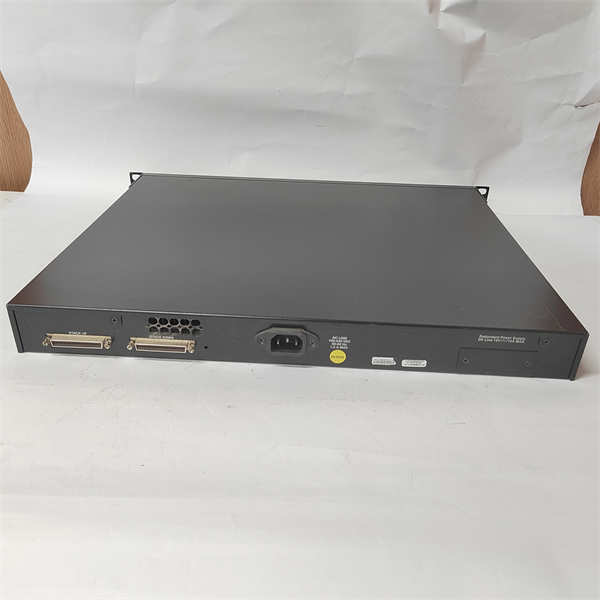

Preparation before installation:Before installing the ENTERASYS C2G170-24 P0973BL switch,it is essential to ensure that all relevant power circuits have been completely disconnected and all necessary safety measures have been taken to prevent electric shock or equipment damage.Please carefully read the installation manual accompanying C2G170-24 P0973BL for detailed installation steps,rack installation requirements,cooling and environmental specifications.Install the C2G170-24 P0973BL switch onto a standard 19 inch rack,ensuring it is securely fixed and leaving sufficient heat dissipation space to avoid direct exposure to heat sources or vibrations.According to the network design,correctly connect the fiber optic SFP transceiver and connect the fiber optic jumper to the corresponding network equipment.If using the stacking function,please connect multiple C2G170-24 P0973BL or other compatible C2 series switches using Enterasys specific stacking cables.If power redundancy is required,please connect the external redundant power module STK-RPS-150PS P0973BP to the RPS port at the back of the switch.Finally,connect the AC power cord and ensure that the switch is properly grounded.

Maintenance suggestion:The ENTERASYS C2G170-24 P0973BL switch is designed as a high reliability product,but regular maintenance is crucial to ensure its long-term stable operation.Regularly visually inspect the appearance of the switch to ensure that there is no accumulation of dust,loose connectors,or physical damage.Pay special attention to whether the cooling fan(if any)is clean and unobstructed.Keep the interior of the control cabinet clean and dry,avoid the intrusion of moisture,high temperature,and conductive dust,ensure good ventilation and heat dissipation,and prevent overheating.Monitor the LED status indicators on C2G170-24 P0973BL,which provide operational status and fault codes for initial diagnosis of issues.Utilize Enterasys NetSight or regularly check the system logs and port statistics of the switch through CLI to promptly identify potential network issues or performance bottlenecks.It is recommended to regularly backup the configuration of C2G170-24 P0973BL and upgrade as needed when new firmware versions are released to obtain performance improvements,security patches,or new features.

C2G170-24 P0973BL ENTERASYS

Product Guarantee

Enterasys Networks(now merged into Extreme Networks)provides comprehensive quality assurance for its C2G170-24 P0973BL switch,demonstrating a strong commitment to product performance and reliability.
