Description

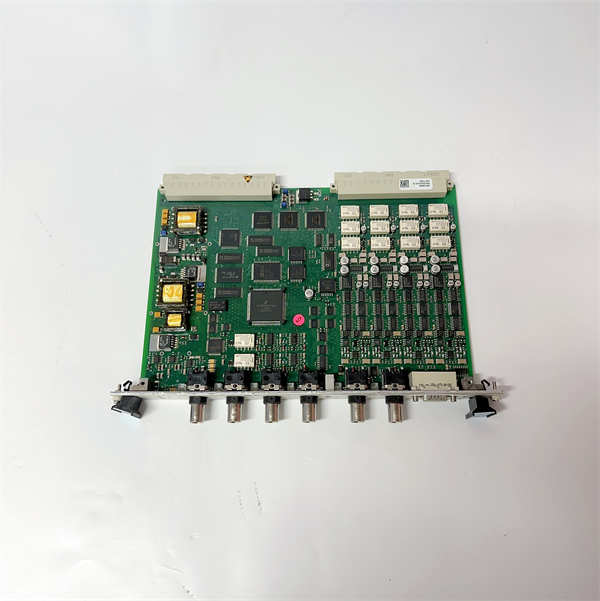

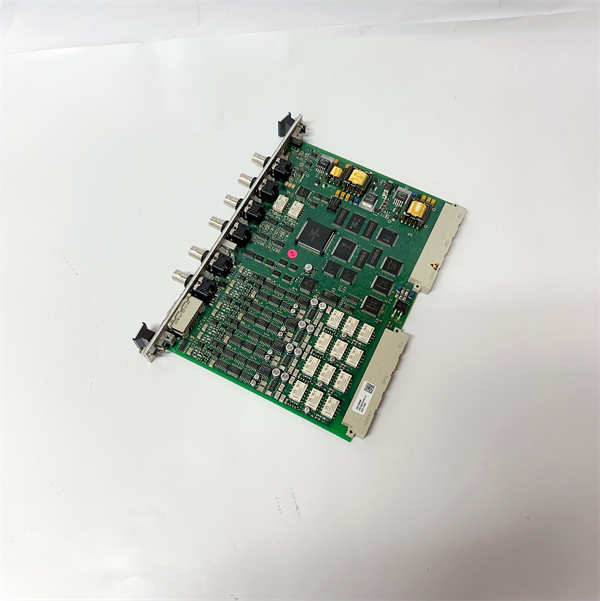

VIBRO-METER 200-510-076-114 200-510-111-034 VM600 MPC4 belongs to the Vibro Meter(now part of Meggitt Sensing Systems)VM600 MPC4 series,which is a Multi purpose Processor Card.These modules are the core components of the VM600 machine protection and monitoring system,designed to provide highly reliable continuous monitoring and protection of vibration,axial displacement,differential expansion,and other parameters for rotating machinery such as turbines,gas turbines,compressors,pumps,and generators.The VIBRO-METER 200-510-076-114 and 200-510-111-034 cards can accurately measure and process signals from various sensors,evaluate the operating status of machinery in real time,identify potential faults,and trigger corresponding protective actions when preset alarm or trip limits are reached.

The VM600 system is renowned for its modular,scalable,and redundant design,with the MPC4 card as its core,integrating advanced signal processing,data acquisition,and fault diagnosis capabilities.Each MPC4 card is usually equipped with multiple independent input channels,which can connect various sensors such as accelerometers,velocity sensors,eddy current sensors,etc.,and perform complex signal filtering,integration,and digital processing to output high-precision measurement values.VIBRO-METER 200-510-076-114 and 200-510-111-034 are widely used in many critical industrial facilities worldwide,providing solid guarantees for the safe and reliable operation of equipment,effectively preventing unplanned downtime and catastrophic failures.

200-510-076-114 200-510-111-034 VM600 MPC4 VIBRO METER

technical specifications

Product model:200-510-076-114 200-510-111-034 VM600 MPC4

Manufacturer:VIBRO-METER(Meggitt Sensing Systems)

Product type:Multi purpose Processor Card

System:VM600 Machine Protection and Monitoring System

Number of channels:4 input channels(per card)

Compatible sensors:eddy current sensor(displacement/shaft vibration),velocity sensor(velocity/vibration),accelerometer(vibration)

Measurement parameters:relative/absolute vibration,axial displacement,differential expansion,eccentricity,rotational speed,key phase,oil film vortex,etc

Output signals:alarm relay output(A/B/C/D),trip relay output(A/B)

4-20 mA analog output

Communication interface:Can communicate with CPC or IOC cards through VM600 backplane,supports Modbus TCP/IP

Diagnostic function:Sensor open/short circuit detection,system diagnosis,LED status indication

Redundancy support:Supports dual rack,dual power supply,and dual MPC4 card redundancy configurations

Working temperature:-25°C to+65°C

Installation method:Insert into VM600 rack slot

Main features and advantages

The VIBRO-METER VM600 MPC4 series has set an industry benchmark in the field of rotating machinery protection and monitoring with its outstanding performance and flexibility.

Comprehensive machine protection and monitoring functions:The MPC4 card integrates advanced signal processing capabilities,which can accurately measure and analyze key parameters of various rotating machinery,such as vibration,axial displacement,differential expansion,eccentricity,and speed.This enables VIBRO-METER 200-510-076-114 and 200-510-111-034 to provide comprehensive real-time diagnosis and protection,ensuring that the equipment operates within safe limits.

High reliability and redundancy design:The VM600 system platform and its MPC4 card support end-to-end redundancy configuration from sensors to the control room,including redundant racks,redundant power supplies,redundant central processor cards(CPC),and redundant MPC4 itself.This design eliminates the risk of single point of failure,maintaining high system integrity and protection functions even in the event of component failure,greatly improving the availability of the unit.

Excellent signal processing capability:Each MPC4 card has 4 independent input channels,which can process signals from different types of sensors(eddy current,velocity,acceleration).It adopts high-precision AD converter and powerful DSP(digital signal processor),which can perform complex filtering,integration,notch processing and parameter calculation,providing accurate and reliable measurement results.

Flexible configuration and scalability:VIBRO-METER 200-510-076-114 and 200-510-111-034 cards can be flexibly configured through Vibro Meter’s VM600 software tool,allowing for adjustment of alarm/trip limits,measurement ranges,and signal processing methods based on specific mechanical types and monitoring requirements.Modular design allows the system to easily expand according to future needs.

Built in diagnosis and easy maintenance:The card integrates LED status indicator lights,which can intuitively display channel status and fault information.At the same time,the system supports sensor open/short circuit detection and comprehensive system diagnostic functions,which helps to quickly locate problems,reduce troubleshooting time,thereby reducing maintenance costs and improving the overall efficiency of the system.

200-510-076-114 200-510-111-034 VM600 MPC4 VIBRO METER

application area

VIBRO-METER 200-510-076-114 200-510-111-034 multifunctional processor card,as the core of VM600 machine protection and monitoring system,is widely used in industrial fields with extremely high requirements for equipment safety and reliability.

In the power production industry,the VM600 system and its MPC4 card are the core protection systems for key equipment such as steam turbines,gas turbines,generators,water turbines,and large boiler feed pumps.VIBRO-METER 200-510-076-114 and 200-510-111-034 are responsible for monitoring the shaft vibration,tile vibration,axial displacement,differential expansion,and speed of these units to ensure that they operate within a safe range,prevent over limit tripping or catastrophic damage,and thus ensure the stable operation of the power plant.

In the oil and gas industry,MPC4 cards are used to monitor key rotating equipment such as large compressors(such as centrifugal compressors,reciprocating compressors),pumps,motors,and fans,from upstream drilling platforms to midstream pipeline transportation stations,and downstream refineries and petrochemical plants.It can provide real-time protection to prevent equipment damage due to excessive vibration or bearing failure,thereby improving production efficiency and safety.

In addition,VIBRO-METER 200-510-076-114 200-510-111-034 is widely used in heavy industries such as steel,paper,chemical,and cement.In these industries,various large rotating equipment such as mills,fans,gearboxes,pump sets,etc.require real-time monitoring and protection through the VM600 system to optimize production processes,reduce maintenance costs,and extend equipment lifespan.

Related products

The products associated with the VIBRO-METER 200-510-076-114 200-510-111-034 multifunctional processor card mainly include other core components of the Vibro Meter VM600 machine protection and monitoring system,as well as various compatible sensors.

VIBRO-METER VM600 Rack:A physical framework used to install all VM600 system components such as MPC4 cards,power modules,CPC cards,etc.,such as VM600 RACK-CH01.

VIBRO-METER Central Processing Unit(CPC):The central control unit of the VM600 system,responsible for managing all MPC4 cards,handling system alarms,and communication,such as VM600 CPC004 or CPC005.

VIBRO-METER Input/Output Card(IOC):Used to provide interfaces such as alarm relay output,4-20mA analog output,and digital input,connecting the protection signals of VM600 system to external DCS/PLC,such as VM600 IOC4T.

VIBRO-METER Power Module(PSM):Provides stable power to the VM600 rack and all modules,typically supporting redundant configurations such as VM600 PSM001 or PSM002.

VIBRO-METER eddy current sensors(Proximity Probes):used to measure relative displacement and shaft vibration of shafts,such as the CP-211 or CP-213 series.

VIBRO-METER speed sensors(Velomitors):used to measure the vibration speed of bearing housings or casings,such as the CE-131 series.

VIBRO-METER Accelerometers:Used for measuring high-frequency vibrations,such as the CA-101 or CA-103 series.

VIBRO-METER VM600 Connect software:Used for configuration,calibration,alarm settings,data acquisition,and fault diagnosis of VM600 systems,it is a supporting software tool for 200-510-076-114 and 200-510-111-034.

Installation and maintenance

Preparation before installation:Before installing the VIBRO-METER 200-510-076-114 200-510-111-034 MPC4 card,make sure that the VM600 rack is completely powered off and all necessary safety measures have been taken to prevent electric shock.Please carefully read the VM600 system manual and MPC4 card user guide for detailed installation steps,slot requirements,sensor wiring,and system configuration guidelines.Gently insert the MPC4 card into the designated slot of the VM600 rack,ensuring that the card is fully aligned with the backplane connector and securely seated.Connect the sensor cable correctly to the corresponding input channel terminal on the front panel of the MPC4 card based on the type and location of the sensor,and ensure that the connector is tightened.If using an external junction box,please ensure that the cable connection between the junction box and the MPC4 card is correct and error free.Before powering on the system,it is essential to carefully check all wiring for correctness,absence of short circuits or open circuits,and ensure that all grounding connections comply with Vibro Meter specifications.

Maintenance suggestion:VIBRO-METER 200-510-076-114 and 200-510-111-034 MPC4 cards are core components of the VM600 system and are typically designed as high reliability products,but regular inspections are crucial to ensure their continuous and stable operation.Regularly visually inspect the cards to ensure that there is no accumulation of dust,loose connectors,or physical damage.Keep the interior of the VM600 rack clean and dry,avoiding the intrusion of moisture,high temperature,or conductive dust,and ensuring the normal operation of the internal fans to maintain a good heat dissipation environment.Monitor the LED status indicator lights on the front panel of the MPC4 card,which provide quick indication of channel status,alarm,and fault information.Any abnormal status should be investigated in a timely manner.Regularly checking system diagnostic logs,channel data,and alarm history using VM600 Connect software is crucial for evaluating the performance of 200-510-076-114 and 200-510-111-034,identifying potential issues,and optimizing alarm limits.It is recommended to regularly calibrate sensors and measurement chains to ensure the accuracy of measurement data.

Product Guarantee

VIBRO-METER(now a brand under Meggitt Sensing Systems)provides comprehensive quality assurance for its 200-510-076-114 200-510-111-034 VM600 MPC4 series products,demonstrating its unwavering commitment to product performance and reliability as a global leader in the field of rotating machinery protection and monitoring.
