Description

ABB AO2000 LS25 is a high-performance laser gas analyzer module manufactured by ABB,a leading global power and automation technology company.As the core component of the ABB Advance Optima AO2000 series modular continuous gas analysis system,the ABB AO2000 LS25 adopts the most advanced tunable diode laser absorption spectroscopy(TDLAS)technology.It is designed for continuous,non-contact online monitoring of gas composition in chimneys,pipelines,process rooms,or similar locations to provide high-precision,high stability,and high reliability real-time gas concentration data.

The measurement principle of AO2000 LS25 is based on infrared single line absorption spectroscopy,which utilizes the unique absorption line characteristics of different gas molecules at specific wavelengths.The gas concentration is calculated by scanning the absorption line of the measured gas with a laser and detecting changes in light intensity.This analyzer consists of an independent transmitter unit,receiver unit,and power supply unit,which can accurately measure various gas components such as O2,NH3,HCl,HF,H2S,H2O,CO,CO2,NO,N2O,HCN,CH4,etc.It is suitable for a wide measurement range from ppm level to volume percentage.The ABB AO2000 LS25 supports hazardous area applications and has explosion-proof certifications such as ATEX,IECEx,and CSA.It can be remotely operated and integrated with the AO2000 central processing unit through Ethernet,making it an ideal choice for key application areas such as process control,environmental monitoring,and emission compliance.

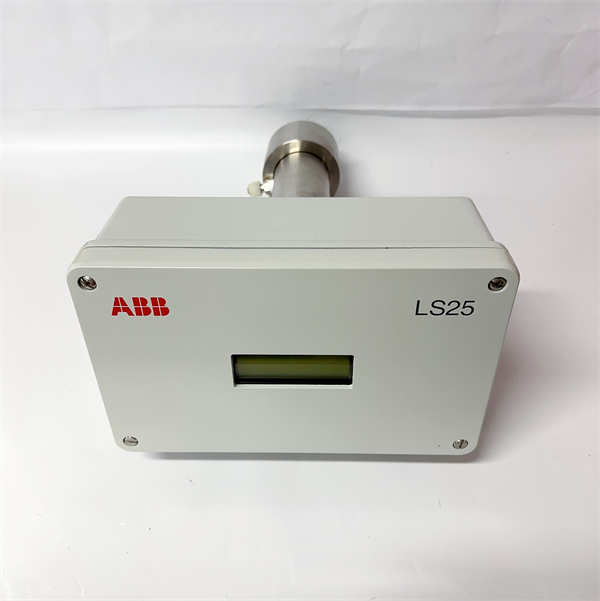

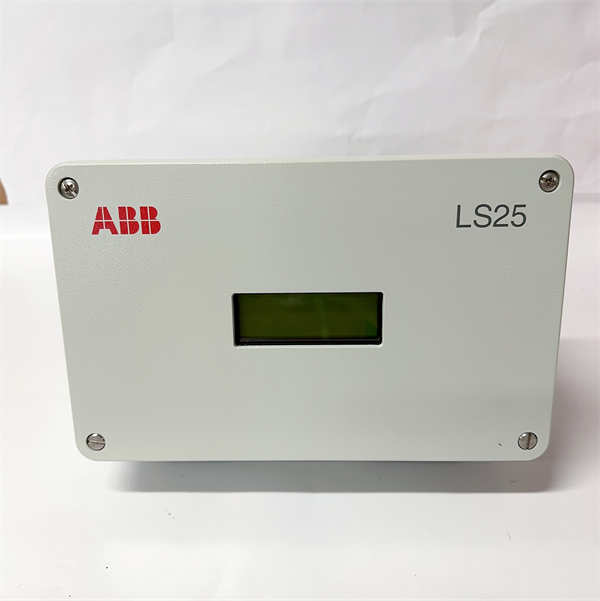

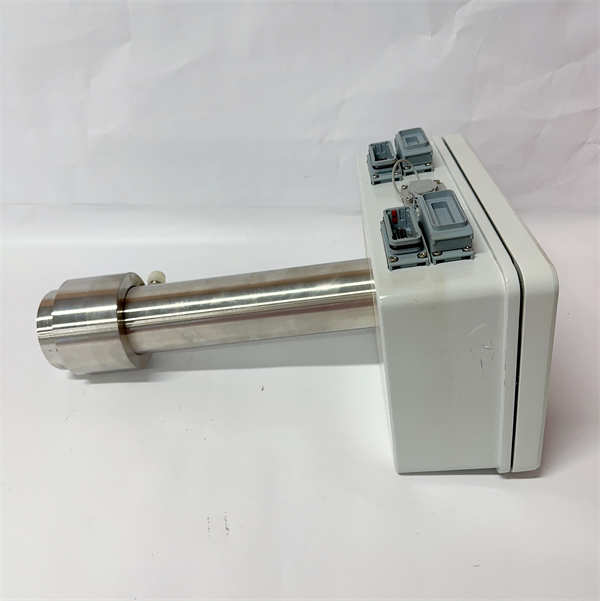

AO2000 LS25 ABB

technical specifications

Product model:AO2000 LS25

Manufacturer:ABB

Product type:Laser gas analyzer module

Series:Advance Optima AO2000

Measurement technology:Tunable diode laser absorption spectroscopy(TDLAS)

Measurement principle:Infrared single line absorption spectroscopy

Measurement mode:non-contact,in-situ/cross stack

Measurement gases:O2,NH3,HCl,HF,H2S,H2O,CO,CO2,NO,N2O,HCN,CH4,etc

Measurement range:Wide(ppm to vol.%),depending on the gas composition

Accuracy:High precision(depending on the measured gas and range)

Response time:Fast response(depending on application and configuration)

Output signal:4-20 mA analog output(via central unit)/Ethernet communication

Communication protocol:Ethernet(with AO2000 central unit),may support Modbus/Profibus DP

Power supply:24 VDC(via internal or external power supply unit)

Enclosure protection level:IP66(transmitter and receiver unit)

Explosion proof certification:ATEX,IECEx,CSA(applicable to potentially explosive environments)

Working temperature:-25°C to+70°C(typical value)

Process temperature:up to 1500°C(depending on application)

Process pressure:up to 10 bar(absolute pressure)

Optical window:Sapphire or similar pressure resistant material

Composition:transmitter unit,receiver unit,power supply unit

Main features and advantages

The ABB AO2000 LS25 laser gas analyzer module,with its innovative TDLAS technology and modular design,provides excellent performance and significant advantages in the field of industrial gas monitoring.

Ultra high precision and selectivity:ABB AO2000 LS25 adopts advanced tunable diode laser absorption spectroscopy(TDLAS)technology,which can perform highly selective measurements for target gas molecules.This technology eliminates cross interference and provides extremely accurate concentration readings even in complex gas mixtures,ensuring the reliability and accuracy of measurement data.

In situ non-contact measurement:This analyzer supports in-situ measurement without the need to extract gas samples from the process pipeline for pre-processing.This means that the measurement is carried out directly in the pipeline or chimney,eliminating the time delay,maintenance requirements,and potential errors caused by the sampling system,thereby achieving faster response time and reducing operating costs.

Adaptability to harsh environments and explosion-proof safety:The transmitter and receiver units of AO2000 LS25 are designed to be sturdy,with an IP66 protection level,and can withstand harsh industrial environments.At the same time,it has obtained international explosion-proof certifications such as ATEX,IECEx,and CSA,suitable for safe use in potentially explosive environments(such as Zone 2),ensuring compliance and personnel safety in hazardous areas.

Wide measurement range and multi-component capability:ABB AO2000 LS25 is capable of measuring various gas components and supports a wide measurement range from extremely low concentrations(ppm level)to high concentrations(vol.%).This flexibility makes it suitable for various application scenarios,from trace gas detection to high concentration process gas analysis.

Modular design and easy integration:As part of the ABB Advance Optima AO2000 series,the AO2000 LS25 has a high degree of modularity and scalability.It can be freely combined with other analyzer modules(such as oxygen analyzer,photometer)to form customized analysis solutions.By connecting to the AO2000 central unit via Ethernet,remote operation,data access,and seamless integration into existing DCS/PLC systems have been achieved,simplifying system deployment and management.

Low maintenance and automatic calibration:The non-contact measurement principle of ABB AO2000 LS25 greatly reduces maintenance requirements,eliminating the need for frequent replacement of filter cartridges or cleaning of sampling pipelines.Many models also have automatic calibration function,eliminating the need for test gas cylinders,further simplifying daily operations and reducing ownership costs.

AO2000 LS25 ABB

application area

The ABB AO2000 LS25 laser gas analyzer module,with its excellent performance and adaptability,has been widely used in multiple industrial fields that require extremely high gas monitoring accuracy and reliability.

In the power production industry,ABB AO2000 LS25 is a key component of flue gas emission monitoring(CEMS)in coal-fired power plants,gas-fired power plants,and waste incineration plants.It is used for real-time monitoring of pollutant concentrations in flue gas,such as CO,CO2,NOx,SO2,NH3(used for ammonia escape monitoring in denitrification processes),and H2O,to ensure that power plants comply with strict environmental emission standards.At the same time,it is also used for boiler combustion optimization,achieving more efficient and cleaner combustion by monitoring the concentrations of O2 and CO in the furnace.

In the oil and gas industry,from upstream natural gas extraction and processing to downstream refining and petrochemical processes,AO2000 LS25 is used to monitor the composition of process gases,flare gas emissions,and hazardous gas leak detection(such as H2S,CH4),ensuring the safety and optimization of production processes.

In the chemical and pharmaceutical industries,this analyzer module can be used for gas component analysis in critical reaction processes to ensure product quality and production efficiency.For example,monitoring the reaction gases in the reaction vessel,emissions during exhaust gas treatment,and the concentration of toxic and harmful gases in the workplace air.

In addition,ABB AO2000 LS25 is widely used for process control and environmental monitoring in industries such as cement,steel,and glass.Through real-time analysis of gas emissions from equipment such as kilns,blast furnaces,and glass melting furnaces,it optimizes combustion efficiency,reduces energy consumption,and ensures compliance with environmental protection regulations.

Related products

The ABB AO2000 LS25 laser gas analyzer module is part of the ABB Advance Optima AO2000 series integrated analyzer system,which works in conjunction with other analyzer modules and central processing units in the series.

ABB AO2000 Central Unit:For example,the AO2000-XX series is the control core of the AO2000 LS25,providing power,display,control interface,and communication interface to coordinate the operation of all analyzer modules.

ABB AO2000 Other Analyzer Modules:Includes various modules based on different measurement principles,which can be combined with AO2000 LS25 to achieve multi-component gas analysis,such as:

ABB Uras26:Infrared photometer module(NDIR/UV),used for measuring CO,CO2,NO,SO2,N2O,CH4,etc.

ABB Magnos28/27:Oxygen analyzer module(paramagnetic method).

ABB Caldos25/27:Thermal conductivity analyzer module.

ABB Fidas24:FID analyzer module for measuring total hydrocarbons(THC).

ABB Pneumatics Module:Provides sample gas pretreatment and flow path control for analyzers.

ABB connection box/junction box:used to connect the power and signal cables of AO2000 LS25 to the system.

ABB probe and sampling system:used to obtain gas samples from process pipelines(if not installed in situ).

ABB dedicated communication software and tools:used for configuration,calibration,diagnosis,and data visualization of AO2000 LS25 and AO2000 systems.

ABB spare parts and consumables,such as optical windows,seals,power modules,etc.,ensure the long-term operation and maintenance of the analyzer.

Installation and maintenance

Preparation before installation:Before installing the ABB AO2000 LS25 laser gas analyzer module,it is essential to ensure that the process pipeline has been completely shut down,depressurized,and cooled to a safe temperature,while taking all necessary safety precautions such as tagging and locking.Please carefully read the installation manual and AO2000 system manual of ABB AO2000 LS25 to understand the detailed installation steps,electrical connection diagram,optical path alignment requirements,and environmental conditions.The AO2000 LS25 consists of a transmitter unit and a receiver unit,which need to be installed on both sides of the tested pipeline or chimney to ensure clear and unobstructed visibility between the two.During installation,it is necessary to precisely align the optical windows of the transmitter and receiver so that their laser beams can penetrate the path of the measured gas.Connect power and communication cables to their respective units and ensure that all wiring complies with local electrical regulations and explosion-proof area requirements.If installation is required in hazardous areas,strict adherence to ATEX/IECEx/CSA certified installation guidelines must be followed,including proper cable sealing and explosion-proof measures.

Maintenance suggestion:The ABB AO2000 LS25 laser gas analyzer module is designed for low maintenance operation,but regular inspections and appropriate preventive maintenance are crucial to ensure its sustained high precision and reliability.The core of maintenance is to keep the optical window clean.Regularly visually inspect the optical windows of the transmitter and receiver units,and clean them with dust-free cloths and designated cleaning agents as needed to prevent dust,particulate matter,or condensation from accumulating and affecting measurement accuracy.Check for physical damage,signs of corrosion,or cable wear on the analyzer casing to ensure that all connectors and seals are intact and undamaged.Monitor the diagnostic information and alarm status displayed by AO2000 LS25 in the AO2000 central unit or through remote software.Many models have automatic calibration capabilities and should be regularly calibrated according to the manufacturer’s recommendations to ensure measurement accuracy,and may not require external testing of gas cylinders.If the system indicates a deviation in optical path alignment or measurement error,the optical path should be recalibrated or aligned.Any faults or performance issues beyond the scope of daily maintenance are recommended to contact ABB or its authorized service providers for professional diagnosis and repair.

AO2000 LS25 ABB

Product Guarantee

ABB provides comprehensive product assurance for its AO2000 LS25 laser gas analyzer module,which fully demonstrates ABB’s firm commitment to product quality and customer satisfaction as a global leader in measurement and analysis technology.
