Description

GE F650BABF1G0HI is a highly advanced GE Multilin F650 Digital Bay Controller and a powerful Feeder Protection Relay.This cutting-edge device is designed to provide comprehensive protection,control,monitoring,metering,and recording functions for feeders,busbars,transformers,and capacitor banks in power distribution and transmission systems.

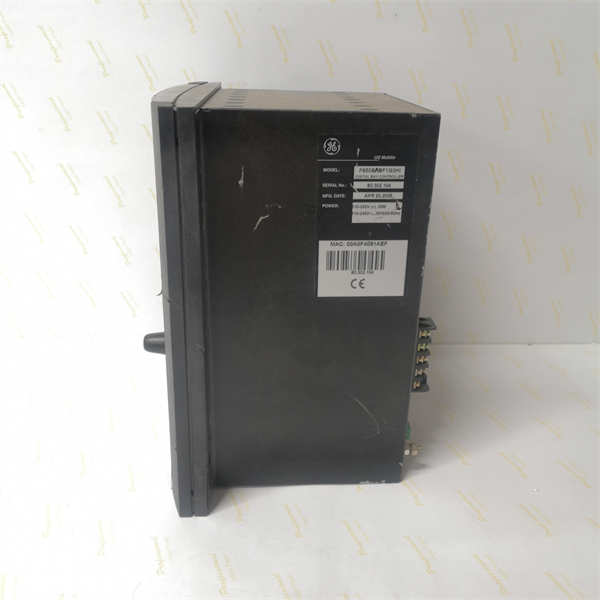

GE F650BABF1G0HI

The unique ordering code”BABF1G0HI”provides detailed information on the specific configuration of the F650 model

B:Basic Display,not Enhanced Display

A:Rear serial communication board 1:redundant RS485

B:Rear Ethernet communication board 2:10/100 Base TX

F1:I/O board for slot F:16 digital inputs+8 digital outputs

G0:I/O board for slot G:None

HI:Auxiliary power supply voltage:110-250 Vdc/120-230 Vac(working range 88-300 Vdc/96-250 Vac)

This specific configuration emphasizes strong communication capabilities(with redundant serial and Ethernet connections),as well as sufficient digital input/output,making it suitable for various substation automation and protection schemes.The F650 integrates industry-leading communication technologies(including IEC 61850,Modbus RTU/TCP/IP,DNP 3.0,IEC 60870-5-103/104)and powerful programmable logic to provide high-speed protection and flexible control for electrical equipment management within substation”interval units”.

technical specifications

Product model:F650BABF1G0HI

Manufacturer:GE Multilin

Product type:Digital Bay Controller/Feeder Protection Relay

Auxiliary power supply:110-250 Vdc/120-230 Vac(working range 88-300 Vdc/96-250 Vac)

Display screen:Basic Display

Communication interface:-Rear serial port 1:Redundant RS485<;br>-Rear Ethernet port 2:10/100 Base TX<;br>-Supported protocols:Modbus RTU/TCP/IP,DNP 3.0 Level 2,IEC 60870-5-103,IEC 60870-5-104,IEC 61850(supports Edition 2)

Digital input/output:-I/O board slot F:16 digital inputs+8 digital outputs
;-I/O board slot G:None

Protection functions:Main protection for lines and feeders,busbar protection,backup protection for transformers and capacitor banks;Including overcurrent,overvoltage,undervoltage,frequency protection,negative sequence protection,differential protection,synchronous detection,circuit breaker failure protection,thermal overload,fault locator,etc

Measurement functions:V,I,Hz,W,VA,PF,VArh,Wh and other electricity measurement,as well as demand measurement

Recording function:Fault and event recorder(1ms time tag,capable of storing 1024/512 events),high-resolution oscilloscope recording,and data recorder

Environmental adaptability:sturdy design,suitable for harsh industrial environments

Programming software:EnerVista 650 Setup Software(for configuration and setup)

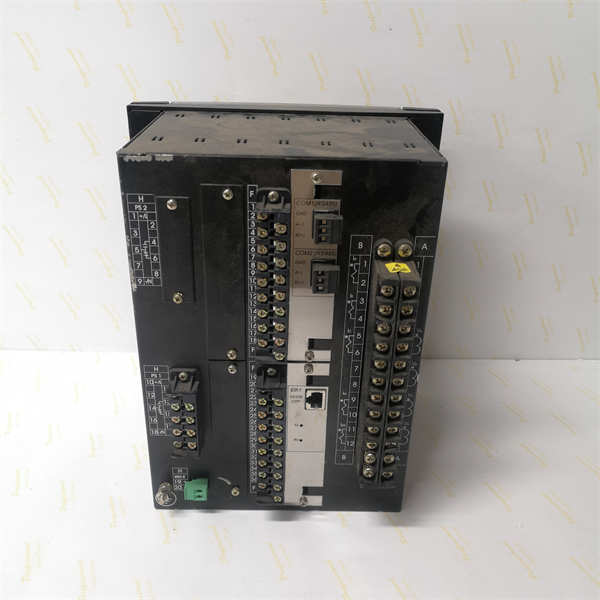

GE F650BABF1G0HI

Language:English

Protective coating:Non harsh(chemical)environmental conformal coating

The GE F650BABF1G0HI digital interval controller has significant features and advantages in the field of power system protection and control due to its excellent functionality and integration

Comprehensive protection function:F650 provides a complete set of protection functions,including main and backup protection for feeders,busbars,transformers,and capacitor banks.This covers various types of faults such as overcurrent,overvoltage,undervoltage,frequency,negative sequence,differential,and circuit breaker failure,ensuring the safe and stable operation of the power system under various abnormal conditions.

Powerful control and automation capabilities:As a digital interval controller,F650 not only provides protection,but also integrates control functions to directly manage devices such as circuit breakers and isolation switches.It supports programmable logic that complies with the IEC 61131-3 standard,allowing users to customize complex control strategies and interlocking logic to achieve distribution and transmission automation.Its integrated single line diagram display and programmable buttons also simplify local operations and monitoring.

Advanced communication capabilities:F650BABF1G0HI is equipped with redundant RS485 serial ports and 10/100 Base TX Ethernet ports,and supports multiple industrial communication protocols such as IEC 61850(Edition 2),Modbus,DNP3.0,etc.This extensive communication compatibility ensures seamless integration into SCADA,DCS,and substation automation systems,enabling remote monitoring,data exchange,and coordinated control.

High precision monitoring and measurement:This relay provides comprehensive electricity measurement(voltage,current,frequency,active/reactive power,power factor,etc.)and demand measurement.At the same time,high-resolution event recording(1ms time stamps),fault waveform recording,and fault location functions provide valuable data support for power system fault analysis,rapid recovery,and performance optimization.The arc current estimation function of its circuit breaker is helpful for preventive maintenance.

High reliability and enhanced design:GE Multilin products are known for their durability,and the F650 design can withstand harsh industrial environments.The redundant communication and auxiliary power options further enhance its reliability,minimizing system downtime to the greatest extent possible.

Easy to configure and use:Despite its powerful features,the F650 can be configured through the user-friendly EnerVista 650 Setup software,simplifying parameter settings and logic programming processes,and reducing engineering complexity.The LCD display screen and programmable buttons also provide an intuitive human-machine interface.

application area

The GE F650BABF1G0HI digital interval controller/feeder protection relay has a wide range of applications in various aspects of the power system:

Distribution feeder protection:As the main protection equipment in the distribution system,it is used to detect and isolate short circuits,overloads,grounding faults,etc.on the distribution lines,ensuring the continuity and reliability of user power supply.It can be used for overhead lines and cable feeders.

Transmission line protection:It can be used as a backup protection for transmission lines or provide primary protection function in some simplified networks to prevent the expansion of line faults.

Substation automation:As the core component of the substation automation system,it enables remote control and status monitoring of equipment such as circuit breakers and isolating switches,improving the automation level and operational efficiency of the substation.

Busbar protection:Protect the busbar of the substation to prevent busbar faults from causing widespread power outages.

Transformer protection:As a backup protection for transformers,it monitors abnormal situations such as transformer overload and overcurrent.

Capacitor bank protection:used to protect the capacitor bank from the impact of faults and ensure the normal operation of reactive power compensation equipment.

Generator and motor feeder protection:In power plants and large industrial facilities,protect the power supply feeders of generators and large motors.

Industrial and commercial power systems:In the power distribution systems of large industrial parks,data centers,hospitals,and other places,reliable protection and control are provided to ensure stable power supply for critical loads.

Distributed Generation(DG)Integration:Provides anti islanding functionality,supports grid connection and safe operation of distributed generation.

Related products

The products related to GE F650BABF1G0HI digital interval controller/feeder protection relay mainly include other protection relays,control and automation equipment,communication modules,and software tools of GE Multilin:

GE Multilin 650 series relay family:

C650:Busbar protection and controller.

G650:Generator protection and controller.

W650:Wind turbine protection and controller.

GE Multilin IEDs(Intelligent Electronic Devices):Various types of protection,control,and metering devices work together to build a complete substation automation solution.

GE Multilin EnerVista™Software Suite:Includes EnerVista 650 Setup Software for F650 configuration,diagnostics,data analysis,and firmware upgrades.

GE Substation Automation Solutions:A larger substation automation system solution that integrates relays such as F650 with SCADA systems,human-machine interfaces(HMI),communication gateways,and more.

GE MDS series wireless and industrial communication equipment:used for remote communication between relays or between relays and control centers.

Current Transformer(CT)and Voltage Transformer(VT):Provide accurate current and voltage signal inputs for F650.

Circuit breakers and isolating switches:F650 are on-site devices for control and protection.

Communication module/adapter:may be used to connect different communication buses or networks.

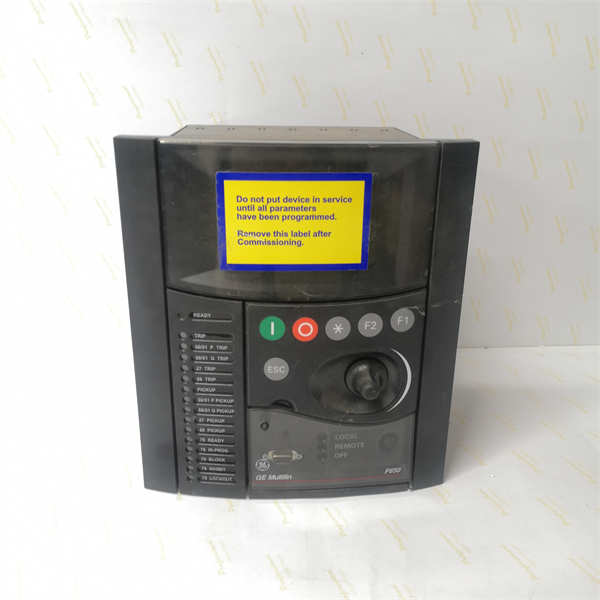

GE F650BABF1G0HI

Installation and maintenance

Preparation before installation:

Carefully read the manual:Before installing GE F650BABF1G0HI,be sure to carefully refer to the F650 installation and operation manual provided by GE Multilin.Understand all electrical connections,wiring diagrams,installation dimensions,panel opening dimensions,environmental requirements,and safety precautions.

Safe power-off:Ensure that the power supply of all relevant primary and secondary equipment(such as circuit breakers,transformers)has been completely disconnected,and adopt strict lockout/tagout(LOTO)procedures to prevent accidental electrification.

Electrostatic protection:When handling relays,be sure to wear anti-static gloves and wristbands to prevent electrostatic discharge from damaging sensitive electronic components.

Environmental conditions:Confirm that the installation location meets the working temperature,humidity,and vibration requirements of the relay.Avoid installation in places with direct sunlight,humidity,corrosive gases,or strong electromagnetic interference.

Wiring specifications:Connect the current circuit,voltage circuit,digital input/output,auxiliary power supply,and communication interface correctly according to the diagrams and specifications in the manual.Ensure that all wiring is secure and reliable,and conduct insulation testing.

Maintenance suggestion:

Regular inspection:Regularly inspect the appearance of the relay to check for dust,moisture,corrosion,loose connections,or physical damage.Clean the surface and ventilation openings of the relay.

Function self check:Utilize the built-in self diagnosis and testing functions of F650 to regularly perform relay function tests,observe the LED indicator lights and screen displays,and confirm that their working status is normal.

Data backup:Regularly backup the configuration parameters,set values,and event records of relays through EnerVista 650 Setup software to prevent data loss.

Firmware updates:Pay attention to the firmware updates and software patches released by GE Multilin,and upgrade as needed to obtain the latest features,performance optimizations,and security vulnerability fixes.

Alarm and event log analysis:Regularly check the alarm and event logs of relays,analyze abnormal situations,in order to timely discover and solve potential problems.

Calibration:Regularly calibrate and check the analog inputs(such as current and voltage)of relays based on operating experience and manufacturer recommendations to ensure measurement accuracy.

Professional maintenance:Any work involving the replacement of internal components of relays or complex fault diagnosis should be carried out by technical personnel who have received professional training from GE Multilin and have the corresponding qualifications.

Product Guarantee

We provide a solid product guarantee for the excellent quality and reliable performance of GE F650BABF1G0HI digital interval controller/feeder protection relay in power systems.
