Description

ABB 086370-001 is a high-precision control module commonly referred to as an Accuracy module or PWA,ECPSR,R.O.+15V,-15(printed circuit board component,excitation control power regulator).This name indicates that it is a professional circuit board or module that is crucial for achieving precise control in industrial automation systems,especially in excitation systems,DCS embedded cards,and other related applications.

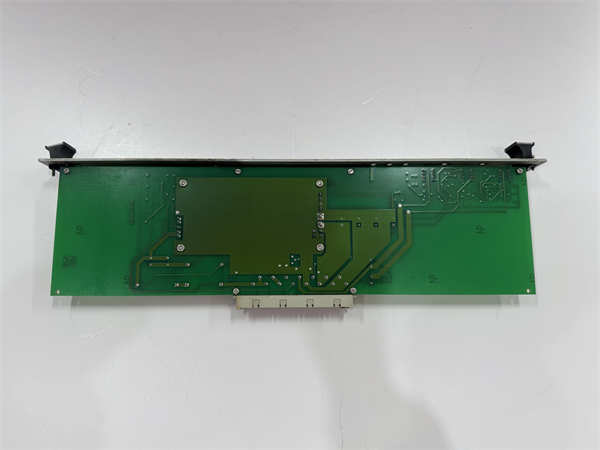

ABB 086370-001

technical specifications

Product model:086370-001

Manufacturer:ABB

Product type:High Precision Control Module/Accuracy Module/PWA,ECPSR,R.O.+15V,-15

Main functions:precision control,ultra fast signal processing,excitation system control,DCS embedded application

Power supply voltage:DC 24V

Power consumption:approximately 10W

Communication protocol:MODBUS TCP/IP

Input/output channels:8 inputs,8 outputs

Working temperature range:-20°C to+55°C

Protection level:IP65

Certification:CE,UL,CSA

Installation method:usually rack mount

Main features and advantages

ABB 086370-001,as a high-precision control module in industrial automation systems,has the following significant characteristics and advantages:

Excellent control accuracy:designed for applications that require extremely high control accuracy,ensuring output accuracy and consistency,which is crucial for sensitive industrial processes.

Fast response capability:With ultra fast signal processing speed,it can quickly respond to input changes,thereby achieving more dynamic and precise control.

High environmental tolerance:sturdy and durable,able to withstand harsh industrial environments such as humidity and dusty conditions(as indicated by IP65 protection level),ensuring reliable operation under various working conditions.

Compact and easy to integrate:Adopting a compact design,it is easy to integrate into existing control systems,whether as an upgrade option or a new system deployment.

Rich I/O and communication functions:(if configured as 8 inputs/8 outputs and supporting Modbus TCP/IP)It provides flexible connection options for data exchange with various field devices and upper level systems.

High reliability:As a product of ABB,it adheres to the brand’s high quality and reliability standards in the field of industrial automation,aiming to minimize downtime to the greatest extent possible.

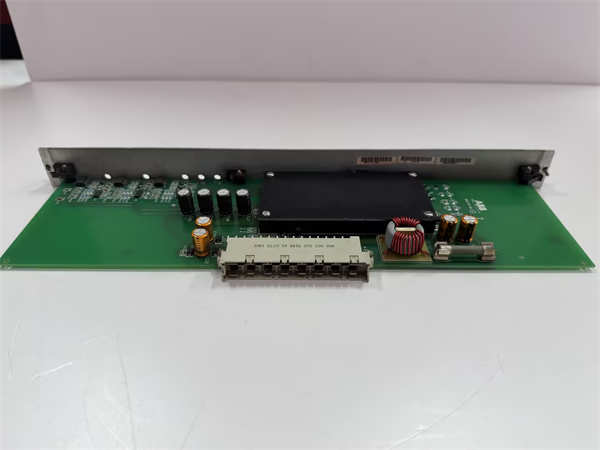

ABB 086370-001

application area

ABB 086370-001 high-precision control module is widely used in industrial fields with strict requirements for accuracy,reliability,and environmental adaptability due to its excellent performance:

Excitation system:In the excitation control system of generators and motors,it is used to accurately regulate the excitation current and voltage,ensuring the stable operation and efficiency of power equipment.

DCS(Distributed Control System)application:As an embedded module in DCS systems,it is used to process key process parameters and perform high-precision control,especially in areas that require fast response and precise adjustment.

High precision manufacturing:used in fields such as electronic component manufacturing and precision machining to precisely control key parameters in the production process,ensuring product quality and production efficiency.

Process automation:In industries such as chemical,petrochemical,and pharmaceutical,high-precision measurement and control of key process variables such as temperature,pressure,and flow rate are carried out.

Quality control system:Provides high-precision signal processing and control outputs in systems that require precise measurement and control of product dimensions,thickness,color,and other quality parameters.

Other industrial automation systems:Any general industrial automation application that requires high-precision control performance,fast signal processing,and high environmental requirements.

Related products

The products closely related to ABB 086370-001 high-precision control module mainly include its ABB control system and other modules:

ABB excitation system:This module is likely to serve as a core control board component in the ABB excitation system.

ABB DCS(Distributed Control System):including but not limited to ABB 800xA,Advant OCS,Freelance and other systems,086370-001 may serve as a dedicated functional module or interface board in these systems.

ABB Automation Controller:The ABB controller used in conjunction with it is responsible for executing the main control logic and communicating with the module.

Related I/O modules:Depending on their input-output configuration,they may be used in conjunction with other analog or digital I/O modules to expand the system’s connectivity capabilities.

ABB programming and diagnostic software:software used for configuring,programming,diagnosing,and maintaining ABB control systems,such as ABB Control Builder or other related engineering tools.

On site sensors and actuators:Field devices indirectly or directly connected to the control module,which are the source and object of the module’s processing and control signals(such as high-precision sensors,precision valve positioners,etc.).

Installation and maintenance

As 086370-001 is an internal control module or circuit board,its installation and maintenance are usually part of the complete system or rack it is installed in.

Installation(usually completed by professionals):

Refer to the system manual:Before installing or replacing 086370-001,be sure to carefully read the official installation manual of the ABB control system or rack to which it belongs,to understand the specific installation steps and precautions.

Safety regulations:Before any installation or replacement operation,it is necessary to strictly follow the safety operation regulations of the equipment,including complete power-off,performing lock/tag out(LOTO)procedures,and taking electrostatic discharge(ESD)measures.

Accurate insertion:Insert the module or circuit board correctly into its designated slot or connector,ensuring that all pins or connection points are aligned correctly and avoiding bending or damage.

Secure fixation:Ensure that the module is securely fixed in the rack or housing to prevent poor contact caused by vibration or loosening.

Maintenance suggestion:

System level diagnosis:The operating status and potential faults of 086370-001 are usually monitored through the diagnostic interface or software of its control system(DCS/PLC).The system will report the status of the module or related alarm information.

Environmental control:Ensure that the internal environment of the control cabinet where the module is installed is kept clean,dry,and meets the manufacturer’s recommended temperature and humidity requirements to extend its service life.

LED indicator monitoring:Modules are usually equipped with status LED indicator lights,which can be used to preliminarily determine the operating status of the module by observing these indicator lights.

Spare parts strategy:Considering that the component may have been discontinued,it is recommended to maintain appropriate spare parts inventory for critical applications.When purchasing from reliable third-party suppliers,it is necessary to confirm their quality and warranty policies.

Professional maintenance:Any replacement,advanced fault diagnosis,or repair involving internal components of ABB control systems should be carried out by technical personnel authorized or professionally trained by ABB to ensure the correctness of operations and the safety and reliability of the system.

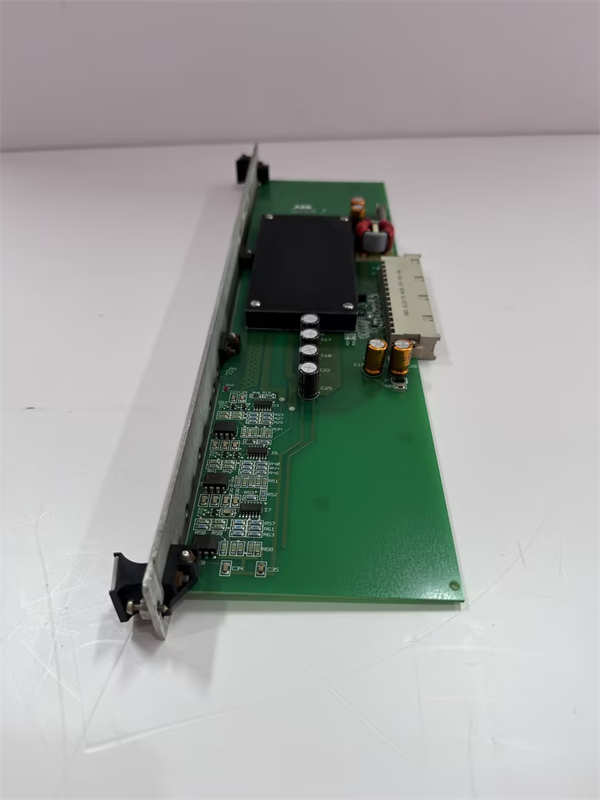

ABB 086370-001

Product Guarantee

We guarantee the quality of ABB 086370-001 high-precision control module and its reliable performance in ABB control systems.
