Description

GE IS220UCSAH1A is an embedded controller module(also known as a processor module or PAMC sound monitoring processor)manufactured and designed by General Electric.It is the core component of the GE Mark VIe series distributed gas turbine control system.

The UCSA controller product line to which IS220UCSAH1A belongs is a series of independent computers used to run application code.It is designed for panel installation and communicates with I/O modules through the onboard I/O network(IONet)interface.IONet is a dedicated private Ethernet that specifically supports communication between I/O modules and controllers.

This module runs the QNX Neutrino real-time multitasking operating system,which is renowned for its high speed,high reliability,and applicability in industrial applications.

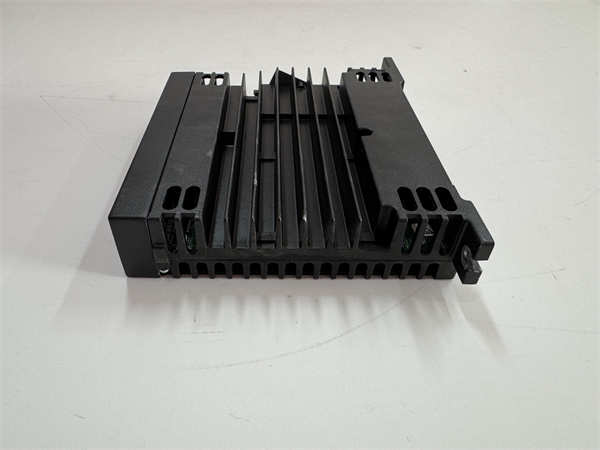

IS220UCSAH1A GE

technical specifications

Product model:IS220UCSAH1A

Manufacturer:General Electric(GE)

Series:Mark VIe

Product Type:Embedded Controller Module/Processor Module/PAMC Acoustic Monitor Processor

Processor:Freescale Power PC(Power QUICC II PRO 667 MHz)

Memory:256 MB DDR SDRAM

Operating system:QNX Neutrino(real-time multitasking operating system)

Power requirements:18 V DC to 32 V DC

Typical power consumption:12.5 watts

Working temperature:0°C to 65°C

Cooling method:Passive cooling(no fan required)

Relative humidity:5%to 95%,non condensing

Compatibility with hazardous environments;NFPA Class 1,Div.2 Applications

Communication interface:-6 RJ45 Ethernet interfaces(for IONet and UDH)<;br>-1 USB interface

LED indicator lights:Power,Boot,Online,Flash,DC,Diag,Link/ACT

Storage:Compact Flash

Installation method:Base mounted within a cabinet

As the core controller of the Mark VIe system,GE IS220UCSAH1A has the following significant features and advantages:

Powerful processing capability:Equipped with a 667 MHz Freescale Power PC processor,it ensures efficient and fast execution of complex control algorithms and application code.

Real time operating system:Adopting QNX Neutrino real-time operating system,it ensures fast response and high reliability to process changes in critical industrial applications.

Flexible communication options:Provides up to 6 Ethernet ports and 1 USB port for high-speed and reliable communication with I/O modules,host computers,maintenance stations,and other control systems.

Strong environmental adaptability:capable of fanless operation within a wide temperature range of 0°C to 65°C,and compatible with NFPA Class 1,Div.2 hazardous environments,making it suitable for various harsh industrial application scenarios.

Compact and modular design:As an independent box component,it is easy to install inside the control cabinet and supports up to three adjacent modules for a compact triple redundant system.

Intuitive diagnostic indicators:The LED indicator lights on the front panel provide clear power,startup,online,flash,DC status,and diagnostic information,facilitating on-site troubleshooting and monitoring.

No need for battery/jumper settings:simplifies installation and maintenance,reducing complexity.

application area

The GE IS220UCSAH1A embedded controller module is widely used in industrial fields with strict requirements for performance,reliability,and safety,especially under GE’s Mark VIe control system framework:

Gas/Steam Turbine Control System:As part of the GE Speedtronic Mark VIe control system,it is used for precise control and safety management of gas and steam turbines,including start-up,operation,shutdown,fuel management,and protection functions.

Generator set control:In the field of power generation,controlling and monitoring the operation of generator sets that are paired with turbines.

Balance of Plant BOP control:controls auxiliary systems(such as cooling systems,fuel delivery systems,auxiliary equipment,etc.)in power plants or large industrial facilities.

Excitation control system(EX2100e,LS2100e):integrated with GE’s excitation system to achieve precise control of generator excitation.

Renewable energy applications:Some applications also extend to the control and management of renewable energy equipment such as wind turbines.

Industrial process control:In the field of industrial process automation that requires high-performance,high reliability real-time control.

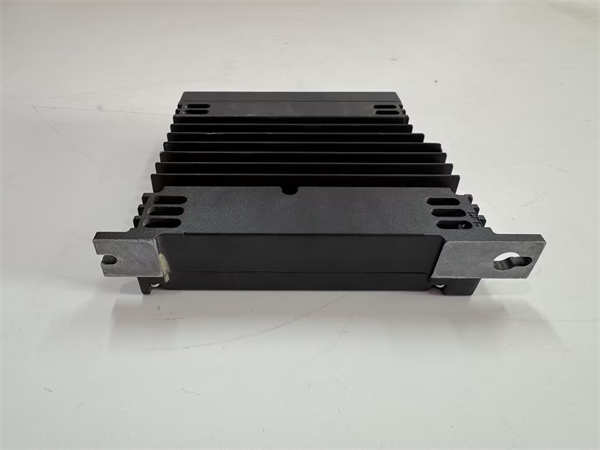

IS220UCSAH1A GE

Related products

The products closely related to the GE IS220UCSAH1A embedded controller module are mainly other core components of the GE Mark VIe control system:

GE Mark VIe I/O Packs:such as IS220PDIOA,IS220PDOAH,etc.These modules communicate with IS220UCSAH1A through IONet and are responsible for actual signal acquisition and output.

GE Mark VIe Rack and Power Supply:Used for installing IS220UCSAH1A and other modules,and providing stable power supply for them.

GE ControlST software suite:including ToolboxST™Tools for programming,configuration,diagnosis,trend analysis,and system management of IS220UCSAH1A.

GE HMI(Human Machine Interface)and Operator Station:Communicate with IS220UCSAH1A through Unit Data Highway(UDH)to achieve centralized monitoring and operation.

GE EX2100e excitation controller:If used for excitation control,it should be compatible with this system.

GE LS2100e static starter:If used for starting control of large motors or turbines,it should be compatible with this system.

On site sensors and actuators:various field devices connected to I/O packs and controlled by IS220UCSAH1A.

Installation and maintenance

Installation(usually completed by professionals):

Refer to the official manual:Before installing GE IS220UCSAH1A,it is necessary to carefully read the Mark VIe system installation manual provided by GE(such as GEH-6725R)to understand the specific installation steps,wiring diagrams,environmental requirements,and safety precautions.

Safety regulations:Before any installation or replacement operation,strictly follow the safety operation regulations of the equipment,including complete power-off,performing lockout/tagout(LOTO)procedures,and taking electrostatic discharge(ESD)measures.

Physical installation:Install the module firmly on the base inside the control cabinet.Ensure sufficient ventilation space,even if the module is designed for fanless cooling.

Correct wiring:Connect IONet and UDH cables through the RJ45 interface on the front panel to ensure a secure and reliable connection.If necessary,connect the USB port for configuration.

Power connection:Connect a power supply from 18 V DC to 32 V DC to the module,ensuring that the power supply meets specifications and is stable.

Maintenance suggestion:

Regular monitoring of LED:The LED indicator light on the front panel is crucial for quickly determining the module’s operating status and diagnosing faults.Regularly check the status of indicator lights such as Power,Boot,Online,Flash,DC,Diag,Link/ACT.

System diagnosis:Use ToolboxST in the GE ControlST software suite™Waiting for tools,regularly conducting system diagnostics and log analysis,monitoring module performance and health status,and promptly identifying and resolving potential issues.

Environmental control:Ensure that the internal environment of the control cabinet is clean,dry,and maintained within the recommended working temperature and humidity range to extend the service life of the module.

Firmware/software updates:Regularly update module firmware and application software based on GE’s recommendations and system requirements to obtain the latest features,performance optimizations,and security patches.

Spare parts management:For critical applications,it is recommended to retain spare parts for IS220UCSAH1A.Due to the possibility of discontinuation of this module,it needs to be purchased from a reliable third-party supplier.

Professional maintenance:Any replacement of internal components,complex troubleshooting,or system upgrades involving modules should be carried out by technicians authorized or professionally trained by GE to ensure the correctness of operations and the safety and reliability of the system.

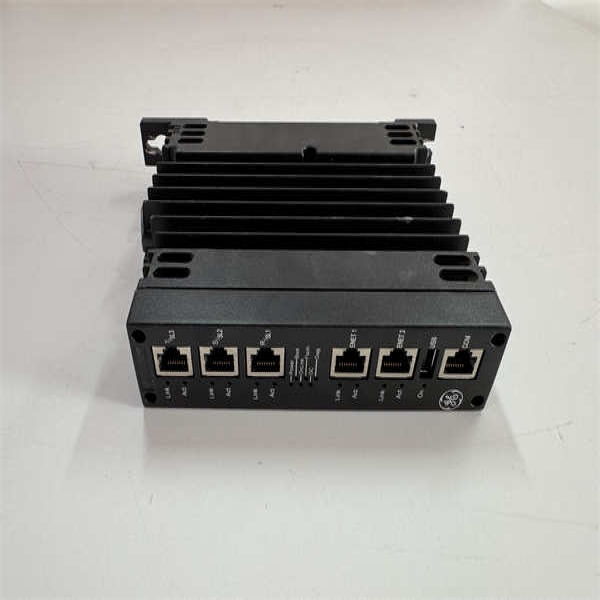

IS220UCSAH1A GE

Product Guarantee

We guarantee the quality of the GE IS220UCSAH1A embedded controller module and its reliable performance in the GE Mark VIe control system.
