Description

Elmo G-TUB30480ERSS0 is a high-performance Ethernet servo drive belonging to Elmo Motion Control’s advanced Gold Tuba series.As an ultra compact,high power density motion control device,G-TUB30480ERSS0 is designed to meet the demands of demanding industrial automation applications,providing excellent motion control accuracy,high dynamic response,and reliability.This driver achieves seamless integration and high-speed data communication with multi axis motion systems by supporting real-time Ethernet protocols such as EtherCAT,making it a core component of complex automation solutions.

The core advantage of G-TUB30480ERSS0 lies in its powerful power output capability and compact physical size,which can provide up to 30A continuous current and 80A peak current in a very small space.It can drive various types of motors,including permanent magnet synchronous brushless motors,DC brushed motors,linear motors,and voice coil motors,and achieve high-precision positioning and speed control through advanced vector control and sinusoidal commutation technology.In addition,G-TUB30480ERSS0 integrates multiple security protection functions and advanced control algorithms,ensuring stable operation and high efficiency of the system in harsh industrial environments.Whether as a standalone device or as part of a multi axis system,G-TUB30480ERSS0 is committed to providing customers with unparalleled performance and flexibility.

technical specifications

Product model:G-TUB30480ERSS0

Manufacturer:Elmo Motion Control

Product type:Ethernet Servo Drive

Product Series:Gold Tuba Series

Power supply type:AC power supply(can be directly connected to the mains,usually 480VAC)

Continuous output current:30A(continuous)

Peak output current:80A(peak)

Communication protocols:EtherCAT(E),CANopen,USB,Ethernet,RS-232

Supported motor types:permanent magnet synchronous brushless motor,DC brushed motor,linear motor,voice coil motor

Control modes:current,speed,position,and advanced position modes

Efficiency:>98%(at rated power)

Power output:up to 25kW(maximum in the series,specific models may vary)

Feedback support:Incremental encoder,sine/cosine encoder,parser,absolute serial encoder,etc

Security protection:overcurrent,overheating,undervoltage,overvoltage,etc

Protection level:Suitable for industrial environments

Main features and advantages

High power density and compact design:Elmo G-TUB30480ERSS0 provides excellent power output capability in an extremely compact size,capable of outputting up to 30A continuous current and 80A peak current.This high power density makes it perform well in space constrained applications such as robots,semiconductor devices,and medical equipment,without sacrificing performance.

Real time Ethernet communication:The driver supports advanced EtherCAT protocol,which is a high-performance,real-time Ethernet bus technology.EtherCAT ensures high-speed data transmission and precise synchronous control between multiple axes,providing a powerful communication backbone for complex multi axis motion systems,enabling G-TUB30480ERSS0 to achieve high dynamic response and high throughput.

Wide voltage range and direct connection to mains power:G-TUB30480ERSS0 can directly connect to AC mains power supply,and specific models usually support input voltage of 480VAC.This’direct connection to the mains’capability simplifies system design,eliminates the need for additional transformers,reduces system costs and installation complexity,while ensuring power compatibility and flexibility.

High precision motion control:Built in Elmo Gold Line core motion control technology,using vector control sinusoidal commutation,as well as advanced filtering and gain scheduling options.These advanced algorithms ensure that G-TUB30480ERSS0 achieves high precision in position,speed,and current control,and can smoothly and efficiently drive any mechanical load,optimizing motion performance.

Powerful security protection function:In order to ensure the safety of the system and personnel,G-TUB30480ERSS0 integrates comprehensive protection mechanisms,including overcurrent,overtemperature,undervoltage,overvoltage protection,etc.These functions can quickly respond when abnormal situations are detected,ensuring stable operation of the drive and connected devices,minimizing potential risks and downtime.

Multi functional feedback and motor compatibility:G-TUB30480ERSS0 supports various types of feedback sensors,such as incremental encoders,absolute serial encoders,parsers,etc.,and can drive permanent magnet synchronous brushless motors,DC brushed motors,linear motors,and voice coil motors.This broad compatibility enables G-TUB30480ERSS0 to be flexibly applied to different mechanical systems and load scenarios.

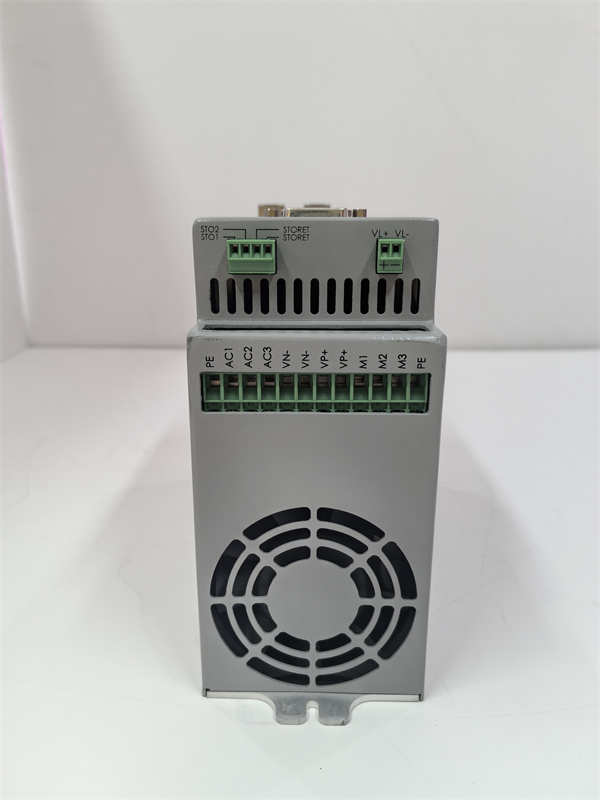

Elmo G-TUB30480ERSS0

application area

Elmo G-TUB30480ERSS0 Ethernet servo drive is widely used in various industrial automation fields with extremely high requirements for motion control accuracy,speed,and reliability due to its high performance,high power density,and real-time communication capability

Semiconductor manufacturing equipment:In high-precision wafer processing,inspection,and packaging equipment,G-TUB30480ERSS0 is used to control robotic arms,transfer mechanisms,and positioning platforms to achieve precise movement at the micrometer level.It is a key component for improving semiconductor production efficiency and yield.

Robotics technology:From multi joint industrial robots to automated guided vehicles(AGVs)and collaborative robots,G-TUB30480ERSS0 provides high dynamic response and precise control,supporting robots to achieve complex path planning,fast grasping,and precise assembly tasks,enhancing the flexibility and efficiency of robots.

Automated production line:In automated production lines such as packaging,assembly,logistics transportation,and material processing,G-TUB30480ERSS0 can drive various actuators to achieve high-speed and high-precision synchronous motion,thereby optimizing production processes,improving production efficiency,and product quality.

Medical equipment:In high-precision diagnostic devices such as MRI and CT scanners,surgical robots,and rehabilitation equipment,G-TUB30480ERSS0 provides stable and reliable motion control to ensure precise operation of the equipment and patient safety and comfort.

Aerospace and Defense:Suitable for aerospace and defense applications that require extremely high reliability and dynamic performance,such as drones,precision aiming systems,flight simulators,and ground support equipment,G-TUB30480ERSS0 can withstand extreme environments and provide high-performance motion control.

Laser cutting/welding equipment:In the field of high-precision laser processing,G-TUB30480ERSS0 is used to control the precise movement of the laser head and workpiece table,ensuring the accuracy of the cutting or welding path and improving processing quality and efficiency.

Related products

Products closely related to Elmo G-TUB30480ERSS0 Ethernet servo drives mainly include Elmo’s other Gold Line servo drives,motion controllers,and accompanying software and accessories:

Other models of Elmo Gold Tuba series:Drivers of the same series may vary in voltage,current,or communication interfaces(such as G-TUBxx480ESxx0,G-TUBxx230ERxx0,etc.)to accommodate different power requirements and connection types.

Elmo Gold Line’s other driver series,such as Gold Solo Guitar(compact high current),Gold Trombone(high voltage),Gold Oboe(AC ultra compact),etc.,differ in size,power range,and characteristics,collectively forming Elmo’s high-performance driver family.

Elmo Gold Maestro(G-MAS)Multi axis Motion Controller:As an upper level controller,it is used in conjunction with servo drives such as G-TUB30480ERSS0 to achieve synchronous and coordinated motion control of up to 256 axes.

Elmo Application Studio(EAS II)software:This is the accompanying debugging,configuration,optimization,and diagnostic software for Elmo drivers.Engineers use it to set the parameters of G-TUB30480ERSS0,perform motor tuning,and troubleshoot.

Elmo Power Supplies:Provides a stable DC bus power supply for servo drives,such as Elmo’s Tambourine series power supply.

Various types of motors,including permanent magnet synchronous servo motors,linear motors,DC brushed/brushless motors,etc.,are the actuators driven by G-TUB30480ERSS0.

Feedback sensors:encoders(incremental,absolute),parsers,Hall sensors,etc.,used to provide real-time position and velocity feedback signals to G-TUB30480ERSS0.

EtherCAT or CANopen bus cable:used for high-speed communication connection between G-TUB30480ERSS0 and controller.

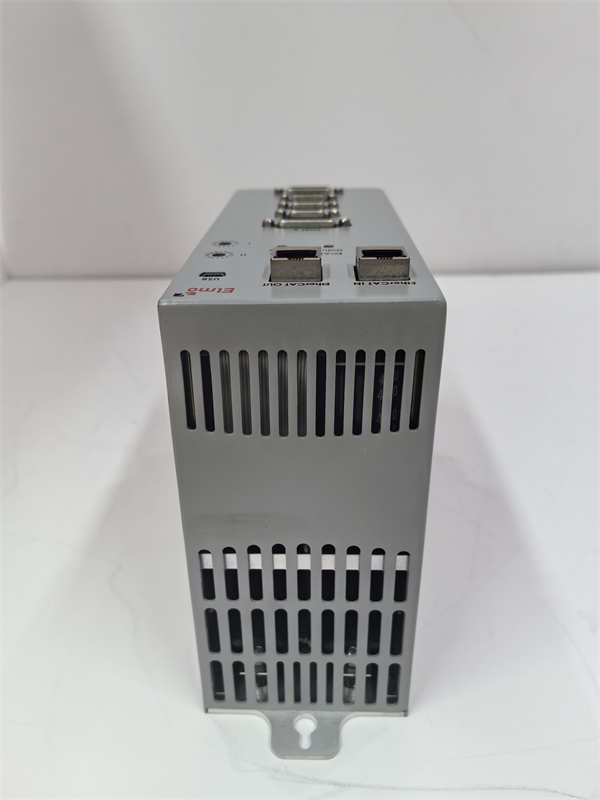

Elmo G-TUB30480ERSS0

Installation and maintenance

Preparation before installation:Before installing the Elmo G-TUB30480ERSS0 Ethernet servo drive,be sure to carefully read the official installation manual provided by Elmo and the Gold Tuba series hardware manual to understand their precise installation steps,electrical connection diagrams,heat dissipation requirements,and environmental limitations.G-TUB30480ERSS0 is a high-power device that must be installed by qualified professionals.Before carrying out any wiring or installation operations,it is necessary to strictly comply with electrical safety regulations,including completely disconnecting all relevant circuit power sources,performing lockout/tagout(LOTO)procedures,and taking electrostatic discharge(ESD)measures.Ensure that the drive is installed in a control cabinet that meets IP rating requirements and provides sufficient heat dissipation space to prevent overheating.Connect the power line,motor line,feedback line,and communication line correctly,and ensure that all wiring is firm and reliable to avoid arcing or short circuits.

Maintenance suggestion:The Elmo G-TUB30480ERSS0 servo drive is designed for long-term stable operation,but regular inspections and preventive maintenance can further extend its service life.It is recommended to regularly monitor the operating status,diagnostic information,temperature,and alarm logs of the drive through Elmo Application Studio(EAS II)software to promptly identify and resolve potential issues.Keep the interior of the control cabinet clean and ensure that the cooling air ducts(if applicable)and heat sinks are free of dust accumulation to ensure good heat dissipation.Check all electrical connections to ensure they are not loose or corroded.If the drive operates in harsh environments,the inspection frequency should be increased.Avoid subjecting the drive to severe impact or vibration.Any maintenance,replacement or advanced fault diagnosis involving internal components of the module should be carried out by technicians authorized or professionally trained by Elmo to ensure the correctness of operation,the safety and reliability of the system.

Product Guarantee

We provide a solid guarantee for the excellent quality and reliable performance of Elmo G-TUB30480ERSS0 Ethernet servo drives in industrial automation applications.
