Description

GE IS420PUAAH1A is an advanced universal input/output(I/O)module designed and manufactured by General Electric(GE),widely used in GE Mark VIe and Mark VIeS control systems.As an important component of these critical industrial control systems,particularly the Speedtronic series used for managing gas turbine and steam turbine systems,IS420PUAAH1A provides excellent flexibility and versatility,capable of handling various types of analog and digital signals.This module allows users to flexibly define the functionality of each channel based on specific application requirements through its sixteen independently configurable channels,thereby reducing the number of required panels and minimizing the space occupied by the system.

The core value of IS420PUAAH1A lies in its”universal”I/O capability,where each channel can be configured as thermocouple input,RTD input,voltage input,4-20 mA current input(with HART option),0-20 mA current output(with HART option),pulse accumulator,or digital input/output.This high degree of universality enables it to adapt to a wide range of industrial application scenarios,from simple sensor monitoring to complex control loops.This module also supports a fast frame rate of 10ms and has automatic reconfiguration and hot swapping functions,ensuring high performance,high reliability,and convenient maintenance in harsh industrial environments.IS420PUAAH1A is the cornerstone of GE Mark VIe and Mark VIeS systems for achieving precise process monitoring and control.

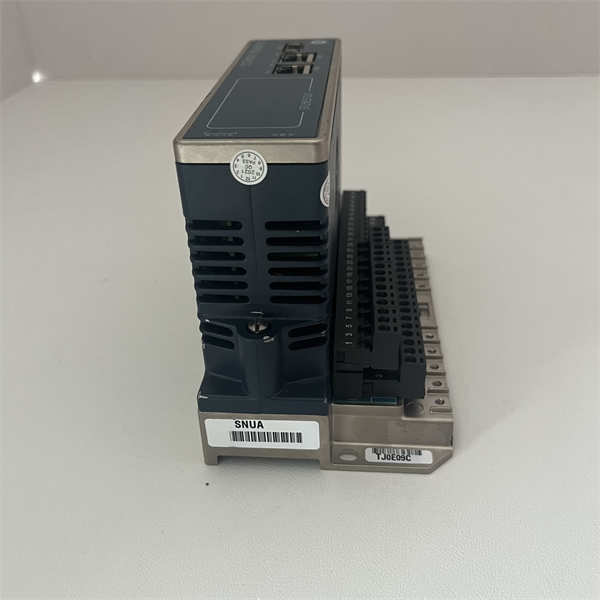

GE IS420PUAAH1A

technical specifications

Product model:IS420PUAAH1A

Manufacturer:General Electric(GE)

Product Type:Universal Input/Output Module/I/O Pack

Series:GE Mark VIe/Mark VIeS Control System

Number of channels:16 independently configurable channels(Simplex analog channels)

Supporting I/O types:thermocouple input,RTD input,voltage input,4-20 mA current input(with HART),0-20 mA current output(with HART),pulse accumulator,digital input,digital output

Compatible software:ControlST V 7.02.00C or higher

Frame rate:10 ms

Scanning time:5 ms(normal scanning time,within the specified temperature range)

Measurement accuracy:better than 0.1%(within the specified temperature range)

Working temperature:-40°F to 158°F(-40°C to+70°C)

Relative humidity:5%to 95%(non condensing)

Hot swappable replacement supported

Auto reconfiguration supported

Power supply:Usually powered through the backplane or terminal board(Mark VIe/VIeS system power supply)

Main features and advantages

Super Universal I/O Capability:The most prominent feature of GE IS420PUAAH1A is its outstanding”universal”I/O capability.All 16 channels can be flexibly configured through software to accommodate multiple input or output types,including thermocouples RTD、Voltage,current(4-20mA or 0-20mA),pulse accumulator,and digital quantity.This high degree of flexibility allows one module to replace multiple specialized modules,significantly simplifying system design,reducing spare parts inventory,and lowering overall costs.

High precision and fast response:IS420PUAAH1A has excellent measurement accuracy,better than 0.1%within the specified temperature range,and supports a fast frame rate of 10ms and a normal scanning time of 5ms.This high precision and real-time response capability is crucial for precise monitoring and control of critical processes,ensuring that the control system can timely and accurately perceive on-site changes and take corresponding actions,thereby improving control performance and system stability.

Compact and modular design:This module adopts a compact design and provides a”black area”that can be independently wired,supporting channel by channel debugging.This design concept not only reduces the physical space occupied by the control cabinet,but also makes the installation and debugging process more convenient and efficient.As part of the Mark VIe/VIeS system,IS420PUAAH1A supports modular expansion,facilitating flexible configuration and future upgrades of the system according to requirements.

Support for hot swapping and automatic reconfiguration:IS420PUAAH1A supports hot swapping function,allowing module replacement during system operation,minimizing downtime to the greatest extent possible.At the same time,its automatic reconfiguration function enables the replaced modules to quickly synchronize with the system and be put into operation,further improving the system’s availability and maintainability.

Industrial grade high reliability:GE IS420PUAAH1A is designed for harsh industrial environments and can operate stably under extreme temperatures(-40°C to+70°C)and high humidity(5-95%non condensing)conditions.Its robust design and high-quality components ensure that the module can operate reliably for a long time under challenging conditions such as vibration and electrical noise,making it an ideal choice for demanding industrial applications.

Seamless integration with ControlST software:The IS420PUAAH1A module is designed specifically for use with the GE ControlST software suite(V 7.02.00C or higher).ControlST provides powerful configuration,programming,diagnostic,and maintenance tools that enable users to easily configure the channel functionality of IS420PUAAH1A,perform system debugging and troubleshooting,and optimize the performance of the entire control system.

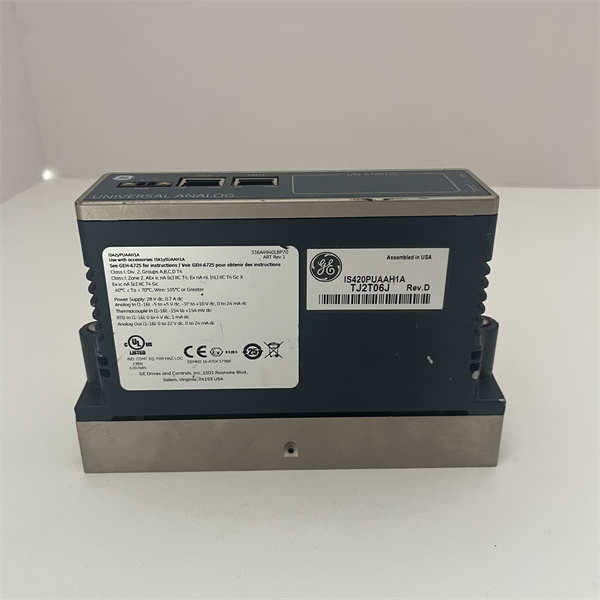

GE IS420PUAAH1A

application area

The GE IS420PUAAH1A universal input/output module,as an important component of GE Mark VIe and Mark VIeS control systems,is widely used in various industrial fields with high requirements for process monitoring,control accuracy,system reliability,and flexible configuration

In the power industry,IS420PUAAH1A is used to connect various sensors(such as temperature,pressure,flow,vibration),transmitters,and actuators in gas turbines,steam turbines,hydroelectric generators,and other power plant equipment.It can process complex analog and digital signals,accurately monitor and control generators,boilers,auxiliary equipment,and power balance(BoP)systems,ensuring the safe and efficient operation of generator sets.

In the oil and gas industry,IS420PUAAH1A is used to connect various on-site instruments and valves in the fields of oil and gas exploration,extraction,transportation(pipelines),refining,and compression stations,achieving precise acquisition and control of key parameters such as oil and gas flow rate,pressure,temperature,and liquid level.Its reliability in harsh environments makes it an ideal choice for distributed control and security systems in the industry,such as Mark VIeS.

The chemical and petrochemical industries:Accurate control of parameters such as temperature,pressure,and flow rate is crucial in the chemical production process.IS420PUAAH1A can integrate various analytical instruments and on-site equipment to monitor and control key equipment such as reactors,separators,and heat exchangers in real-time,thereby optimizing the production process,improving product quality,and production efficiency.

Industrial Automation and Manufacturing:In large manufacturing plants,automated production lines,packaging machinery,and material handling systems,IS420PUAAH1A can serve as a universal I/O interface,connecting various sensors,limit switches,actuators,and drivers to achieve automated control of production equipment and process flow.

Metallurgy and Mining Industry:In heavy industries such as steel smelting,non-ferrous metal production,and mineral processing,the operating environment of equipment is complex and requires high stability of control systems.IS420PUAAH1A is capable of processing various signals from high temperature and high dust environments,ensuring the continuity and safety of the production process.

Related products

The products closely related to the GE IS420PUAAH1A universal input/output module mainly include other core modules,corresponding terminal boards,and related engineering software in the GE Mark VIe and Mark VIeS control systems:

GE Mark VIe/VIeS Controller:This is the upper control system belonging to IS420PUAAH1A,such as IS220UCSAH1A,IS420UCSAH1A and other controller modules,responsible for executing control logic and managing the entire automation process.

GE IS420JPDCH1A/IS420JPDAH1A/IS420JPDHH1A and other terminal boards:IS420PUAAH1A,as an I/O Pack,is usually plugged into these compatible universal I/O terminal boards to achieve electrical connection and signal conditioning with field devices through the terminal board.

GE ControlST software suite:includes tools such as ToolboxST for configuring,programming,diagnosing,and maintaining Mark VIe/VIeS systems.It is an essential software tool for configuring and managing IS420PUAAH1A.

Other I/O modules in the GE Mark VIe series include dedicated analog input modules(such as IS220PAICH1A),digital input/output modules(such as IS220PDOAH1A),serial communication modules(such as IS220PSCAH1A),etc.Together with IS420PUAAH1A,these modules form a complete Mark VIe I/O system.

GE HMI(Human Machine Interface)/Operator Station:Used for communication with the Mark VIe system,providing a graphical interface for system monitoring,alarm display,and operational control.

Various on-site sensors and actuators,such as thermocouples RTD、Pressure transmitters,flow meters,control valves,etc.are on-site devices connected to the IS420PUAAH1A module.

Power module:A module that provides stable power to the Mark VIe/VIeS system and its I/O modules.

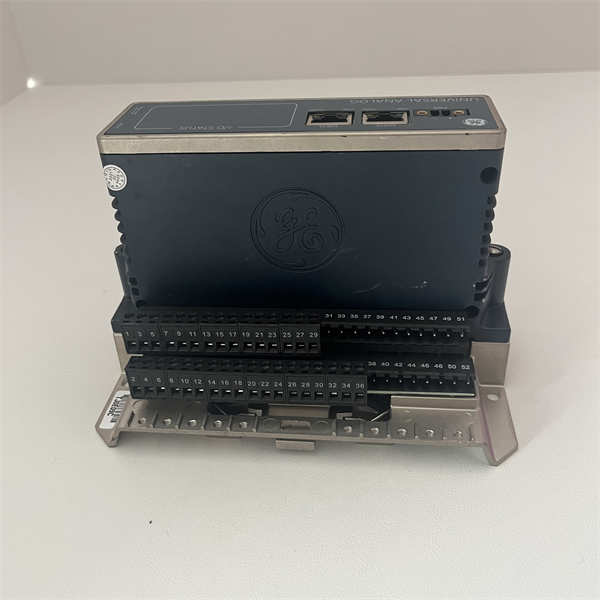

GE IS420PUAAH1A

Installation and maintenance

Preparation before installation:Before installing the GE IS420PUAAH1A universal input/output module,it is necessary to carefully read the official installation manual,hardware manual,and specific documentation for the GE Mark VIe and Mark VIeS control systems for the IS420PUAAH1A module.Understand its precise installation steps,electrical connection diagram,heat dissipation requirements,and environmental limitations.Before carrying out any installation or wiring operations,it is necessary to strictly comply with electrical safety regulations,including completely disconnecting all relevant circuit power sources,performing lockout/tagout(LOTO)procedures,and taking electrostatic discharge(ESD)measures,as electronic modules are highly sensitive to static electricity.IS420PUAAH1A is typically plugged into compatible terminal boards as an I/O Pack.Ensure that the module is correctly aligned with the terminal board and securely inserted.Carefully inspect the connections of all on-site signal cables to ensure they are secure,reliable,and comply with the signal type and safety requirements.

Maintenance suggestion:The GE IS420PUAAH1A module is designed for long-term stable operation in industrial environments,but regular inspections and preventive maintenance can further extend its service life and ensure system reliability.It is recommended to regularly monitor the operating status,diagnostic information,and alarm logs of modules through GE ControlST software tools to promptly identify and resolve potential issues.Perform periodic testing using the diagnostic function of the module to verify whether the input/output function of each channel is normal.Keep the internal environment of the control cabinet installed with IS420PUAAH1A clean and dry,and maintain it within the manufacturer’s recommended working temperature and humidity range to ensure good heat dissipation and prevent corrosion.Regularly inspect all external cables and connectors to ensure they are not loose,physically damaged,or corroded.Any maintenance,replacement or advanced fault diagnosis involving internal components of the module should be carried out by engineers or technicians authorized or professionally trained by GE to ensure the correctness of operation,the safety and reliability of the system.

Product Guarantee

We provide a solid guarantee for the excellent quality and reliable performance of GE IS420PUAAH1A universal input/output module in industrial control systems.
