Description

PCD235C101 3BHE057901R0101 It is a high-performance control module launched by ABB, widely used in its DCS systems (such as Symphony Plus and 800xA systems). This module undertakes critical tasks such as core logic processing, data interaction, and communication scheduling with field devices, featuring extremely high stability, compatibility, and anti-interference performance, making it suitable for complex automation scenarios in power, metallurgy, petrochemical, and other industries.

PCD235C101 3BHE057901R0101 Product Overview

This module is one of the main control cores in the ABB control system and belongs to Controller Processing Unit (PCD – Process Control Device) Series. Its functions are similar to the "prefrontal cortex" in the human brain — not only processing instructions but also responsible for coordinating subordinate modules, performing logical operations, collecting field data, and outputting control commands. It has a high-performance CPU and an industrial-grade embedded operating system embedded inside, supporting multitasking and long-term stable online operation.

Module code description:

• PCD235C101: Indicates the product function category, series number, and interface type

• 3BHE057901R0101: ABB standard material code (Product ID), used to identify module generations and versions

This model is compatible with multiple ABB control platforms, features a modular hot-swappable design, and supports online maintenance, fault self-diagnosis, software redundancy, and other functions, making it an important cornerstone for the stable operation of large DCS systems.

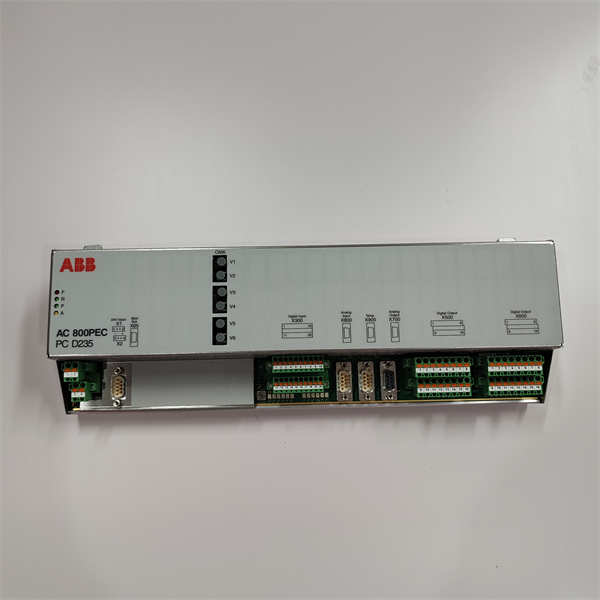

PCD235C101 3BHE057901R0101 ABB

Main Functions and Technical Advantages

✅ High-performance control core

Equipped with an industrial-grade embedded processor, it has powerful real-time logic computing capabilities and control scheduling efficiency, ensuring the precise operation of industrial systems.

✅ Full communication support

Built-in multiple communication channels, supporting high-speed data exchange with I/O modules, field instruments, and host systems, commonly supporting MODBUS, Profibus, Ethernet/IP, etc.

✅ Redundancy and Fault Tolerance Design

Supports primary/backup redundant deployment, allowing seamless switching in case of anomalies; it also has built-in self-diagnosis and fault isolation mechanisms, significantly improving system stability.

✅ Electromagnetic Compatibility and Industrial-Grade Weather Resistance

Through EMC level certification, it can operate stably in harsh environments with high electromagnetic interference, high humidity, high temperature, and high dust, ensuring the safe and continuous operation of critical industries.

✅ Online Maintenance and Upgrade

The module supports hot swapping, allowing replacements without shutdown. Engineers can quickly identify faults, perform software upgrades, and make configuration adjustments through ABB system tools.

Technical specifications

Application scenario

ABB PCD235C101 3BHE057901R0101 The module is widely deployed in the following industrial scenarios:

• ? Power Automation: Core Control Modules of DCS Systems in Thermal Power Plants, Nuclear Power Plants, and Substations

• ? Petrochemical: main modules for process control of large refineries and chemical plants

• ⚙️ Metallurgical Industry: Steelmaking Continuous Casting Automation Control Center

• ?️ Process Control: DCS Platforms for Pharmaceutical, Paper, Cement, and Other Process Industries

• Industrial 4.0 Platform: Core Control Node in Intelligent Manufacturing Production Lines

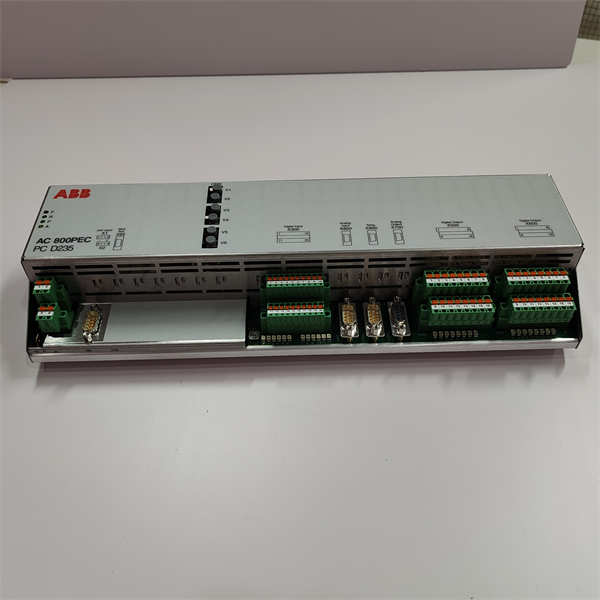

  PCD235C101 3BHE057901R0101 ABB

Related alternatives and supporting products

• PM864AK01ABB high-performance processor module, suitable for control-level logic applications

• AC800M Series ModulesCore control platform of the 800xA system, can operate in collaboration with the PCD module

• CI854AK01: Communication interface module, used for fieldbus integration

• PM802FABB classic main control processing unit, compatible with the S series platform

• AI810、DI810、DO810: The corresponding I/O module, used together with PCD235C101

• 800xA Operator Station, Aspect Server: Upper-level Visual Management Platform

Installation and Debugging Recommendations

• It is recommended to place this module away from strong sources of interference, such as high-power frequency converters and high-frequency equipment.

• Before inserting or removing the module, please disconnect the power to avoid damage to the circuit board caused by electrostatic discharge.

• Use ABB Automation Builder or Control Builder M for parameter setting, software logic download, and debugging;

• It is recommended to use configuration cables and connectors provided by ABB original factory or authorized channels to ensure stable communication;

• If deployed as a redundant controller, please strictly follow the primary-backup configuration process and set up health monitoring logic.
