ABB DYSF118B 61430001-XG It is a high-performance field control module specially designed for industrial-grade DCS systems, widely integrated into large process control systems such as power plants, petrochemicals, and metallurgy. It can serve as the core unit for field signal acquisition and processing, process control logic execution, and remote communication management, compatible with ABB 800xA or Advant OCS system architectures, and is one of the indispensable central modules in industrial automation systems.

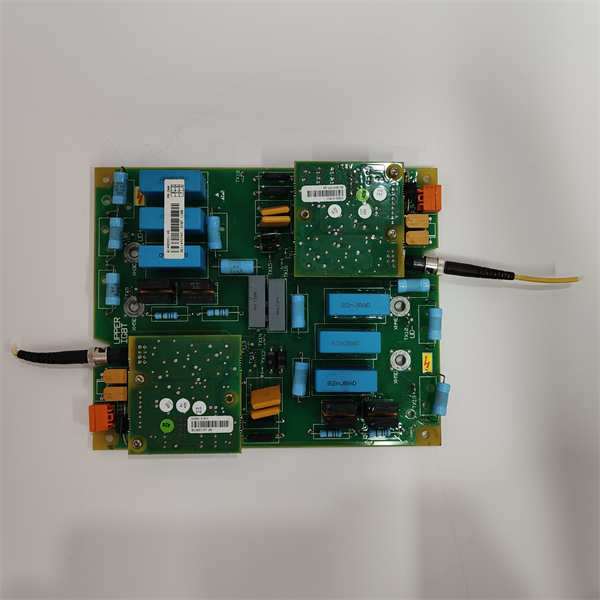

ABB DYSF118B 61430001-XG
Product Highlights (Features & Benefits)
| Core Features | Detailed Explanation |
|---|---|
| Full name of the model | DYSF118B 61430001-XG |
| Brand Platform | ABB / Applicable to ABB DCS systems, especially the Symphony Harmony Series |
| Function positioning | DCS control processing module, data acquisition and execution control integration |
| Electrical characteristics | Supports 24V DC power supply, low power consumption design, with EMC anti-interference performance |
| Communication ability | Scalably supports protocols such as Profibus, Modbus RTU/TCP, IEC61850, etc. |
| Applicable Environment | -20℃ to 70℃, suitable for heavy-duty industrial sites |
| Structure Install | Modular structure, standard 19-inch rack mount, supports hot swapping |
Detailed Introduction (Product Description)
DYSF118B 61430001-XG The control module uses ABB's consistent industrial-grade high reliability design, featuring extremely strong electromagnetic interference resistance (EMC Grade compliant with IEC61000-6-2/4 standards), and can operate stably in complex and harsh industrial environments for decades. It is a typical representative of 'engineers can use it with confidence, and field maintenance personnel can repair it with ease.'
This module serves as an integrated platform for data acquisition and command execution. It can directly collect field signals (DI/DO/AI/AO), perform logical operations, trigger execution unit actions, and simultaneously send feedback information to the upper-level control layer, achieving a closed control loop. In addition, it can also be used in conjunction with ABB's CI, PM, and other Series main control modules to build a distributed multi-level control system.
Its highly integrated architecture reduces peripheral requirements, optimizes wiring and maintenance costs, and is one of the most cost-effective main modules in medium to large industrial control systems.
Technical Specifications
| Parameter Category | Technical indicators |
|---|---|
| Model | DYSF118B 61430001-XG |
| Brand | ABB |
| Function positioning | DCS system control module / Field control processing unit |
| Power Input | 24V DC ±10%, internal power isolation |
| Data interface | High-speed backplane interface / multiple communication ports |
| Communication Protocol | Supports Modbus RTU, Profibus DP, Ethernet TCP/IP (requires a communication adapter) |
| Installation method | 19-inch standard cabinet, or DIN rail installation (depending on the baseplate model) |
| Operating temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| EMC Grade | Industrial Level 4 (IEC61000-6-2) |
| Compatible system | ABB Symphony Harmony / INFI 90 / Advant OCS Control Platform |
| Software support | Engineering configuration platforms such as Harmony Composer / 800xA System Composer |
| Housing protection | Metal packaging, equipped with grounding and anti-interference shielding |

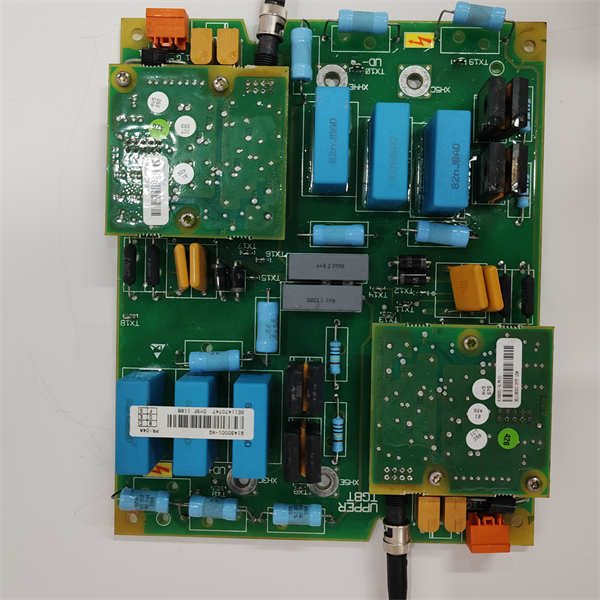

ABB DYSF118B 61430001-XG
Application field（Application Scenarios）
ABB DYSF118B 61430001-XG moduleWidely used in the following scenarios:
-
? Power System Automation: such as the main control room, substation control, unit coordination, boiler combustion management system, etc.
-
?️ Petrochemical Process Control: Distributed control for tower furnaces, reactors, and pipeline network systems
-
? Metallurgical industry control system: Supports closed-loop control of processes such as furnace temperature, rolling, and cooling water
-
? Wastewater/Water treatment industry: Can be connected to system control nodes such as pumping stations, chemical dosing, deodorization, and remote valves
-
? Intelligent Factory Automation Platform: Assist the MES system in efficiently interfacing with underlying equipment to achieve integrated information control
Recommended Related Products
| Product Model | Description |
|---|---|
| INNIS21 | Harmony system general interface module, supports interconnection with DYSF Series |
| IMDSM04 | Digital input module, suitable for control station input acquisition |
| IMASO11 | Analog output module, outputs control signals in conjunction with DYSF118B |
| DYSF108B | Same series module, control capability slightly lower than DYSF118B, suitable for small control tasks |
| PM861AK02 | ABB AC800M Series main control module, can form a composite DCS control system |
| TU830V1 | ABB modular base, suitable for DYSF Series module installation and connection with terminal blocks |
InstallMaintenance recommendations（Installation & Maintenance）
-
The module should be installed in a well-ventilated electrical control cabinet or rack, and it is recommended to use an installation board with metal grounding.
-
Before connecting the communication port, ensure proper grounding, and it is strictly forbidden to plug or unplug unauthorized devices while powered.
-
The module supports online diagnostics and hot swapping; before upgrading, the redundancy configuration and system status need to be confirmed.
-
ABB officially recommends performing a firmware and diagnostic software upgrade every two years to ensure the equipment operates in optimal condition.
