ABB DYTP600A 61430001-ZY Analog Output Module for Industrial Automation

Number of channels 4/8 channels (depending on the specific version) Power Requirements Output Accuracy Isolation Voltage ≥1500V (between channels / between channel and ground) Operating Temperature Storage Temperature Card-in type, backplane connection EMC Level CE, RoHS, UL, etc. (subject to batch)
Parameter Name Parameter Value
Product Model DYTP600A 61430001-ZY
Brand ABB
Module Type Analog Output Module
Output Type Current: 4-20mA, Voltage: 0-10V
24V DC（±10%）
±0.1% (typical)
-20°C ~ +70°C
-40°C ~ +85°C
Installation method
Communication Protocol Interface with the main controller's internal protocol (Harmony protocol family)
Protection Level IP20 (module body)
Compliant with IEC61000-6-2 industrial standard
Certification
Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

ABB DYTP600A 61430001-ZY It is an industrial-gradeAnalog output module, widely used in ABB Harmony/Infi90 DCS systems. This module has multi-channel analog signal output capability and supports standards 4-20mA or 0-10V output, suitable for driving valves, electric actuators, frequency converters, and other key equipment, ensuring precise transmission of control system commands and rapid response, it is a core component at the execution level in the process industry.

Product Detailed Introduction

ABB DYTP600A 61430001-ZY The simulation output module belongs to the ABB Symphony Harmony control platform and is designed to convert digital signals sent by the controller into continuous analog current or voltage signals, directly driving field terminal devices to complete control actions.

The module supports standard industrial signal output formats (such as 4-20mA current loop), with output channels featuring independent isolation and overcurrent protection, fully adapting to high load, high interference, and high response requirements in industrial environments.

every piece DYTP600A 61430001-ZY All modules have passed ABB's strict original factory tests, ensuring stability and consistency, and are widely used in industries such as metallurgy, power, chemical, water treatment, and pharmaceuticals.

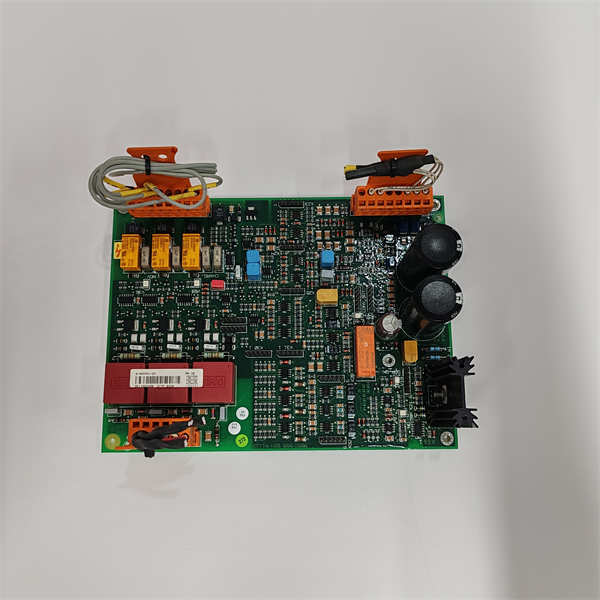

DYTP600A 61430001-ZY ABB

DYTP600A 61430001-ZY ABB

Main Functions and Advantages

Characteristics Explanation
High-precision output Output error < ±0.1%, signal stable without drift
Voltage/Current Dual Mode Supports 0-10V and 4-20mA, compatible with various terminal devices
Multi-channel output Usually configured with 4 to 8 channels, supporting individual adjustment
Anti-interference design Equipped with channel-to-channel isolation and enhanced EMC protection, in compliance with IEC61000 industrial standards
Modular installation Hot-swappable backplane design, supports live replacement
Strong system compatibility Seamlessly integrated with the Harmony INFI90 platform
Intelligent diagnostic function Supports fault self-detection, short-circuit protection, and channel online monitoring

Technical Specifications

Number of channels 4/8 channels (depending on the specific version) Power Requirements Output Accuracy Isolation Voltage ≥1500V (between channels / between channel and ground) Operating Temperature Storage Temperature Card-in type, backplane connection EMC Level CE, RoHS, UL, etc. (subject to batch)
Parameter Name Parameter Value
Product Model DYTP600A 61430001-ZY
Brand ABB
Module Type Analog Output Module
Output Type Current: 4-20mA, Voltage: 0-10V
24V DC（±10%）
±0.1% (typical)
-20°C ~ +70°C
-40°C ~ +85°C
Installation method
Communication Protocol Interface with the main controller's internal protocol (Harmony protocol family)
Protection Level IP20 (module body)
Compliant with IEC61000-6-2 industrial standard
Certification

Application scenario

ABB DYTP600A 61430001-ZY Mainly used in the following industrial control scenarios:

  • Power plant: Steam turbine control valve, feedwater pump variable frequency control, deaerator control output

  • Petrochemical Refining: Hydrogenation reactor control, temperature regulation system, variable frequency drive simulation

  • Metallurgical steel: Cooling water system, lubrication pump control, pressure control valve adjustment

  • Water treatment: Dosing system, lift pump flow control, mixed reaction tank flow adjustment

  • Pharmaceuticals and food: Automatic measurement control, liquid level simulation control signal output

  • Paper-making industry: Concentration control, drying cylinder temperature output adjustment, flow control valve adjustment

Related Product Recommendations

Model Explanation
DYTP123A 61430001-TW Analog output module of the same series, compatible with the INFI90 platform
IMASI23 High-precision analog input module, commonly used with DYTP600A
INICT13A Harmony Controller Core Communication Module
DYSF118B ABB command processing module, core of control logic execution
DTCC901B 61430001-FU System Control Backplane Interface Module
DYPF100B Controller processing unit, signal coordination and execution core

Installation and Maintenance Guide

Installation Recommendations:

  • Turn off the power before installation and check the cleanliness of the chassis and backplane.

  • Pay attention to the orientation of the slot when inserting the module.

  • It is recommended that the output end be connected to the on-site equipment using shielded twisted pair cables and properly grounded.

  • It is recommended to use ABB original matching cables and connectors.

Maintenance Points:

  • The module supports hot swapping, but replacements must be carried out by professionals.

  • The channel is periodically calibrated to ensure output accuracy.

  • In case of output abnormalities, the fault code should be checked through the system diagnostic interface;

  • When storing spare parts, pay attention to moisture-proofing, anti-static measures, and high-temperature protection.
