Description

PROSOFT 5202-DFNT-MCM4 network communication module is a highly integrated and feature rich device designed to provide fast and reliable data transmission solutions for automation control systems.It supports multiple industrial communication protocols,including DF1 protocol and Modbus TCP protocol,suitable for data exchange between different control systems and automation equipment.The high compatibility of PROSOFT 5202-DFNT-MCM4 makes it a critical connecting component in various automation systems.

The working voltage of this module is 24V DC,supporting a maximum communication speed of 10Mbps,which can meet the high-speed data exchange requirements of modern industrial automation systems.PROSOFT 5202-DFNT-MCM4 can provide stable and reliable communication support for data collection,remote monitoring,and real-time data exchange between PLC and HMI on the production site.

Thanks to its excellent anti-interference ability and high compatibility,PROSOFT 5202-DFNT-MCM4 is widely used in various automation control systems,especially suitable for large-scale industrial production and complex control environments.The simple installation and highly integrated design of this module enable seamless connection with multiple brands and models of devices,providing customers with flexible system architecture and optimized communication performance.

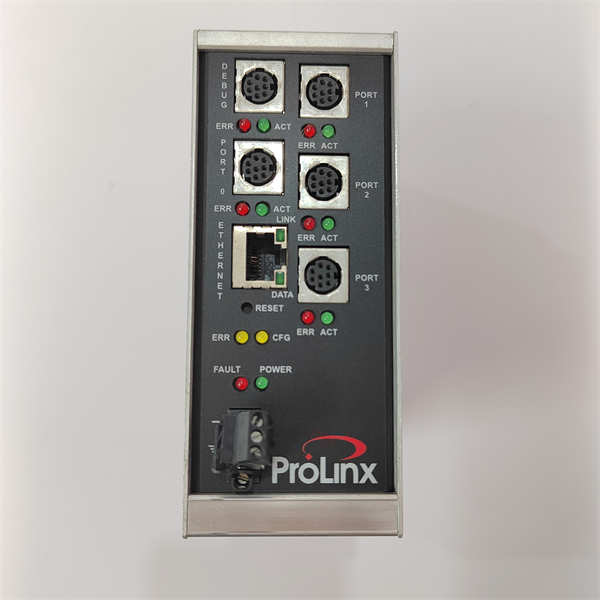

PROSOFT 5202-DFNT-MCM4

Main features and advantages

High speed and stable data transmission:

PROSOFT 5202-DFNT-MCM4 supports a maximum communication speed of 10Mbps,which can meet the needs of fast and real-time data exchange,greatly improving the data processing efficiency of automation systems.This module can maintain stable and interference free communication performance in complex industrial environments,making it an ideal data exchange solution in the field of industrial automation.

Powerful protocol support and compatibility:

This module supports multiple industrial protocols,including DF1 protocol and Modbus TCP protocol,and can seamlessly integrate with devices of different brands.Whether it is PLC,HMI or other automation equipment,PROSOFT 5202-DFNT-MCM4 can provide stable and reliable communication connections,helping enterprises simplify system architecture and improve overall work efficiency.

Durable and adaptable to various industrial environments:

In terms of design,PROSOFT 5202-DFNT-MCM4 takes into account the complexity of industrial environments,has strong anti-interference ability,and can operate stably under harsh working conditions.Its compact appearance and high protection level enable it to adapt to various high load industrial applications and maintain efficient and stable operation for a long time.

Easy to install and maintain:

The installation process of PROSOFT 5202-DFNT-MCM4 module is very simple,with a highly integrated design,and users do not need to worry about complex configuration and debugging.After installation,the module can be directly connected to other devices in the control system,saving users a lot of time and cost.

PROSOFT 5202-DFNT-MCM4 Technical Specifications

Product model:5202-DFNT-MCM4

Manufacturer:PROSOFT

Product Type:Network Communication Module

Working voltage:24V DC

Maximum communication speed:10 Mbps

Protocol support:DF1,Modbus TCP

Number of ports:2

Working temperature:-20°C to 70°C

Storage temperature:-40°C to 85°C

Protection level:IP20

Installation method:DIN rail installation

Communication interface:RJ45,DB9

application area

PROSOFT 5202-DFNT-MCM4 has a wide range of applications in the field of industrial automation.Due to its efficient communication capability and protocol support,it is widely used in PLC,HMI,SCADA systems to ensure high-speed and stable data transmission between devices.Especially in data acquisition and monitoring systems,PROSOFT 5202-DFNT-MCM4 can provide precise control and real-time feedback.

In automated production lines,PROSOFT 5202-DFNT-MCM4 can serve as the core module for data transmission,connecting various automation equipment such as sensors and actuators to ensure timely transmission and processing of information,thereby improving production efficiency and product quality.Its high compatibility also makes it an ideal choice for robot control systems and remote monitoring systems,optimizing data flow and improving system response speed.

Related products

PROSOFT 5202-DFNT-MCM3:Similar to 5202-DFNT-MCM4,but only supports the DF1 protocol and is suitable for simpler communication needs.

PROSOFT 5200-DFNT-MCM4:Upgraded version,supports more industrial protocols,suitable for more complex automation environments.

PROSOFT 5202-DFNT-MCM5:Compatible with 5202-DFNT-MCM4,it adds more ports and higher communication speed.

PROSOFT 5202-DFNT-MCM6:Suitable for high-end automation equipment,providing higher transmission speed and protocol support.

PROSOFT 5302-DFNT-MCM4:Supports more powerful data processing capabilities,suitable for larger scale industrial applications.

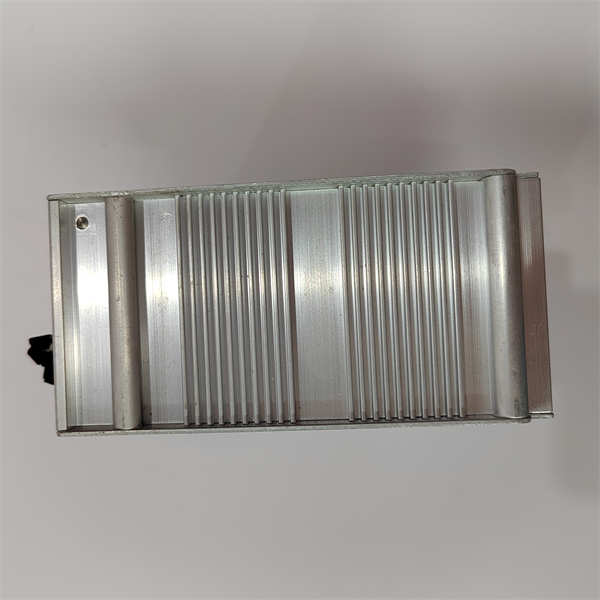

PROSOFT 5202-DFNT-MCM4

Installation and maintenance

Preparation before installation:When installing PROSOFT 5202-DFNT-MCM4,please confirm that the installation environment meets the electrical requirements of the equipment and ensure that the installation area is clean and tidy.The module should be fixed on the DIN rail and matched with the connection ports of other automation equipment.Ensure normal power supply and avoid equipment damage caused by high voltage or current.

Maintenance suggestion:Regularly check the connection status and communication quality of PROSOFT 5202-DFNT-MCM4.Especially when the device is frequently used,it is recommended to conduct a quarterly inspection,clean the module casing and interfaces,and ensure that the communication ports are free of dust or oxidation.If you encounter communication difficulties or malfunctions,please contact technical support in a timely manner for maintenance and replacement.
