Description

SCHNEIDER TM3AQ4 is an analog output module launched by Schneider Electric,designed specifically for industrial automation control systems,providing 4 precise analog signal outputs.This module is suitable for various industrial control applications that require analog output signals,and can flexibly configure voltage and current output types according to requirements to ensure efficient operation of the system.

As part of the TM3 series,SCHNEIDER TM3AQ4 has powerful signal processing capabilities and can output precise control signals,which are widely used in process control systems,automation control equipment,flow and pressure control,and other fields.Whether it requires temperature regulation,flow control,or voltage regulation,this module can provide stable and accurate signal output,ensuring precise response and efficient operation of the automation system.

In addition,SCHNEIDER TM3AQ4 has a modular design that is compatible with other TM3 series modules.Users can flexibly expand and combine according to their actual needs to meet the needs of different automation systems.The module has excellent anti-interference performance and a wide working temperature range,adapting to complex industrial environments and ensuring long-term stable operation.

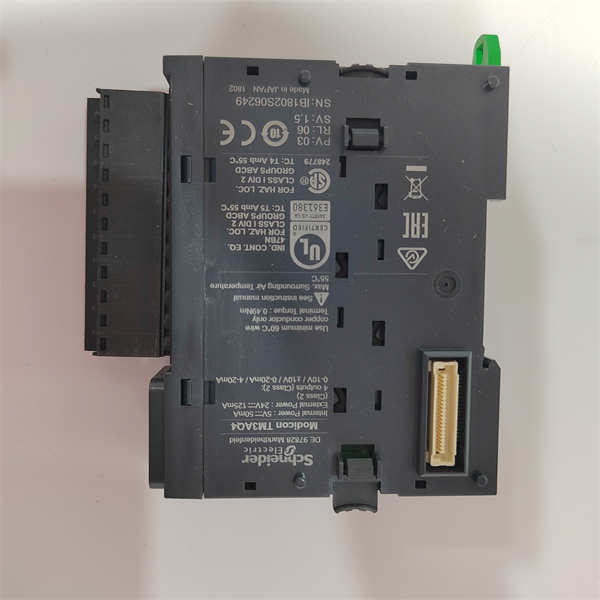

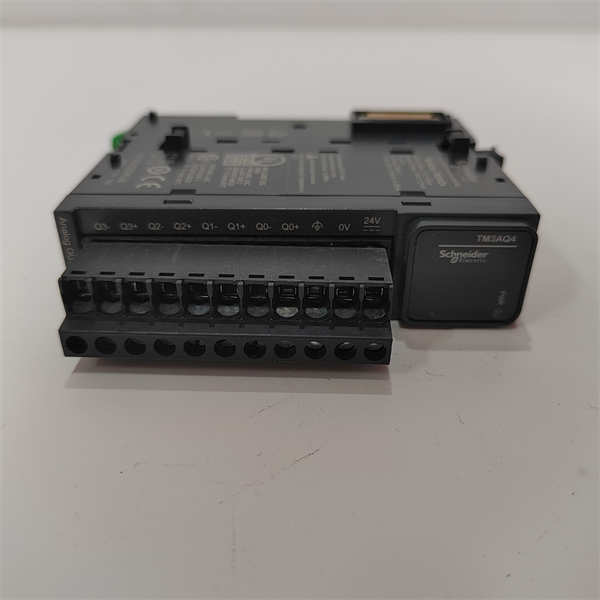

SCHNEIDER TM3AQ4

Main features and advantages

High precision analog output:

The SCHNEIDER TM3AQ4 module supports 4 analog outputs and provides two types of output signals:voltage(0-10V)and current(4-20mA),ensuring accurate and reliable output in different industrial control scenarios.

Flexible adaptation to various automation applications:

This module can adapt to various control requirements,support multiple automation devices and sensors,and is widely used in temperature control systems,flow monitoring systems,and pressure regulation equipment to ensure system response accuracy.

Modular design and flexible expansion:

The SCHNEIDER TM3AQ4 module adopts a modular design,which can seamlessly integrate with other TM3 series products and support expansion and customization.Whether adding more output channels or using them in conjunction with other devices,efficient functional integration can be achieved.

Superior anti-interference performance:

This module is capable of stable operation in complex industrial environments and has strong resistance to electromagnetic interference,ensuring stable signal transmission and avoiding external interference from affecting the system.

High reliability and stability:

The SCHNEIDER TM3AQ4 module uses high-quality electronic components to ensure the long-term reliability of the product.It has a wide temperature working range and can maintain stable operation even in high or low temperature environments.

Simple installation and maintenance:

This module supports DIN rail installation,making the installation process easier and faster.And,it supports remote monitoring,allowing users to check the working status of the module at any time,promptly handle any abnormal situations,and reduce maintenance difficulty.

technical specifications

Product Model:TM3AQ4

Manufacturer:LSCHNEIDER

Product type:Analog output module

Number of output channels:4

Output type:Voltage:0-10V;Current:4-20mA

Power supply voltage:24V DC

Output accuracy:±0.1%FS

Working temperature:-20°C to 60°C

Size:90mm x 70mm x 70mm

Weight:200g

Protection level:IP20

Communication protocols:Modbus RTU,CANopen

Installation method:DIN rail installation

application area

The SCHNEIDER TM3AQ4 module is widely used in the fields of industrial automation control and process control,and is particularly important in the following industries:

Energy management:Used for voltage and current control in power and energy systems to ensure the stability and optimized operation of energy equipment.

Automated Manufacturing:In the manufacturing industry,the SCHNEIDER TM3AQ4 module is used for precise production process adjustment to ensure the stability of product quality.

Water treatment:Used for controlling variables such as flow rate,pressure,and temperature in water treatment facilities to optimize resource utilization.

Chemical process control:Accurate analog output signals are helpful for precise regulation of chemical reactions in chemical production.

Building automation:used for environmental control systems in intelligent buildings,such as temperature regulation,humidity control,etc.

Related products

SCHNEIDER TM3AI8:Analog input module used in conjunction with TM3AQ4 module,supporting up to 8 analog inputs.

SCHNEIDER TM3DI8:Digital input module,suitable for automation control scenarios that require efficient digital signal input.

SCHNEIDER TM3DO8:Digital output module,used to output control signals to executing devices.

SCHNEIDER TM3CPU:Central processing unit responsible for managing all input and output modules and executing control instructions.

SCHNEIDER TM3COM:Communication module that supports Modbus RTU and CANopen protocols,enabling efficient communication between modules.

SCHNEIDER TM3AQ4

Installation and maintenance

Installation requirements:

When installing the SCHNEIDER TM3AQ4 module,it is necessary to confirm that the working environment temperature and power supply voltage meet the requirements.During installation,use standard DIN rails to secure the module to a suitable control panel and ensure stable power and signal connections.

Maintenance suggestion:

Regularly check the working status of the module to ensure the accuracy of the output signal.Use remote monitoring function for real-time monitoring,and promptly handle any issues found.Keep the module clean to avoid dust and dirt affecting equipment performance.
