Description

BENTLY NEVADA 3500/15 125840-02 Vibration Monitoring Module is part of the BENTLY NEVADA 3500 series,designed specifically for vibration monitoring and health management of industrial equipment.It adopts advanced sensing technology,which can accurately capture data such as device vibration frequency and amplitude,helping users to understand the real-time operation status of the device.

The precise design of this module enables it to operate stably even in extreme environments,and is widely used in key equipment monitoring in fields such as petrochemicals,power,and mining.Its main advantage lies in the ability to achieve high-precision monitoring of rotating machinery,early detection of potential faults and hidden dangers,thereby helping users minimize production line downtime and extend equipment service life to the greatest extent possible.

By connecting with the remote monitoring system,BENTLY NEVADA 3500/15 125840-02 is able to transmit real-time data to the control center for engineers to perform data analysis and fault diagnosis.At the same time,this module also supports collaborative work with other Bently Nevada monitoring products to form a comprehensive device health management solution.

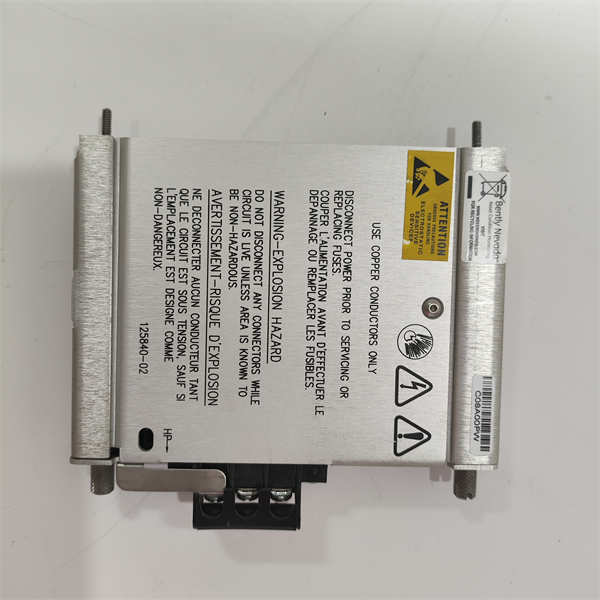

BENTLY NEVADA 3500/15 125840-02

Main features and advantages

High precision vibration monitoring:

This module can detect extremely small vibration changes through high-sensitivity sensors,providing reliable data for early warning of equipment failures.Whether it’s bearing problems,imbalances,or wear,they can be promptly reported to ensure early diagnosis.

Real time data collection and analysis:

BENTLY NEVADA 3500/15 125840-02 supports real-time data acquisition and can exchange data with industrial control systems.Ensure fast data transmission and processing through protocols such as Modbus and Ethernet/IP.

Intelligent fault diagnosis:

This module integrates advanced fault diagnosis algorithms and can comprehensively evaluate the equipment status based on the collected data.Through intelligent diagnostic functions,it is possible to predict possible equipment failures in advance,reduce manual judgment bias,and improve the level of equipment health management.

High durability and environmental adaptability:

This module is designed to be sturdy and has excellent anti-interference capabilities.Even in extreme temperature,humidity,and electromagnetic interference environments,it can still work stably and meet the needs of different industrial environments.

Low maintenance cost:

With the help of real-time monitoring and data analysis,the operation status of the equipment can be continuously optimized,reducing unnecessary repairs and lowering maintenance costs.And the self diagnostic function of this module can help quickly locate the source of the fault and shorten the repair time.

technical specifications

Product Model:3500/15 125840-02

Manufacturer:BENTLY NEVADA

Product Type:Vibration Monitoring Module

Input voltage:24V DC

Working temperature:-40°C to 85°C

Humidity range:0%to 95%RH(non condensing)

Communication protocols:Modbus,Ethernet/IP

Protection level:IP20

Size:120mm x 100mm x 60mm

Weight:1.3kg

Vibration frequency range:0.1Hz to 1kHz

Sensor type:accelerometer

Output signal:analog output,digital output

Installation method:DIN rail

application area

BENTLY NEVADA 3500/15 125840-02 is suitable for vibration monitoring in the following industries and equipment:

Power industry:Monitor the vibration of key equipment such as generators,turbines,and pumps to avoid equipment failures affecting production.

Petrochemical industry:widely used for health monitoring of key equipment such as oil and gas drilling equipment and pump stations,helping to reduce equipment failure rates.

Mineral mining:Monitor the vibration of equipment such as conveyor belts and drilling rigs in mines to ensure stable operation of the equipment.

Manufacturing industry:Vibration monitoring is carried out in production line equipment to identify mechanical wear or failure in advance and extend equipment service life.

Transportation industry:suitable for equipment health monitoring in industries such as railways and aviation to ensure safe operation.

Related products

BENTLY NEVADA 3500/05-01-03-00-00:Used for measuring the vibration and velocity of equipment,suitable for monitoring more types of equipment.

BENTLY NEVADA 3500/22:Multi functional vibration monitoring module,suitable for multiple devices in complex industrial systems.

BENTLY NEVADA 3500/42M:an integrated module for vibration and temperature monitoring,widely used in high demand industrial environments.

BENTLY NEVADA 3500/03:Acceleration,velocity,displacement monitoring module,suitable for a wider range of industrial equipment.

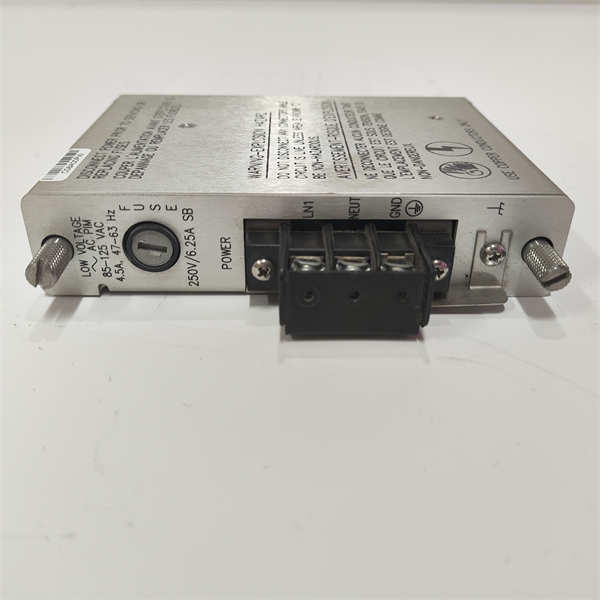

BENTLY NEVADA 3500/15 125840-02

Installation and maintenance

Installation requirements:

This module has a compact design and can be directly installed on DIN rails,making installation easy.The power interface and signal output interface both use standard connectors to ensure compatibility with existing equipment monitoring systems.

Easy to maintain:

BENTLY NEVADA 3500/15 125840-02 has a self diagnostic function that can promptly report any hardware or signal issues.Regular checks and software updates are also very convenient,helping to maintain long-term stable operation.
