Description

BENTLY NEVADA 3500-94 145988-01 is a synchronous detection module(Phase Trigger Module)designed specifically for industrial rotating equipment,used to provide reliable phase reference signals in the 3500 series monitoring platform.It achieves high-precision calibration of key positions of the rotor by receiving signals from the speed probe,providing reference for subsequent functions such as vibration analysis and axial position monitoring.

BENTLY NEVADA 3500-94 145988-01 is an indispensable monitoring component in the BENTLY NEVADA 3500 platform.Its design adopts a dual channel redundant structure,which enhances the overall reliability and anti-interference ability of the system.Whether in large steam turbine,compressor,or generator systems,this module can stably provide accurate speed synchronization pulses,providing critical operational basis for the equipment.

It is worth mentioning that BENTLY NEVADA 3500-94 145988-01 can maintain good performance even in high electromagnetic interference(EMI)environments,with excellent electrical isolation and signal shaping capabilities,ensuring the authenticity and stability of system data.Its modular design is perfectly compatible with the 3500 framework,allowing for quick plugging and easy maintenance,making it a highly reliable synchronization solution rare in industrial sites.

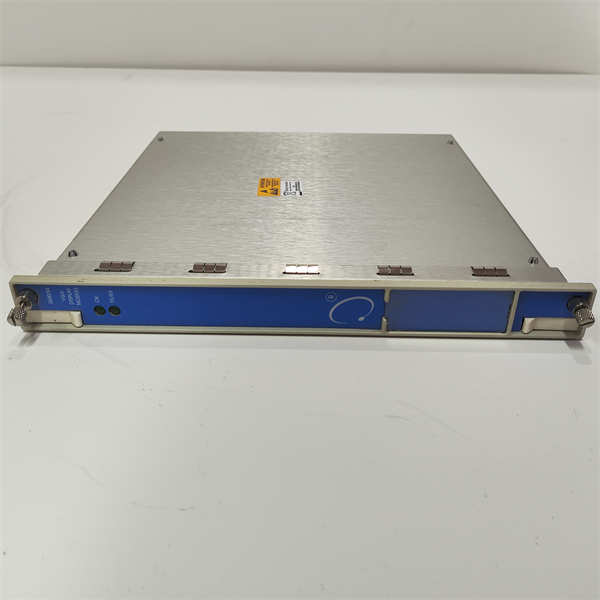

BENTLY NEVADA 3500-94 145988-01

Main features and advantages

High precision synchronous detection:

BENTLY NEVADA 3500-94 145988-01 has extremely high triggering accuracy and can provide accurate rotor position signals,which is the basis for conducting Phase Reference and Critical Speed Analysis.

Redundant channel design:

Adopting the**Dual Channel Redundancy**architecture,one channel fails and the other can automatically switch,significantly improving system stability and reliability.

High speed response and low latency:

The module has an extremely short response time(<1ms>

Excellent anti-interference ability:

Stable output can still be maintained in industrial environments with frequent electromagnetic interference(EMI),with built-in filtering circuit and signal conditioning function.

Modular plug and play:

Fully compatible with the 3500 system,supporting online hot swap,easy operation and maintenance,no system downtime,and improving on-site replacement efficiency.

Wide device adaptability:

Multiple probe types can be connected,such as Magnetic Proximity Probe or TTL Pulse Generator,with strong flexibility.

technical specifications

Product model:3500-94 145988-01

Manufacturer:BENTLY NEVADA

Product type:Phase Trigger Module

Supply voltage:+24V DC

Number of channels:2(redundant)

Signal input type:TTL/magnetic resistance probe signal

Response time:<1ms>

Output signal:Pulse output(5V TTL)

Anti interference level:Industrial grade EMI protection

Adaptation Platform:BENTLY NEVADA 3500 Series

Installation method:slot type hot swappable

Working temperature:-20℃to+65℃

application area

BENTLY NEVADA 3500-94 145988-01 is widely used in various industrial rotating equipment that requires high-precision synchronization signals.It is particularly suitable for equipment scenarios such as steam turbines,gas turbines,centrifugal compressors,and generator sets that require extremely high speed and rotor position.It serves as a key module of the Phase Reference Generator in the system.

In industries such as petrochemicals,power generation,aerospace,and metallurgy,BENTLY NEVADA 3500-94 145988-01 can be used to support Condition Monitoring and Predictive Maintenance systems,helping companies improve equipment availability,reduce failure risks,and achieve intelligent operations and maintenance.

Related products

3500-92 136180-01:Communication gateway module,used for system and external DCS/PLC docking.

3500-93 135785-01:Display module,used in conjunction with the 3500 system to display data.

3500-42M 176449-02:Speed detection module,responsible for collecting actual rotor speed data.

3500-22M 288055-01:System control module,responsible for logic control and module management.

330130-040-00-00:Proximity probe,often used in conjunction with 3500-94 145988-01.

330180-91-05:Signal cable,used for stable signal transmission.

3500-60 133819-01:Temperature module,used for thermal status monitoring.

3500-15 106M1079-01:Power module,providing stable power to various modules of the system.

3500-32 125712-01:Channel alarm module,monitoring values exceeding limits and triggering alarms.

Other version numbers of 145988-02:3500-94 have similar functions but are compatible with different environments.

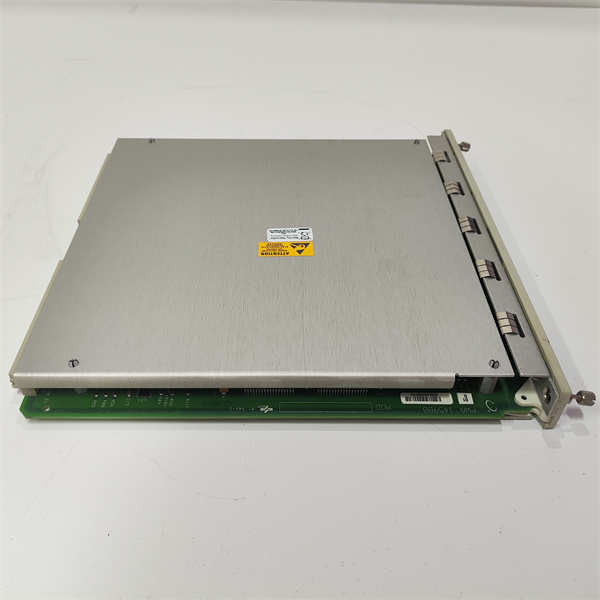

BENTLY NEVADA 3500-94 145988-01

Installation and maintenance

Preparation before installation:Before installing BENTLY NEVADA 3500-94 145988-01,ensure that the rack is powered on and the slot allocation is correct.It is recommended to operate in an environment with low humidity and no strong magnetic interference.Before inserting the module,check if the PIN pin is intact and confirm that the speed probe model matches.

Maintenance suggestion:BENTLY NEVADA 3500-94 145988-01 is designed to support online hot plugging.In case of channel failure,it can be replaced in a timely manner without shutting down.It is recommended to conduct a quarterly signal accuracy and output stability test,and check the probe connection cables.If signal drift occurs after long-term operation,module replacement or calibration should be considered.
