Description

BENTLY NEVADA 3500-94 147663-01 is a critical synchronous detection module designed specifically for monitoring systems of rotating equipment.As part of the BENTLY NEVADA 3500 monitoring system,it provides high-precision speed synchronization signals and plays a crucial role in industrial equipment that requires monitoring speed or phase.The module adopts an efficient dual channel redundancy design with excellent anti-interference ability,which can work stably in electromagnetic interference environments and ensure the reliability of equipment monitoring data.

This module supports multiple types of probe signals,such as TTL pulse signals and reluctance signals,and can be perfectly compatible with various devices.Whether it is equipment such as steam turbines,compressors,or generators,3500-94 147663-01 can provide stable and reliable speed synchronization signals,enabling the monitoring system to accurately capture key operating data and avoid equipment failures or misjudgments caused by signal distortion.

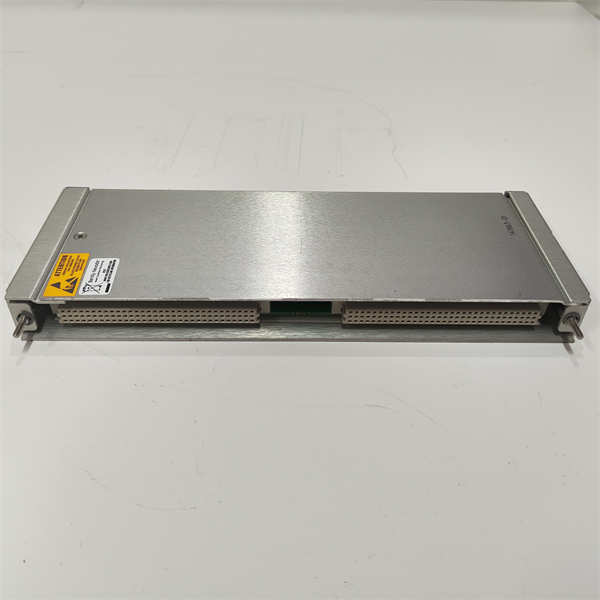

BENTLY NEVADA 3500-94 147663-01

Main features and advantages

High precision synchronous detection:

BENTLY NEVADA 3500-94 147663-01 adopts a precise phase trigger design,providing high-precision speed synchronization signals,suitable for various high-speed rotating machinery.

Dual channel redundancy design:

This module is equipped with a dual channel signal input redundancy design,so even if one channel fails,the other can still continue to work,ensuring high system reliability.

Excellent anti-interference ability:

Equipped with advanced electromagnetic interference filtering circuits,it adapts to strong electromagnetic interference in industrial environments and ensures accurate signal transmission.

Modular design:

Supporting hot swapping function,modules can be replaced even when the device is running,greatly improving the maintenance efficiency of the system.

Wide device adaptability:

Compatible with various probes such as reluctance speed probes and TTL pulse generators,it can be flexibly applied in various rotating machinery equipment.

Long term stability and reliability:

After rigorous testing,it ensures stable output in various harsh environments,greatly extending the operating life of the equipment.

technical specifications

Product model:3500-94 147663-01

Manufacturer:BENTLY NEVADA

Product type:Phase Trigger Module

Supply voltage:+24V DC

Signal channel:Dual channel(redundant design)

Input signal type:TTL/magnetic resistance signal

Response time:<1ms>

Output signal:TTL pulse signal

Anti interference capability:Industrial grade EMI protection

Installation method:slot type hot swappable

Working temperature:-20℃to+65℃

Phase accuracy:high-precision triggering

application area

BENTLY NEVADA 3500-94 147663-01 module is widely used in industrial rotating equipment that requires precise synchronization signals.Specially suitable for monitoring systems of steam turbines,compressors,generators,and other high-performance rotating equipment.This module provides important support for the synchronous monitoring of device speed,ensuring the accuracy and safety of device operation.

In industries such as petroleum,chemical,power,and metallurgy,the 3500-94 147663-01 module is the core component of intelligent condition monitoring systems,supporting online monitoring,fault diagnosis,and preventive maintenance of equipment,providing monitoring support for the entire lifecycle of equipment for enterprises.

Related products

3500-92 136180-01:Signal Communication Gateway Module,compatible with 3500 systems.

3500-93 135785-01:Display module,providing real-time monitoring data.

3500-42M 176449-02:Speed monitoring module,key equipment speed data acquisition.

3500-15 106M1079-01:Power module,providing stable power supply for the 3500 system.

3500-60 133819-01:Temperature monitoring module,used for equipment monitoring in high-temperature environments.

3500-22M 288055-01:Vibration monitoring module that captures real-time vibration information of mechanical equipment.

3500-32 125712-01:Channel alarm module,over limit alarm system.

145988-02:Other versions of phase synchronization module.

330180-91-05:Proximity probe,used for phase detection system.

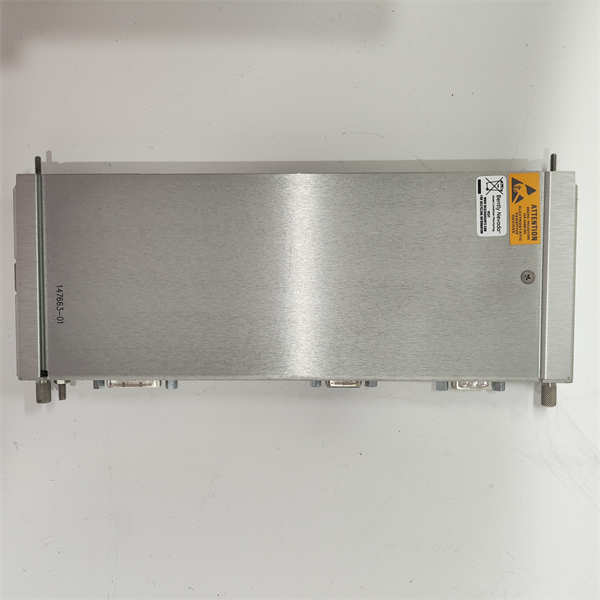

BENTLY NEVADA 3500-94 147663-01

Installation and maintenance

Preparation before installation:

When installing BENTLY NEVADA 3500-94 147663-01,ensure that the system power is cut off,the installation location complies with product specifications,and ensure that the signal probe type is compatible with the module.

Maintenance suggestion:

Regularly check the signal input status to ensure that there is no signal loss or abnormality.

When using,be sure to pay attention to whether there are redundant faults in the signal channel.If there are faults,replace the module or repair the signal line in a timely manner.

For long-term operating equipment,it is recommended to perform a one-time performance calibration of the module every six months to ensure the accuracy of the output signal.
