Description

BENTLY NEVADA 3701-55 is a high-performance vibration sensor module designed specifically for industrial equipment,widely used for real-time vibration monitoring of rotating machinery.It provides accurate vibration data through highly sensitive sensors and intelligent signal processing technology,helping users detect potential equipment failures in a timely manner and avoid system shutdown or equipment damage.

This module supports multiple output signal formats and is compatible with different types of monitoring systems,providing users with flexible choices and integration solutions.Whether it is for rotating equipment such as steam turbines,compressors,or large electric motors,3701-55 can ensure high-precision acquisition and transmission of vibration signals.

As part of the BENTLY NEVADA 3700 series,the 3701-55 module provides redundant design to enhance system stability,ensuring that the equipment continues to monitor and operate even if a signal channel fails.In addition,the module has strong anti-interference ability and can work stably in harsh industrial environments,providing strong support for equipment health monitoring.

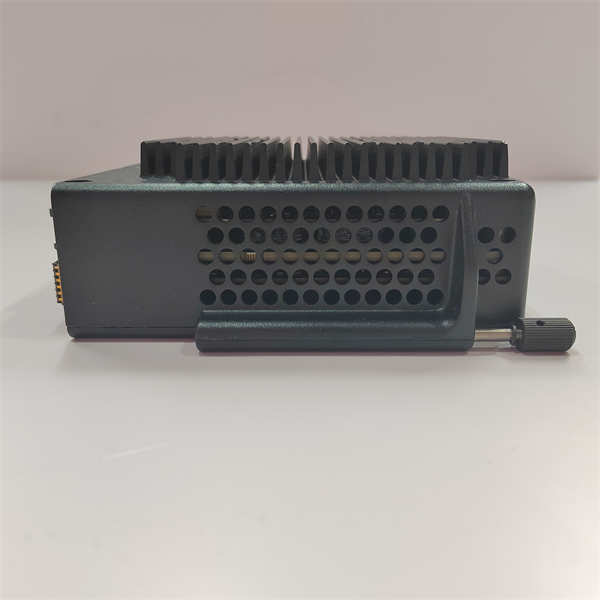

BENTLY NEVADA 3701-55

Main features and advantages

High sensitivity vibration capture:

BENTLY NEVADA 3701-55 provides highly accurate vibration data acquisition,ensuring that even small vibration changes can be quickly detected,providing important data support for real-time monitoring and status assessment of equipment.

Redundant design:

The module is equipped with redundant signal inputs to ensure seamless system switching in the event of a channel failure,avoiding system shutdown and enhancing the reliability of the monitoring system.

Strong anti-interference ability:

Suitable for various complex industrial environments,the 3701-55 module ensures stable operation in environments with strong electromagnetic interference through its built-in anti electromagnetic interference design,and data transmission is not affected.

Intelligent signal processing:

Adopting advanced signal processing technology to accurately filter and enhance vibration signals,effectively improving data accuracy and reliability,and avoiding noise interference.

Widely used:

The 3701-55 module is compatible with various types of devices and is suitable for rotating equipment such as steam turbines,compressors,and electric motors,meeting the monitoring needs of multiple industries.

Durable and Stable:

BENTLY NEVADA pays attention to the long-term stability of its products.The 3701-55 module undergoes strict quality control to ensure long-term efficient operation and reduce maintenance costs.

technical specifications

Product model:3701-55

Manufacturer:BENTLY NEVADA

Product Type:Vibration Sensor Module

Supply voltage:+24V DC

Input signal type:vibration signal(pulse signal/analog signal)

Output signal type:Analog/Digital output

Anti interference capability:Electromagnetic interference protection(EMI)

Working temperature:-20℃to+70℃

Installation method:slot type

Response time:<1ms>

Sensor type:High sensitivity vibration sensor

Suitable equipment:steam turbine,compressor,electric motor,etc

application area

BENTLY NEVADA 3701-55 vibration sensor module is mainly used for high-precision monitoring of the vibration status of various rotating equipment,and is widely used in industries such as power,chemical,oil and gas.It can be used for real-time monitoring of equipment such as generators,compressors,pumps,fans,etc.,helping users detect abnormal operating conditions of the equipment in a timely manner,and carry out preventive maintenance and fault diagnosis.

In the field of industrial manufacturing,the widespread application of 3701-55 can effectively improve the health management of equipment,reduce the rate of sudden failures,extend the service life of equipment,and provide data support for the production process,optimizing production efficiency.

Related products

3701-50:Basic vibration sensor module,suitable for standard vibration monitoring.

3701-52:High precision vibration sensor,suitable for higher demand application environments.

3500-22M 288055-01:Vibration monitoring module,specially designed for equipment operation stability.

3500-23 125712-01:Vibration probe module,used in conjunction with the 3701 series.

3700-10:Host module,responsible for signal interaction with various sensor modules.

3500-72:Ultrasonic vibration monitoring module,suitable for non-contact monitoring.

3500-95:Digital signal processing module,working in conjunction with 3701-55.

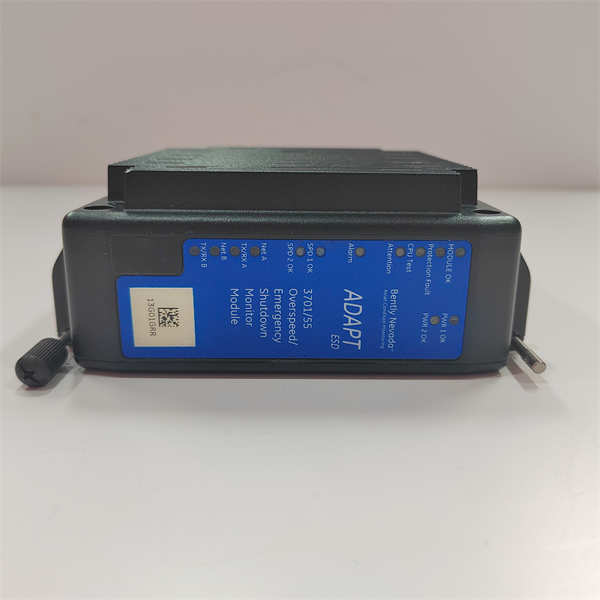

BENTLY NEVADA 3701-55

Installation and maintenance

Preparation before installation:

When installing BENTLY NEVADA 3701-55 module,ensure that the power is disconnected and confirm that the working environment of the equipment meets the installation requirements of the module.The vibration sensor should be aligned with the installation point of the equipment to ensure accurate signal acquisition.

Maintenance suggestion:

Regularly check the stability of vibration signals to ensure that there is no signal loss or abnormality.

Check the contact status of the module every six months to avoid signal interference or distortion.

For long-term operating equipment,it is recommended to perform performance calibration to ensure the accuracy of vibration monitoring.
