Description

RELIANCE VZ3000G UVZC3455G belongs to the VZ3000 series digital AC servo drive controller,supporting 200-400 VAC input and 400 V output.It has a peak current of up to 9.2 A and is compatible with AC servo or asynchronous motors of 55 kW level.The drive adopts PWM vector control,based on IGBT or IPM,and through the matching VZterm software or OPCU-2 terminal,users can easily complete parameter tuning and dynamic optimization.

As a digital control platform,UVZC3455G supports optional PLC functions,analog input/output,and Ethernet communication,greatly enhancing system integration capabilities.In addition,due to modularity and support for parallel deployment,users can flexibly expand capacity based on on-site performance requirements.All types of OEM and repair services offer new and repaired versions to maintain long-term availability.

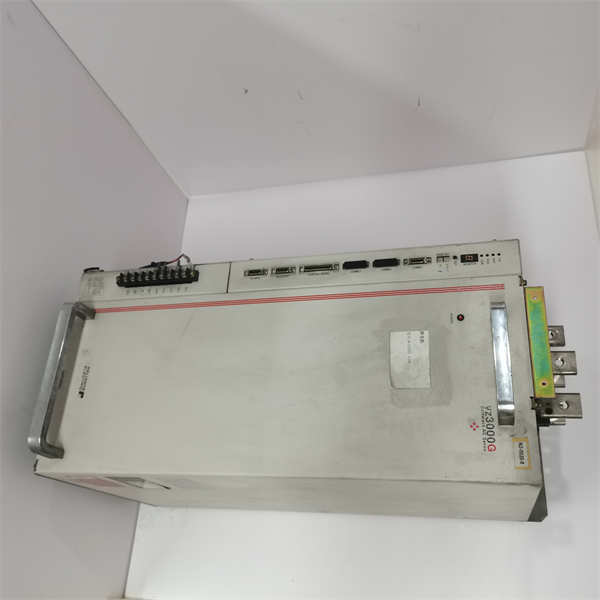

RELIANCE VZ3000G UVZC3455G

Main features and advantages

High dynamic output:

UVZC3455G provides a peak current of 9.2 A and a power level of 55 kW,perfectly supporting high acceleration/heavy load scenarios.

Advanced Vector Control:

Adopting PWM vector control technology,compatible with IPM/IGBT,providing precise speed and torque control,suitable for applications such as CNC and robotics.

Modular/Scalable Design:

Drivers can be connected in parallel with multiple modules or used in conjunction with rectifier/bus units,supporting flexible system capacity planning.

Communication and programming extensions:

Supports Ethernet,analog I/O,and PLC programming,can be debugged with VZterm software,and can also achieve local device control integration.

Stable and reliable:

Wide working temperature range,support industrial grade protection options,adapt to harsh workshop environments,and have abundant supporting maintenance resources.

Excellent user experience:

Supports intuitive operation of VZterm or OPCU-2 terminals,making on-site parameter tuning,trend observation,and fault analysis more efficient.

technical specifications

Product model ：UVZC3455G

Manufacturer： RELIANCE Electric

Product Type:Digital AC Servo Drive Controller

Input voltage 200-400 VAC three-phase

Output voltage 400 V

Peak current 9.2 A

Control technology PWM vector control,IPM/IGBT

PLC function optional modular PLC

Communication interface Ethernet,RS-232/485(optional)

Analog I/O support(depending on the selection)

Compatible software VZterm,OPCU-2

Cooling method:air cooling

Installation form:rack mounted/cabinet mounted

Environmental temperature-40°C to+85°C(IP67 optional)

Protection level|Standard industrial grade,optional IP67

Please refer to the manufacturer’s manual for detailed dimensions and weights

application area

UVZC3455G driver is widely used in high dynamic precision motion systems such as CNC machine tools,industrial robot arms,automated packaging and printing equipment,large transmission and processing lines,etc.With its high power,high response,and modular scalability,it is particularly suitable for control scenarios with short cycles,frequent start stop,or fast trajectory changes.

Related products

UVZC3407G:Same series,compatible with 37 kW,suitable for medium power scenarios.

UVZC3202/UVZC3203:Suitable for 2.2-3.7 kW,with excellent cost-effectiveness.

UAZ3455:Bus independent module,used to expand power systems with drive architecture.

DASR-1+RIPS-2:DC power supply and control unit form a complete speed regulation architecture.

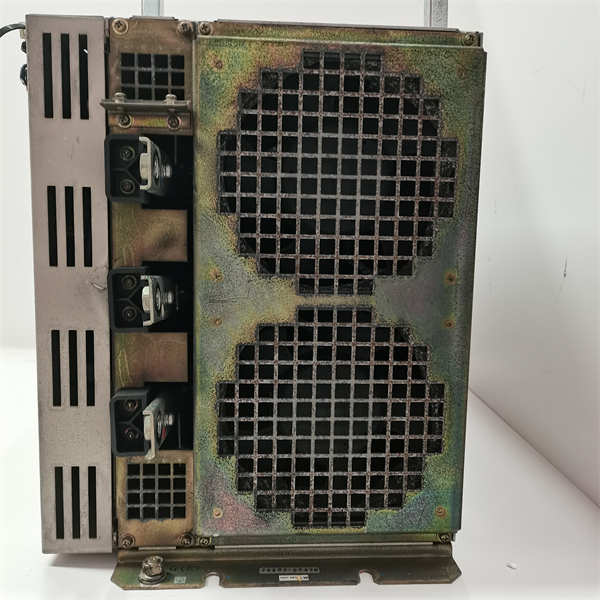

RELIANCE VZ3000G UVZC3455G

Installation and maintenance

Preparation before installation:After power off,connect the three-phase 200-400 VAC power supply and ground it firmly.It is recommended to install the module in a well ventilated and dust-free environment to ensure the normal operation of the air cooling system.After installation,configure motor parameters through VZterm or OPCU-2 PID、Acceleration and deceleration curves,etc.

Maintenance suggestion:It is recommended to regularly(every six months)clean the fan and cooling filter,monitor control parameters and fault history.Export operation logs using VZterm,analyze current/speed curve trends,and provide early warning of anomalies.If expansion or replacement of modules is required,achieve fast parallel replacement without interrupting system production.
