Description

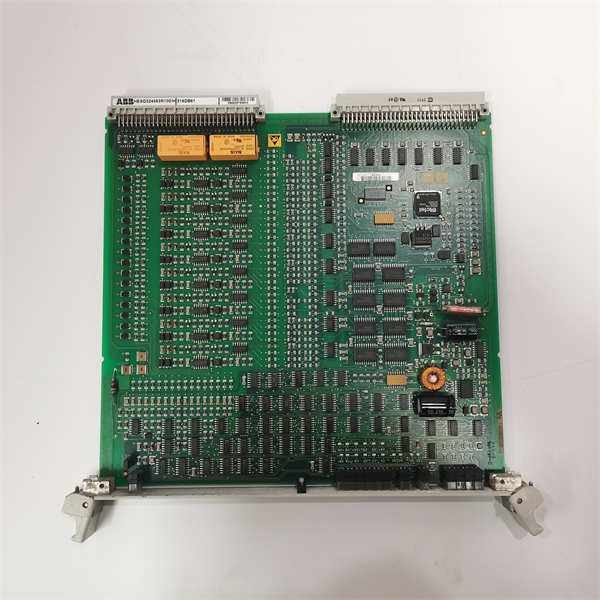

ABB 216DB61 HESG324063R100-H is a critical I/O unit under the ABB Procontrol P13 and DCS550 control platforms. It integrates 16 digital inputs and 16 digital outputs, while also supporting trip commands and feedback signal processing, making it capable of handling complex automation control requirements. The module is designed following a professional-grade I/O architecture, balancing signal density and reliability.

During operation, the module indicates input and output status in real-time through LEDs, making it easier for engineers to troubleshoot and perform maintenance. It supports 24 V DC power supply, features short-circuit protection and trip functions, and can freeze output or trigger a safety shutdown in case of abnormalities, significantly enhancing system stability.

The module adopts a plug-and-play hot-swappable design, occupying a single standard rack slot. Plug-in and maintenance do not require shutdown, which can significantly reduce production downtime. This design makes it particularly suitable for high-density deployment scenarios in control cabinets. In addition, the module supports dual redundant power access, enhancing its fault tolerance, and making it an indispensable signal processing hub in automation systems.

Main Features and Advantages

High-Density Signal Processing

216DB61 HESG324063R100-H integrates 16-channel input and 16-channel output, with rich interfaces to meet the requirements of complex system layouts.

Trip and short-circuit protection

The module has built-in short-circuit and trip logic, which can respond quickly in abnormal situations to ensure system safety.

LED status feedback

Each I/O is equipped with LED indicators, making the on-site status clearly visible and helping to quickly troubleshoot faults.

Hot-swappable function

Using a plug-in design, maintenance or replacement can be performed without shutting down the main unit, significantly reducing repair time.

Dual redundant power supply

Supports dual 24 V DC power input, enhancing system robustness and reliability.

Wide compatibility

Perfectly compatible with ABB DCS550/Procontrol P13 platform, suitable for various industrial applications.

Technical Specifications

Product Model: 216DB61 HESG324063R100-H

Manufacturer: ABB

Product Type: Digital Input/Output & Trip Unit

Digital input: 16 channels, 24 V DC (sink/source)

Digital output: 16 channels, 24 V DC, 2 A per channel

Tripping Function: Supports tripping command output

Indicator light: LED status indicator for each channel

Power supply: 24 V DC (dual redundant access)

Installation method: plug-and-play, 1-slot standard rack

Dimensions and weight: approximately 200×270×80 mm, 0.7 kg

Operating temperature: –25°C to 60°C

Compatible Systems: ABB DCS550, Procontrol P13, AC 800 Series

Application field

The 216DB61 HESG324063R100-H is widely deployed in critical application scenarios such as power plant control systems, petrochemical plant DCS stations, distribution room protection cabinets, and industrial instrument interlock systems. It not only performs conventional functions like sensor signal acquisition and actuator control but also executes trip operations in the event of electrical abnormalities or safety requirements, serving as an important shield for system safety protection. In control environments with high reliability and high maintainability requirements, the 216DB61 HESG324063R100-H is the preferred solution for digital signal interfaces.

Related products

216AB61 HESG324013R101: Pure digital output module, provides 32 output channels.

216AD61 HESG324009R100: Matching digital input module, compatible with synchronous installation.

216EA62: Simulation input unit, supports RTD/4-20 mA acquisition.

216GA62: Trip relay module, supports higher current output.

216VC62a: Central processing module, provides data parsing capability for I/O.

216NG63: 24 V power supply module, providing stable auxiliary power support.

Installation and Maintenance

Preparation before installation: Before installing the 216DB61 HESG324063R100-H, please first turn off the 24 V DC auxiliary power, ensure the rack and backplane are clean, and the guide rails are secure. Insert the module into the designated slot according to the S800 bus direction, tighten the guide rail locks, and connect dual power supply to enhance fault tolerance.

Maintenance recommendation: During operation, observe the module LED indicator lights to identify tripped or short-circuited channels. In case of output abnormalities, simply remove the module, check the wiring, and perform a hot-swap replacement if necessary. It is recommended to check the terminal connections and load response every six months, and keep the module surface clean to prevent dust from affecting heat dissipation.
