Description

ABB 216EA61B HESG448230R1-G is a highly reliable input module used in ABB Procontrol and 800xA systems,integrating analog signal conversion and digital preprocessing functions.Its design takes into account the complex environment of industrial sites,with high-speed sampling capability and ECC(Error Correcting Code)storage,which can automatically correct errors during data transmission,improving the integrity and stability of input data.In DCS control system,it can efficiently convert external analog signals(such as**-40 V to+40 V**)or digital signals and transmit them to the central processing unit.

The”HESG448230R1-G”in the module model represents its redundant system design,supporting dual channel acquisition and automatic switching to ensure that the system can still operate continuously in the event of a failure in any of the acquisition links.The module size is 12.7×7.6×17.8 cm and weighs approximately 0.5 kg.It comes from ABB factory in Switzerland and undergoes strict testing before leaving the factory.It is commonly used in overvoltage detection,frequency sampling,voltage acquisition and other scenarios,and can also detect and alarm abnormal signals during the acquisition process.

This module is installed on rails,making it easy to plug,upgrade,and maintain on site.It is compatible with the standard DCS/PLC backplane signal bus and uses a 24 bit bus interface for communication,making it very suitable for signal entry configuration in intelligent manufacturing and process control scenarios.The overload capacity of the module can reach 6 kA,ensuring that the input circuit is protected in case of abnormalities.

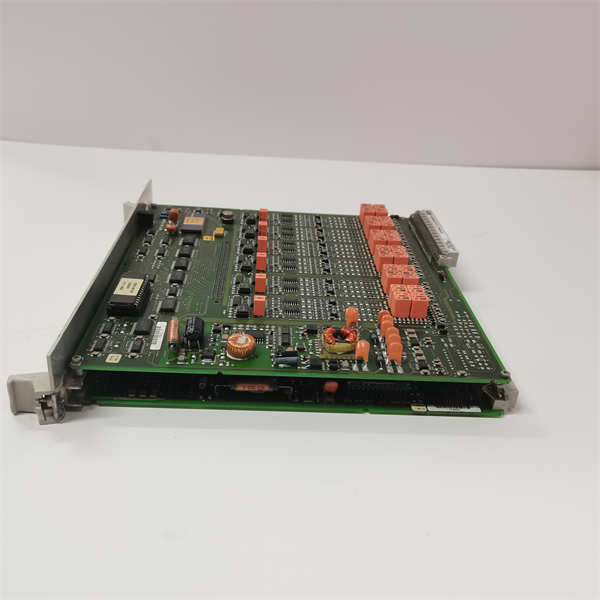

ABB 216EA61B HESG448230R1-G

Main features and advantages

High performance signal acquisition

216EA61B HESG448230R1-G supports 10A current acquisition and 115-230 VAC wide voltage input,covering most industrial sensor requirements.

ECC error correction

It adopts ECC data correction technology,which can effectively resist data transmission caused by interference and improve collection accuracy.

Redundant dual channel design

The module has dual channel redundancy and can automatically switch when one channel fails,ensuring that the control system does not shut down.

Industrial grade anti-interference

Equipped with overcurrent and overvoltage protection,input with short-circuit protection,suitable for complex industrial power supply environments.

Compact module easy to maintain

The size of 12.7×7.6×17.8 cm is matched with the guide rail structure,supports hot plugging,and is easy to deploy and replace.

Accurate data processing

Capable of recognizing and converting analog and digital signals,supporting advanced control and real-time warning of high-end DCS systems.

technical specifications

Product model:216EA61B HESG448230R1-G

Manufacturer:ABB

Product Type:Analog/Digital Input Module

Rated input current:10A

Input voltage range:115-230 VAC

Number of input channels:single channel(redundant design)

Error Correction:ECC(Error Correcting Code)

Short circuit/overload protection:supported,up to 6 kA

Installation method:rail plug-in type

Environmental temperature:-25°C to+70°C(industrial grade)

Compatible systems:ABB Procontrol,AC 800M,800xA DCS

application area

216EA61B HESG448230R1-G is suitable for precise data collection in industrial process control,manufacturing assembly lines,chemical monitoring,power and public facilities,and other scenarios.It can collect analog quantities such as voltage,current,frequency,etc.,and convert them in real time before sending them to the distributed control system(DCS)to provide reliable data support for the controller.Modules are particularly suitable for systems that require high security and availability,such as redundant power monitoring,equipment status alarms,intelligent building systems,etc.,to ensure accurate data and continuous system operation.

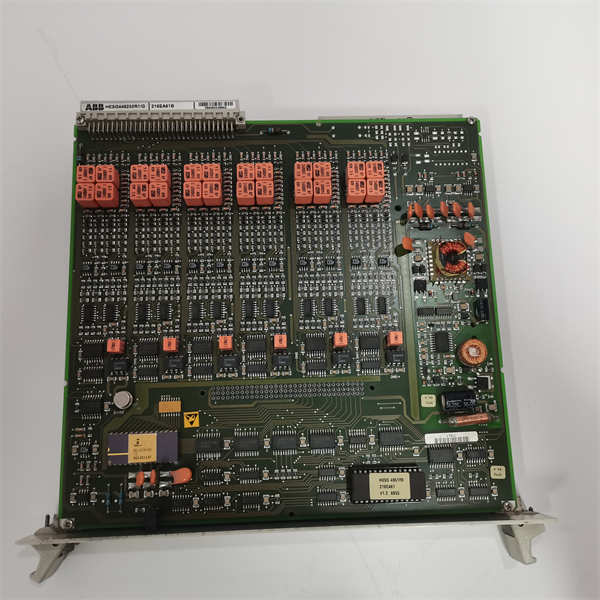

ABB 216EA61B HESG448230R1-G

Related products

216EA61B HESG324015R1:Standard input module,suitable for conventional signal acquisition.

216EA61B HESG324258R3:Supports non-contact sensing signals and expands applications.

216DB61 HESG324063R100-H:Integrated trip and digital output function module.

216AB61 HESG324013R101:Digital output module,used in conjunction with input module.

216NG63 HESG441635R1:24 V DC auxiliary power module provides stable power supply.

216VC624:Advanced processing module that can manage data from multiple I/O modules.

Installation and maintenance

Preparation before installation:Please disconnect the power supply of the control backplane on the module slot first.Confirm that the guide rails of 216EA61B HESG448230R1-G are clean,well grounded,and ensure good ventilation space inside the cabinet.The module should be inserted along the guide rail until the guide plate is locked,and then connected to 115-230 VAC power supply,paying attention to tightening the wiring terminals.

Maintenance suggestion:During operation,ECC error counts and fault logs can be viewed through system diagnostics.If there is a fault signal or alarm in the module,hot plugging can be performed without stopping the machine.It is recommended to check the connection between the power supply terminal and the backplane every 6 months,and keep the module housing clean to ensure long-term stability of the system.
