Description

ABB 216NG63A HESG441635R1 HESG216879-K is a high-performance control and output module directly designed for DCS(Distributed Control System)and PLC platforms by ABB.It combines digital output,servo control,and HVDC conversion(High Voltage Direct Current)functions,compatible with ABB AC 800M/800xA/AC400 series,and can play a key role in modern automation systems.

This module provides 16 isolated outputs internally,each supporting 2 A current output,with anti-interference and short-circuit protection capabilities.This output function is widely used for controlling valves,relays,motor start-up,and alarm signals.The Ethernet and RS-485 interfaces at the top enable easy integration into SCADA or higher-level monitoring systems,supporting remote configuration and communication.

At the same time,the module integrates HVDC converter circuits,supporting high-voltage DC signal processing,for driving servo/actuator mechanisms in high dynamic scenarios.The size is 16 cm x 16 cm x 12 cm,with a weight of approximately 2 kg,and supports ambient temperatures ranging from**-20°C to+70°C.Compact module design,compatible with standard 19 inch backplane installation,with quick replacement and maintenance capabilities.

The module undergoes strict testing before leaving the factory and is suitable for industrial petrochemical,power,manufacturing and other fields.It is particularly suitable for upgrading old systems or scenarios with high requirements for control/output performance and facility compatibility.

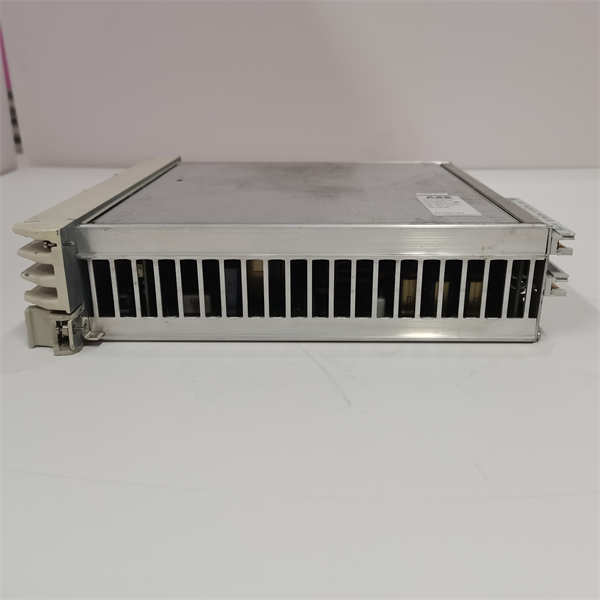

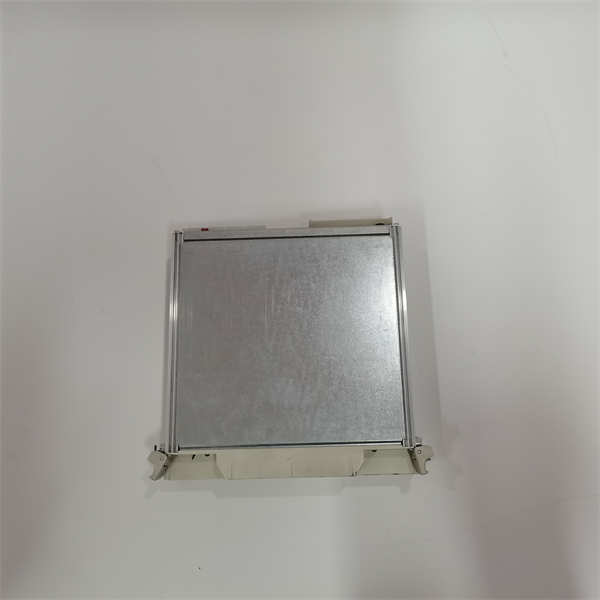

ABB 216NG63A HESG441635R1 HESG216879-K

Main features and advantages

High integration control

216NG63A HESG441635R1 integrates HVDC conversion,digital output,and Ethernet communication functions,saving space and reducing wiring complexity.

16 isolated outputs

The module provides 16 isolated digital channels,each outputting 2 A,with short-circuit protection,suitable for multi device control requirements.

Rich network communication interfaces

The Ethernet and RS-485 interfaces ensure that the module is easy to network with DCS and SCADA systems,enabling remote monitoring and programming.

High dynamic adaptability

Supports high-voltage DC output,adapts to servo drive and precision control scenarios,and meets the needs of high response systems such as robotic arms and turbine control.

Industrial grade structural design

Volume:16 cm×16 cm×12 cm,weight approximately 2 kg,suitable for industrial environments ranging from-20°C to+70°C,standard backplate installation is simple and effective.

Optimize system upgrade selection

Compatible with ABB AC 800M/800xA systems,it is an ideal solution for replacing outdated output/control modules and improving system performance.

technical specifications

Product model:216NG63A HESG441635R1 HESG216879-K

Manufacturer:ABB

Product Type:HVDC Conversion&Digital Output Module

Output channel:16 isolated outputs

Output current:2 A/channel

Communication interface:Ethernet,RS-485

Installation method:19 inch backplane plug-in installation

Size:16 cm x 16 cm x 12 cm

Weight:~2 kg

Working temperature:-20°C to+70°C

Protection function:Short circuit/overload protection

Compatible systems:ABB AC 800M,800xA,AC400

application area

The 216NG63A HESG441635R1 module is suitable for high demand industrial scenarios,mainly including upgrading and replacing DCS/PLC systems,automation control of power and HVDC substations,drive of actuators in petrochemical and chemical sites,high dynamic control of robotic arms and servo systems in manufacturing industries,etc.This module achieves centralized control of complex systems through 16 isolated outputs and Ethernet networking capabilities;Its HVDC compatibility enables it to operate stably even in high voltage environments,making it suitable for critical process control and precision control fields.

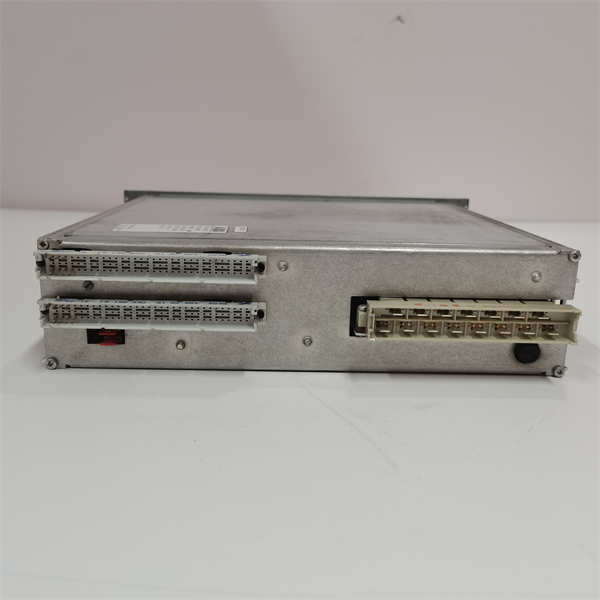

ABB 216NG63A HESG441635R1 HESG216879-K

Related products

216NG61A HESG441633R1:8-channel isolated output module,suitable for controlling small and medium-sized equipment.

216NH01A:16 channel digital input module,combined with output to achieve a complete I/O system.

216AB61:32 digital output module,expanding high-density control requirements.

216DB61:Collection of digital input/output and trip functions,supporting high safety scenarios.

216EA62:Analog input module,capable of collecting analog signals such as RTD/4-20 mA.

216VC624:The central processing module of the system integrates I/O and executes control logic.

Installation and maintenance

Preparation before installation:Disconnect the power supply and communication interface of the control backplane to ensure the cleanliness of the backplane guide rail.Insert 216NG63A HESG441635R1 HESG216879-K into the 19″backplane installation position,ensuring it is securely fastened,and tighten the Ethernet and RS-485 connections.Confirm that the channel load current is≤2 A and the grounding is secure.

Maintenance suggestion:The module should be equipped with LED indicators and DCS alarm feedback to monitor the output status.If there is a channel abnormality,it can be replaced by hot plugging without stopping the machine.It is recommended to check the interface connection,heat dissipation status,and LED operation status every 6 months,and regularly extract logs to analyze output performance.
