Description

ABB 216VC62a-P1000 HESG324442R112 is a key processor unit and relay card designed by ABB for high-end control systems in the field of industrial automation.As the core part of Symphony Plus and AC800 series DCS systems,it has real-time DSP algorithm processing capabilities,supports analog and digital signal filtering,spectrum analysis,logic judgment and other functions,can execute complex control strategies,and achieve fast and accurate response to temperature,pressure,flow and other signals.

The module adopts a standard S800 plug-in design,supports hot swappable maintenance,and greatly improves on-site operation and maintenance efficiency.It includes Ethernet and RS-232/RS-423 interfaces,and is compatible with mainstream protocols such as PROFIBUS and Modbus,enabling high-speed data exchange with the backplane bus.This module has a wide temperature range of**-40°C to+70°C**,and can withstand electromagnetic interference and mechanical vibration.It is the preferred choice for harsh environments such as ships,power plants,petrochemicals,and manufacturing.

In addition,the 216VC62a-P1000 has a built-in relay open/close structure,which allows it to also serve as a relay intermediary module,outputting trip or control command signals.This is particularly important in system event driven logic.

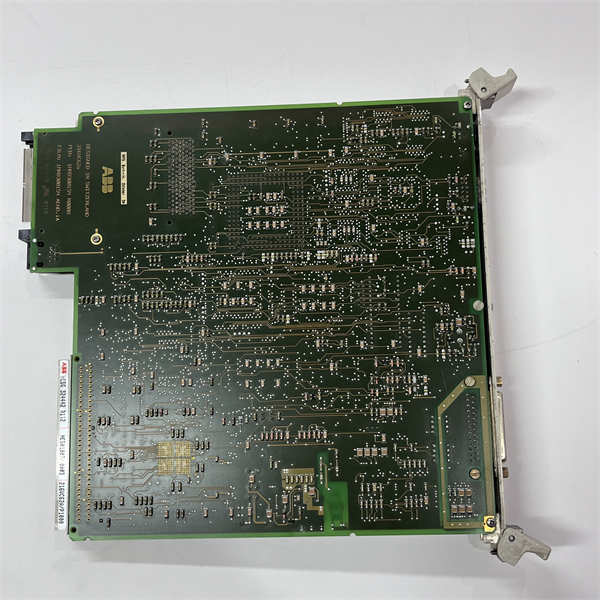

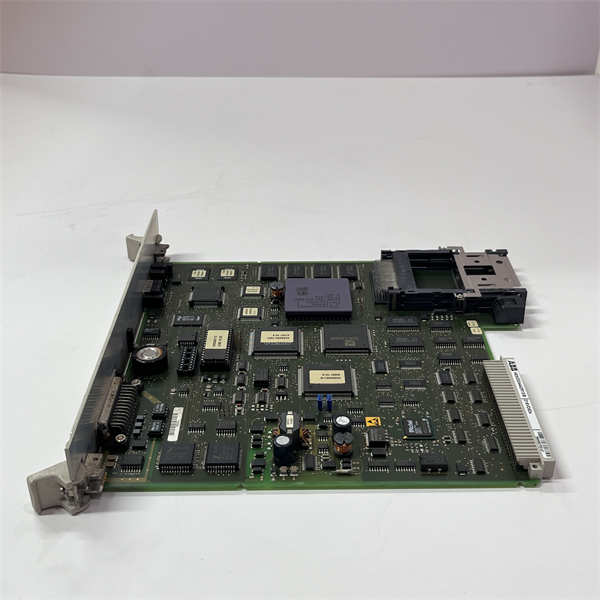

ABB 216VC62a-P1000 HESG324442R112

Main features and advantages

High performance DSP control

The 216VC62a-P1000 is equipped with DSP algorithm,introducing real-time spectrum analysis and logic judgment to ensure fast response and accuracy of complex process control.

Analog+digital mixed sampling

Support multi-channel analog to digital acquisition,combine digital input signals for efficient integrated decision-making,and achieve multi-dimensional control.

Rich network interfaces

Equipped with Ethernet and RS-232/423 interfaces,compatible with protocols such as PROFIBUS and Modbus,supporting flexible system integration and expansion.

Hot swappable module design

The standard S800 plug-in architecture supports quick replacement and maintenance without the need for downtime,adapting to high availability operational requirements.

Wide temperature stability

Adapt to environments ranging from 40 to+70°C,meeting the demanding temperature requirements of special industries such as ships,power generation,and petrochemicals.

Relay output capability

Integrated relay interface,capable of outputting trip,alarm,and actuator control signals,enhancing system event response capability.

English Content

The ABB 216VC62a‑P1000 HESG324442R112 module serves as a high-performance processor and relay unit within ABB’s Symphony Plus and AC800 DCS platforms.Powered by DSP-based real-time signal processing,it offers precision filtering,frequency analysis,and logical control for various analog and digital inputs.

Engineered for industrial resilience,it operates within–40°C to+70°C,supporting Ethernet,RS‑232/RS‑423,PROFIBUS,and Modbus protocols.Its hot-pluggable S800 design facilitates efficient maintenance without disruptions,while built-in relay outputs enable critical event-driven control in applications like trip logic,alarms,and actuator commands.

technical specifications

Parameter Name Parameter Value

Product model 216VC62a-P1000 HESG324442R112

Manufacturer ABB

Product Type:Processor,Relay Unit,Module

Processing architecture DSP real-time processing

Signal type:analog+digital mixed sampling

Communication interface Ethernet/RS-232/RS-423

Compatible with protocols PROFIBUS and Modbus

Supply voltage 115-230 VAC

Working temperature-40°C to+70°C

Installation method S800 plug-in hot plug design

Size and weight~16×16×12 cm,~0.7 kg

Relay output supports event/trip output

application area

This module is widely used in scenarios such as power plants,petrochemical plants,ship automation,intelligent manufacturing,and water treatment.Its powerful real-time signal processing capability and relay output function are suitable for logic interlocking,event triggering,safety tripping,and continuous process control applications.The hot swappable design of modules is particularly suitable for industrial operating environments that require high reliability and maintainability.

ABB 216VC62a-P1000 HESG324442R112

Related products

216VC624 HESG324442R13/B:Early version processor module with similar functionality.

216EA62:Analog input module,used to expand sampling capability.

216AB61:32 digital output module,used for distributing control instructions.

216DB61:16 input/output module with trip function.

216NG63A:24 V DC power module,providing system power supply.

216VC60A:New processor module with higher performance and interface density.

Installation and maintenance

Preparation before installation:Please disconnect the power supply of the DCS system and cut off the power supply of the backplane,ensuring that the slots and rails are clean and properly grounded.Insert 216VC62a-P1000 HESG324442R112 into the S800 slot until it is stuck,and connect the Ethernet/serial port and power cord.

Maintenance suggestion:It is recommended to check the communication and power supply interfaces every six months and pay attention to the heat dissipation environment.Check the module status and alarm indication through the system score.If there is a malfunction,it can be quickly replaced on-site by hot plugging.Suggest keeping backup modules to ensure quick recovery in case of emergency
