Description

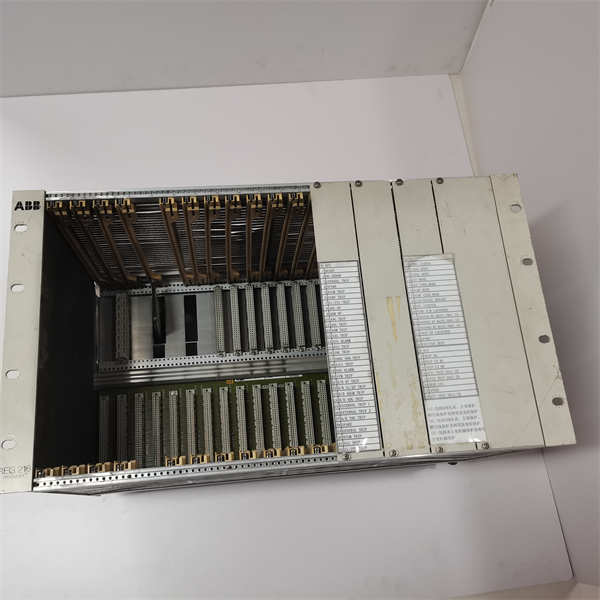

The ABB 216MB66 HESG324510M1 modular equipment rack is the basic hardware framework of the ABB REC216 system,specifically designed for protection,power control,and monitoring.It can accommodate up to 18 standard backplane modules,including power supply,I/O,CPU,and communication modules.Its structure combines high-density layout and thermal management design to ensure long-term stable operation of key equipment.

This rack supports dual 24 Vdc redundant power supply(provided by 216NG61/62/63 modules),and is equipped with a B448C parallel backplane bus to achieve high-speed data exchange between multiple modules.In addition,it adopts DIN rail or panel installation method,which fully complies with industrial cabinet standards during installation,making it convenient for maintenance engineers to quickly deploy the environment.The shell and PCB are both coated with industrial grade protective coatings,which can operate normally in harsh environments ranging from-25°C to+60°C.

Whether it’s power plant turbine monitoring,oil and gas substation protection,or mining automation systems,216MB66 HESG324510M1 serves as the system backbone,supporting key equipment in high reliability,achieving module hot plugging and rapid maintenance,significantly improving system availability and operational efficiency.

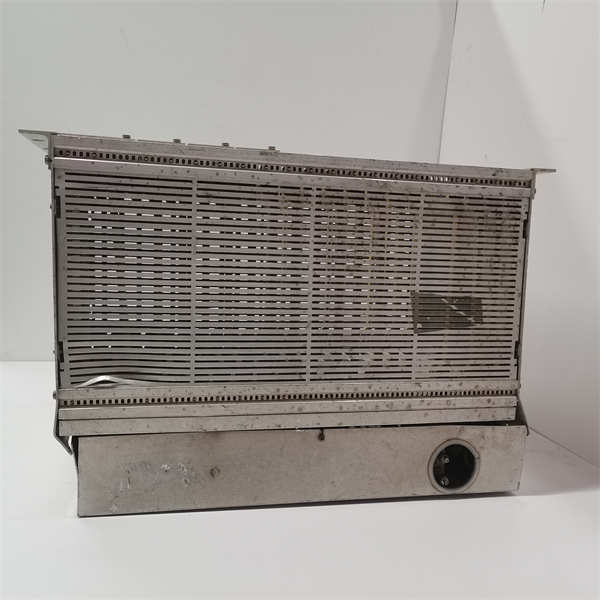

216MB66 HESG324510M1

Main features and advantages

Large capacity expansion

216MB66 HESG324510M1 supports up to 18 slots,suitable for complex power monitoring and protection system configurations.

Redundant power supply design

Can be equipped with dual 216NG61/62/63 modules to achieve power cascading redundancy and improve system reliability.

High speed parallel bus

Adopting B448C parallel backplane,it supports up to 32 main station parallel data access and is suitable for large-scale bus structures.

Hot swappable maintenance

The module supports plug and play and hot backup,and on-site replacement does not require turning off the system power,improving system availability time.

sturdy and durable

Metal structure and anti EMI design,suitable for harsh environments such as power generation,petrochemicals,and heavy industries,in compliance with industrial protection levels.

Widely used

Can be paired with REC216 protection,I/O and CPU modules to build a complete control/monitoring system,compatible with IEC61850 protocol.

technical specifications

Product model:216MB66 HESG324510M1

Manufacturer:ABB

Product type:Modular equipment rack

Number of slots:18(including 3 power slots)

Supply voltage:38-68 Vdc dual channel redundant

Parallel bus:B448C parallel backplane

Installation method:DIN rail or panel type

Working temperature:-25°C to+60°C

Relative humidity:5-95%,no condensation

Protection level:IP30,dustproof and anti solid intrusion(requires cabinet cooperation)

application area

The 216MB66 HESG324510M1 equipment rack is widely used in:

Power system:Gas/steam turbine control and protection rack,high availability system core.

Oil and gas and chemical industry:substation remote monitoring and interlocking system,supporting IEC61850 standard.

Heavy Industry Manufacturing:Large scale unit automatic control framework,supporting rapid module expansion.

Public facilities and water plants:pumping stations and power distribution control devices provide stable and reliable infrastructure.

As the backbone of the system,216MB66 HESG324510M1 enables multiple modules to work efficiently in parallel,adapting to high availability demand scenarios.

216MB66 HESG324510M1

Related products

216NG61/216NG62/216NG63A:24 Vdc auxiliary power module,providing redundant power support.

216EA61:16 analog input module,used for sensor signal acquisition.

216VC624:Processor unit,responsible for executing logic and communication control.

216AB61:32 digital output module,driving on-site execution devices.

216DB61:16 input/16 output trip protection I/O module,improving signal interface density.

Installation and maintenance

Preparation before installation:Please disconnect the 24 Vdc bus power supply of the system first,confirm that the required slots of the equipment rack are clean and grounded firmly.Insert 216MB66 HESG324510M1 vertically into the DIN rail or panel and tighten it,connect the dual 38-68 Vdc power lines,and connect the parallel backplane.

Maintenance suggestion:Regularly(every 6 months)check the connection between the rack heat dissipation holes and the backplane during operation to confirm the dual power redundancy status and module communication health;If a module failure occurs,it can be replaced by hot plugging without interrupting the system.
