Description

ABB 500BIO01 1MRB150005R1J is a digital input/output module launched by ABB,belonging to ABB’s digital I/O series,designed specifically for signal processing and data exchange in industrial automation systems.This module supports efficient and stable data transmission,and can efficiently process digital signals from various sensors and actuators,making it an indispensable core component in industrial automation systems.

500BIO01 1MRB150005R1J provides rich input and output channels to meet the needs of different industrial equipment and systems,ensuring efficient real-time data acquisition and transmission on the production line.With its high reliability and excellent anti-interference ability,500BIO01 1MRB150005R1J can work stably in complex industrial environments,making it an ideal choice for optimizing control systems and improving production efficiency.

This module uses a 24V DC working voltage and has an IP20 protection level,suitable for ordinary industrial environments.With its compact design,the 500BIO01 1MRB150005R1J is easy to install on standard DIN rails,providing a more convenient integration solution for automation control systems.

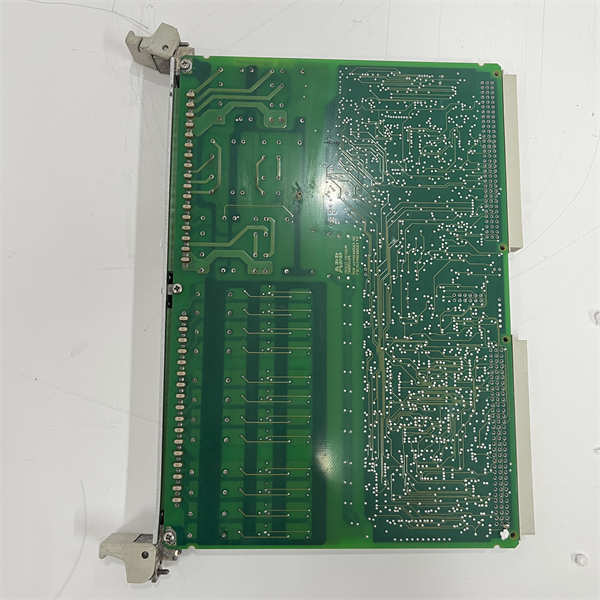

ABB 500BIO01 1MRB150005R1J

Main features and advantages

Efficient signal processing:

ABB 500BIO01 1MRB150005R1J provides powerful input-output processing capabilities,capable of quickly and accurately processing digital signals from field devices.Whether in high-frequency data exchange scenarios or applications that require high real-time performance,500BIO01 1MRB150005R1J can ensure real-time processing and feedback of data.

Wide compatibility:

This module supports a wide range of automation systems,seamlessly integrates with control systems such as PLC and DCS,and supports multiple input and output interfaces.It can adapt to different types of industrial equipment,enhancing the overall compatibility and scalability of the system.

Strong anti-interference ability:

500BIO01 1MRB150005R1J has undergone rigorous industrial environment testing and possesses excellent anti-interference capabilities,capable of stable operation in harsh environments such as high electromagnetic interference(EMI)and strong vibration.

High reliability:

This module design has been optimized to ensure excellent performance and a long service life even after long-term operation.It can work continuously and stably in industrial environments,reducing failure rates and lowering maintenance costs.

Easy to install and maintain:

Adopting standard DIN rail installation method,500BIO01 1MRB150005R1J is easy to install.The module provides self diagnostic function,which facilitates real-time monitoring and troubleshooting,greatly improving the maintenance efficiency of the system.

ABB 500BIO01 1MRB150005R1J Technical Specification

Product model:ABB 500BIO01 1MRB150005R1J

Manufacturer:ABB

Product Type:Digital Input/Output Module

Input type:numeric input

Output type:Digital output

Working voltage:24V DC

Protection level:IP20

Input current:5mA

Output current:10mA

Working temperature:-20°C~+60°C

Relative humidity:5%~95%(non condensing)

Communication protocol:None

Installation method:DIN rail installation

Dimensions(mm):145mm x 95mm x 35mm

Supporting platforms:PLC,DCS

Number of input/output channels:16 inputs/16 outputs

application area

The ABB 500BIO01 1MRB150005R1J digital input/output module is widely used in the following fields:

Process automation:In the chemical,petroleum,pharmaceutical and other process control industries,500BIO01 1MRB150005R1J can collect digital signals from different sensors in real time to ensure the stability and safety of the process.

Automated production line:suitable for data collection and real-time monitoring of various production lines,improving production efficiency and reducing production line downtime.

Energy monitoring and management:widely used in energy consumption monitoring systems,providing accurate real-time data collection and analysis support to help enterprises optimize energy utilization.

Intelligent Manufacturing:In the intelligent manufacturing environment,500BIO01 1MRB150005R1J supports the control and monitoring of complex equipment,helping enterprises achieve higher levels of automation and intelligent production.

Industrial Internet of Things(IIoT):Integrated with IoT devices,500BIO01 1MRB150005R1J provides data exchange functionality to facilitate smooth information transmission between industrial equipment and systems.

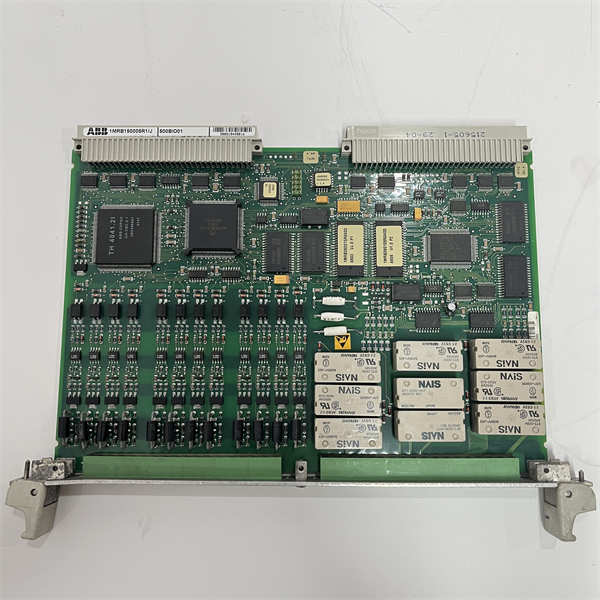

ABB 500BIO01 1MRB150005R1J

Related products

ABB 500BIO02:Digital input module,supporting input functions for more channels.

ABB 500BIO03:High performance digital output module,suitable for scenarios that require high output power.

ABB 500BIO04:Multi functional digital I/O module that supports higher system scalability.

ABB 500BIO05:Upgraded digital input/output module with more interface support.

ABB 500BIO06:A digital I/O module with higher frequency response,suitable for high-speed data exchange needs.

Installation and maintenance

Installation suggestion:

ABB 500BIO01 1MRB150005R1J adopts standard DIN rail installation method,ensuring stable power connection and meeting the working voltage requirements of the equipment during installation.During installation,avoid working in extreme environments such as high humidity and high temperature to avoid affecting module performance.

Maintenance suggestion:

Regularly check the connection wires and cables of the module to ensure that there is no poor contact or looseness.The built-in diagnostic function of the module can be used to check its operating status,identify potential problems in a timely manner,and perform preventive maintenance.Keep the module clean to prevent dust and dirt from affecting its performance.
