Description

EMERSON KJ3203X1-BA2 13P0085X022 VE4001S2T2B4 This is an analog input terminal block for the DeltaV system, used in conjunction with the VE4001S2T2B4 AI module for wiring and module plug-in connections of AI signals. It includes complete wiring channels, fault indication support, grounding terminals, etc.

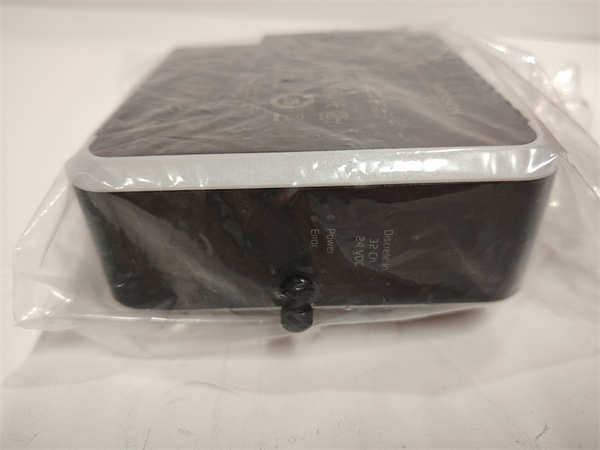

EMERSON KJ3203X1-BA2 13P0085X022 VE4001S2T2B4

Technical parameters:

Product Type: AI Terminal Block

Model: KJ3203X1-BA2

Number of channels: 16 channels

Supporting card: VE4001S2T2B4 (must be used in conjunction)

Installation method: DIN rail

Terminal type: Spring press fit or screw fixed type

Indicator light: Fault/status LED indication for each channel

Operating temperature: -40 ° C~70 ° C

Insulation withstand voltage: ≥ 500V

On site wiring: Supports 4-20mA/1-5V analog signals

?  Module 2: 3P0085X022 DeltaV Terminal Component

explain:

This is the Emerson terminal block assembly drawing number corresponding to KJ3203X1-BA2, which is generally used for labeling in BOM lists, selection drawings, or technical agreements. It indicates the arrangement of terminal block wiring, distribution of channel numbers, physical mapping between internal ports and AI modules, etc.

Product Code: 13P0085X022

Category: Technical Component Number (Part Number)

Purpose: Refers to the part number or drawing standard reference number of KJ3203X1-BA2 in factory system integration

Note: No need to purchase separately, usually provided in conjunction with terminal modules

?  Module 3: VE4001S2T2B4 Analog Input Module

Product Description:

VE4001S2T2B4 is a high-performance AI module in the DeltaV system, used to collect up to 16 analog input signals. Adopting a 16 bit A/D converter, it has functions such as hot plugging, channel isolation, diagnostic protection, etc.

Technical specifications:

Model: VE4001S2T2B4

Number of channels: 16 AI channels (single ended/differential)

Input signal types: 4-20mA, 0-10V, 1-5V, etc

Conversion accuracy: 16 bit

Refresh rate: up to 5ms per channel

Support redundancy: Yes (compatible with redundant I/O networks)

Power supply voltage: Powered by the base plate (no external power supply required)

Working temperature: -40 ℃~+70 ℃

Diagnostic function: short circuit, open circuit, abnormal current detection

Electrical isolation: isolation between channels, isolation between modules and systems

Compatible platform: DeltaV DCS control system

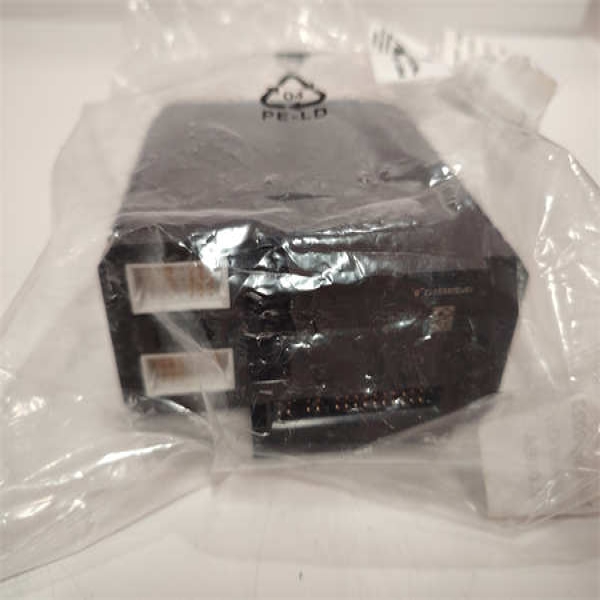

EMERSON KJ3203X1-BA2 13P0085X022 VE4001S2T2B4

?  The combination relationship between the three

The matching relationship between module functions and other modules

VE4001S2T2B4 main functional module, completed analog acquisition and installed in DeltaV I/O card slot

KJ3203X1-BA2 analog input terminal block, used for signal introduction and VE4001S2T2B4 plug connection

Position relationship and channel diagram of material number/engineering reference number BOM configuration for 13P0085X022 KJ3203X1-BA2

In short:

VE4001S2T2B4 is the ‘brain’,

KJ3203X1-BA2 refers to “hands, feet, and nerves”,

13P0085X022 is a “household registration book” used for identity recognition.

?  application area

This module is widely used in analog signal acquisition scenarios for Emerson DeltaV control systems, such as:

Main control system of thermal power plant

Signal acquisition in petrochemical refining process

LNG process station temperature/pressure collection

Monitoring of fine chemical production processes

High end water treatment and metallurgical system control

?️  Installation and operation suggestions

When installing the module, please confirm that the power has been disconnected or that hot swappable permissions have been enabled

Modules and terminal blocks should be numbered correctly and correspond one-to-one to prevent channel misalignment

All terminals should be tightened to avoid vibration and loosening during long-term operation

Suggest testing the voltage and current range of the channel before connecting the signal to prevent card burning

The channel diagnostic function can be used to detect sensor abnormalities in advance
