Description

EMERSON 5X00226G04 is a high-speed communication module designed specifically for Ovation DCS control platform, mainly used for data communication between the main control machine (such as 5X00105G67 controller) and distributed I/O stations. It can achieve real-time acquisition, feedback, and rapid issuance of control commands for on-site signals, and is the “signal center” in the entire process control chain.

Compared to the old models G02 and G03, this model has better anti-interference capabilities, equipped with enhanced EMI/EMC protection circuits, and can be linked with redundant system configurations to support hot standby operation.

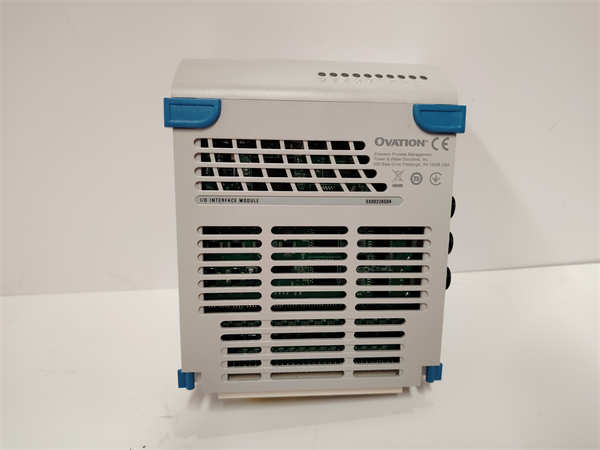

EMERSON 5X00226G04

⚙️  Technical specifications and parameters

Product model: 5X00226G04

Brand: EMERSON

System: Ovation DCS

Function type: I/O Communication Module (IOCM)

Interface method: Backplane slot type, supporting redundant hot plugging

Communication speed: up to 100Mbps

Data processing capability: supports high concurrency task scheduling, real-time refresh mechanism

Power supply: uniformly provided by the system rack, with internal voltage regulation of DC 5V

Status indication: equipped with multiple sets of LED indicator lights: power/communication/fault

Working temperature: 0 ℃~+60 ℃

Storage temperature: -20 ℃~+85 ℃

Anti interference level: IEC 61000-4 standard EMI/EMC anti-interference test passed

Supporting features: redundant configuration, hot swapping, automatic failover

?  Main advantages

✅  High speed communication stability: enhanced data buffering mechanism+EMERSON bus optimization to ensure high-speed and highly reliable communication;

✅  Hot standby support: In collaboration with redundant modules such as 5X00226G03/05, it supports seamless automatic switching;

✅  Enhanced EMI protection: Installing EMC filtering components on the circuit board enhances its surge and lightning protection effects;

✅  Easy installation and maintenance: card slot design, supports live plugging and unplugging, can be replaced without stopping the system;

✅  Compatible with older versions: Supports mixing and matching with 5X00226G02/G03 systems for smooth upgrades;

✅  Clear status indication: Multiple LED status lights for maintenance engineers to quickly locate issues.

?  Application scenarios

EMERSON 5X00226G04 is widely used in the following industrial applications:

Main control system of thermal power plant (boiler, steam turbine, desulfurization device)

Explosion proof remote signal communication in petroleum refining equipment

Data collection and communication for urban heating and centralized water supply systems

Remote IO communication nodes for metallurgy, mining, and heavy industry

On site upgrade and renovation of various old DCS systems (such as G02)

?  Recommended Related Modules

5X00226G02: Old communication module, basic performance

5X00226G03: Supports some enhanced features

5X00226G05: Optional subsequent enhanced version with strong compatibility

1C31113G01: Digital Input Module

1C31227G01: Analog acquisition module

5X00106G02: Controller main CPU module

KJ3002X1-BB1: I/O Communication Replacement Module (DeltaV Platform)

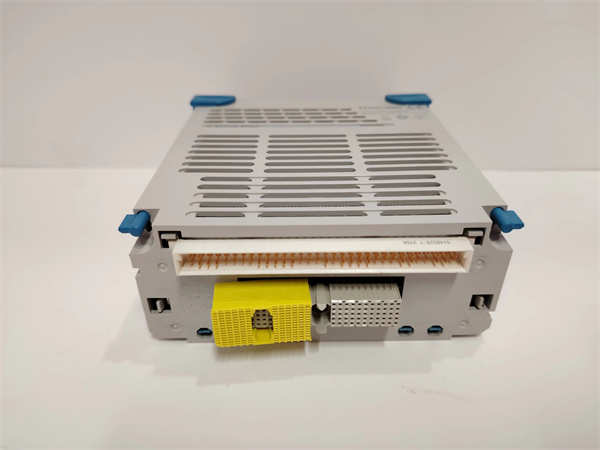

EMERSON 5X00226G04

?  Installation and maintenance recommendations

Before installation, check if the power supply to the rack backplane is normal and if the slots are clean;

After inserting the module, observe whether the LED status light is normal (green light is always on);

The module supports hot plugging, but it is recommended to notify the control system engineer before replacing it;

Conduct an annual port status and communication test using Ovation Diagnostic tool;

If the system experiences a “communication flash”, it is recommended to check whether the shielding grounding of the communication cable is good.
