Description

GE IC086SLN042-A (SLN042) is a high-performance industrial network interface module mainly used in GE RSTi EP or PACSystems systems, responsible for connecting upper level controllers and distributed I/O devices. This module supports multiple industrial communication protocols such as EtherNet/IP and Profinet, with high-speed data exchange capabilities, strong system compatibility, and excellent stability.

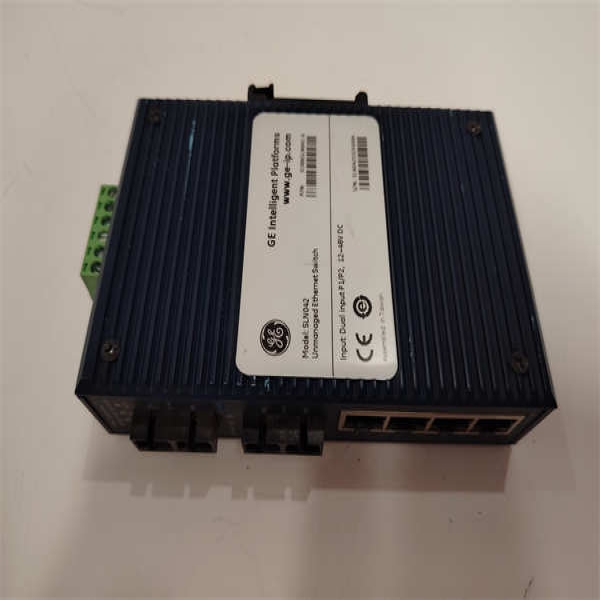

GE SLN042 IC086SLN042-A

?  Product Details

Module Overview

GE IC086SLN042-A (SLN042) belongs to the communication interface module (Network Adapter) of GE Industrial RSTi-EP I/O platform, mainly used to provide a high-speed data channel between the I/O module and the upper control system (such as PLC, DCS).

The module integrates Dual Port Ethernet, which facilitates redundant deployment of daisy chain or ring network structures, supports multi protocol communication such as PROFINET IRT, Ethernet/IP, Modbus TCP, etc., and can quickly interconnect with GE PACSystems RX3i, RX7i, and even third-party devices.

This product also has strong electromagnetic interference resistance (EMC), wide temperature design (-25 ° C to+60 ° C), built-in diagnostic function, supports automatic recognition and remote configuration, and is a truly industrial grade “smart brain”.

⚙️  Technical specifications and parameters

Product model: IC086SLN042-A/SLN042

Product Type: Network Interface Module/Communication Adapter

Communication interface: 2 x RJ45 (10/100 Mbps Ethernet)

Communication protocols: PROFINET, EtherNet/IP, Modbus TCP, etc

Network topology support: star, ring, daisy chain

Power requirement: 24V DC, maximum consumption of approximately 3.5W

Installation method: DIN rail installation (standard 35mm)

Module size: Width 30mm x Height 130mm x Depth 76mm

Working temperature: -25 ° C~+60 ° C

Storage temperature: -40 ° C~+85 ° C

Anti interference capability: compliant with IEC 61131-2/EN61000 industrial standards

Number of supported devices: up to 64 EP I/O modules can be connected

Status indication: LED lights indicating communication status, module status, errors, etc

Firmware Upgrade: Supports online remote upgrade

?  Main features and advantages

✅  Multi protocol support, strong system compatibility

Supports industrial communication protocols such as EtherNet/IP, PROFINET, Modbus TCP, and is compatible with GE PACSystems series controllers and third-party devices, making it easy to interface with multiple control systems.

✅  Dual network ports, flexible topology structure

Two RJ45 network ports support daisy chain, star or ring network structures, suitable for building redundant and highly reliable industrial Ethernet environments.

✅  Support module hot plugging

When used in conjunction with RSTi EP series I/O modules, it supports hot swapping function, and on-site maintenance and expansion do not affect system operation.

✅  Clear feedback of status LED

The module body is equipped with multiple sets of LED indicator lights for communication, operation, errors, etc., making it convenient for maintenance personnel to quickly locate problems.

✅  Wide temperature and pressure range, industrial grade reliable design

Resistant to high and low temperatures, electromagnetic interference, and surges, suitable for the most demanding industrial field applications, and capable of long-term operation without pressure.

✅  Remote firmware update+diagnostic support

Online parameter configuration and firmware upgrade can be achieved through GE tools or WEB configuration interface, making remote maintenance more worry free.

?  application area

Power automation (such as high-speed communication between the main station and the interval layer)

Industrial automation production line (high-speed data exchange between robots and I/O)

Intelligent manufacturing production line data acquisition terminal

Petrochemical and metallurgical process control system

Distributed IO access for smart buildings/building control systems

OEM equipment network access/edge communication

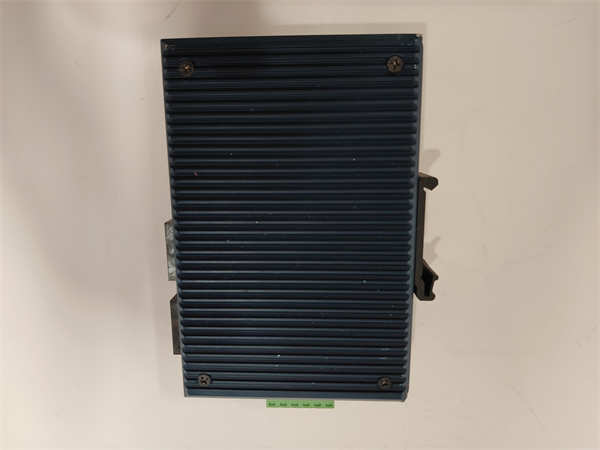

GE SLN042 IC086SLN042-A

?  Related product recommendations

IC086SLN041-A: SLN041， Another network adapter that supports Modbus TCP

IC086SPD201-A: Power module, RSTi EP system power supply core

IC086AI101: Analog input module, 4-channel AI

IC086DI102: Digital input module, 8-channel DI

IC086DO102: Digital output module, 8-channel DO

RX3i CP315: GE RX3i main control module, can be used in conjunction with SLN042

?  Installation and maintenance

During installation, it should be securely clamped onto the DIN rail and ensure a good Ethernet connection at both ends.

It is recommended to configure IP address settings and protocol binding through GE Proficy Machine Edition (PME) or WEB server interface.

It is recommended to use optoelectronic isolation gateways or surge protection modules to protect network interfaces in live systems.

During normal operation, all indicator lights should remain green and constantly on. If they flash or turn red, the module status should be checked immediately.
