Description

GE F650 F650BFBF2G0HIE is an intelligent and multifunctional power protection relay designed specifically for applications such as feeders, motors, and capacitor banks. This model belongs to the GE Grid Solutions F650 series and supports multiple communication protocols including IEC 61850, Modbus, DNP3, etc. It has high-performance current and voltage protection functions and is an essential core component for intelligent distribution networks and automation systems.

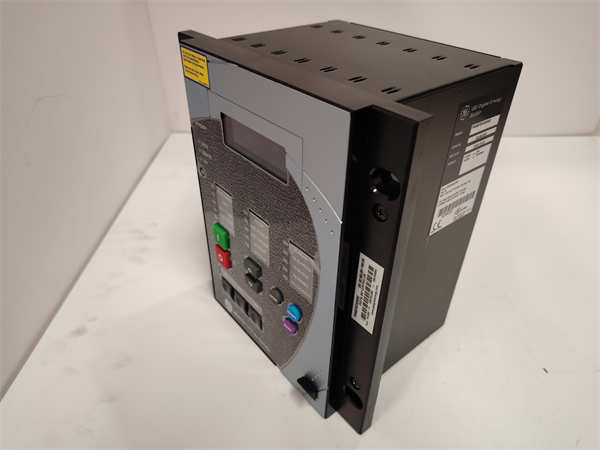

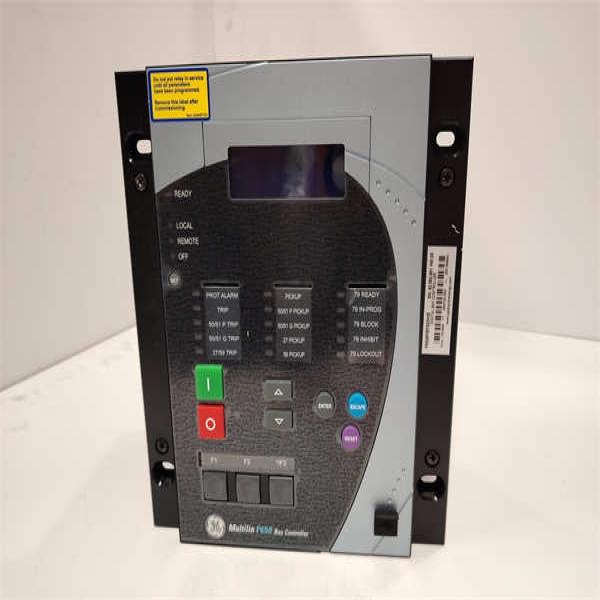

GE F650 F650BFBF2G0HIE

?  Product Details

✅  Module identity resolution

F650BFBF2G0HIE is a custom configuration model in the F650 series, where each letter represents a different function of the module configuration

F650: Product series, representing feeder protection function.

BFBF2: Dual power input, circuit breaker control, two sets of protection configuration.

G0: Refers to supporting Modbus, DNP3, and IEC 61850 communication protocols.

H: Equipped with HMI (Graphic Display Screen).

I: Refers to the ability to input high current.

E: Refers to environmental reinforcement type, suitable for harsh industrial environments.

This product has all the necessary protections, including phase to phase short circuit, ground fault, inverse time limit, overcurrent protection, undervoltage, overload, startup delay, and circuit breaker fault monitoring.

?  Technical specifications (typical configuration)

Model: F650 F650BFBF2G0HIE

Functional positioning: feeder protection, motor protection, circuit breaker control

Input voltage: 57250V DC (multiple specifications available)

Input current: 1A/5A CT support, automatic switching

Protection function: Full protection for 50/51, 50N/51N, 67, 59, 27, 46, 49, 50BF, etc

Control function: Manual/automatic control circuit breaker with tripping and reclosing functions

Communication interface: RS485, Ethernet USB、IRIG-B

Communication protocols: Modbus RTU/TCP, DNP3.0, IEC 61850 (including GOOSE)

Display interface: LCD graphic display screen+operation keyboard

Recording function: supports fault recording, event recording, and time synchronization

Digital input/output: up to 16 DI/DO options available

Installation method: panel embedded installation (with DIN rail/screw installation)

Environmental temperature: -40 ° C to+70 ° C (industrial grade)

Protection level: IP54 (panel)

Certification standards: ANSI, IEC, UL, CSA, CE

?  Main functional advantages

✅  Integrated full-featured feeder protection

Current, voltage, frequency, power direction, overload, and trip circuit are fully monitored, and high and low voltage feeders are all taken care of.

✅  Rich protocols and flexible system integration

Supports mainstream communication protocols such as Modbus RTU, TCP/IP, DNP3.0, and IEC 61850, and is compatible with various substation automation systems and dispatch center systems.

✅  Human computer interface friendly, easy to operate locally

Equipped with a large LCD screen display and shortcut keys, it is convenient to view the operating status, set parameters, and debug on site.

✅  Fault recording+event recording

Support SOE recording and time tagging accurate to the millisecond level, combined with IRIG-B time synchronization, suitable for power system accident tracing.

✅  Redundant power input ensures reliable operation

Equipped with dual independent power channels, any power failure does not affect the operation of the equipment.

✅  Modular design, easy installation, flexible expansion

Optional digital input/output modules and analog expansion to meet different engineering requirements.

GE F650 F650BFBF2G0HIE

?  Applicable scenarios

Protection of medium/high voltage distribution feeders

Industrial power distribution systems (petrochemical, steel, cement, power plants)

Intelligent Substation/Switching Station/Distribution Room

Wind power/photovoltaic access system protection

Protection and control system for electric motors, capacitors, and reactors

?  Recommended Related Models

F650BBFB2G0HIE: Single power version, suitable for general occasions

F650BFBF2G0HIE: Dual power enhanced version, recommended for heavy-duty applications

F650DFBF2G0HIE: Enhanced motor protection type

F650-CUSTOM: Engineering customized model, providing functional expansion support

GE D60: Differential protection relay, suitable for transformer protection

GE UR G60: Generator protection relay with synchronous detection function

?️  Installation and Debugging Instructions

Install embedded according to the standard 92mm panel opening size.

The communication port supports local debugging software connections (such as GE EnerVista Suite).

Parameter configuration and firmware updates can be remotely performed through USB ports or Ethernet.

It is recommended to enable redundant power supply during operation to avoid power failure and misoperation.

DI/DO needs to be wired correctly according to the protection logic diagram to ensure reliable tripping and local reset functions.
