Description

ABB 3BHB006716R0217， Belonging to the ABB SYNC HROTACT 5 series, it is the fifth generation synchronous equipment designed specifically for the synchronization and parallel connection of generators with the power grid. Simply put, it is like a “matchmaker” responsible for making the generator and the power grid “compatible” and achieving precise and safe grid connection operations. This 3BHB006716R0217 model is actually a SYN5302A-Z, V217 model, which is a redundant automatic dual channel synchronization device. It integrates two SYN5202 dual channel units, which are usually connected in series to form a four channel system.

This dual channel design is a major highlight of 3BHB006716R0217. During normal operation, the four channels simultaneously monitor the parameters of the generator and the power grid to ensure that they are perfectly matched in terms of voltage, frequency, phase, and other aspects. Once one of the units fails, the system can seamlessly switch to another unit without affecting the grid connection process. This redundant design greatly improves the reliability and safety of grid connection, avoiding downtime and losses caused by equipment failures. ABB 3BHB006716R0217 can achieve fully automatic grid connection, and strives to achieve the safest connection every time, which saves users the cost of redundant bypass synchronization equipment.

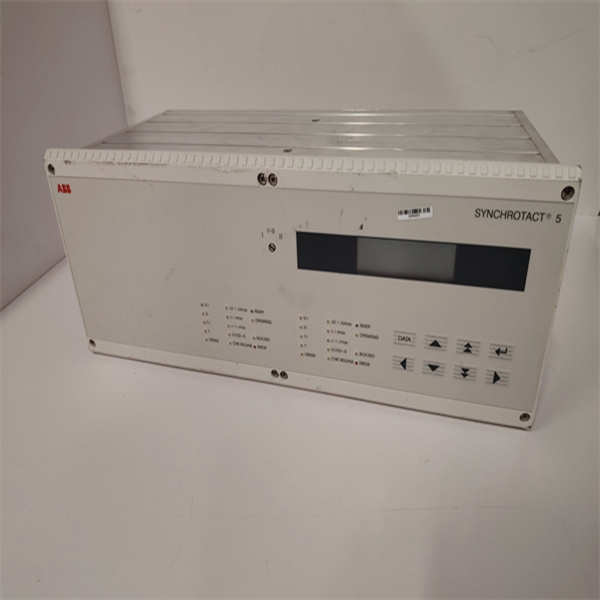

ABB 3BHB006716R0217

3BHB006716R0217 Technical Specification

Product model: 3BHB006716R0217

Manufacturer: ABB

Product type: Synchronous device

Series: SyncHROTACT 5

Number of channels: Dual channel (redundant)

Rated frequency: 50 Hz/60 Hz

Communication protocol: LON

Parameter settings: 7 sets

Application: Generator grid connection, synchronous line parallel connection

Protection standard: Complies with IEC standards

Certification: CE certification

Main features and advantages

ABB 3BHB006716R0217 synchronous equipment is not an ordinary grid connected device. It combines ABB’s years of technical accumulation in the field of synchronous control, which can be summarized in one sentence as precise, reliable, and intelligent.

Firstly, 3BHB006716R0217 adopts a dual channel redundancy design, which is one of its biggest highlights. It actually integrates two independent synchronization units, and under normal circumstances, the dual channels work simultaneously, verifying each other to ensure a foolproof grid connection process. Once a channel fails, the system can automatically switch to another channel, achieving seamless switching without affecting grid connection operations. This design, in power systems that require extremely high reliability, is like a “nail in the sea”.

Secondly, 3BHB006716R0217 has a high degree of automation and intelligence. It can automatically adjust the voltage, frequency, and phase of the generator to perfectly match the grid parameters, achieving fully automatic grid connection. Moreover, it also supports multiple communication protocols, such as LON (Local Operating Network), which facilitates remote monitoring and control. In addition, 3BHB006716R0217 provides up to 7 sets of parameter settings, which can flexibly adapt to different application scenarios and generator types.

Then, the compatibility of 3BHB006716R0217 is also very good. It supports two rated frequencies of 50Hz and 60Hz, complies with IEC standards and CE certification, and can be used in conjunction with various types of generators and power grids. At the same time, it also supports dead bus/dead line function, which can achieve reliable grid connection even in the case of complete power failure of the grid or generator.

Finally, ABB, as a global leader in the fields of power and automation, provides comprehensive technical support and after-sales service for 3BHB006716R0217. This means that users can receive professional guidance and assistance from ABB during use, without worrying about technical difficulties. Moreover, ABB’s global service network ensures that users can receive timely spare parts and maintenance services anywhere.

application area

ABB 3BHB006716R0217 synchronous equipment is mainly used in various situations where the generator set needs to be connected to the power grid.

Firstly, in power plants, whether it is traditional thermal power plants, hydropower plants, or emerging wind and solar power plants, 3BHB006716R0217 is required. The generator sets of these power plants need to be synchronized with the grid in order to deliver electricity to thousands of households. 3BHB006716R0217 can accurately control the output of the generator, ensuring that its voltage, frequency, and phase are consistent with the grid, achieving safe and stable grid connection.

Secondly, in distributed power generation systems, such as industrial parks, hospitals, schools, and other self owned generator sets, 3BHB006716R0217 is also required. These self owned power stations usually need to be connected to the main power grid for operation, in order to improve the reliability and flexibility of power supply. 3BHB006716R0217 can achieve seamless switching between self owned power stations and the main power grid, ensuring power supply for important users.

In addition, in some special application scenarios, such as ship power stations, mobile power stations, etc., 3BHB006716R0217 is also required. These power stations usually need to switch between different locations and different power grids. 3BHB006716R0217 can adapt to various complex power grid environments and achieve fast and reliable grid connection.

In summary, as long as it involves the connection between the generator set and the power grid, 3BHB006716R0217 can come in handy. It is like a professional ‘grid expert’, ensuring that every connection is safe and efficient.

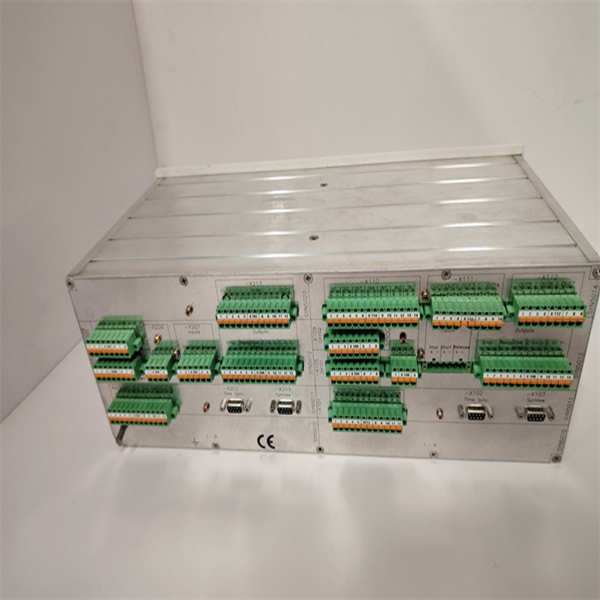

ABB 3BHB006716R0217

Related products

The products related to ABB 3BHB006716R0217 synchronous equipment mainly consist of auxiliary equipment and supporting modules, which together form a complete generator grid connected system.

Firstly, voltage transformers (VT) and current transformers (CT) are essential. They are used to measure the voltage and current of generators and power grids, and transmit these signals to 3BHB006716R0217 as the basis for synchronization and grid connection.

Secondly, circuit breakers are key executing components in the grid connection process. After 3BHB006716R0217 issues the grid connection command, the circuit breaker is responsible for connecting the generator set to the grid.

In addition, protection relays are used to monitor the operating status of the power grid and generator sets. Once a fault occurs, they can promptly cut off the power supply and protect equipment safety.

In some complex grid connected systems, programmable logic controllers (PLCs) or distributed control systems (DCS) may also be used to achieve higher-level control and automation functions.

If remote monitoring and control are required, communication modules such as Ethernet modules or fiber optic modules may also be used.

For some special application scenarios, such as multiple generator units connected to the grid, a synchronization controller may also be used to coordinate the operation of different generator units.

Installation and maintenance

Preparation before installation: Before installing the ABB 3BHB006716R0217 synchronous equipment, it is essential to carefully read the installation manual provided by the manufacturer to ensure a thorough understanding of the equipment’s wiring, parameter settings, and installation environment requirements. Check all cables and connectors for integrity and ensure that all wiring complies with relevant electrical safety regulations. The installation site should be dry, ventilated, and avoid strong electromagnetic interference and severe vibration. Prepare necessary installation tools and testing equipment, including multimeters, oscilloscopes, etc.

Maintenance suggestion: Regular maintenance is crucial to ensure the long-term stable operation of ABB 3BHB006716R0217 synchronous equipment. Regularly check whether the wiring of the equipment is loose or corroded, and clean the dust and dirt on the surface of the equipment. Regularly check the operating parameters of the equipment, such as voltage, current, frequency, etc., to ensure that they are within the normal range. Regularly conduct self inspection and functional testing of the equipment to verify whether its synchronization and grid connection functions are normal. If any abnormal situations are found, such as abnormal indicator lights, display error messages, etc., professional technicians should be contacted in a timely manner for maintenance.
