Description

The ABB PP877 (3BSE069272R2) is a sophisticated Human Machine Interface (HMI) touch panel, a key component of ABB’s versatile Panel 800 series. Designed for demanding industrial environments, this unit provides an intuitive and high-resolution touchscreen interface for monitoring, controlling, and interacting with complex industrial processes and machinery.

Application Scenarios:

Consider a modern automotive assembly plant, a highly automated environment where precision and real-time feedback are paramount. Operators constantly need to monitor production line status, adjust parameters, and troubleshoot issues quickly to maintain efficiency and quality. In one such facility, the legacy push-button control panels were cumbersome, offering limited data visualization and requiring operators to navigate through multiple screens or even separate terminals to access critical information. This led to slower response times, increased potential for errors, and bottlenecks in production. The integration of the ABB PP877 (3BSE069272R2) operator panels across various workstations provided a revolutionary upgrade. Operators now interact with a vivid, high-resolution touchscreen display that presents real-time production data, machine diagnostics, and control options in an easily digestible graphical format. The PP877 (3BSE069272R2)‘s intuitive interface allowed for rapid adoption, significantly reducing training time. More importantly, the ability to quickly visualize and respond to anomalies directly from the HMI minimized downtime, optimized machine performance, and ultimately contributed to a smoother, more efficient automotive production line. The PP877 (3BSE069272R2) transformed complex operations into manageable, touch-driven interactions, enhancing both operator effectiveness and overall plant productivity.

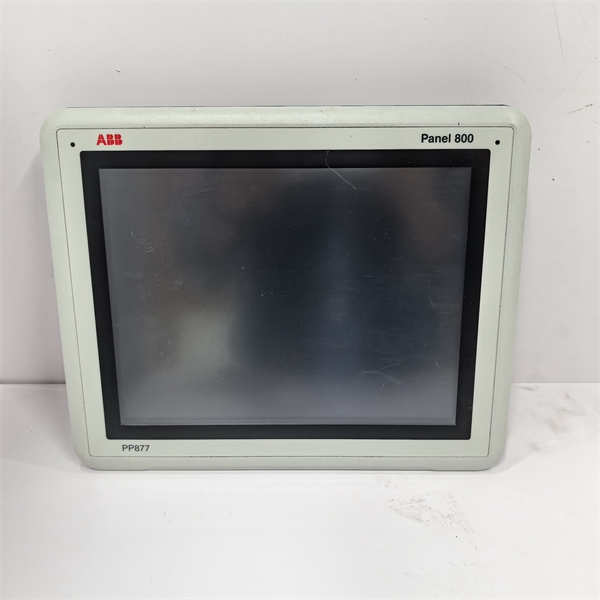

ABB PP877 3BSE069272R2

Parameter:

Here are the key parameters for the ABB PP877 (3BSE069272R2):

Technical Principles and Innovative Values:

The ABB PP877 (3BSE069272R2) leverages proven HMI technology with key innovations to provide a powerful and user-friendly interface for industrial control.

• Innovation Point 1: Optimized Display for Industrial Clarity: The PP877 (3BSE069272R2)features a high-resolution 10.4-inch TFT-LCD display with 64k colors and LED backlight. This combination provides exceptional clarity, contrast, and wide viewing angles, making it easy for operators to interpret complex process graphics and data even in challenging lighting conditions. This is a significant improvement over older monochrome or low-resolution HMIs, which often led to misinterpretations and operator fatigue. The clear visuals contribute directly to faster decision-making and reduced operational errors.
• Innovation Point 2: Robust Resistive Touch Technology: Employing a durable resistive touchscreen, the PP877 (3BSE069272R2)ensures reliable operation even with gloved hands or in environments prone to dust and moisture. Unlike capacitive touchscreens that can be affected by these factors, the resistive technology provides consistent and accurate touch response, critical for uninterrupted operation in factories and processing plants. The “1 million finger touch operations” rating underscores its exceptional longevity and reliability in continuous industrial use.
• Innovation Point 3: Versatile Connectivity for Seamless Integration: The PP877 (3BSE069272R2)is equipped with multiple communication ports, including Ethernet, USB, and two combined RS232/RS422/RS485 serial ports. This comprehensive connectivity allows for seamless integration into a wide array of industrial networks and provides flexibility for connecting various peripherals. This eliminates the need for external converters or gateways in many scenarios, simplifying system architecture and reducing overall installation costs compared to HMIs with limited communication options.

Application Cases and Industry Value:

In a food and beverage processing plant, ensuring consistent product quality and adherence to strict hygiene standards are paramount. Their bottling line, while automated, relied on outdated HMIs that provided limited real-time data, making it difficult for operators to quickly identify and address anomalies like fluctuating fill levels or packaging defects. This often resulted in product waste and increased manual inspection efforts.

The plant upgraded its control interfaces with the ABB PP877 (3BSE069272R2) panels. Positioned strategically along the bottling line, the PP877 (3BSE069272R2) now displays live production metrics, detailed alarm messages, and interactive control schematics. Operators can easily adjust conveyor speeds, monitor sensor readings, and initiate cleaning cycles directly from the intuitive touchscreen. The high-resolution display made it simple to visualize trends and identify deviations at a glance. User feedback highlighted the panel’s responsiveness and the clarity of information, which dramatically improved reaction times to process upsets. The integration of the PP877 (3BSE069272R2) led to a 10% reduction in product rejects, a 5% increase in line efficiency due to faster troubleshooting, and improved operator satisfaction. The PP877 (3BSE069272R2) proved to be a critical enabler for enhanced operational visibility and efficiency in a hygiene-sensitive production environment.

ABB PP877 3BSE069272R2

Related Product Combination Solutions:

To build a robust and integrated automation solution with the ABB PP877 (3BSE069272R2), consider these complementary ABB products:

• ABB AC500 Series PLCs: Such as the PM581-ETH, providing the core logic and control for processes, with the PP877 (3BSE069272R2)serving as its primary operator interface.
• ABB AC 800M Controllers: Including models like the PM861AK01, for larger and more complex Distributed Control System (DCS) applications where the PP877 (3BSE069272R2)acts as a local or remote operator station.
• ABB Panel Builder 800 Software: The dedicated engineering tool used to configure and program the HMI applications that run on the PP877 (3BSE069272R2), ensuring efficient development.
• ABB SD82x Series Fieldbus Communication Modules: Such as the SD823, to extend the communication capabilities of the HMI to various field devices and protocols.
• ABB S800 I/O Modules: For reliable input/output signal processing from field devices, with data being visualized and controlled via the PP877 (3BSE069272R2).
• ABB 800xA System: For a complete enterprise-wide control and information management system, where the PP877 (3BSE069272R2)can function as an integrated operator workplace.
• ABB PS877 Power Supply: Providing the stable 24 VDC power required for the reliable operation of the PP877 (3BSE069272R2).

Installation, Maintenance, and Full-Cycle Support:

The ABB PP877 (3BSE069272R2) is designed for ease of installation, resilient operation, and simplified maintenance. Its slim, space-saving profile and panel-mount design ensure quick and secure integration into control cabinets and operator consoles. The logical arrangement of connectors and clear wiring diagrams minimize installation errors, allowing for rapid deployment in new systems or seamless retrofits. The IP65 front protection rating ensures the HMI is sealed against dust and water ingress, making it suitable for even the most challenging industrial environments without additional protective enclosures.

Routine maintenance for the PP877 (3BSE069272R2) is minimal, primarily involving periodic cleaning of the touchscreen surface to ensure optimal visibility and responsiveness. The robust resistive touch technology is highly durable, designed for millions of operations, which significantly extends the product’s lifespan and reduces the need for frequent servicing. In the event of a rare component issue, its modular design facilitates straightforward replacement, minimizing downtime and ensuring operational continuity.

ABB provides comprehensive full-cycle support for the PP877 (3BSE069272R2), including detailed technical manuals, remote diagnostic tools, and a global network of service professionals. We offer training programs to empower your in-house teams with the knowledge to maximize the HMI’s capabilities and perform efficient troubleshooting. Our commitment extends to readily available genuine spare parts and long-term product support, safeguarding your investment and ensuring the continuous, reliable operation of your industrial processes.
