Description

The Bently Nevada 3500/22M (138607-01V) is a critical Transient Data Interface (TDI) module, serving as the essential communication gateway within the renowned Bently Nevada 3500 Series Machinery Protection System. This specific variant, identifiable by the “V” in its part number (indicating optional features enabled, typically dynamic data capture), seamlessly connects the robust 3500 monitoring system to advanced machinery management software, such as GE’s System 1, enabling comprehensive online condition monitoring and predictive maintenance, particularly for transient events, for vital industrial assets.

Application Scenarios:

Imagine a large combined-cycle power plant, where massive gas and steam turbines operate in tandem, requiring precise control during startup, shutdown, and load changes. These transient events are often where critical machinery issues initiate or become evident, but traditional monitoring systems might only capture snapshots. One power generation company struggled with diagnosing intermittent vibration issues that only appeared during specific operational transitions, leading to prolonged troubleshooting and unplanned outages. The strategic deployment of the Bently Nevada 3500/22M (138607-01V) TDI modules in their turbine-generator sets provided the crucial insight they needed. By continuously collecting high-resolution transient waveform data, enabled by the “V” option, the 3500/22M (138607-01V) allowed engineers to “see” the machine’s dynamic behavior during these critical events. They could analyze orbital plots, Bode plots, and Nyquist plots, identifying subtle shifts in rotor dynamics that indicated early bearing wear or unbalance. This unprecedented level of detail enabled them to pinpoint the root cause of issues, schedule targeted maintenance during planned outages, and even optimize startup sequences to minimize stress on components. The 3500/22M (138607-01V) transformed their maintenance strategy from reactive to highly predictive, significantly reducing unplanned downtime and extending the operational life of their most valuable assets.

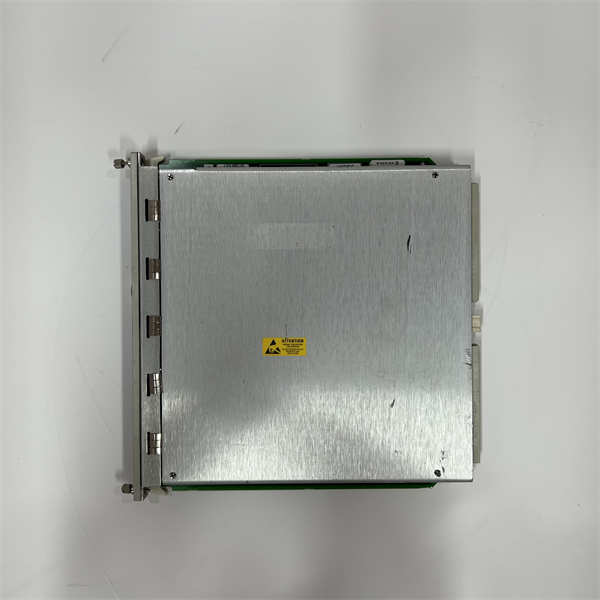

BENTLY 3500/22M 138607-01V

Parameter:

Here are the key parameters for the Bently Nevada 3500/22M (138607-01V):

Technical Principles and Innovative Values:

The Bently Nevada 3500/22M (138607-01V) leverages a combination of robust hardware and intelligent software to deliver its crucial data interface capabilities, with specific emphasis on dynamic data.

• Innovation Point 1: Integrated High-Resolution Dynamic Data Collection: The 3500/22M (138607-01V)combines the functions of a Rack Interface Module (RIM) with the advanced data collection capabilities necessary for high-resolution transient waveform data. This “V” variant signifies that an optional channel enabling disk has unlocked the ability to capture detailed dynamic data, such as vibration waveforms and orbits, during critical machine events (startups, shutdowns, load changes). This deep insight into transient behavior is crucial for accurate diagnosis of complex machinery problems that are not evident from steady-state data alone, a significant advancement over standard monitoring systems.
• Innovation Point 2: Non-Critical Path Design with Rack-Wide Security: Despite providing essential communication functions, the 3500/22M (138607-01V)is designed to operate outside the critical machinery protection path. This means a fault in the TDI module itself will not compromise the primary safety trip functions of the 3500 system. Furthermore, it provides rack-wide security with a physical keylock (RUN/PROGRAM modes), allowing authorized personnel to lock the system in a “Run” mode, preventing unauthorized configuration changes—a vital feature for maintaining system integrity in critical applications.
• Innovation Point 3: Seamless Integration with System 1 for Advanced Diagnostics: The 3500/22M (138607-01V)acts as the primary conduit for streaming both steady-state and high-fidelity transient data to GE’s System 1 machinery management software. This seamless integration allows for the powerful diagnostic and prognostic capabilities of System 1 to be fully leveraged, enabling advanced analysis tools (e.g., waterfall plots, polar plots, cascade plots) that utilize the rich transient data to identify subtle machinery degradation patterns, predict impending failures, and optimize operational parameters. This unified platform significantly enhances predictive maintenance capabilities.

Application Cases and Industry Value:

In a large refinery, a crucial turbomachinery train, consisting of a compressor and turbine, experienced intermittent high vibrations during certain load transitions. These events were difficult to reproduce and diagnose, leading to conservative operating procedures and reduced throughput. Relying solely on basic steady-state vibration data proved insufficient for pinpointing the root cause.

The refinery upgraded its monitoring system to include the Bently Nevada 3500/22M (138607-01V) modules. With the dynamic data capture enabled, the 3500/22M (138607-01V) began recording high-resolution vibration waveforms and associated process parameters every time the load transition occurred. Engineers were able to use System 1 software to analyze the transient data, revealing a resonance issue that was excited only at a specific speed range during acceleration. They observed how the rotor shifted position and how vibration amplitudes increased rapidly at this critical speed. This granular data allowed them to identify a previously undetected structural issue in the foundation. By addressing the structural problem during a planned outage, the refinery eliminated the intermittent high vibrations, allowing the turbomachinery train to operate at optimal efficiency throughout its full load range. This led to a 5% increase in throughput for that process unit and significantly reduced the risk of an unplanned shutdown, demonstrating the immense value of the 3500/22M (138607-01V)‘s advanced transient data capabilities.

BENTLY 3500/22M 138607-01V

Related Product Combination Solutions:

The Bently Nevada 3500/22M (138607-01V) is an integral part of a comprehensive machinery protection and condition monitoring system. Consider combining it with:

• Bently Nevada 3500/42M Proximitor/Seismic Monitor: These “M-series” monitors are directly compatible with the 3500/22M (138607-01V)and are essential for acquiring raw vibration and position data from proximity probes and accelerometers.
• Bently Nevada 3500/15 Power Supply: Provides the necessary power to the 3500 rack and all its modules, including the 3500/22M (138607-01V), ensuring stable operation.
• Bently Nevada 3500/05 Rack: The physical chassis that houses all the 3500 system modules, providing a robust and organized structure for the monitoring system.
• Bently Nevada 3300 XL Proximity Probes: These sensors are directly connected to the 3500 monitors and measure shaft relative vibration and thrust position, providing the raw data for the 3500/22M (138607-01V).
• Bently Nevada System 1 Software: The powerful software platform that receives and processes the data from the 3500/22M (138607-01V)for advanced diagnostics, trending, and predictive analytics.
• Bently Nevada 3500/25 Enhanced Keyphasor Module: Provides once-per-turn and multiple-event-per-turn signals crucial for accurate speed measurements and synchronous data analysis by the 3500/22M (138607-01V).
• Bently Nevada 3500/32M 4-Channel Relay Module: Used to provide alert and danger alarms based on the data processed by the 3500 system, including thresholds derived from parameters monitored via the 3500/22M (138607-01V).

Installation, Maintenance, and Full-Cycle Support:

The Bently Nevada 3500/22M (138607-01V) is designed for seamless integration and robust, long-term performance within critical machinery monitoring systems. Its installation typically involves placing the module in the dedicated Rack Interface Module slot (Slot 1) of a Bently Nevada 3500 rack and connecting it to the network via Ethernet. The physical keylock on the front panel provides a clear and secure mechanism to switch between “RUN” and “PROGRAM” modes, preventing unauthorized configuration changes while allowing for necessary adjustments. The module’s industrial-grade construction ensures reliable operation in demanding environments, with specified temperature and humidity ranges common to power generation, oil & gas, and heavy manufacturing.

Routine maintenance for the 3500/22M (138607-01V) is largely self-managed due to its robust design and comprehensive internal diagnostics, indicated by its front-panel LEDs. Any operational anomalies are typically flagged, facilitating proactive troubleshooting. As a non-critical path component, its maintenance can often be performed without affecting the primary machinery protection functions of the 3500 system, minimizing operational disruption. In the unlikely event of a module failure, its hot-swappable design allows for quick replacement, ensuring rapid system recovery and maximizing asset uptime.

Bently Nevada, a Baker Hughes business, provides unparalleled full-cycle support for the 3500/22M (138607-01V). This includes extensive technical documentation, specialized training programs for maintenance and reliability engineers, and a global network of highly skilled field service professionals. Through dedicated product support, readily available genuine spare parts, and comprehensive lifecycle services, Bently Nevada ensures the optimal performance and longevity of your machinery protection and condition monitoring investments.
